Gen 1 Raptor Suspension

Gen 1 Raptor Suspension — 2010–2014 Ford F-150 SVT Raptor

Build a faster, tougher, more capable Gen 1 Raptor. Foutz Motorsports Gen 1 Raptor suspension upgrades the 2010–2014 Ford F-150 SVT Raptor with everything from bolt-on bump stops and limit straps to full long-travel front kits, 5-link rear conversions, and Gen 1-to-Gen 3 suspension swaps. Whether you're chasing more wheel travel, eliminating bottom-out, or building a Baja-ready pre-runner, this is where the Gen 1 Raptor build starts.

We've been building Raptor parts longer than anyone — Foutz Motorsports was the first to modify a Ford Raptor and the first to race one in the Baja 1000 back in 2009. That race-proven experience goes into every suspension component we make.

Why Upgrade Your Gen 1 Raptor Suspension?

The factory Gen 1 Raptor suspension is good off the lot, but it limits travel, bottoms out hard, and uses components that weren't built for high-speed desert abuse or oversized tires. The right suspension upgrade transforms how the truck rides, handles, and survives. Benefits include:

• More wheel travel — long-travel and mid-travel kits dramatically increase front and rear travel over stock
• No more bottom-out — hydraulic bump stops and limit straps control the end of the stroke
• Stronger components — billet upper arms, fabricated lower A-arms, and spindles built for impacts
• Better shocks — Fox 3.0 coilovers and bypass shocks valved specifically for Foutz kits
• Modern geometry — Gen 1-to-Gen 3 conversions let you run the latest Raptor rear suspension design

Shop Gen 1 Raptor Suspension by Category

This collection includes a full range of suspension and steering components for the 2010–2014 Raptor:

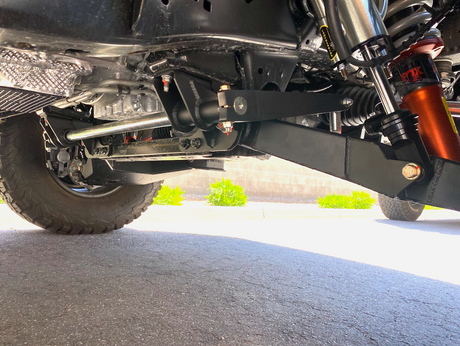

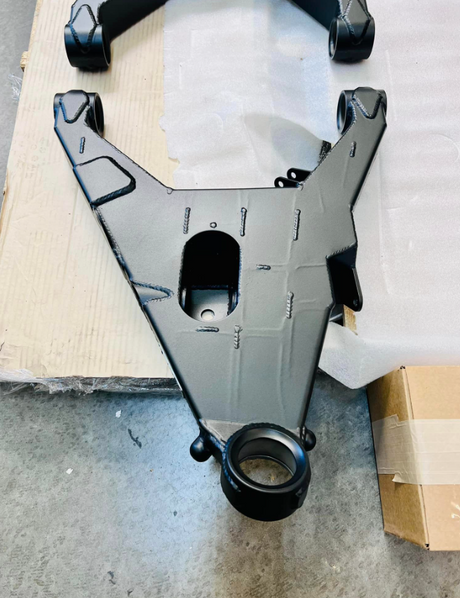

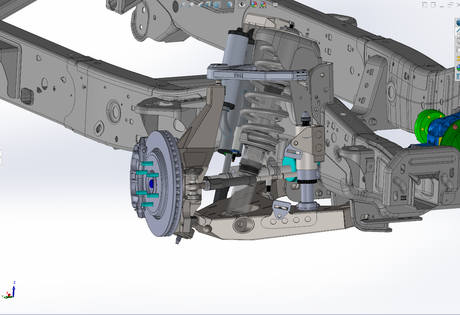

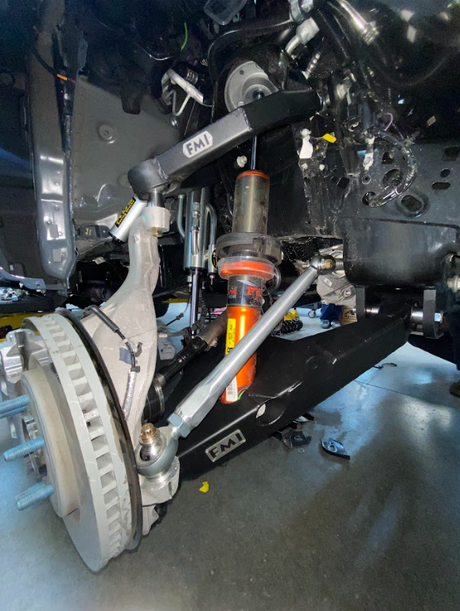

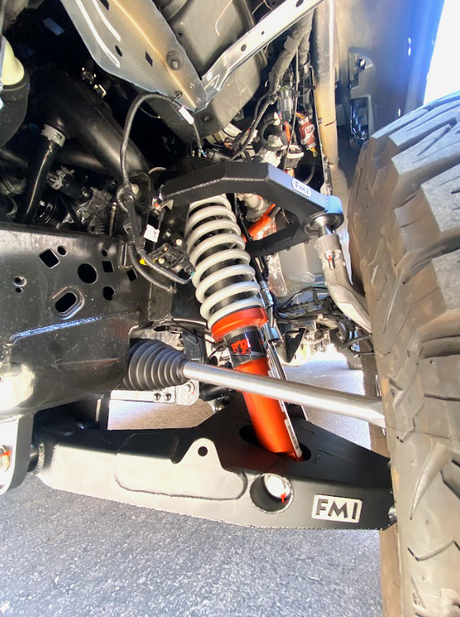

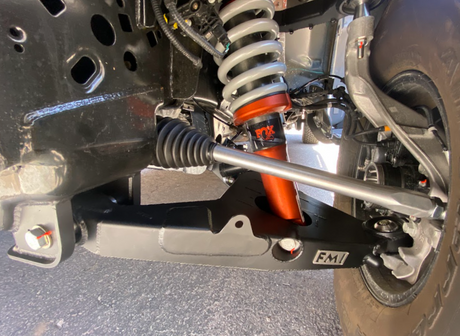

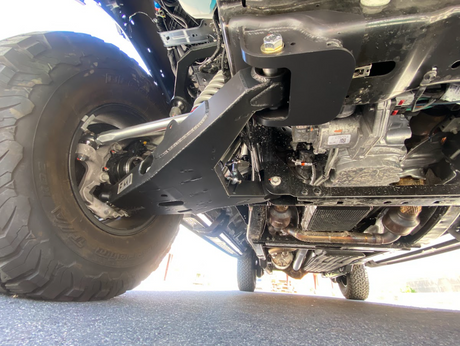

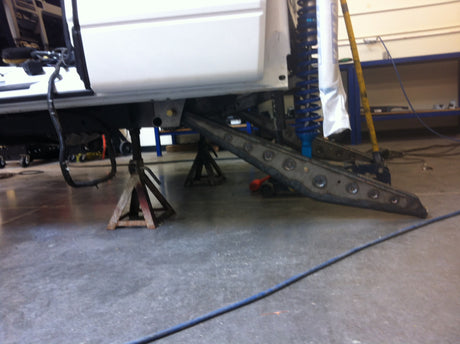

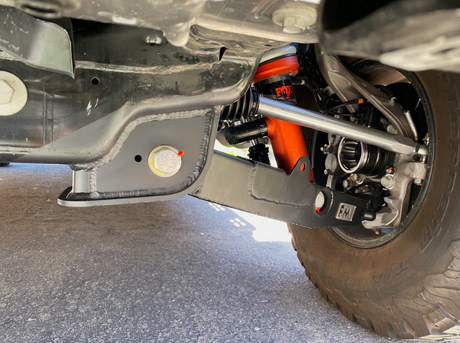

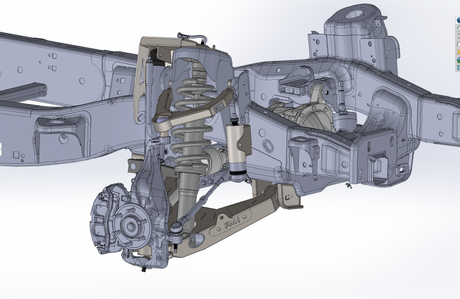

• Long-travel front kits — fabricated lower & billet upper control arms, spindles, and shock relocation for maximum front wheel travel
• Mid-travel front kits — bolt-on width and travel gains using the stock shock location, with or without billet upper arms

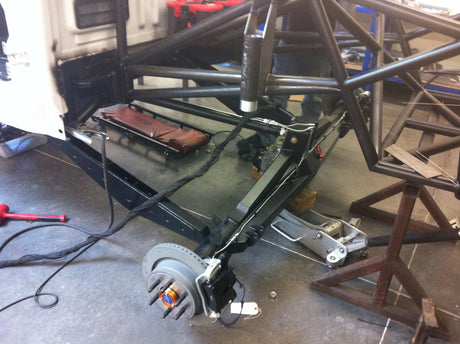

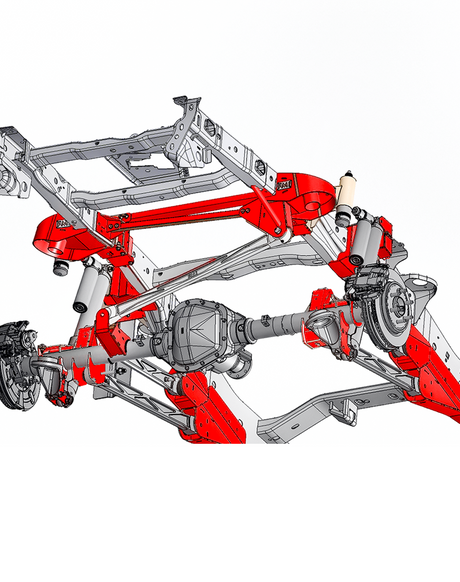

• 5-link & 4-link rear conversion kits — long-travel coilover rear ends with up to ~19 inches of travel for Gen 1 Raptors and F-150s

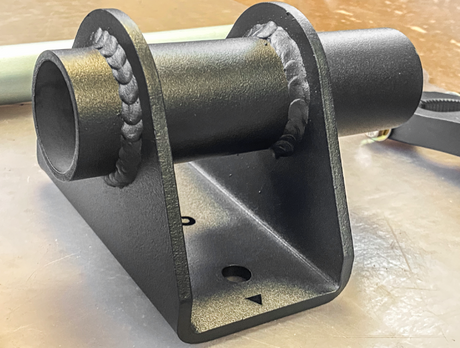

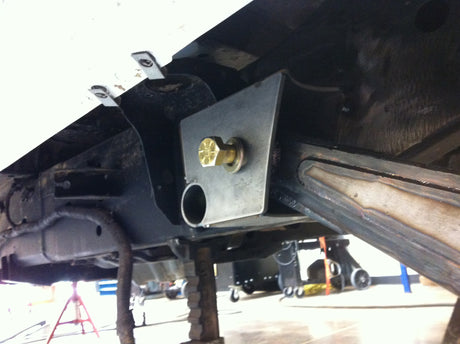

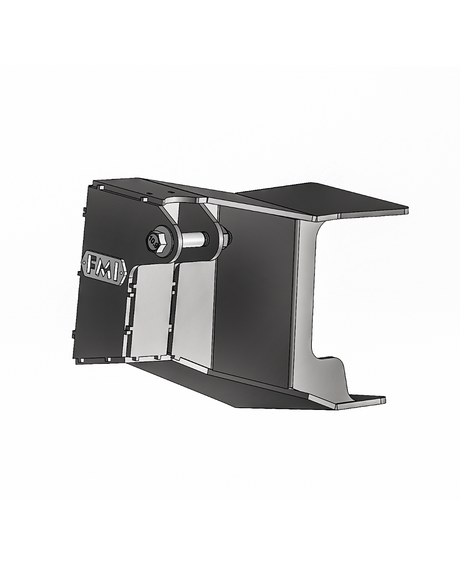

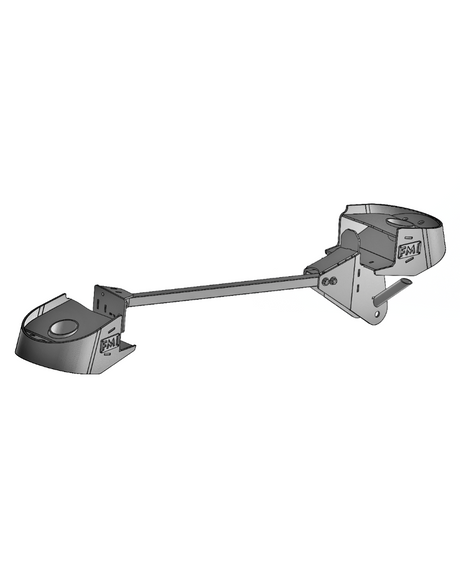

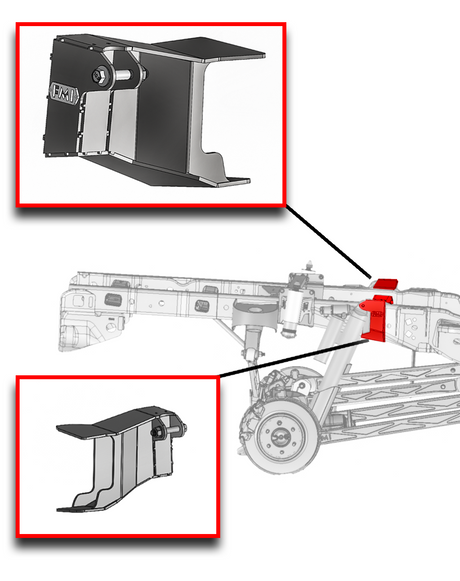

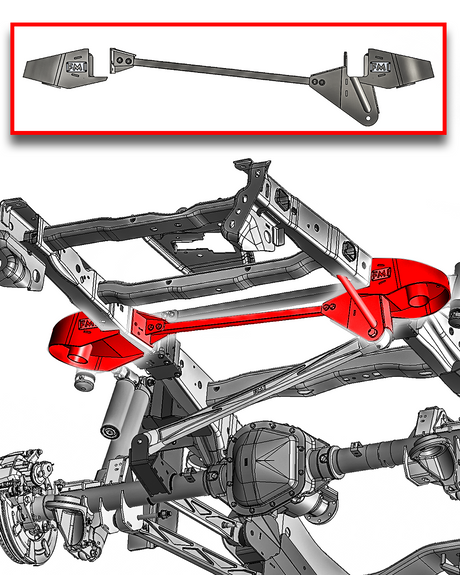

• Gen 1-to-Gen 3 rear conversion kits — frame mounts, 5-link arm mounts, spring & Panhard bar mounts, bump stop and upper shock mount kits

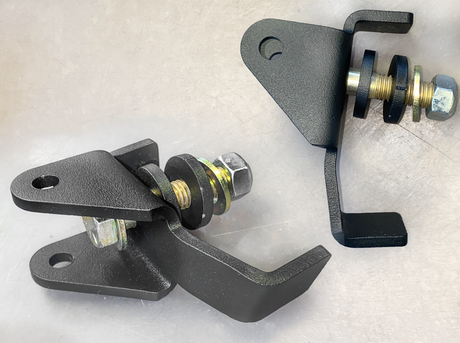

• Bump stops & limit straps — front and rear hydraulic bump stop kits and limit strap kits for stock and fabricated A-arms

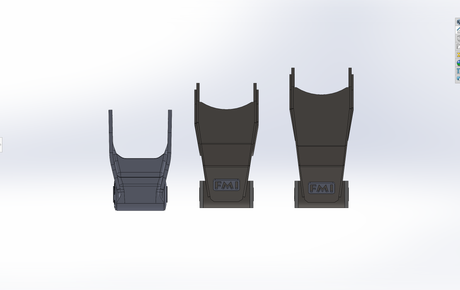

• Billet top hats & lift — heavy-duty billet top hats in stock height and 1.5-inch lift for the factory shock

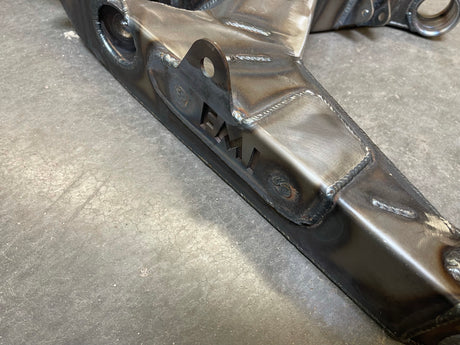

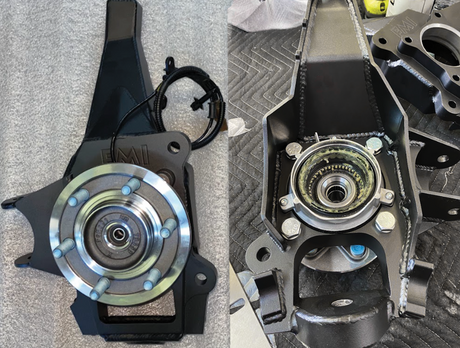

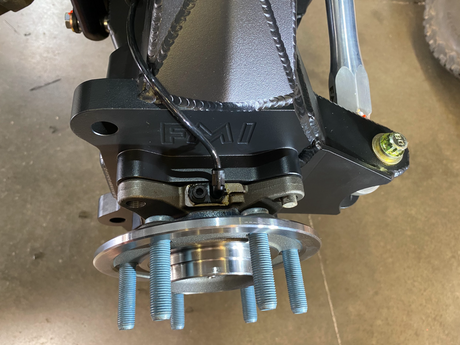

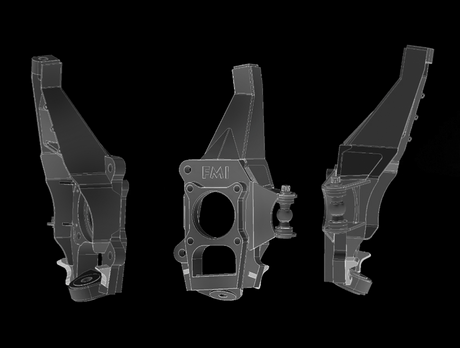

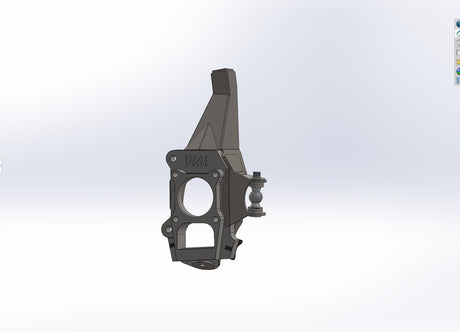

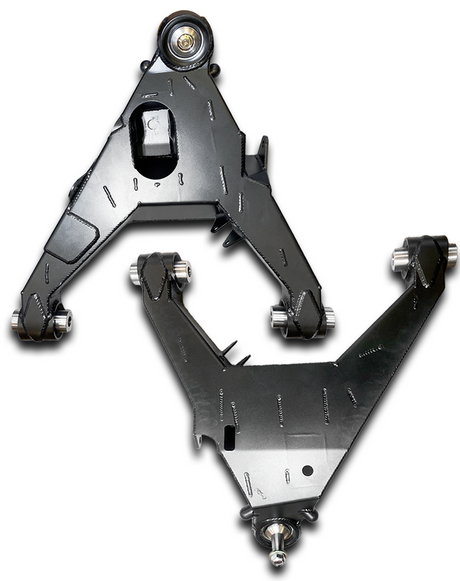

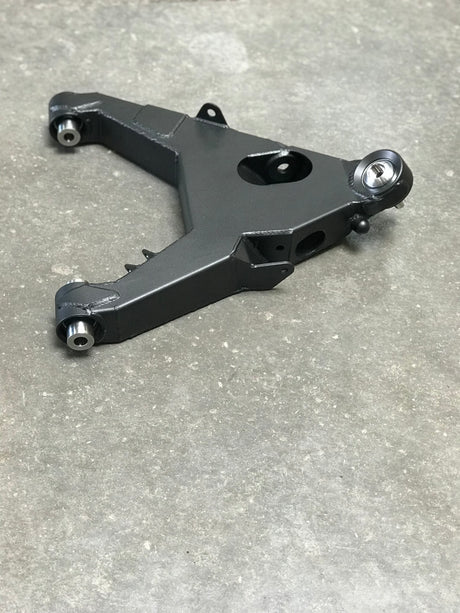

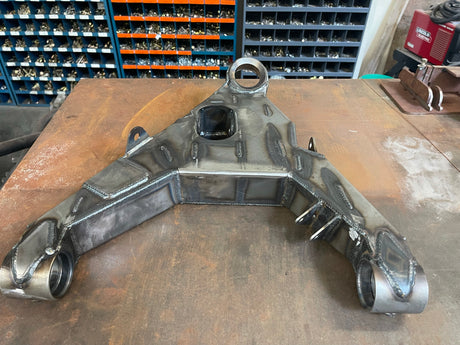

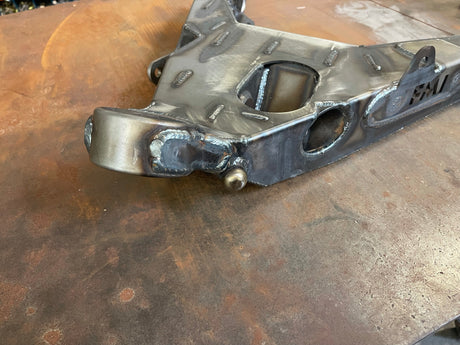

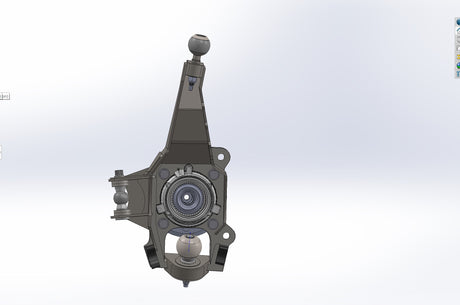

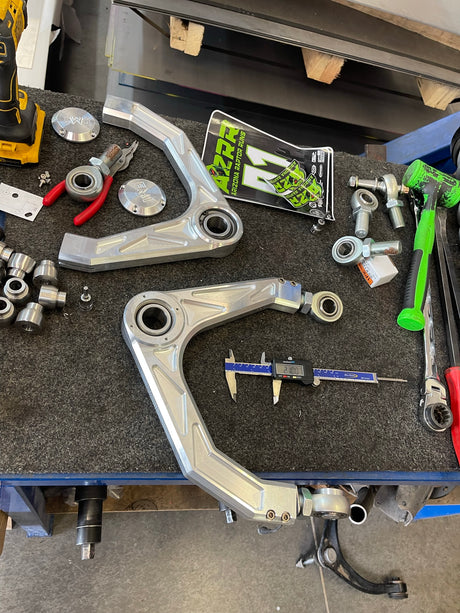

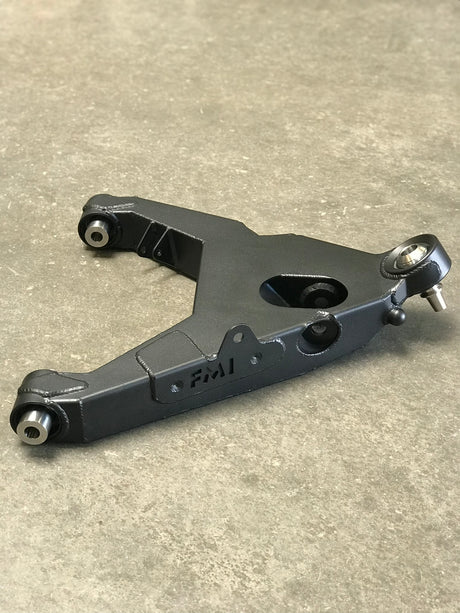

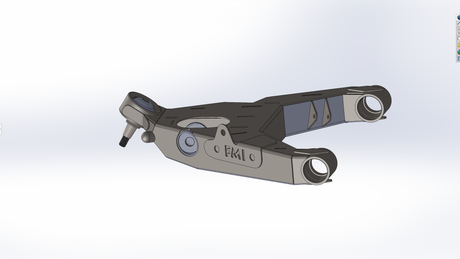

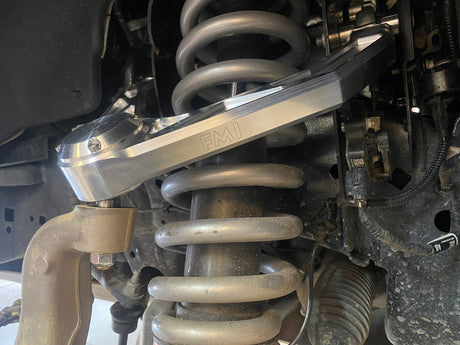

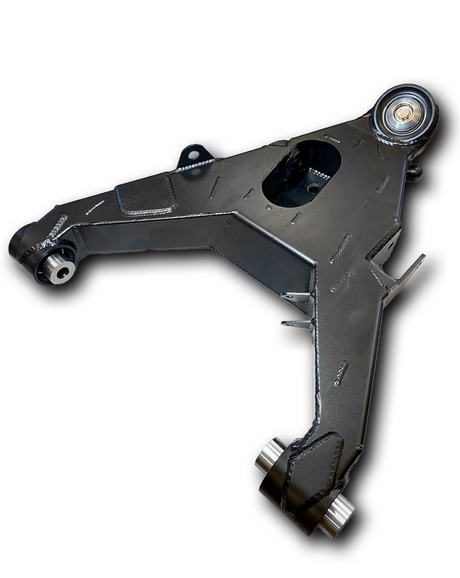

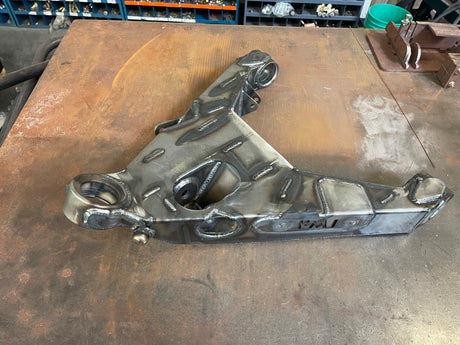

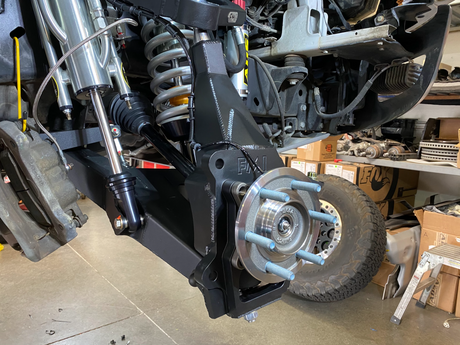

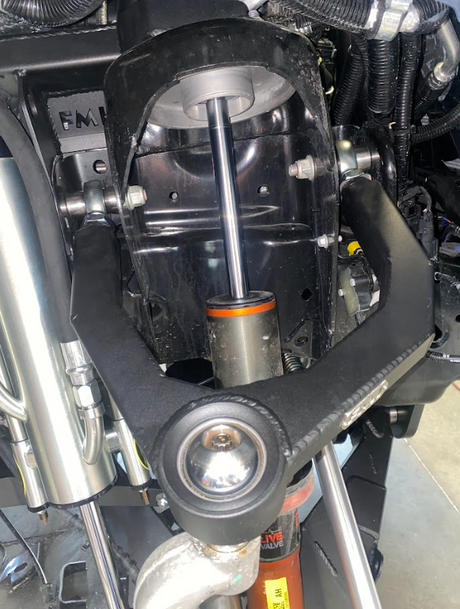

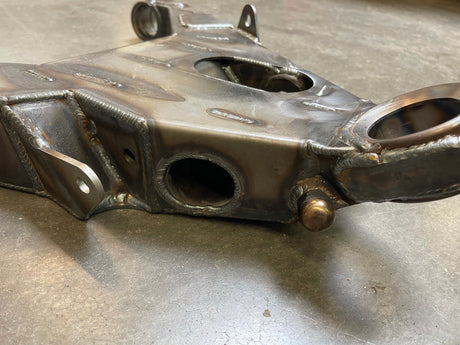

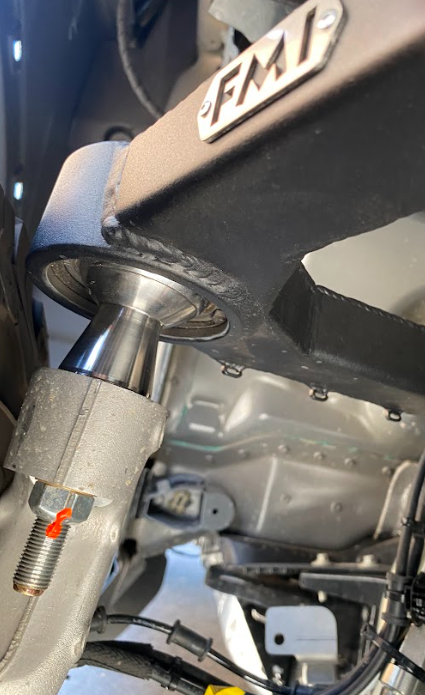

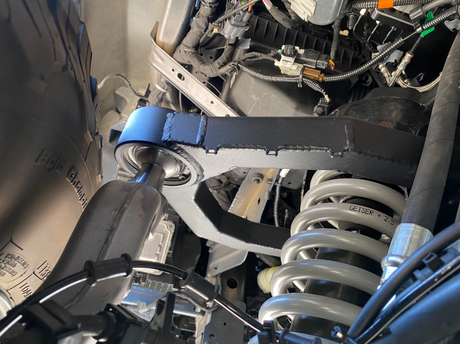

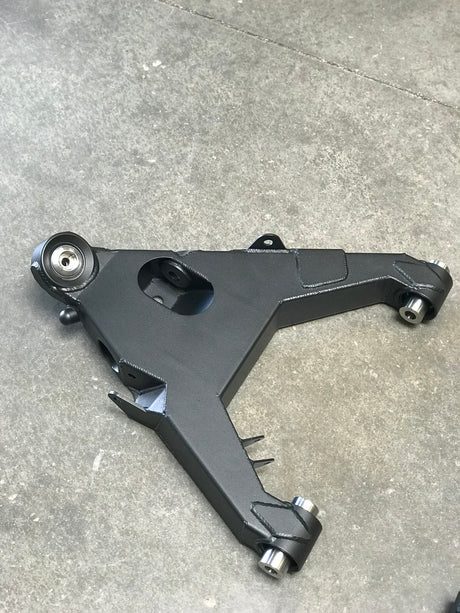

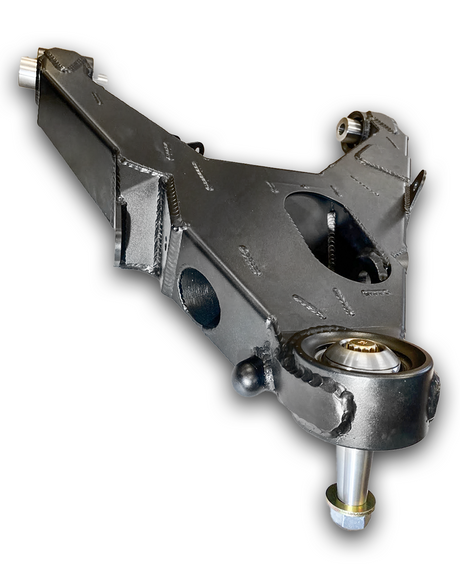

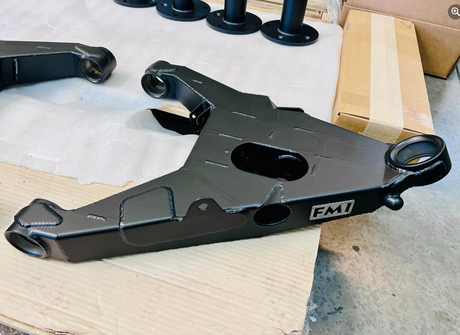

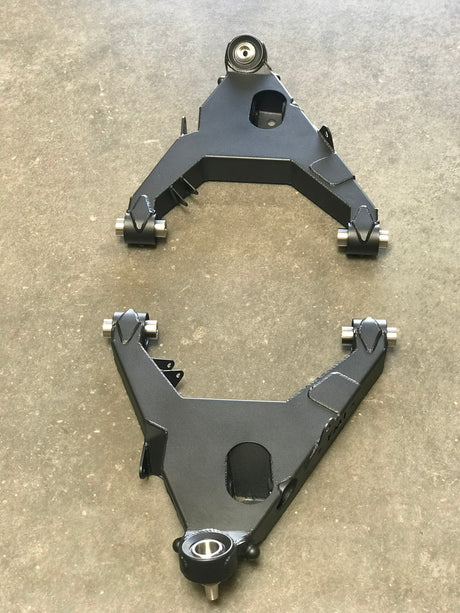

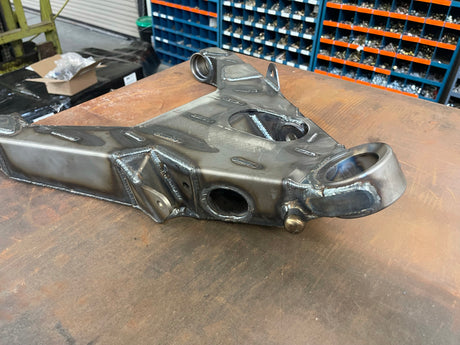

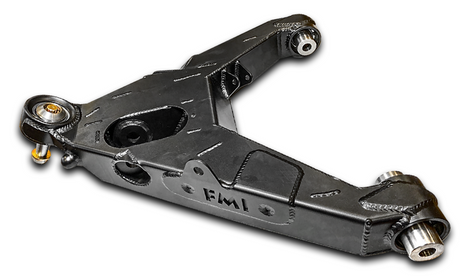

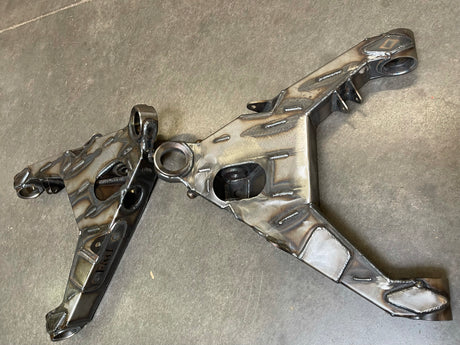

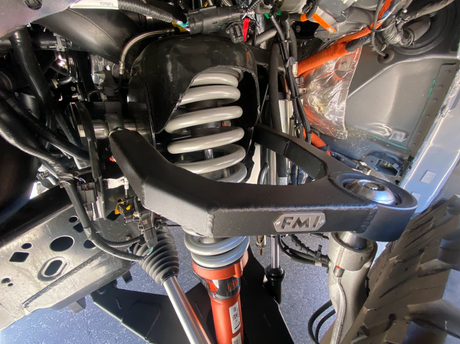

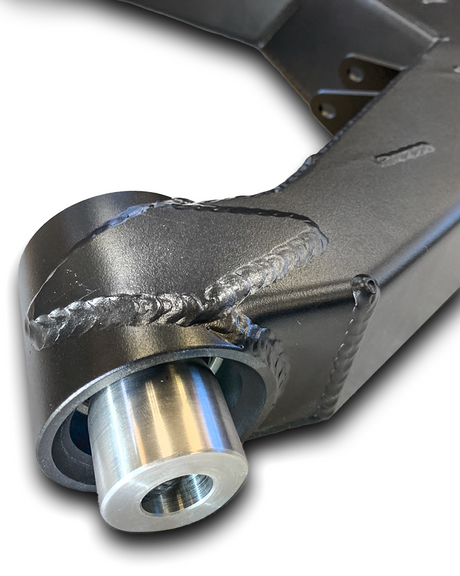

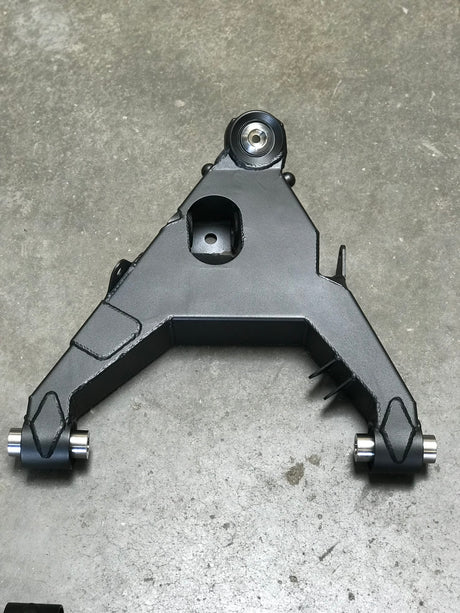

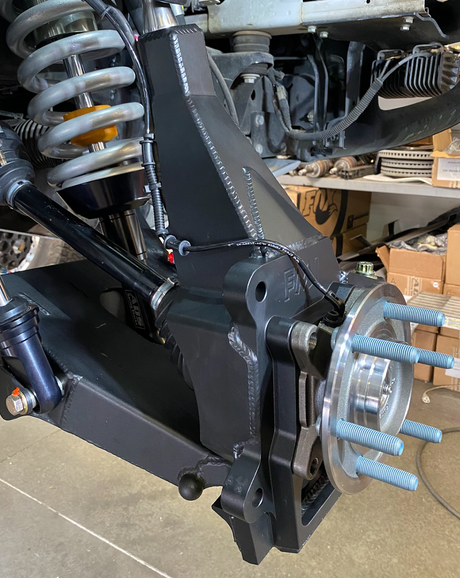

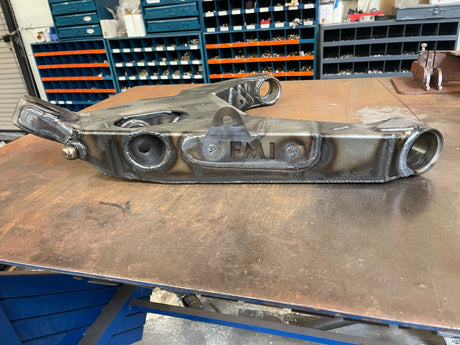

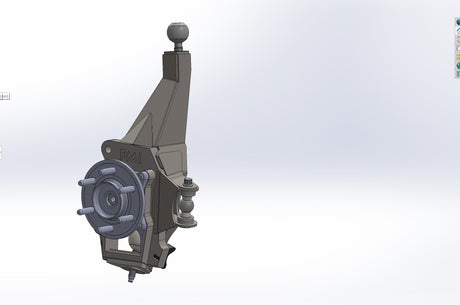

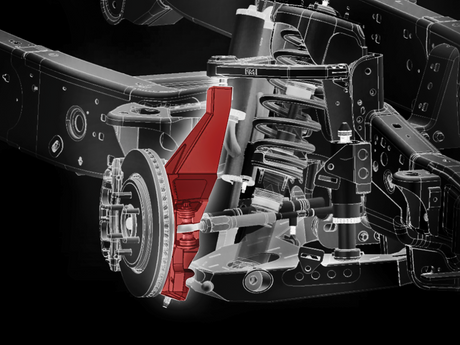

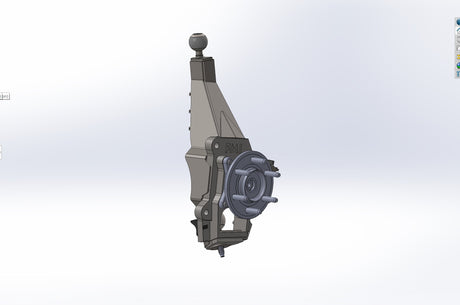

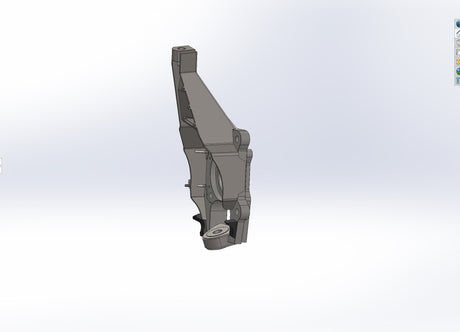

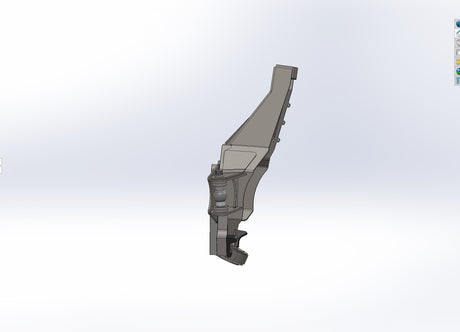

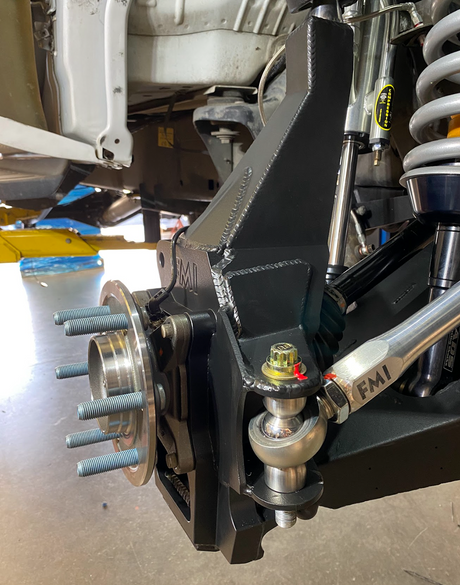

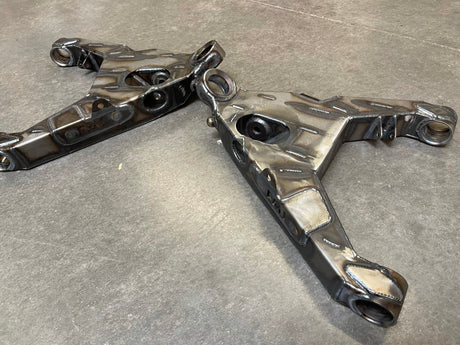

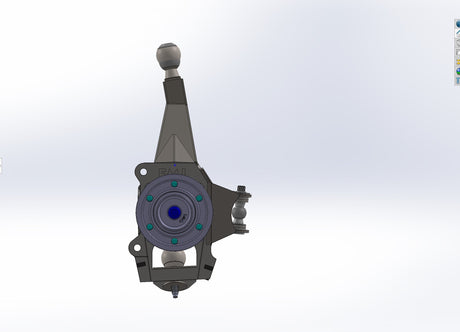

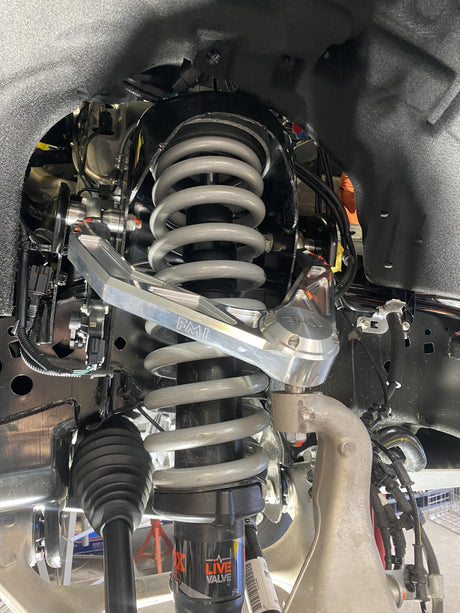

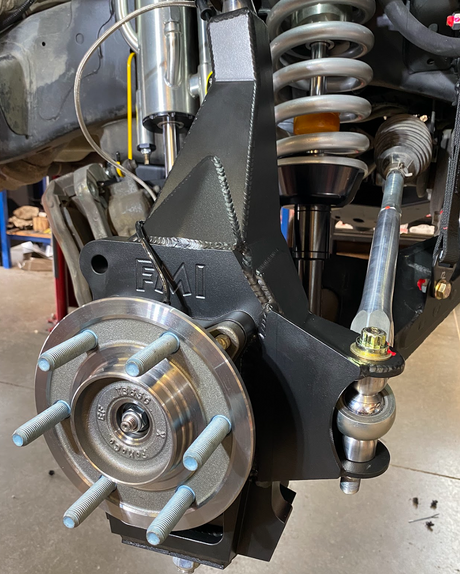

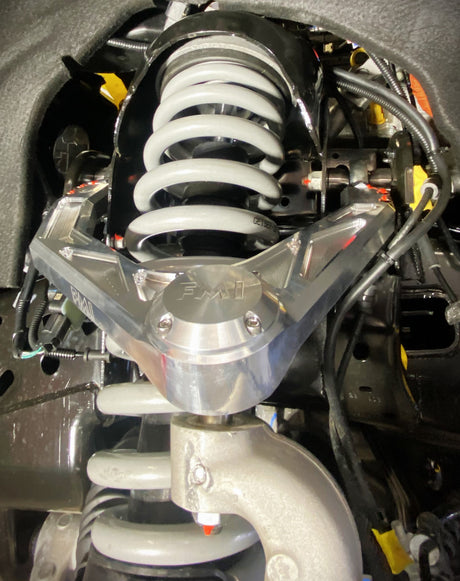

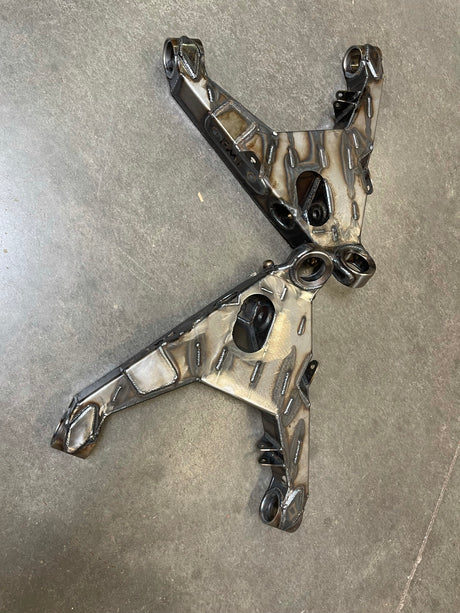

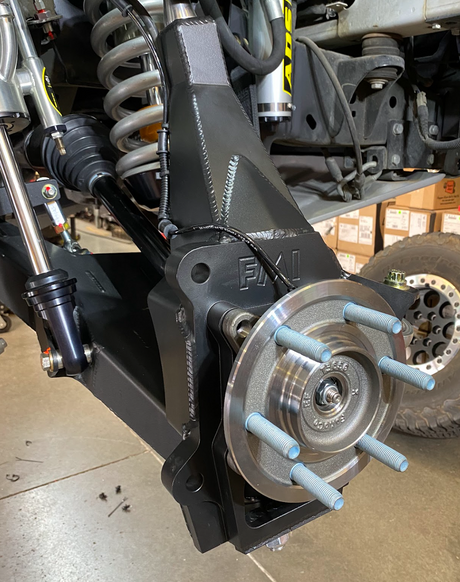

• Control arms & spindles — billet upper arm kits, stock-length fabricated lower A-arms, fabricated spindles, and arm pocket/slot replacement kits
• Fox 3.0 shocks — factory-upgrade Fox 3.0 coilovers and internal bypass shocks valved for Foutz front and mid-travel kits

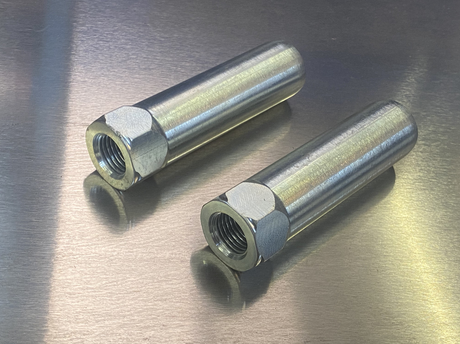

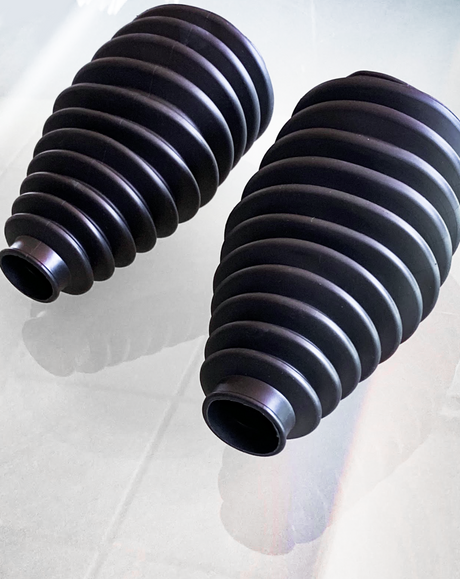

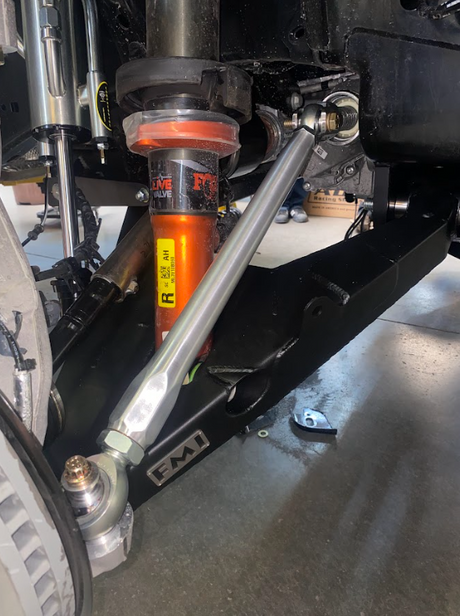

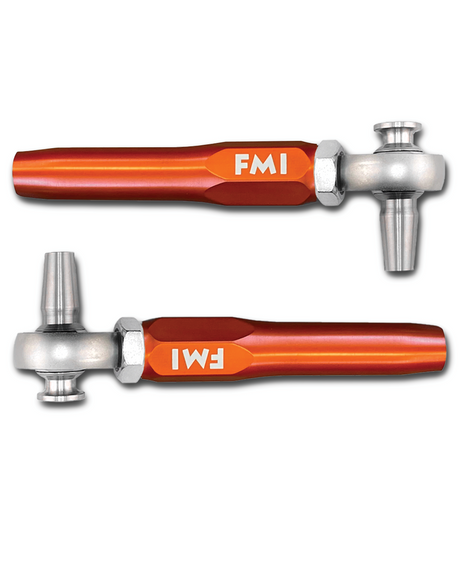

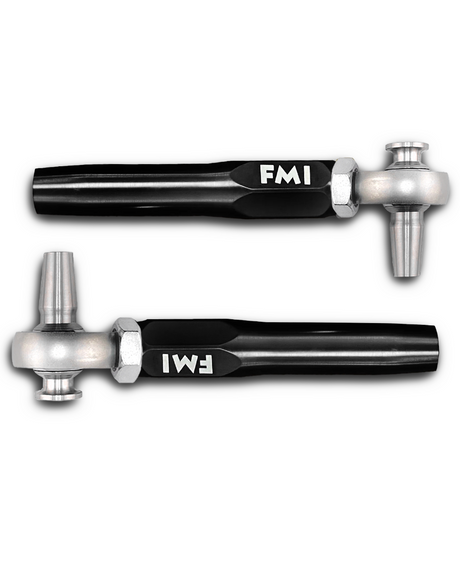

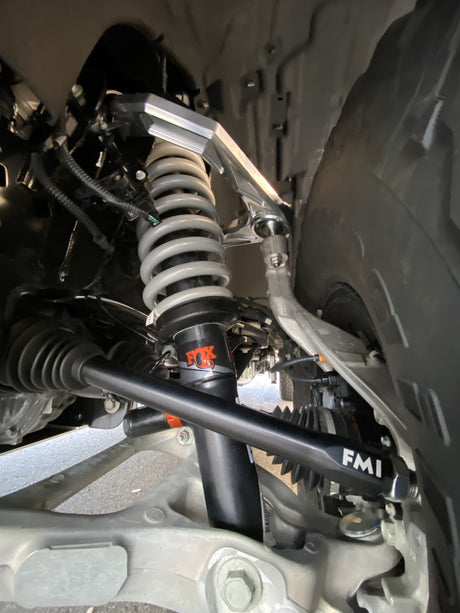

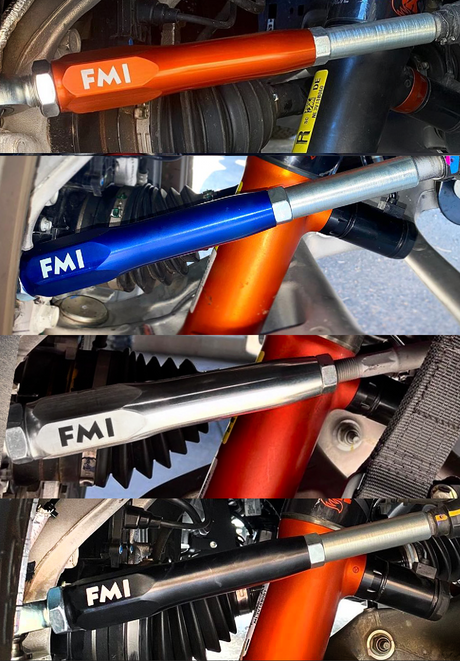

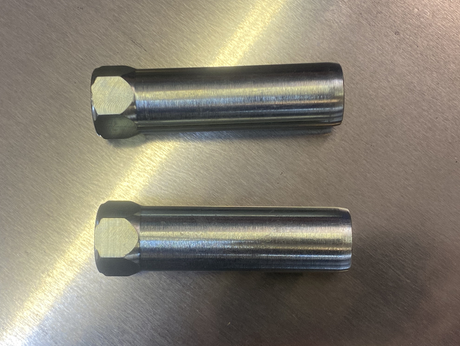

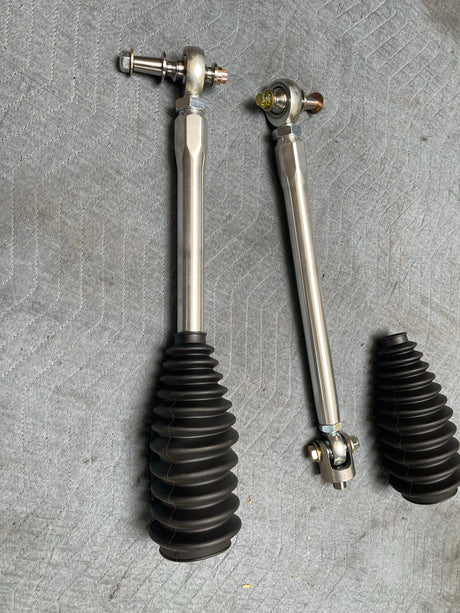

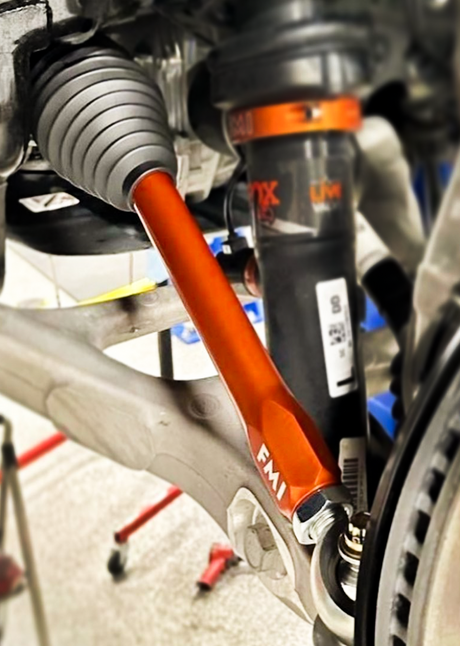

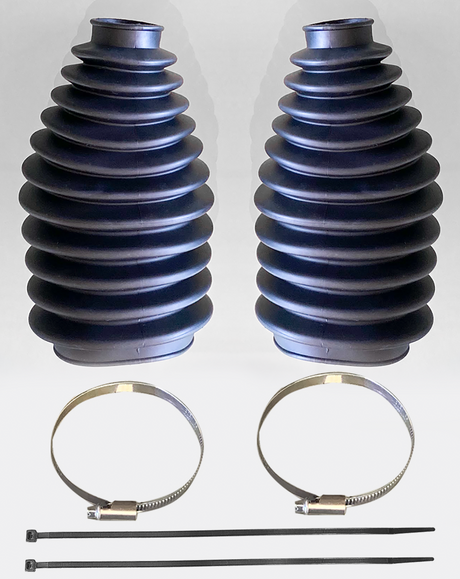

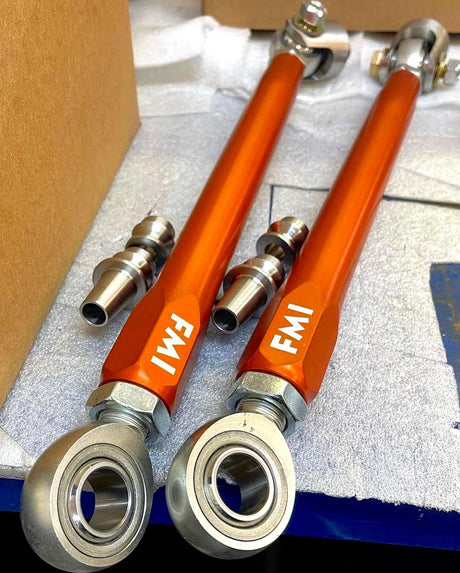

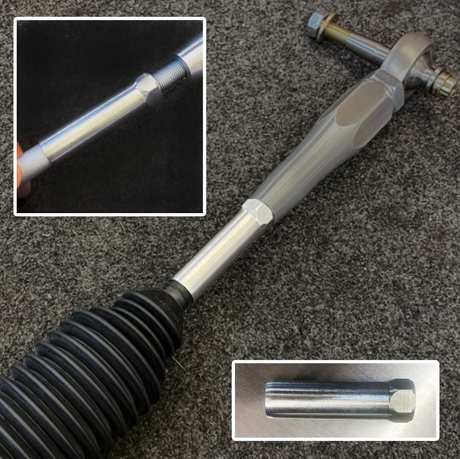

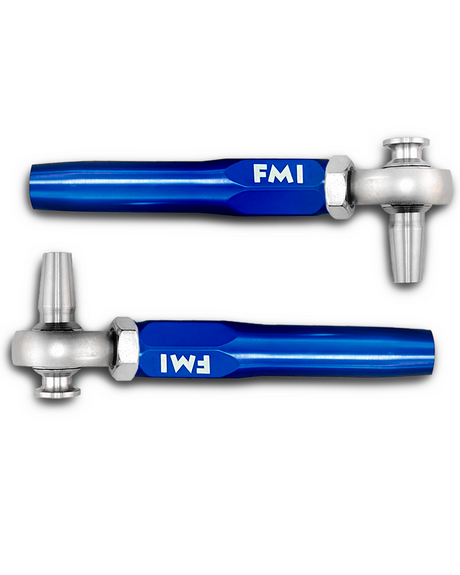

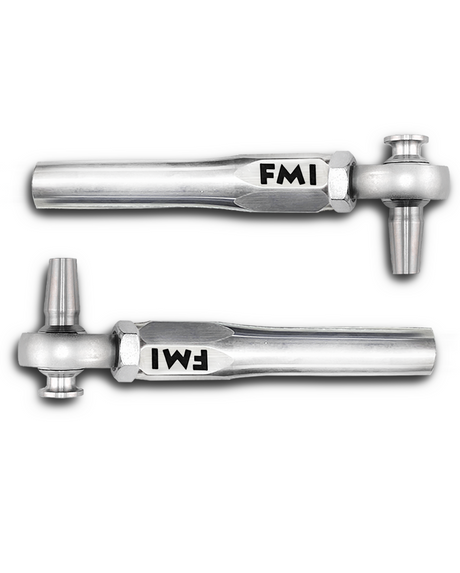

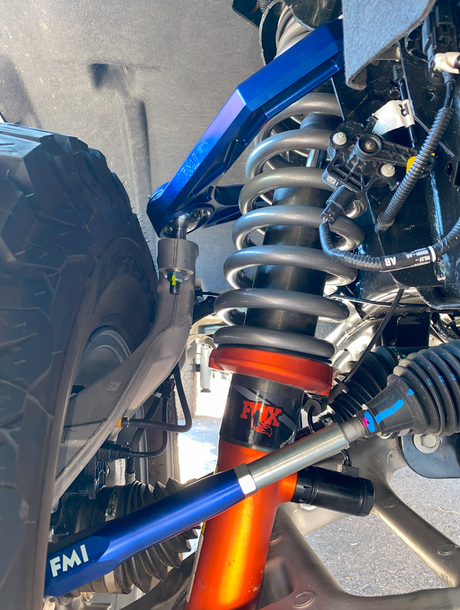

• Tie rods & steering — billet tie rod and half tie rod kits, tie rod support sleeves, and replacement boot kits

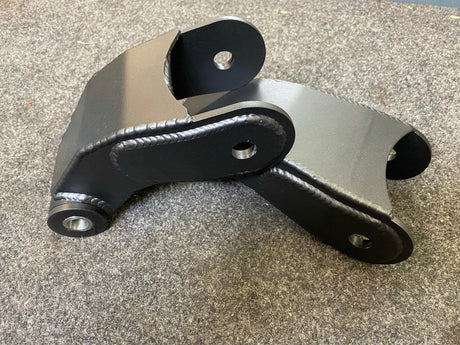

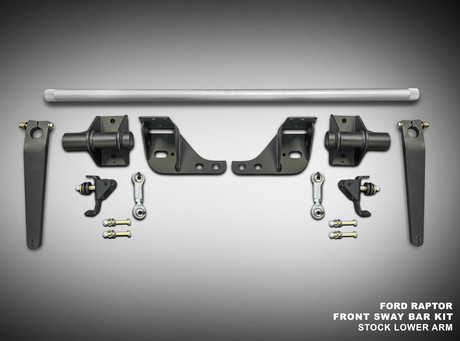

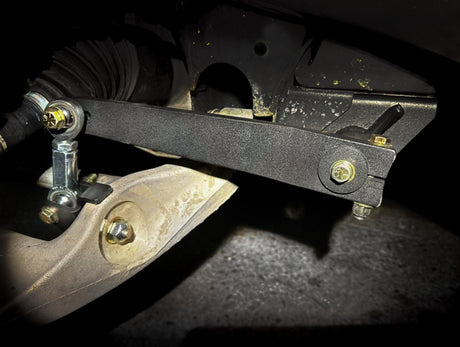

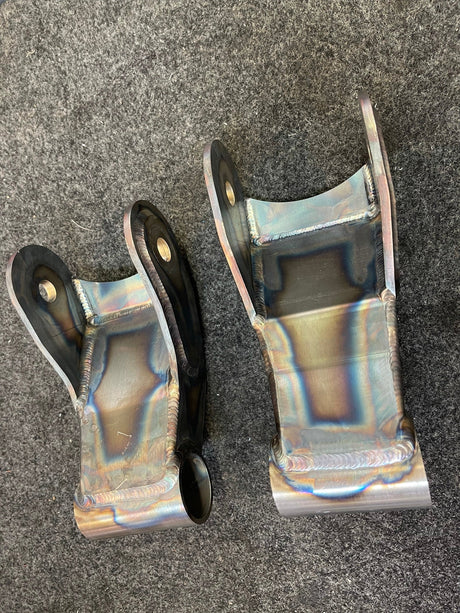

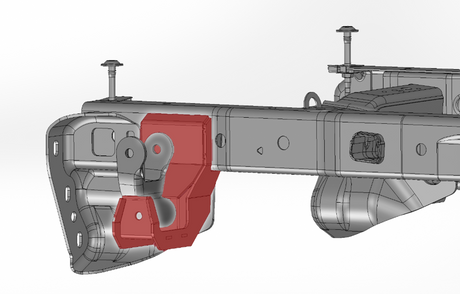

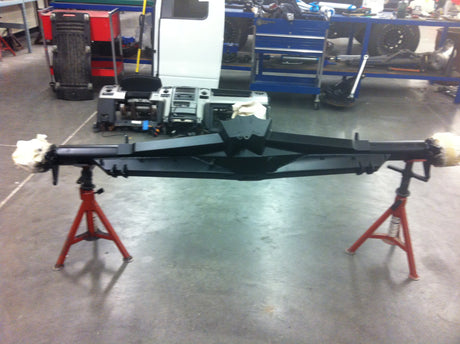

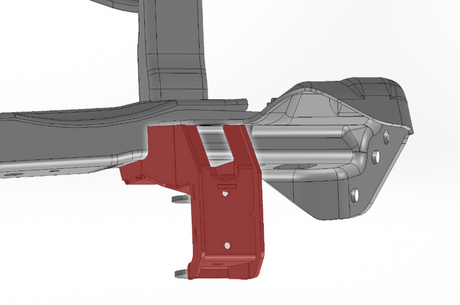

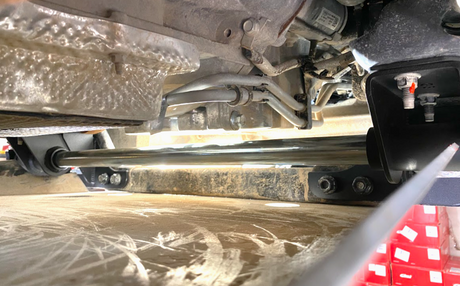

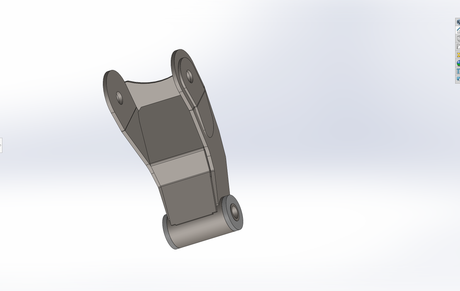

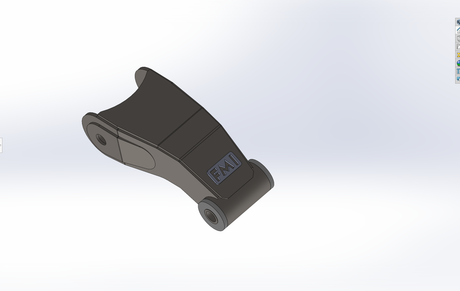

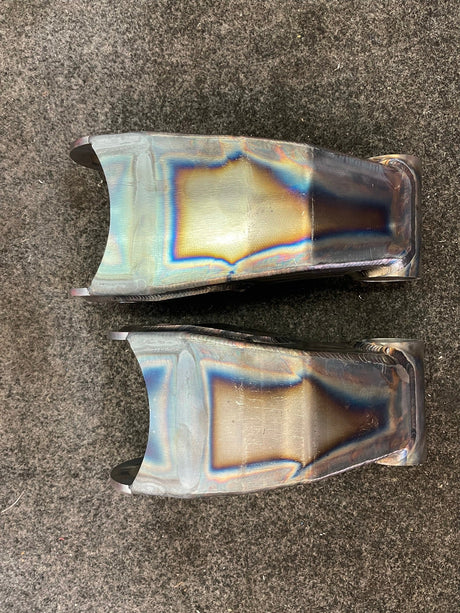

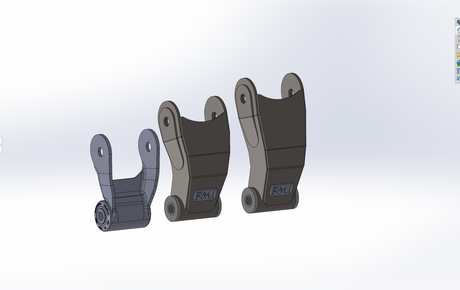

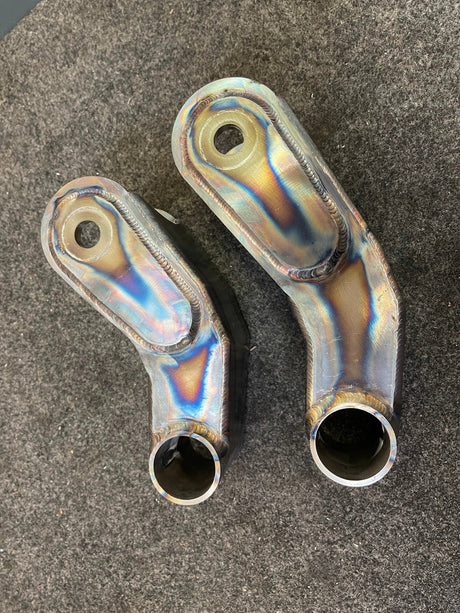

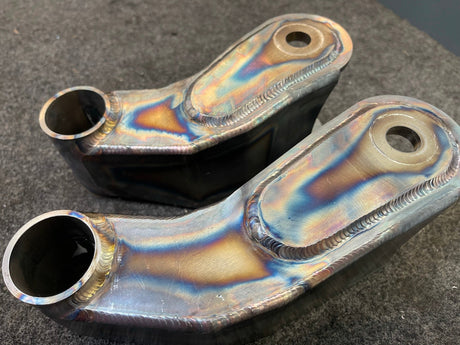

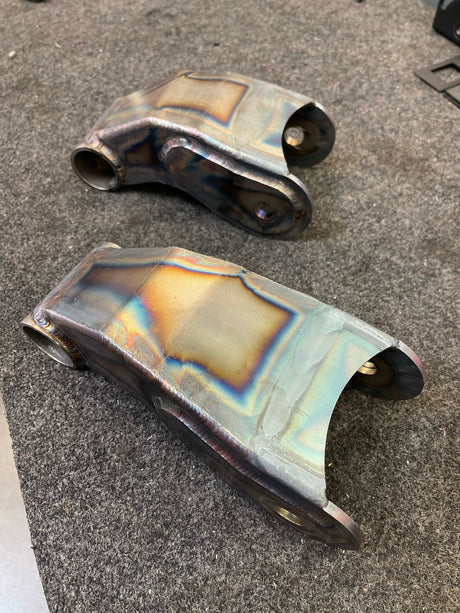

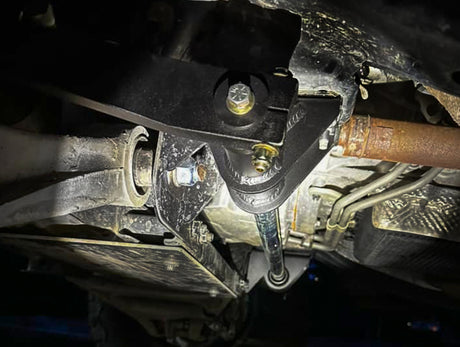

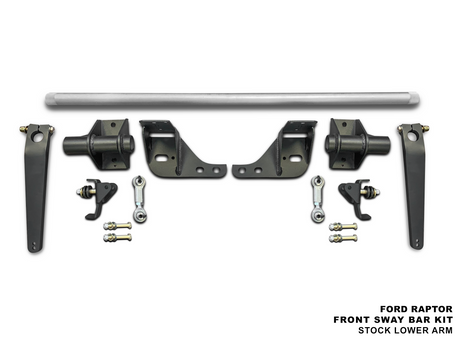

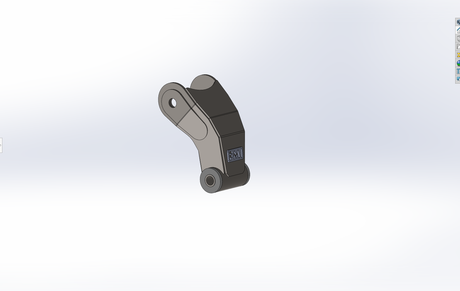

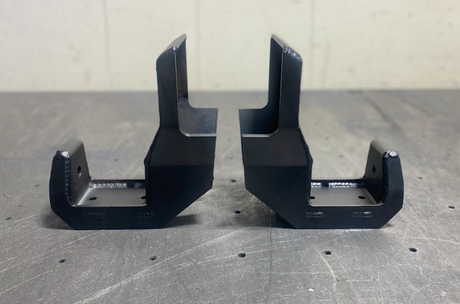

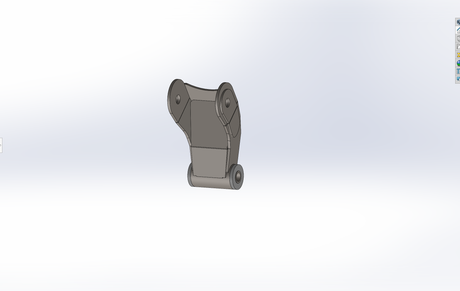

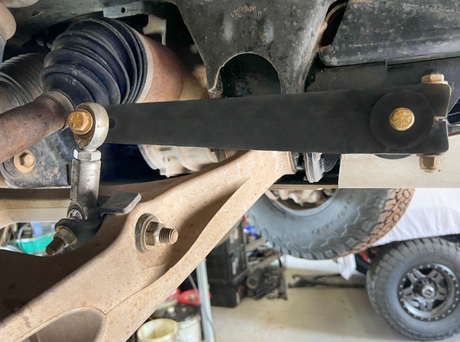

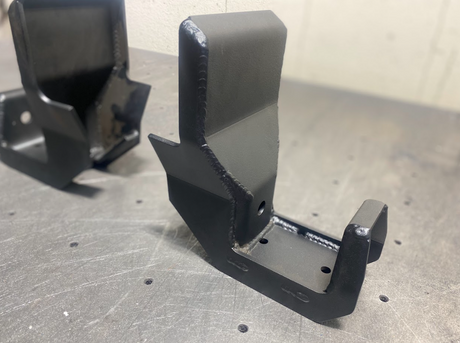

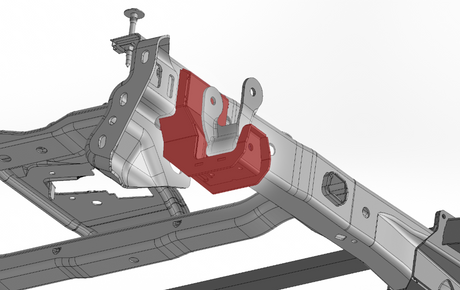

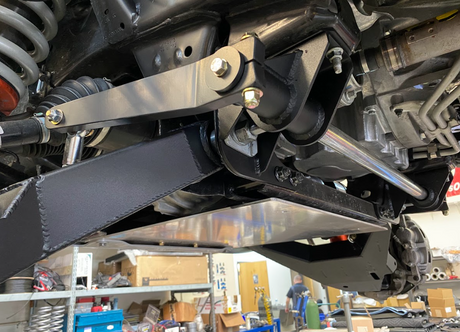

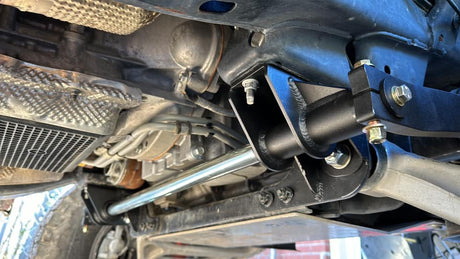

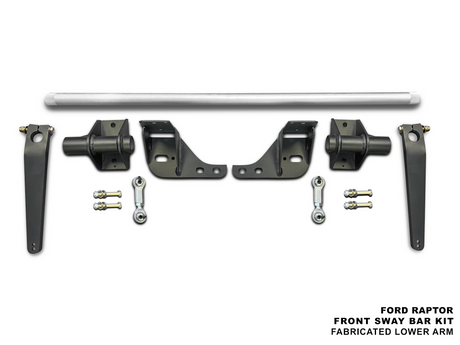

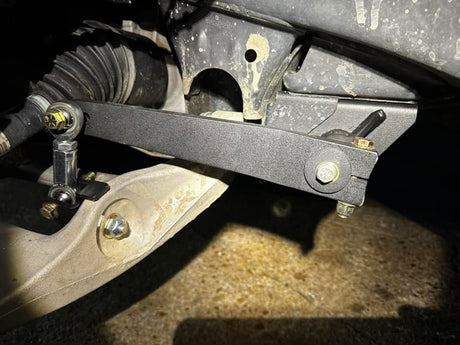

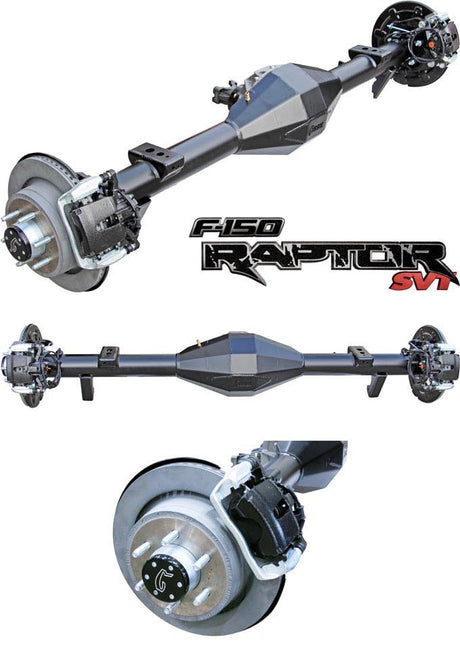

• Sway bars, shackles & rear ends — front sway bars for stock and fabricated arms, MIG-welded shackles, fabricated shackle hangers, and Currie 9-inch full-floater rear ends

What Fits Your Truck

Every part in this collection is engineered for the first-generation Ford Raptor (model years 2010, 2011, 2012, 2013, and 2014). Several components — including the long-travel 5-link rear coilover conversion — also fit the 2009–2014 Ford F-150. Check each product page for exact fitment.

American Made Quality

Every Foutz Motorsports suspension component is designed and manufactured in the USA using the best materials available, then tested where it counts — in real desert racing and high-speed off-road use. These parts bolt up cleanly, hold up to abuse, and are trusted by Baja racers, weekend pre-runners, and overlanders alike. Not sure which kit fits your build, budget, or goals? Our team builds these trucks every day and can help you choose.

Frequently Asked Questions

What years are the Gen 1 Ford Raptor?

The first-generation Ford F-150 SVT Raptor was produced for the 2010, 2011, 2012, 2013, and 2014 model years. All suspension parts in this collection are designed for those years, and many also fit the 2009–2014 F-150.

What suspension upgrades fit a Gen 1 Raptor?

Popular Gen 1 Raptor suspension upgrades include long-travel and mid-travel front kits, 5-link or 4-link rear conversion kits, billet upper and fabricated lower control arms, hydraulic bump stops and limit straps, billet top hats with optional 1.5-inch lift, Fox 3.0 coilover and bypass shocks, and full Gen 1-to-Gen 3 rear suspension conversions.

How much wheel travel can a Gen 1 Raptor get?

With a Foutz long-travel front kit and a 5-link rear conversion, a Gen 1 Raptor can achieve significantly more travel than stock — the long-travel 5-link rear coilover conversion is built for up to roughly 19 inches of rear wheel travel.

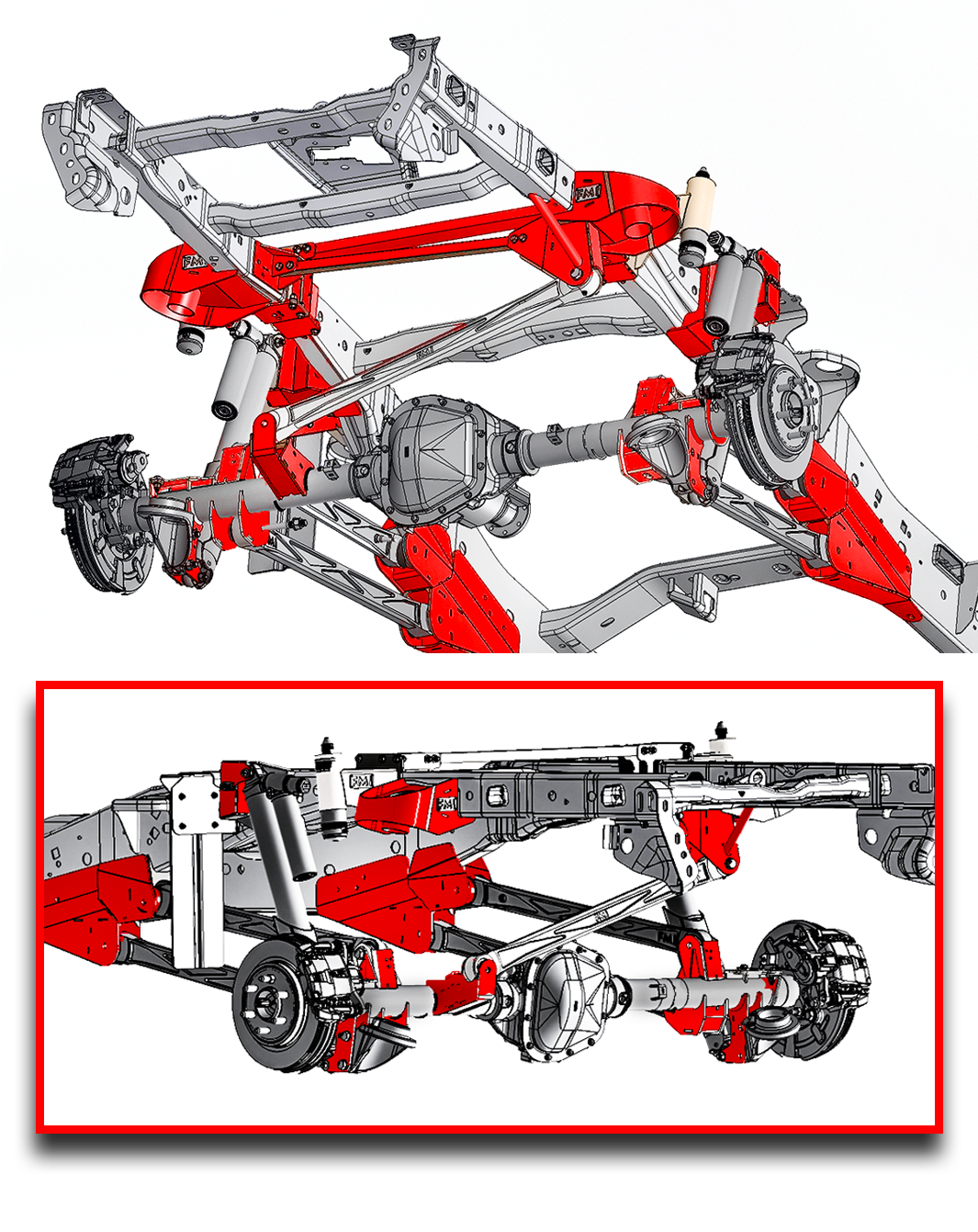

What is a Gen 1-to-Gen 3 Raptor conversion?

A Gen 1-to-Gen 3 conversion lets owners of a 2010–2014 Raptor run the newer 2021+ Gen 3 Raptor's 5-link coil-sprung rear suspension geometry. Foutz Motorsports offers the frame mounts, rear arm mounts, spring and Panhard bar mounts, bump stop kits, and upper shock mounts needed to make the swap.

Do these parts fit a standard F-150?

Several components — including the long-travel 5-link rear coilover conversion — are designed for both Gen 1 Raptors and 2009–2014 F-150 trucks. Check each product page for exact fitment.

Are Foutz Motorsports suspension parts made in the USA?

Yes. Foutz Motorsports designs and manufactures these Gen 1 Raptor suspension components in the USA, developed and proven through desert racing and high-speed off-road testing.

How long does shipping take?

In-stock items normally ship within 48 hours, with standard shipping taking 3–5 days after leaving our facility. Built-to-order items can take up to 4–6 weeks. We ship to the United States and Canada.
