Ram TRX Performance

The TRX left the factory with brakes sized for a very heavy truck, and on paper they are substantial. In a single stop from speed they do their job.

Where it comes apart is repetition. Every stop converts the truck's momentum into heat in the rotors, and a 6,000-plus pound truck carries a lot of momentum. Do it once and the rotors shed the heat before the next corner. Do it six times down a mountain grade, or on a fast dirt road with a corner at the end of each straight, and the heat accumulates faster than it dissipates. The pedal goes long, the bite fades, and stopping distance grows exactly when you need it not to.

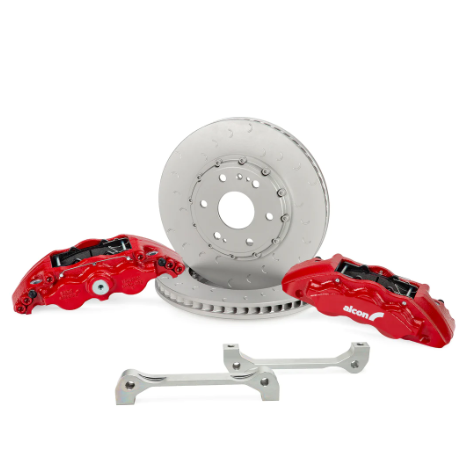

That is a thermal capacity problem, and the answer is more rotor — more mass to absorb heat, more surface area to shed it, and a multi-piston caliper spreading pad pressure evenly so the friction stays consistent as things get hot. A stickier pad does not fix it; it just moves where the heat goes.

Now add 37s, a bed rack and a full fuel jug. The margin the factory sized in is already spent.

We are a suspension and chassis shop, so take this as it is intended: on the TRX, suspension and brakes change what the truck can do far more than power adders will.

The supercharged Hemi is not the limiting factor on this truck — it never was. Grip, control, stopping distance and the strength of the parts holding the wheels on are the limits. A TRX with better arms, real bump stop control and brakes that survive a descent is a meaningfully faster truck across ground. A TRX with more boost is the same truck with a worse thermal problem.

If you are building a 2021–2024 TRX and asking what to buy first, our honest order is: bump stop and limit strap control, then arms and tie rods, then brakes, then power.

Will it clear my wheels?

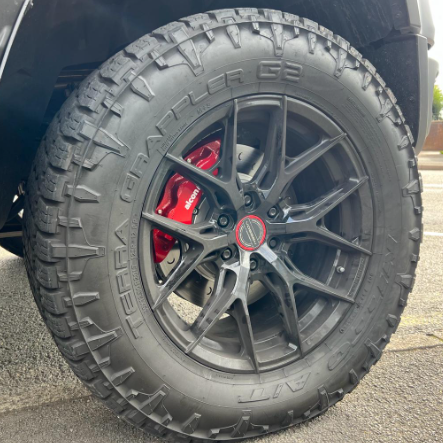

Big brake kits need caliper clearance, and it is the inner barrel shape that decides it rather than diameter alone. Check the clearance information on the product page against your wheels before ordering, especially with an aftermarket wheel that has a lot of inboard spoke shape.

Does this fit the 2027 TRX?

The kit is listed for 2021 and up — confirm the model year on the product page, and see 2027+ TRX Performance for that truck.

Front only, or front and rear?

Front-only is the common upgrade and where roughly 70 percent of the braking work happens. A rear kit balances the system for sustained high-speed use.

Is it street legal?

Yes. It is a performance street and off-road brake upgrade, not a race-only component.

What else should I upgrade on a TRX?

Suspension arms, bump stops and underbody protection. The TRX makes short work of factory components once you actually use it off-road.

Will fresh fluid help?

Yes, and it is cheap. Brake fluid boils long before pads give up, and boiling fluid is what produces a pedal that goes to the floor. High-temperature fluid is worth doing whenever you fit a big brake kit.
