Ram TRX (2021-2024)

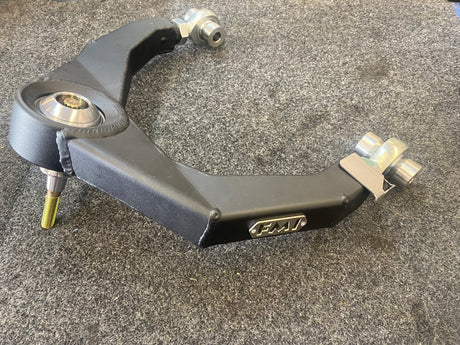

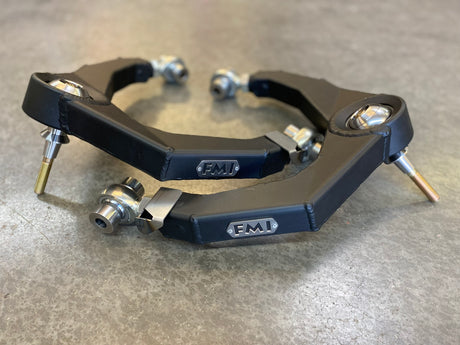

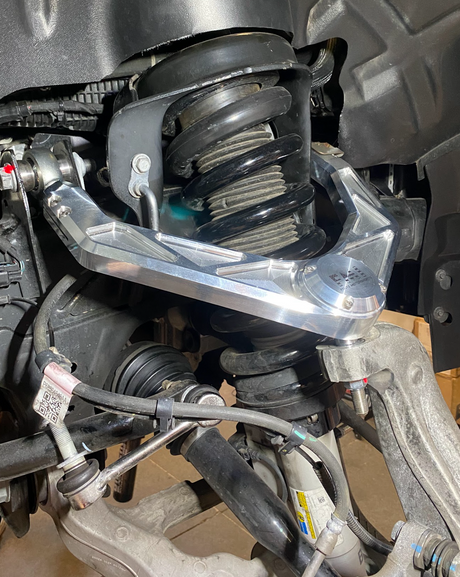

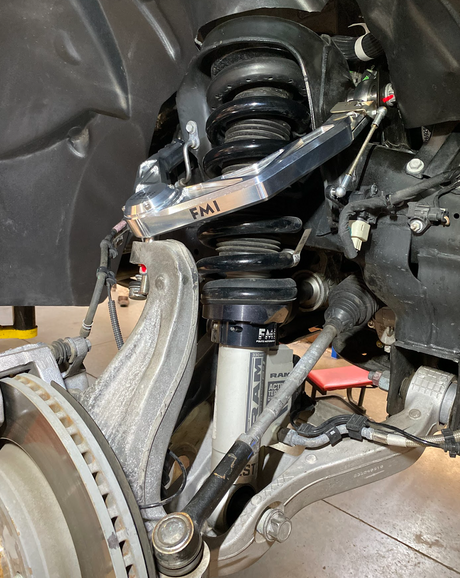

• Billet upper control arm kit at stock length, and a fabricated upper arm kit as the alternative.

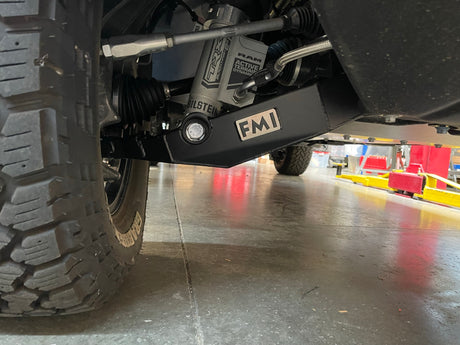

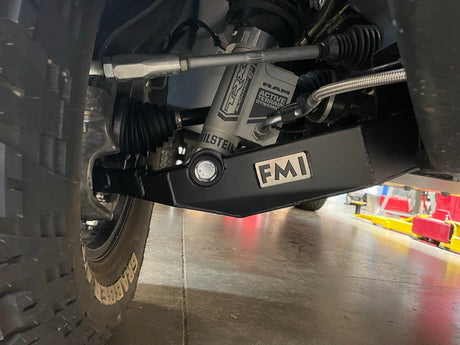

• Fabricated lower control arms at stock length, built to survive impacts that bend the factory arm.

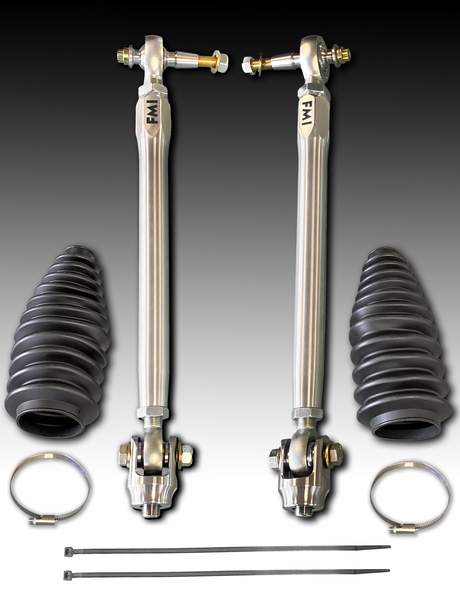

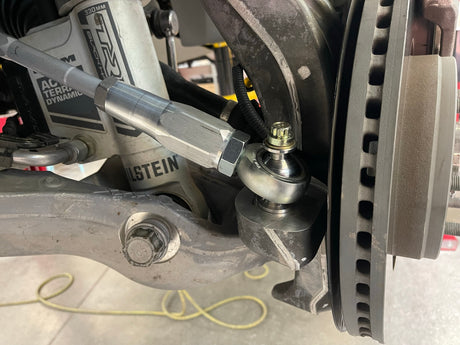

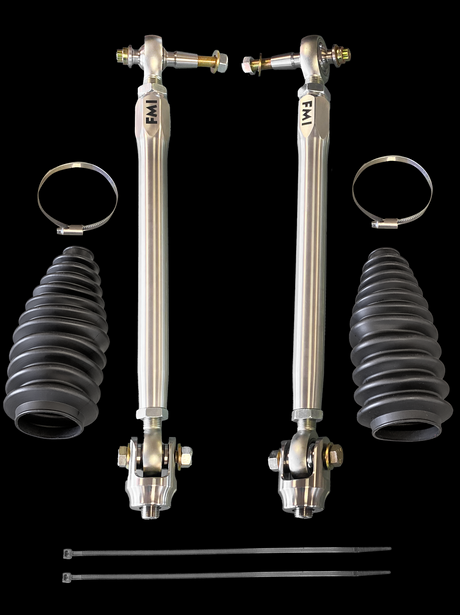

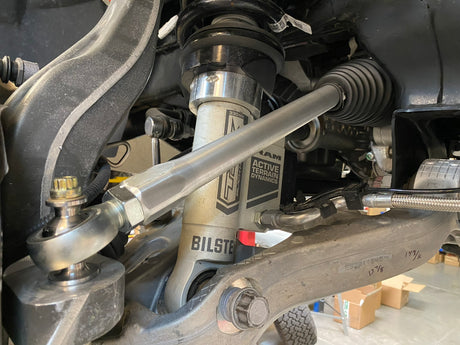

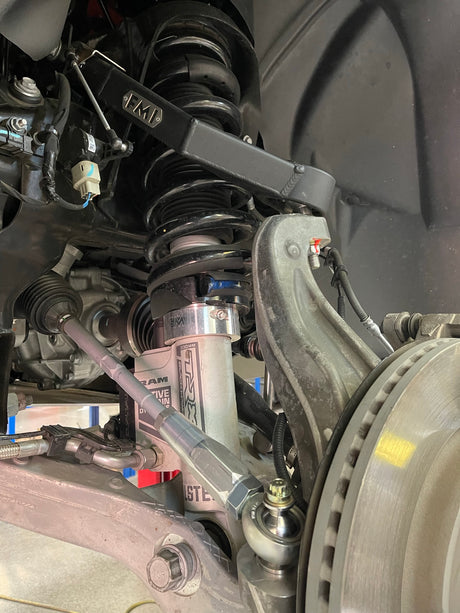

• Billet tie rod kit and billet half tie rod kit for the TRX steering.

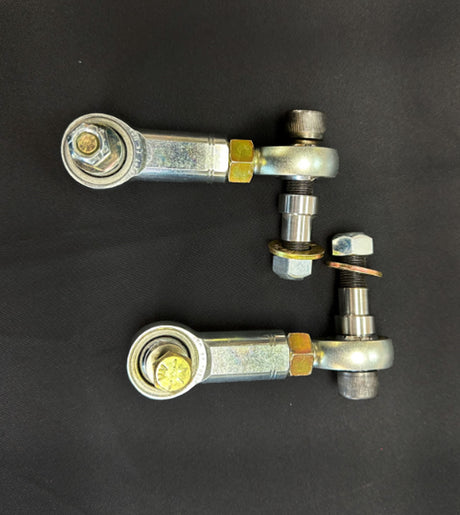

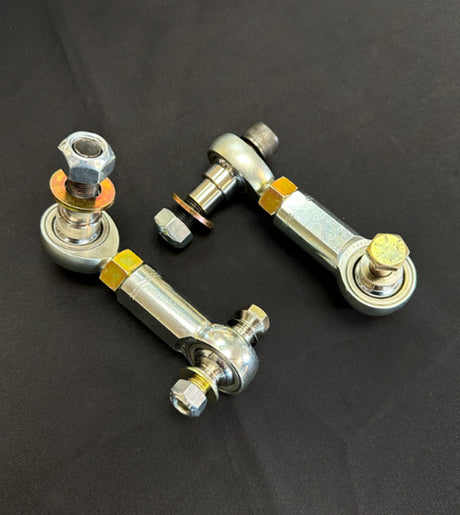

• Sway bar links for the stock sway bar paired with fabricated A-arms.

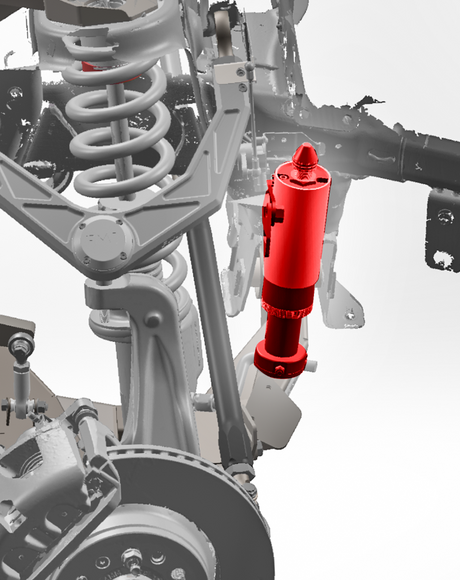

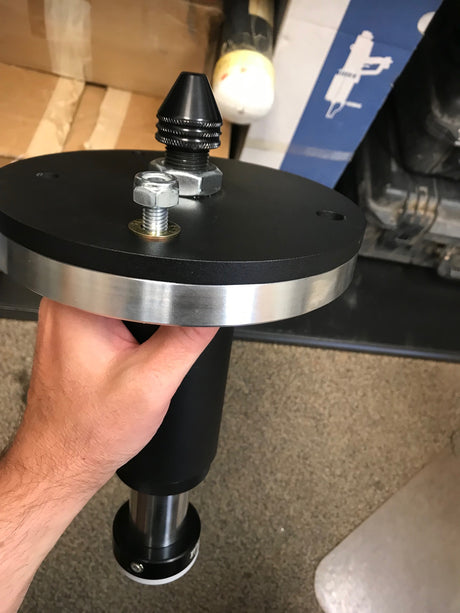

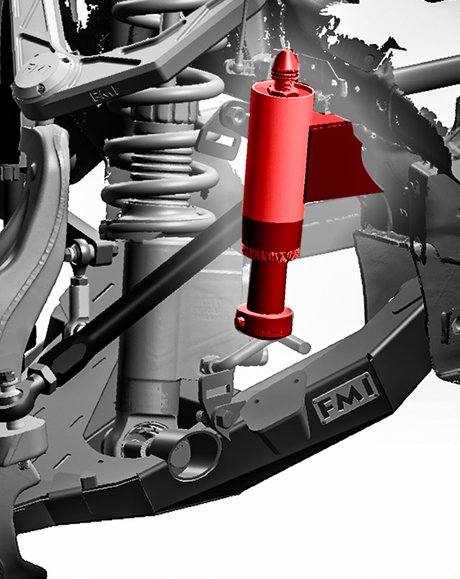

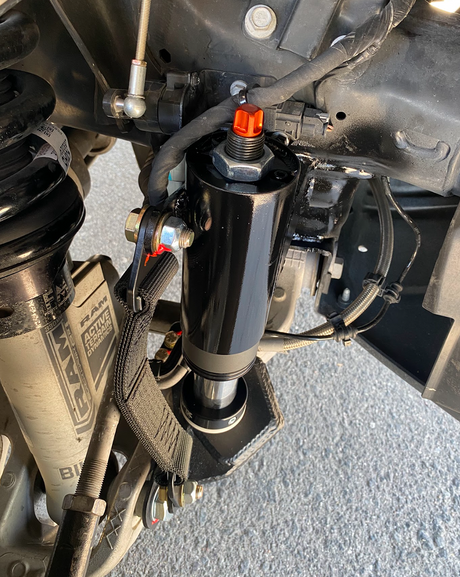

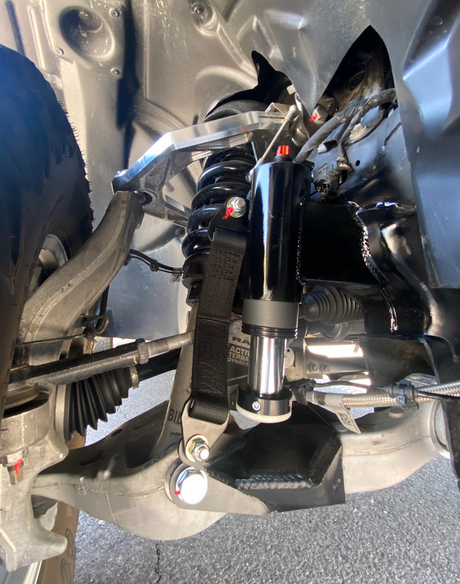

• Front bump stop and limit strap kit for the stock lower arm — controls both ends of travel.
• Billet top hat at stock height.

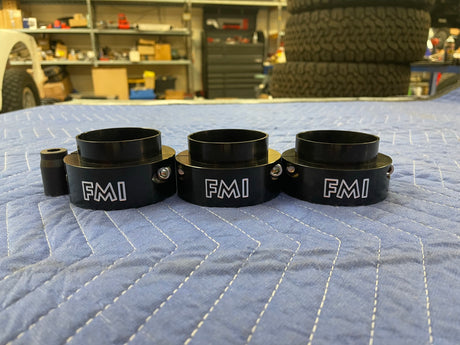

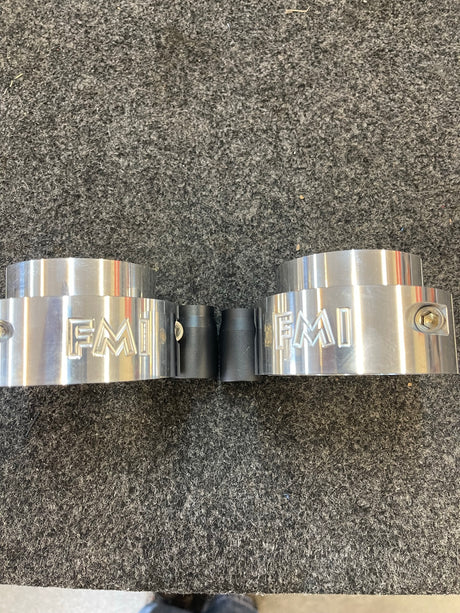

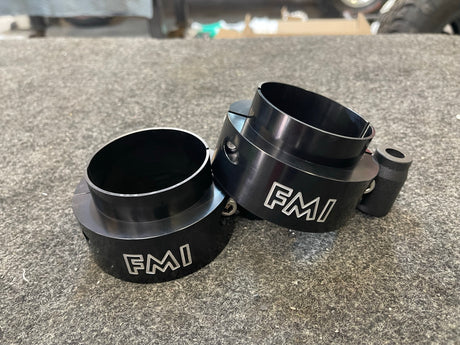

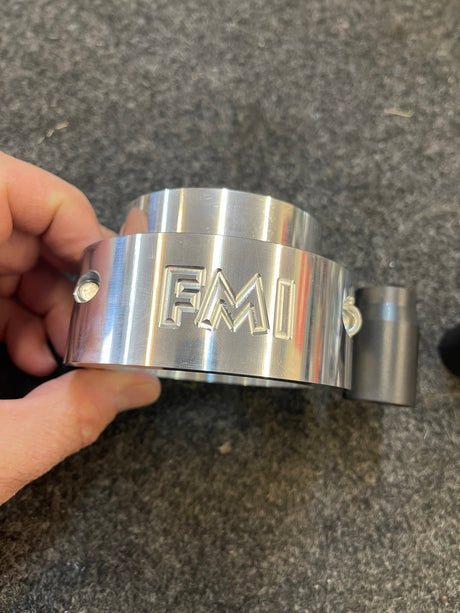

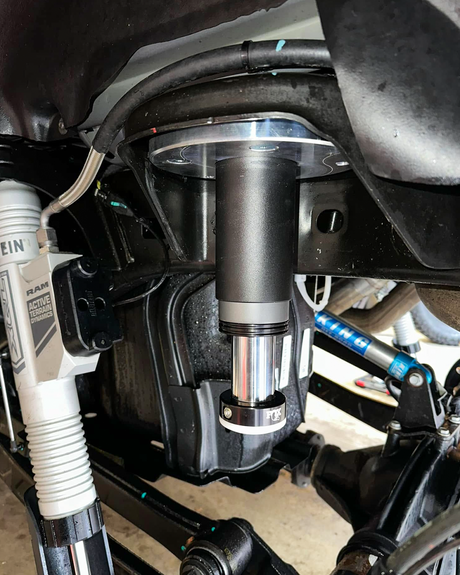

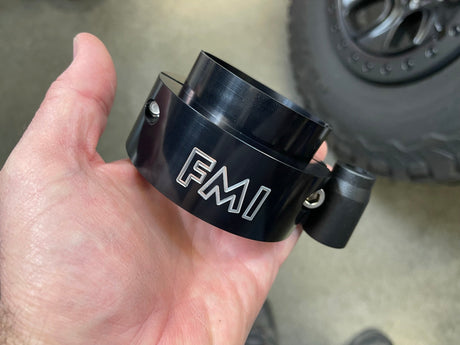

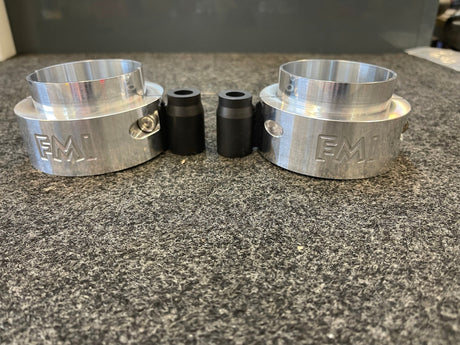

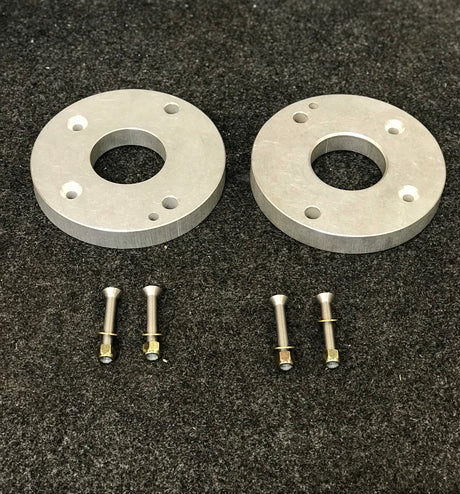

The TRX leaves the factory with a pronounced nose-down rake. Our front leveling kits use an under-spring preload collar that installs on the shock body beneath the coil, adding preload to the factory spring rather than dropping the whole shock assembly on a block spacer.

The 2021–2024 TRX has the widest range we offer on any Ram platform — 1.5", 2" and 2.5" front lift. All three retain the factory shocks and springs.

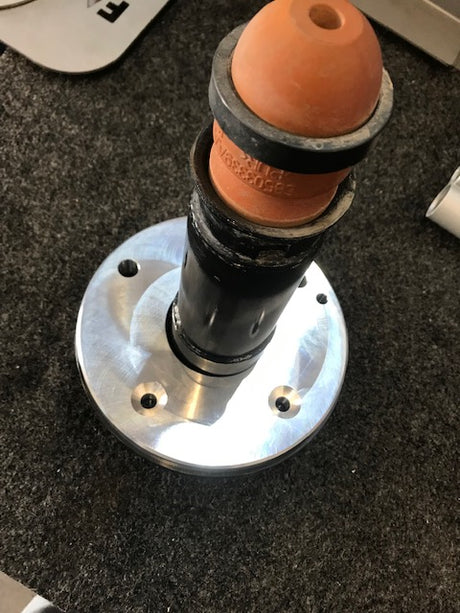

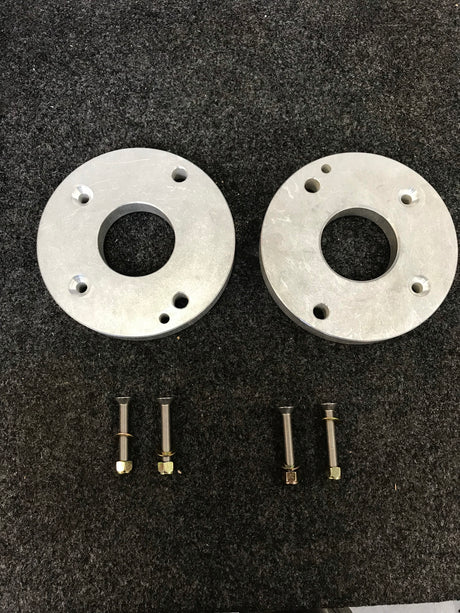

Pair with a rear spring spacer lift kit in 3/4" or 1" to bring the rear up to match. More detail in Lift Collars & Leveling Kits.

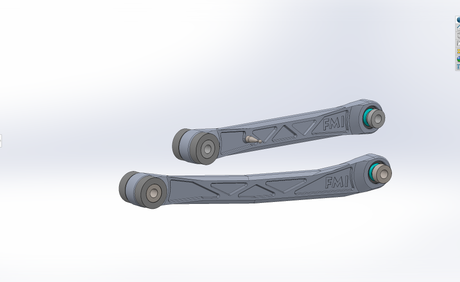

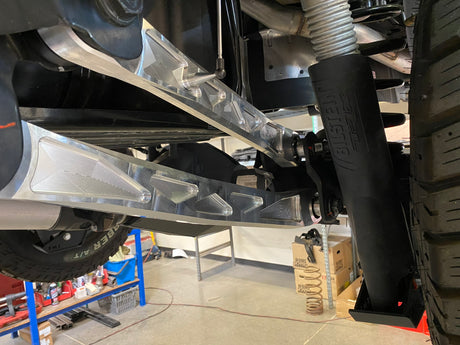

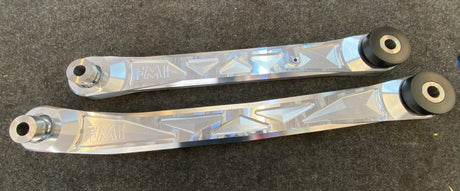

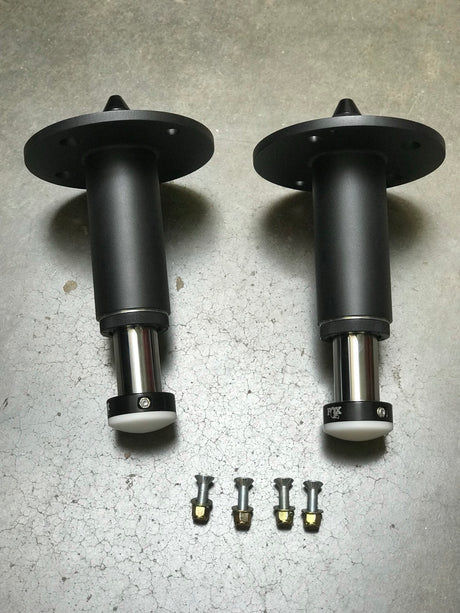

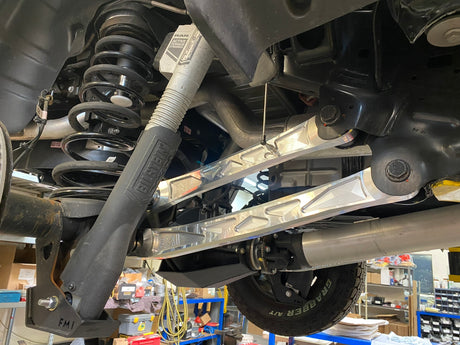

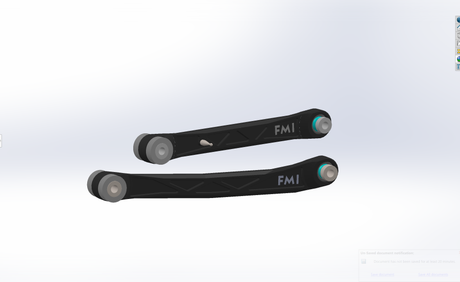

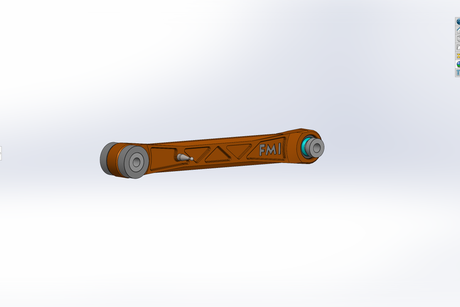

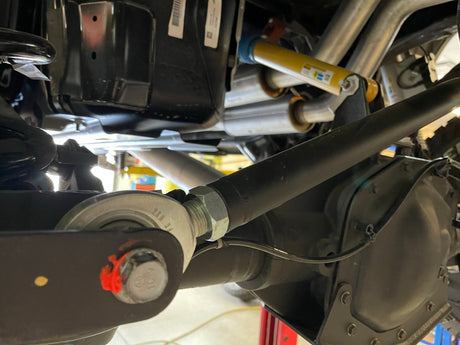

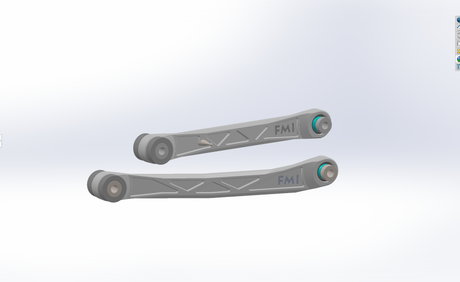

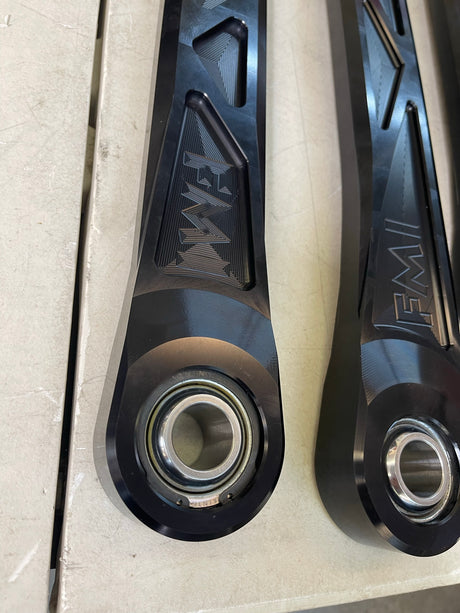

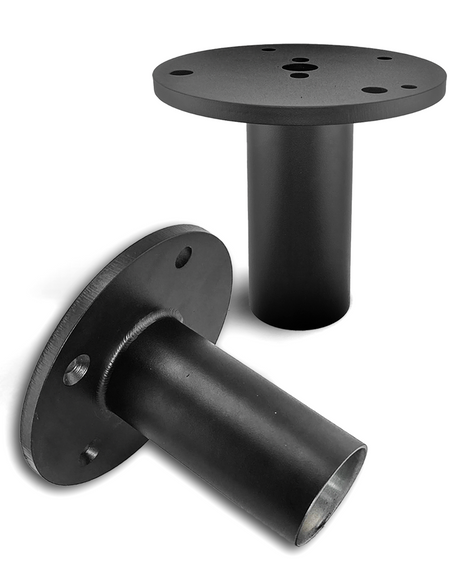

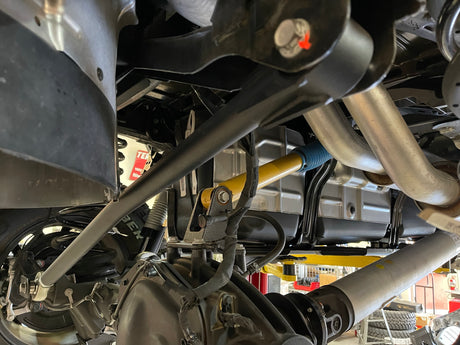

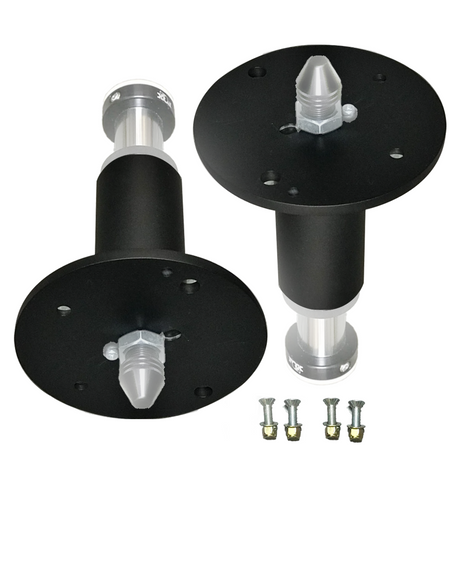

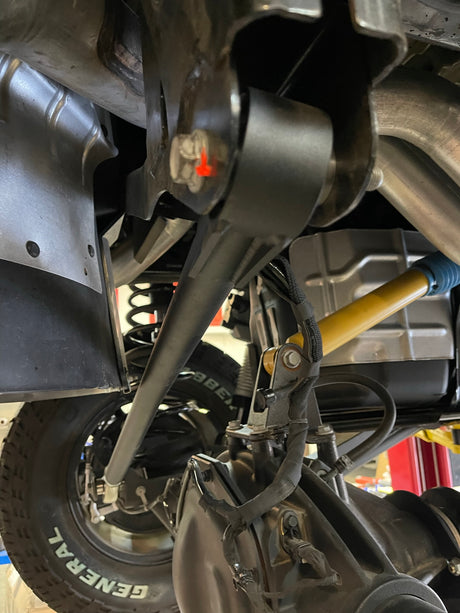

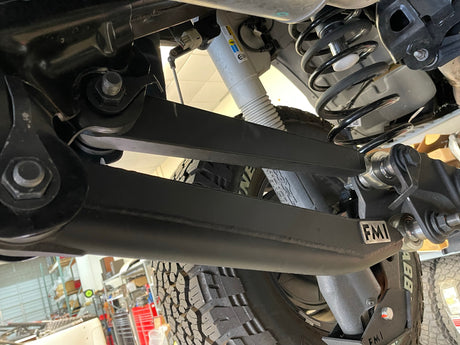

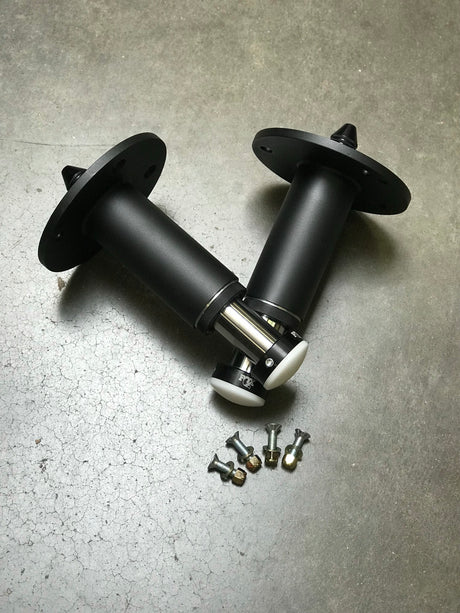

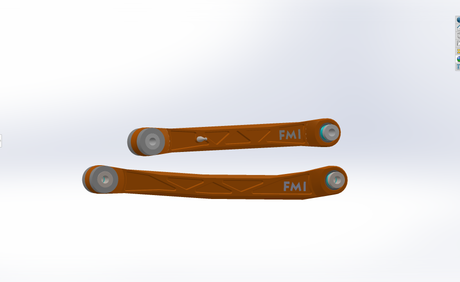

Billet aluminium rear suspension arm kits replace the factory rear arms, and rear bump stop kits are offered with optional hydraulic bump stops for trucks that see whoops or jumps.

Because the TRX shipped with a coil-sprung link rear from the start, there is no leaf-to-link conversion needed — the work here is about control and strength rather than architecture.

Armour

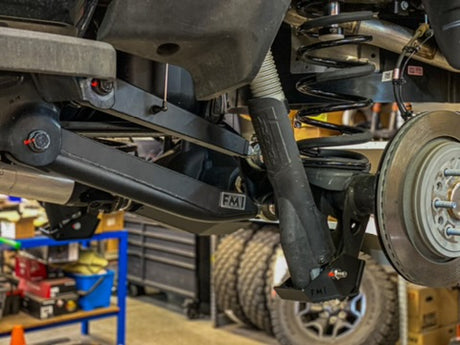

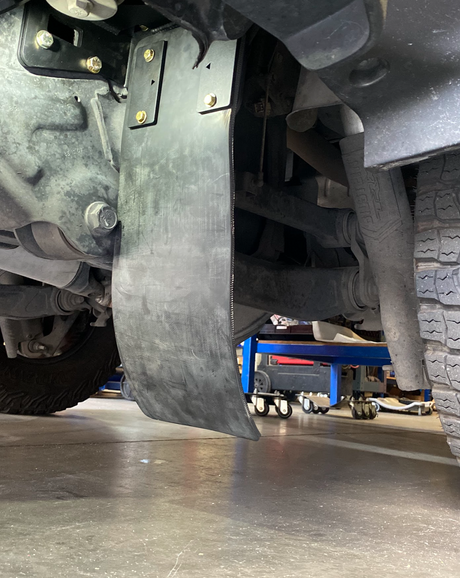

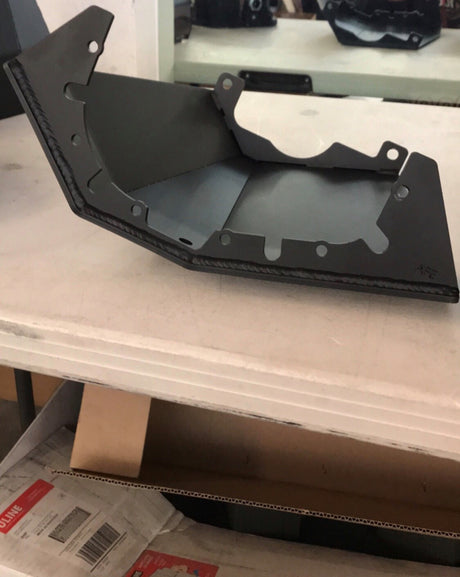

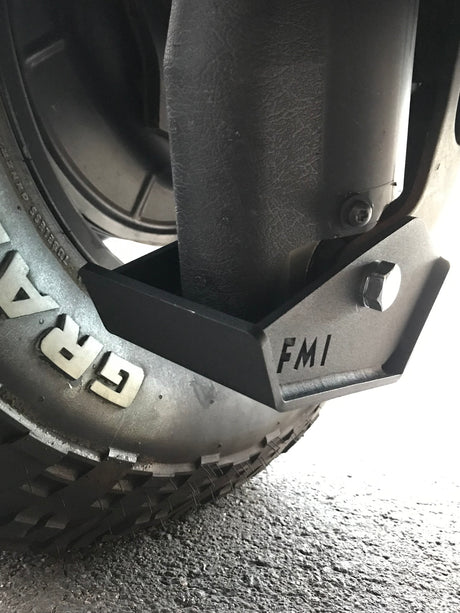

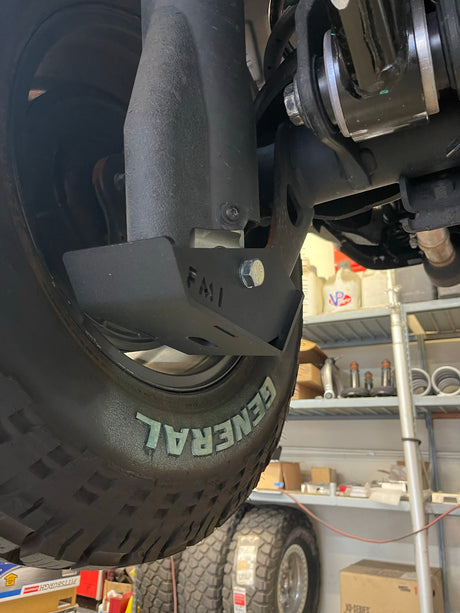

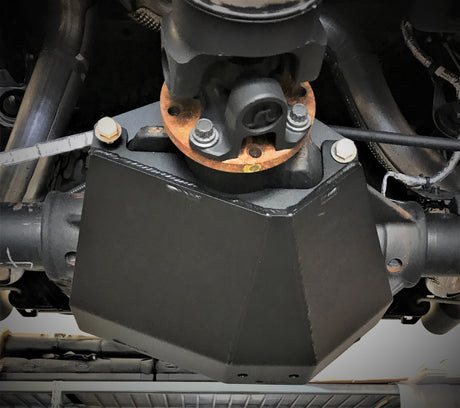

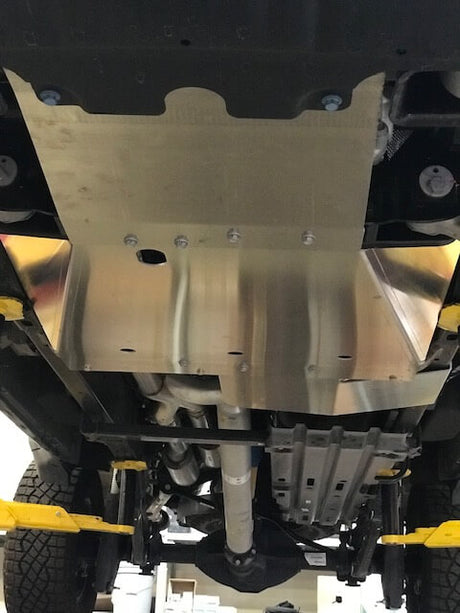

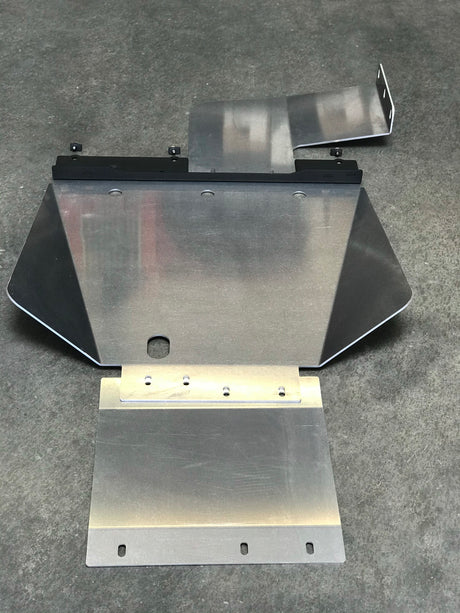

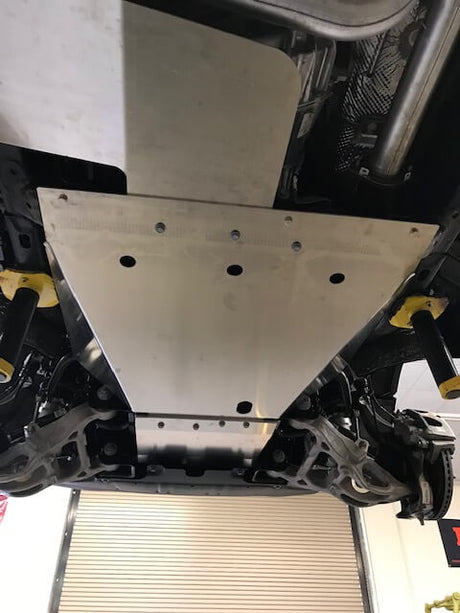

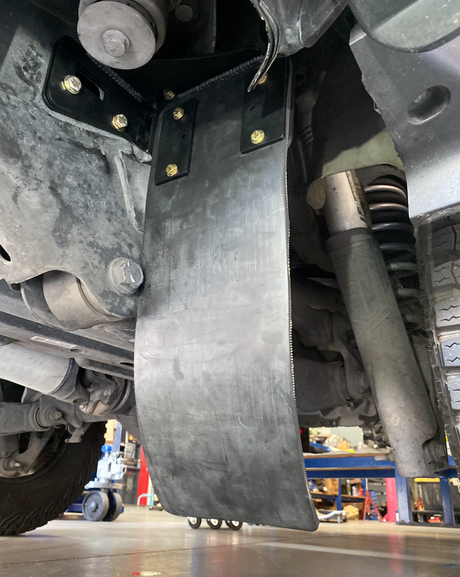

Underbody skid plate kit covering the engine, transmission and driveline. Rear differential skid plate kit. Rear shock skid kit protecting the lower shock mounts. Rear shock guard mud flap kit keeping rock and debris off the shock bodies.

Bed storage

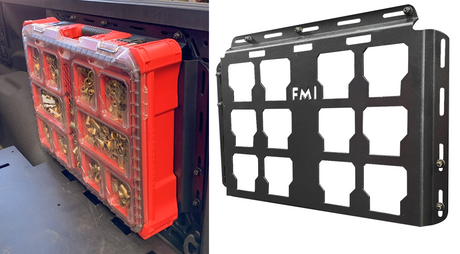

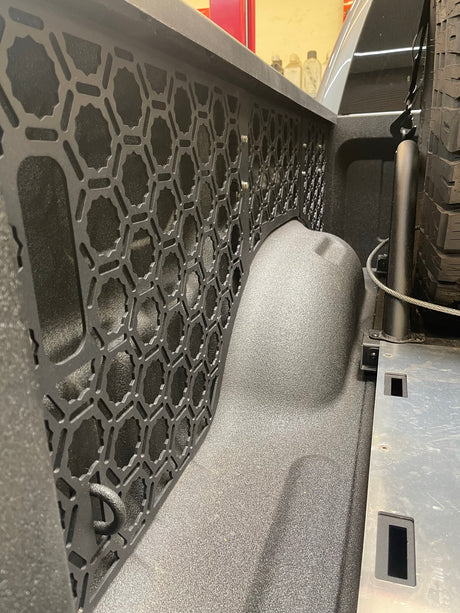

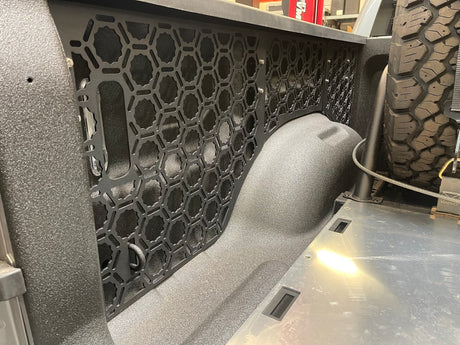

Quick-release modular bed organizers with single or dual tire carriers, fuel jug trays, jack mounts and light mount add-ons. Lifts out on four pins, and the cleats sit flush so the bed floor stays usable. See Ram TRX Bed Cages.

What front leveling heights fit the 2021-2024 TRX?

1.5", 2" and 2.5" — three separate kits. This is the widest range we offer on any Ram truck; the 2025+ RHO and 2027+ TRX are 1.5" front only.

Do the leveling kits require new shocks?

No. The collar adds preload to the factory coil spring and the factory shock stays in its original position.

Will 2027 TRX parts fit my 2021-2024?

Treat them as separate platforms. Suspension and skid plate fitment is listed by year on each product page — check before ordering.

Do I need an alignment after a leveling kit?

Yes. Any change in front ride height changes camber and toe. Get the truck professionally aligned afterwards to avoid uneven front tire wear.

Are these made in the USA?

Yes. Foutz-branded TRX components are machined and fabricated in-house in Mesa, Arizona.
