SKU: FMI050303200030101

2021-2024 Ram TRX Fabricated Upper Arm Kit

Description

Fabricated 4130 chromoly front upper control arms for the 2021–2024 Ram TRX, with a 1.5" uniball at the ball joint and 7/8" FK rod ends at the frame. CAD designed with minor updates to caster and suspension geometry to improve driving feel and strength.

The TRX's electronically controlled shocks rely on a front suspension sensor mounted to the upper arm. These arms include a mount kit for that sensor so the truck keeps working correctly, and they put caster and camber adjustment in the arm through the rod ends.

What Is In The Kit

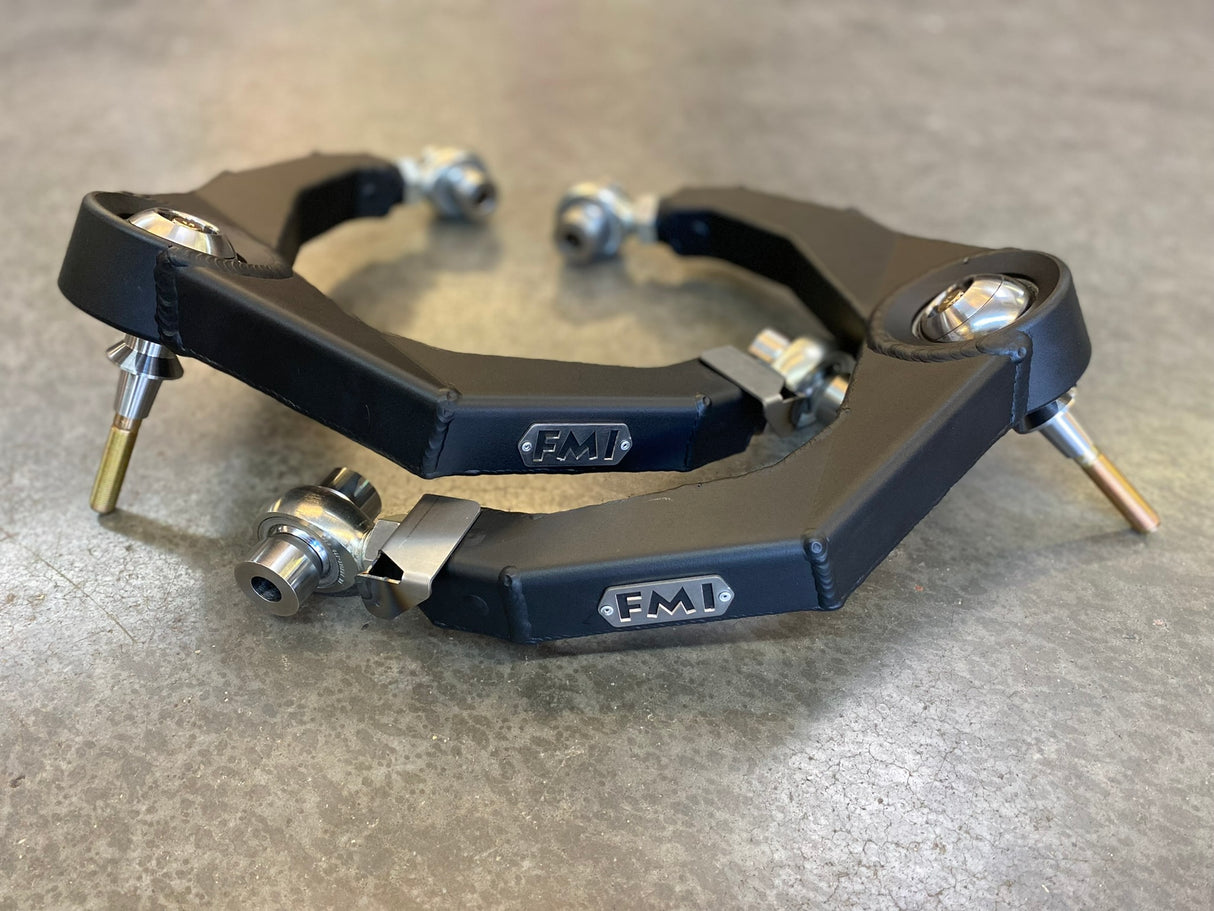

  • 2 fabricated upper arms with 1.5" uniball assembly and 7/8" rod ends at the frame
  • 1 hardware kit with all needed spacers, 12-point Grade 8 bolts and Ram TRX size upper ball joint adapters
  • Sensor arm mount kit for the front suspension sensor

Why Fabricated Upper Arms

The upper arm sets the top of the spindle, and with it the caster and camber the truck runs. It also carries the upper ball joint, which takes a beating in hard off-road use.

This fabricated chromoly arm replaces that ball joint connection with a large 1.5" uniball and pivots on adjustable FK rod ends at the frame. Caster and suspension geometry have been updated slightly in CAD to improve driving feel and strength, and the rod ends let you dial in the alignment you want in the upper arm.

Because the TRX uses electronically controlled shocks, the front suspension sensor has to stay mounted and reading correctly. The included sensor mount kit takes care of that.

How It Is Built

  • 4130 chromoly, MIG welded in rigid fixtures for consistent quality and fitment
  • CAD designed with minor updates to caster and suspension geometry
  • 1.5" uniball replaces the upper ball joint connection
  • 7/8" FK rod ends at the frame for caster and camber adjustment
  • 17-4 stainless steel spacers at the pivot areas for strength and corrosion resistance

Fitment

Fits the Ram TRX, model years 2021, 2022, 2023 and 2024.

Designed to work with the factory spindle setup, using the included Ram TRX size upper ball joint adapters. The kit also works with fixed pivot lower arm setups.

Questions

Will my electronically controlled shocks still work?

Yes. The kit includes the sensor mount kit for the front suspension sensor, so the truck works correctly with its electronically controlled shocks.

Do these work with the factory spindle?

Yes. The kit is designed around the factory spindle setup and includes Ram TRX size upper ball joint adapters.

Can I adjust alignment with these arms?

Yes. The FK rod ends at the frame let you adjust caster and camber in the upper arm.

Will it work with fixed pivot lower arms?

Yes. The kit also works with fixed pivot lower arm setups.

What size uniball does it use?

A 1.5" uniball at the ball joint connection, with 7/8" FK rod ends at the frame.
