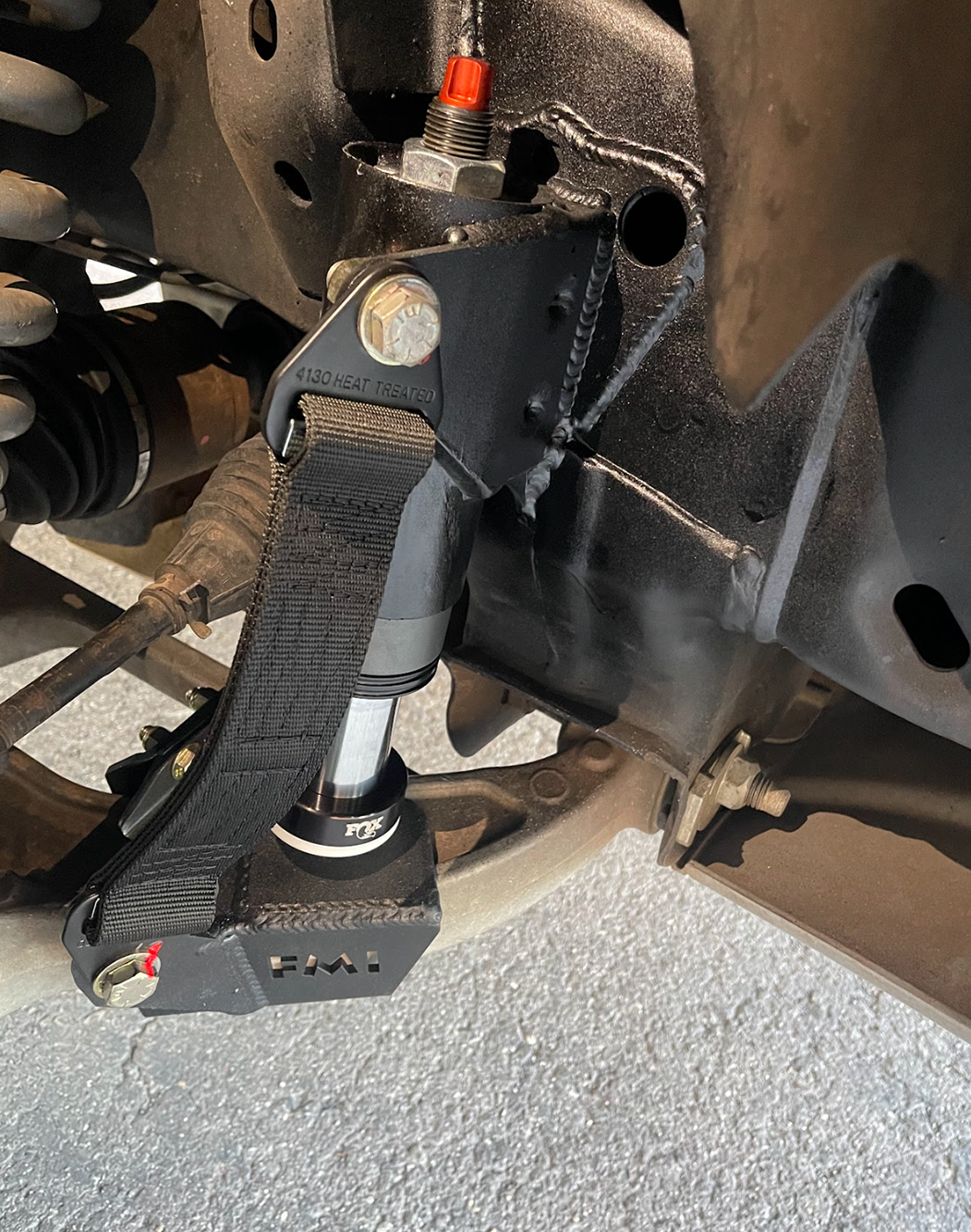

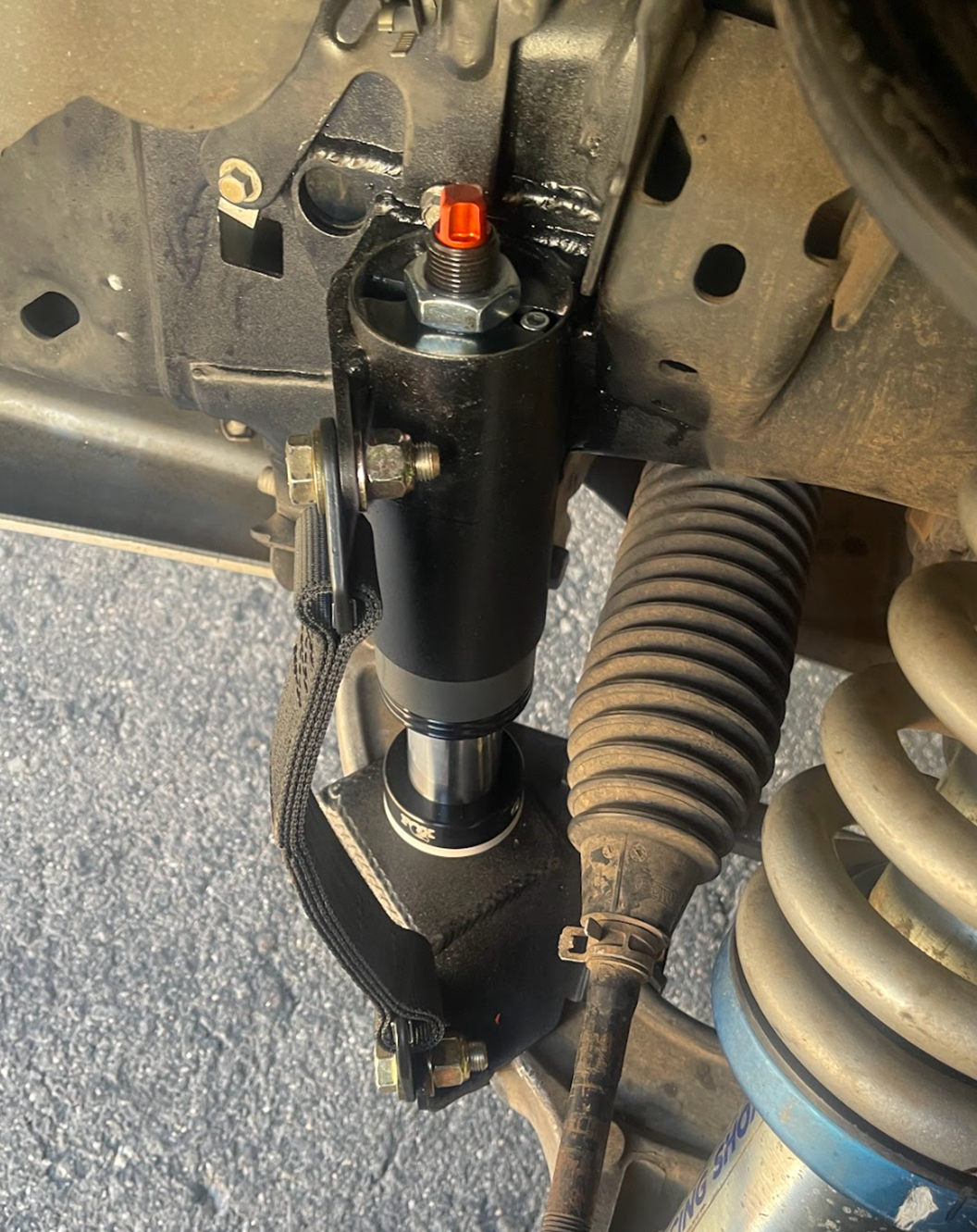

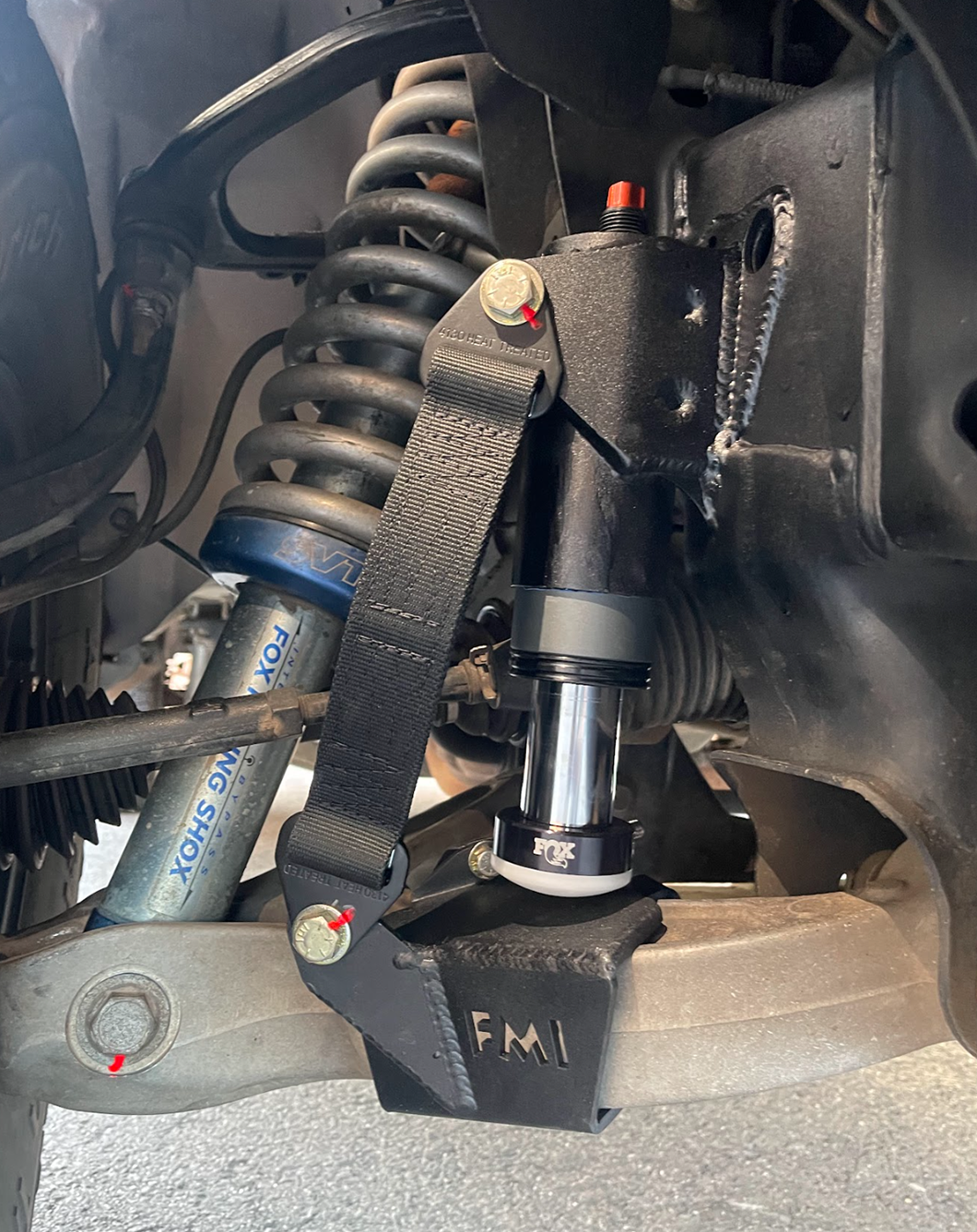

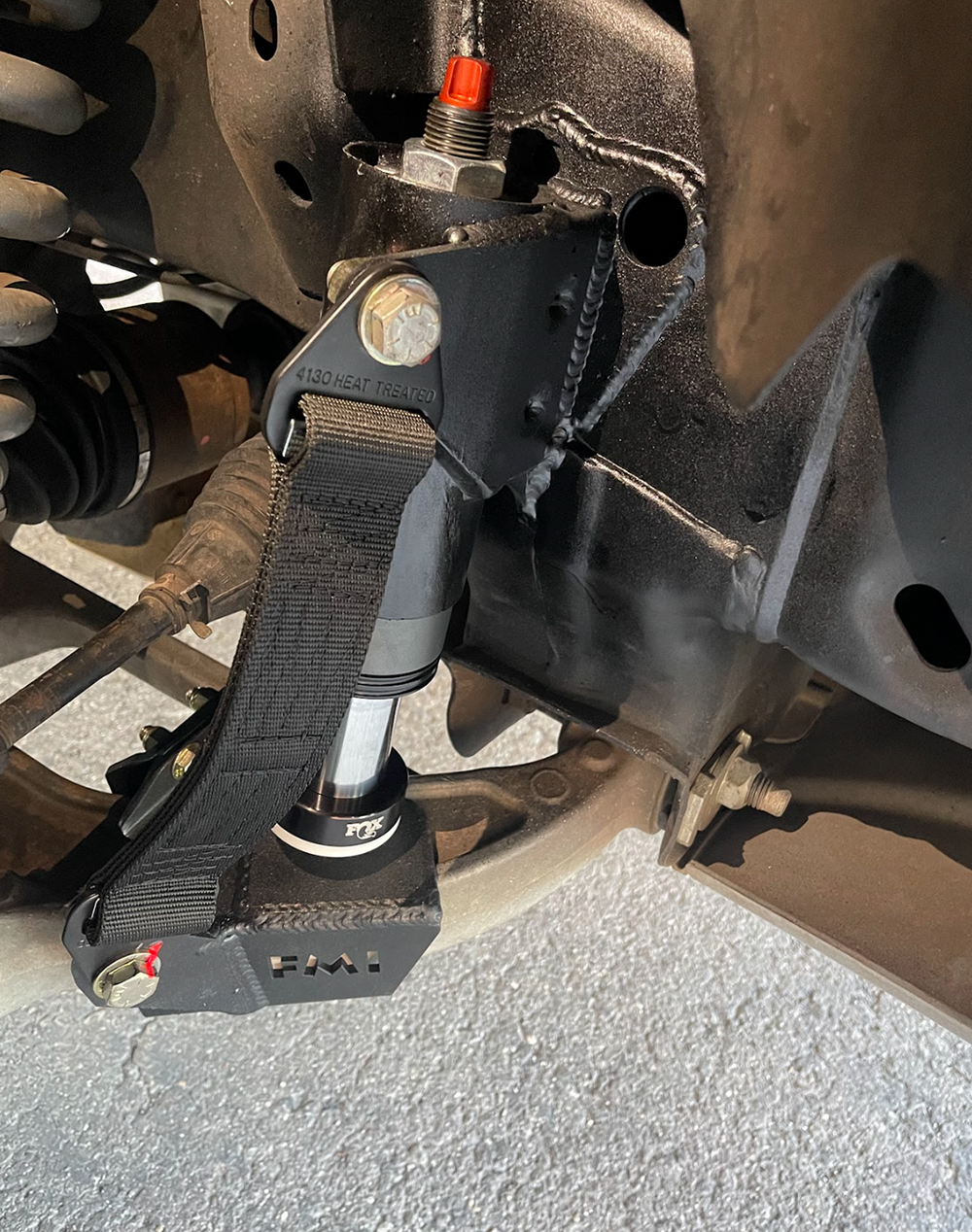

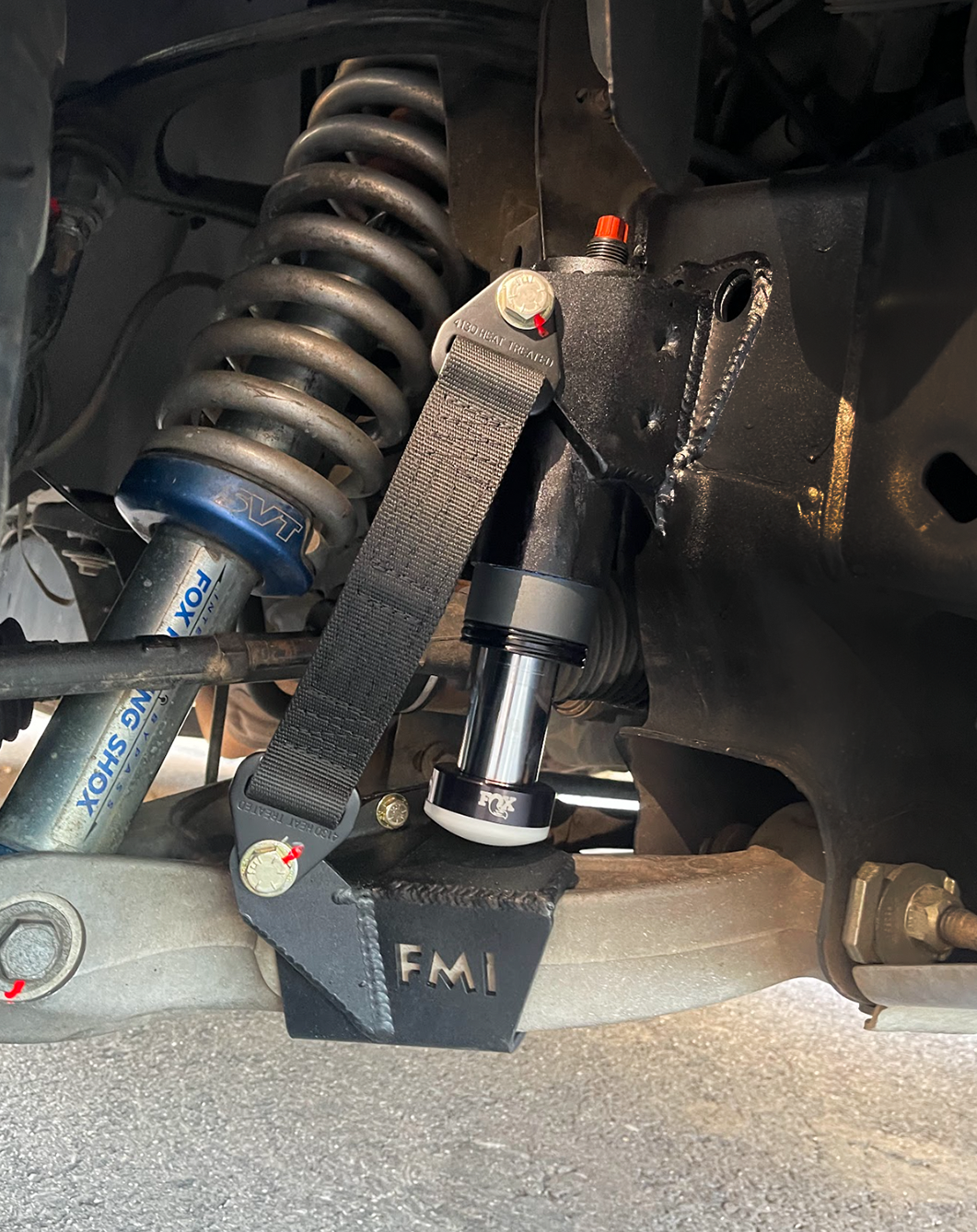

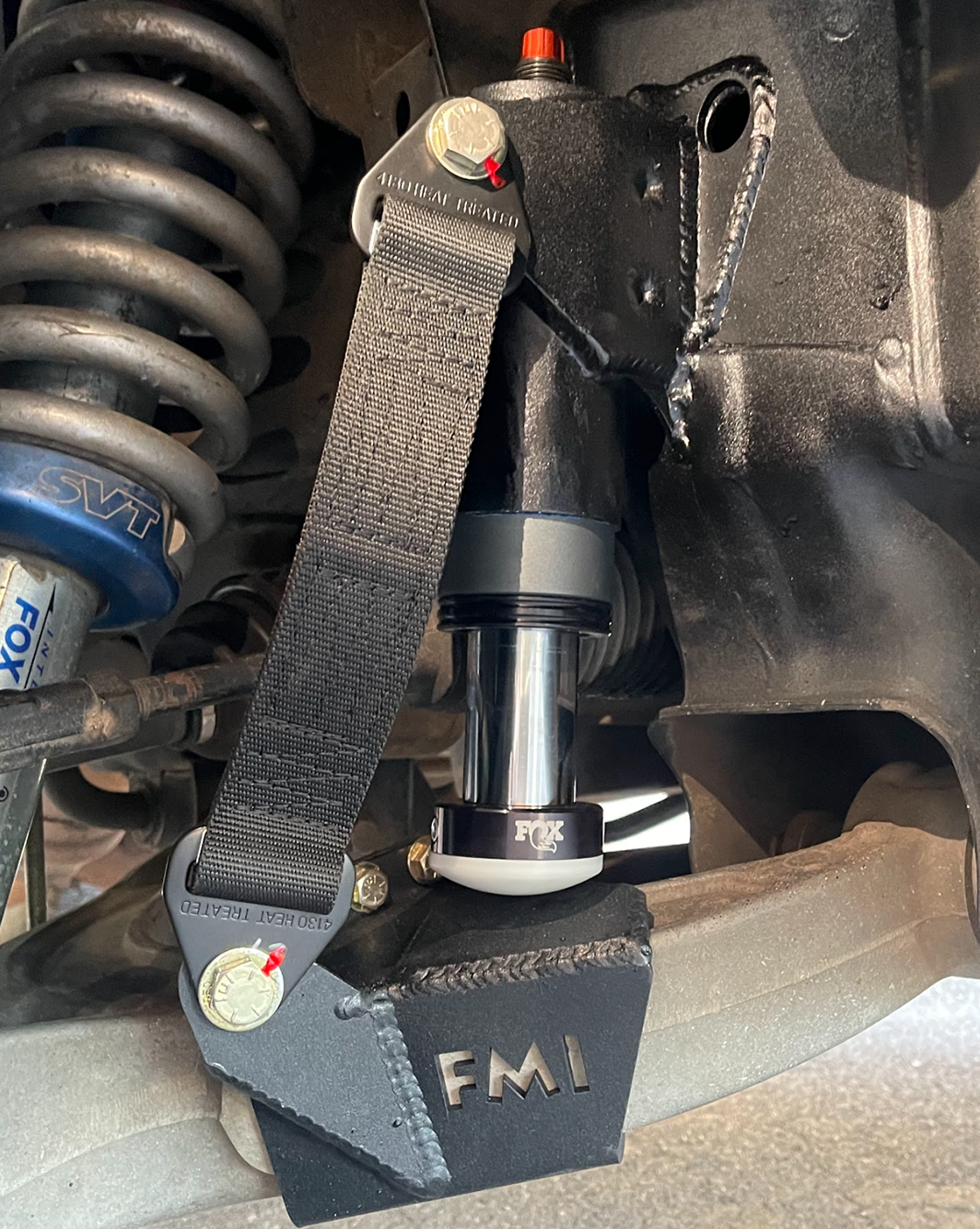

Gen 1 Raptor Front Limit Strap and Bump Stop Kit for Stock Lower A-Arm (2010,2012,2013,2014)

Unlock the full potential of your Gen 1 Raptor (2010–2014) with our front limit strap and bump stop kit. Designed to work with the factory stock lower a-arm, this kit bolts directly to the cast aluminum arm for straightforward installation.

Features & Benefits

• Adds a Fox, King, ADS or Carbon bump stop to the front stock suspension (2.5" OD × 2.5" travel bump stop for complete bottom-out protection).
• Works with factory stock lower a-arm and bolts directly to the cast aluminum arm.
• The Limit Strap Prevents top-out and saves your shock from premature failure.
• Extends the life of front suspension components.
• Limits droop travel so you don’t rely solely on the shock to stop extension.
• Must-have if you’re running aftermarket springs on your Raptor.

• Purpose-built for Gen 1 Raptor (2010–2014).

• Heavy-duty 12" straps made from premium materials withstand the toughest off-road abuse.
• Each strap is constructed with 4 layers of military-grade webbing.
• Black-plated steel mounting tabs resist corrosion and deliver lasting strength.
• Unlike cheap alternatives, our straps will not stretch out or wear prematurely.

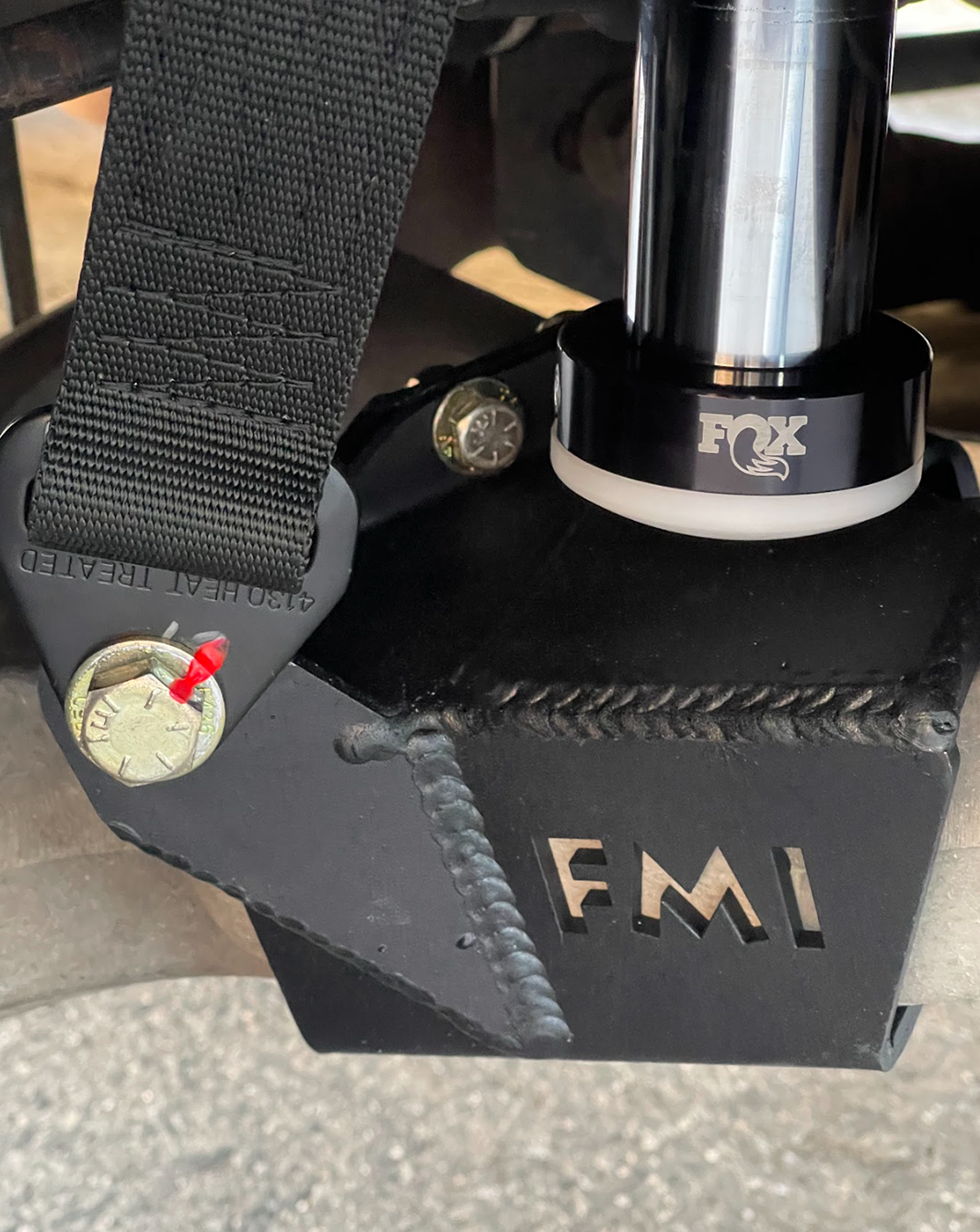

• Integrated bump stop pad makes adding a front bump stop kit simple.
• Brackets secure around the front of the stock lower control arm.
• MIG-welded in-house and finished with a hammer black powder coat for strength and durability.

• Welding the bump stop mount to the frame is required.
• Should only be installed by a qualified welder/fabricator.
• May not be compatible with Race Series front shocks or remote reservoir shocks that require frame-mounted hardware.  This depends on your hose routing to clear the bump stop and limit strap.

Kit Includes

• (2) 12" Limit Straps
• (2) Bump Stop Can Mounts
• (2) 2.5" OD × 2.5" Travel Bump Stops
• (2) Main Mounting Brackets
• (2) Mounting Bracket Backing Plates

Lower Control Arm Mounting Bracket Hardware

• (10) 3/8-16 × 1-1/4" Bolts
• (10) 3/8-16 Nylock Nuts
• (6) 3/8 Washers

Lower Strap Mounting Bracket Hardware

• (2) 1/2-20 Nylock Nuts
• (2) 1/2-20 Shallow Nylock Nuts
• (2) 1/2-20 12-Point Bolts
• (4) 1/2 Washers

Upper Strap Mounting Bracket Hardware

• (2) 1/2-13 × 1-1/2" Bolts
• (2) 1/2-13 Nylock Nuts
• (4) 1/2 Washers
