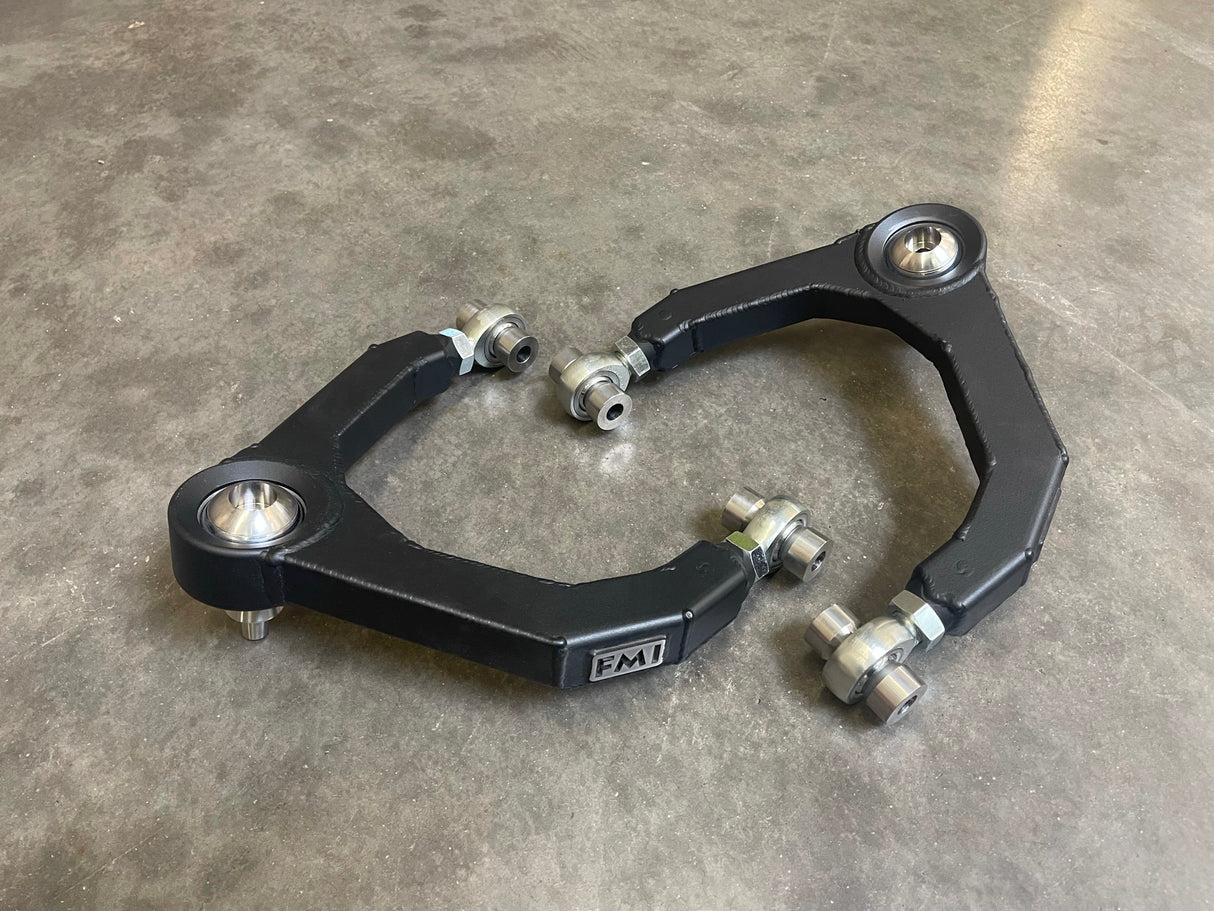

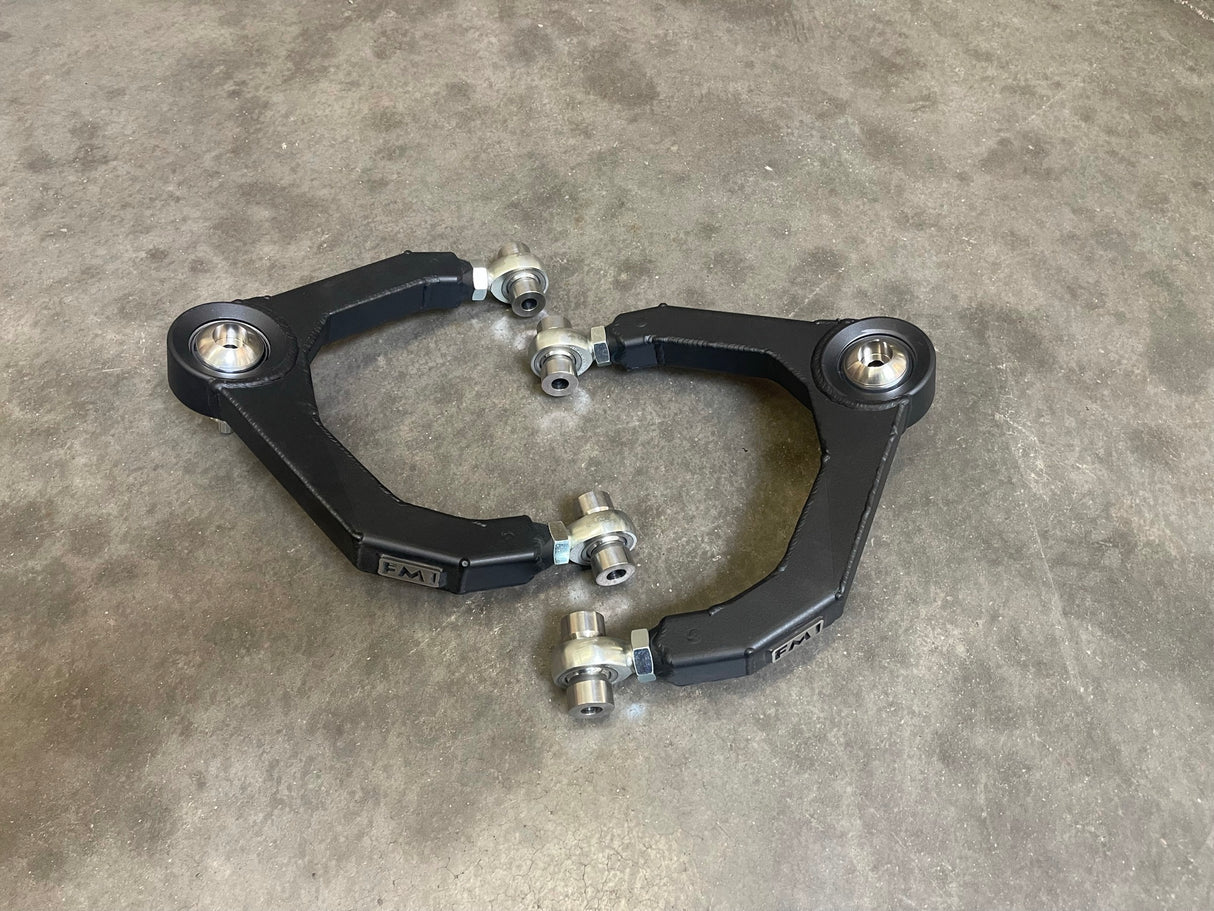

2010-2014 Gen 1 Raptor Fabricated Upper Arm Kit
Description
Description
Fabricated 4130 chromoly front upper control arms for the 2010–2014 Gen 1 Ford F-150 Raptor, with a 1.25" uniball at the ball joint and 7/8" FK rod ends at the frame. CAD designed with minor updates to caster and suspension geometry to improve driving feel and strength.
The upper arm decides where the top of the spindle sits. These arms put alignment adjustment in the arm itself: the rod ends at the frame let you set the caster and camber you want on your truck.
What Is In The Kit

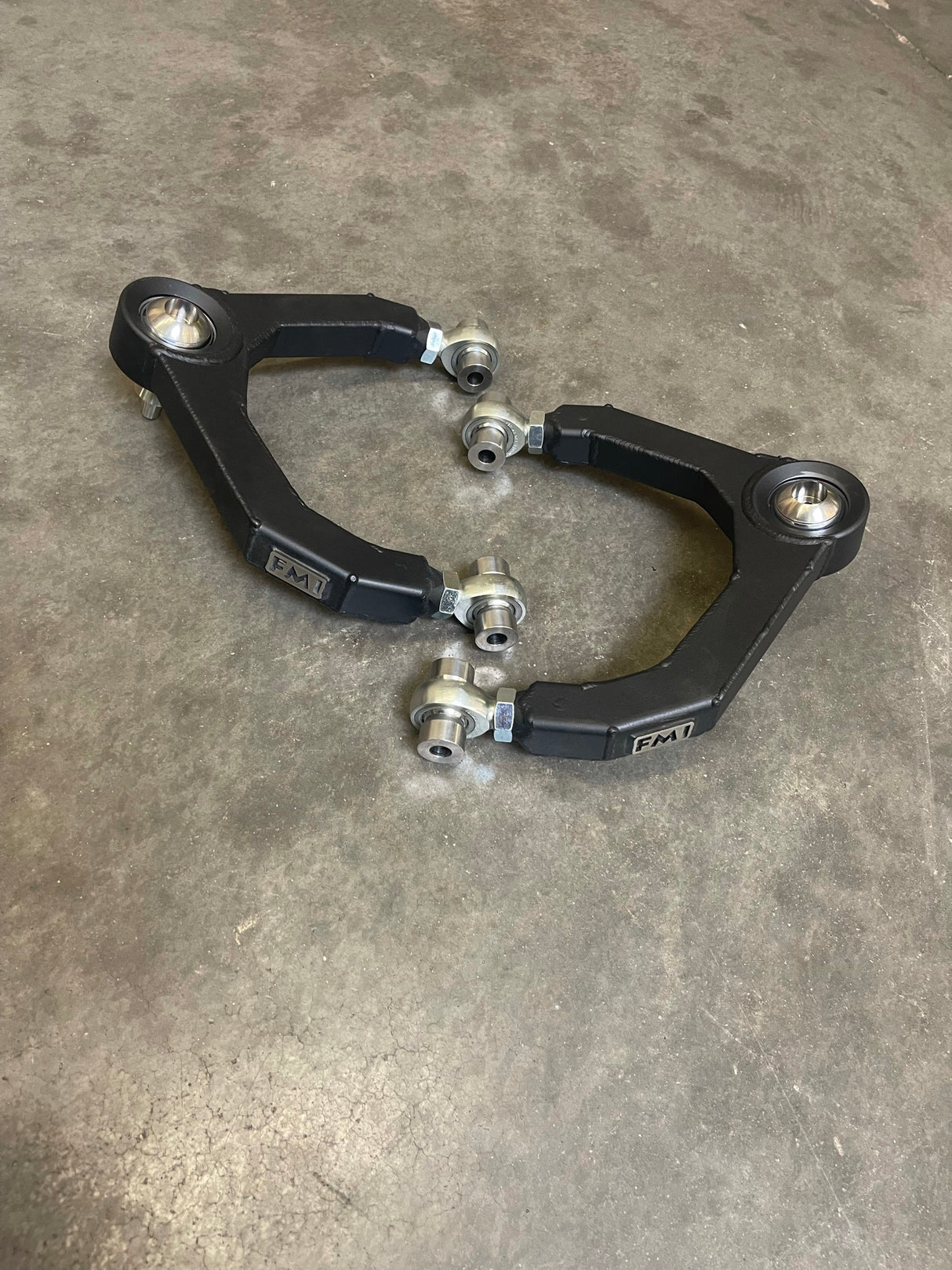

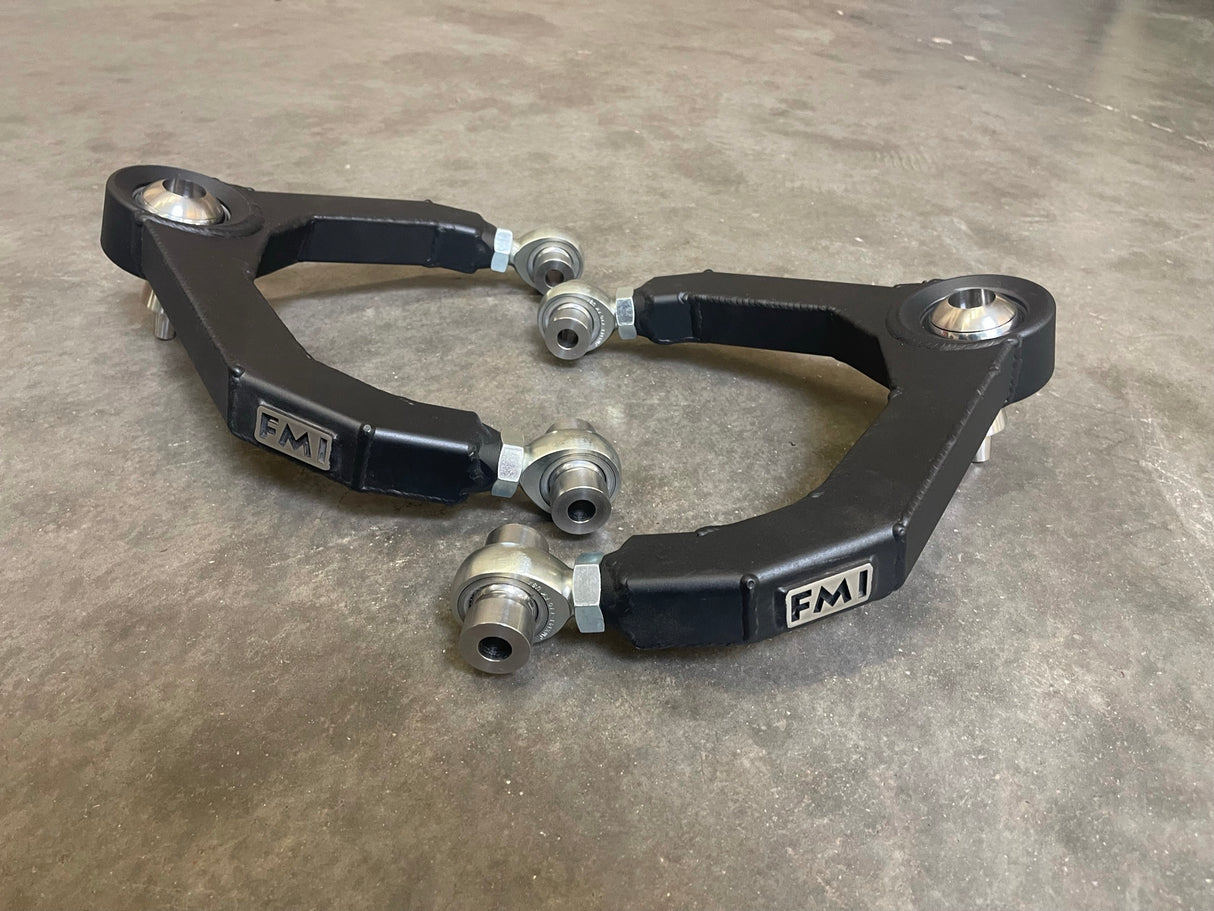

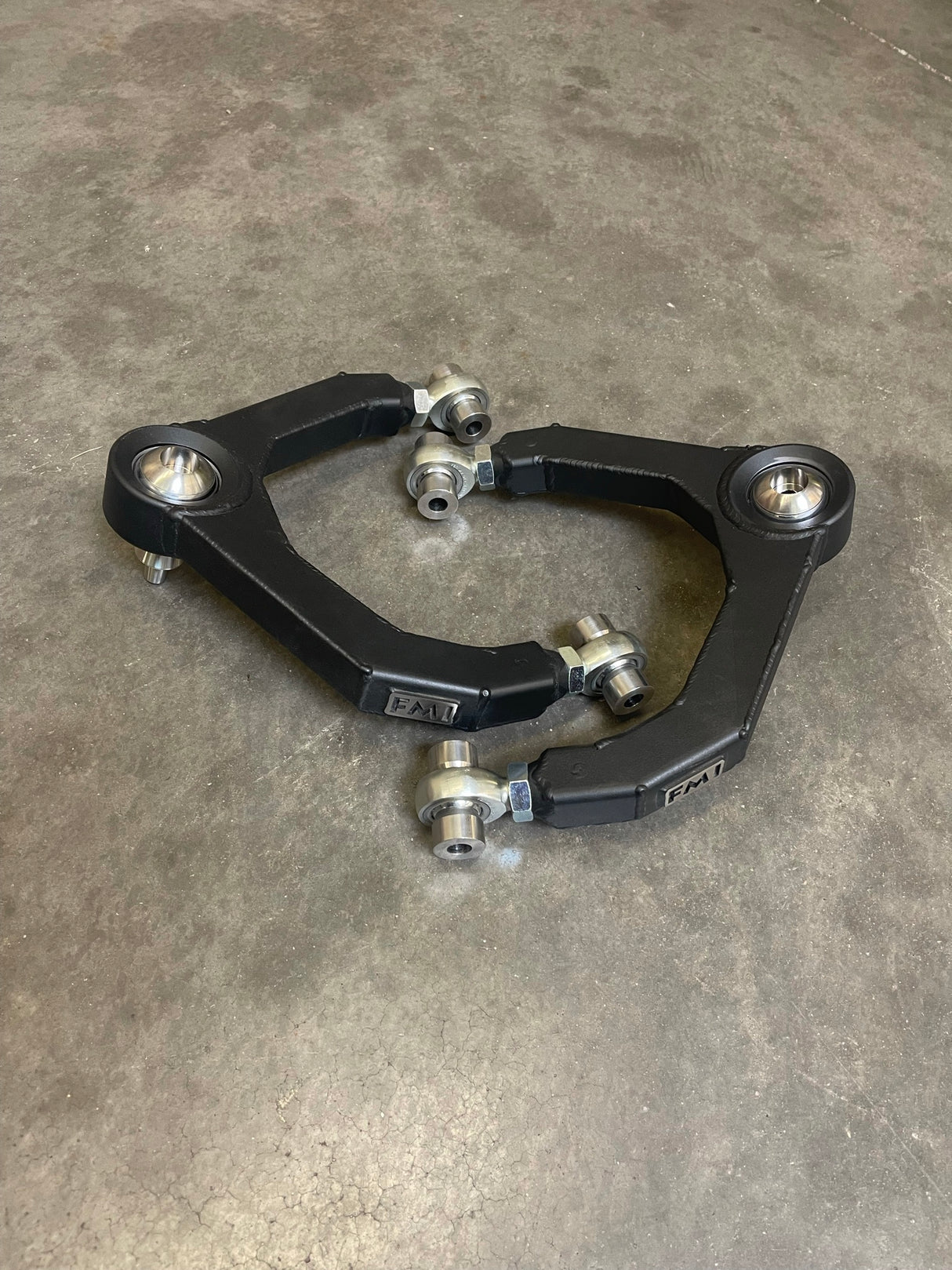

- 2 fabricated upper arms with 1.25" uniball assembly and 7/8" rod ends at the frame
- 1 hardware kit with all needed spacers, 12-point Grade 8 bolts and Gen 1 size upper ball joint adapters
Why Fabricated Upper Arms
The upper arm sets the top of the spindle, and with it the caster and camber the truck runs. It also carries the upper ball joint, which takes a beating in hard off-road use.
This fabricated chromoly arm replaces that ball joint connection with a large 1.25" uniball and pivots on adjustable FK rod ends at the frame. Caster and suspension geometry have been updated slightly in CAD to improve driving feel and strength, and the rod ends let you dial in alignment in the upper arm.
How It Is Built

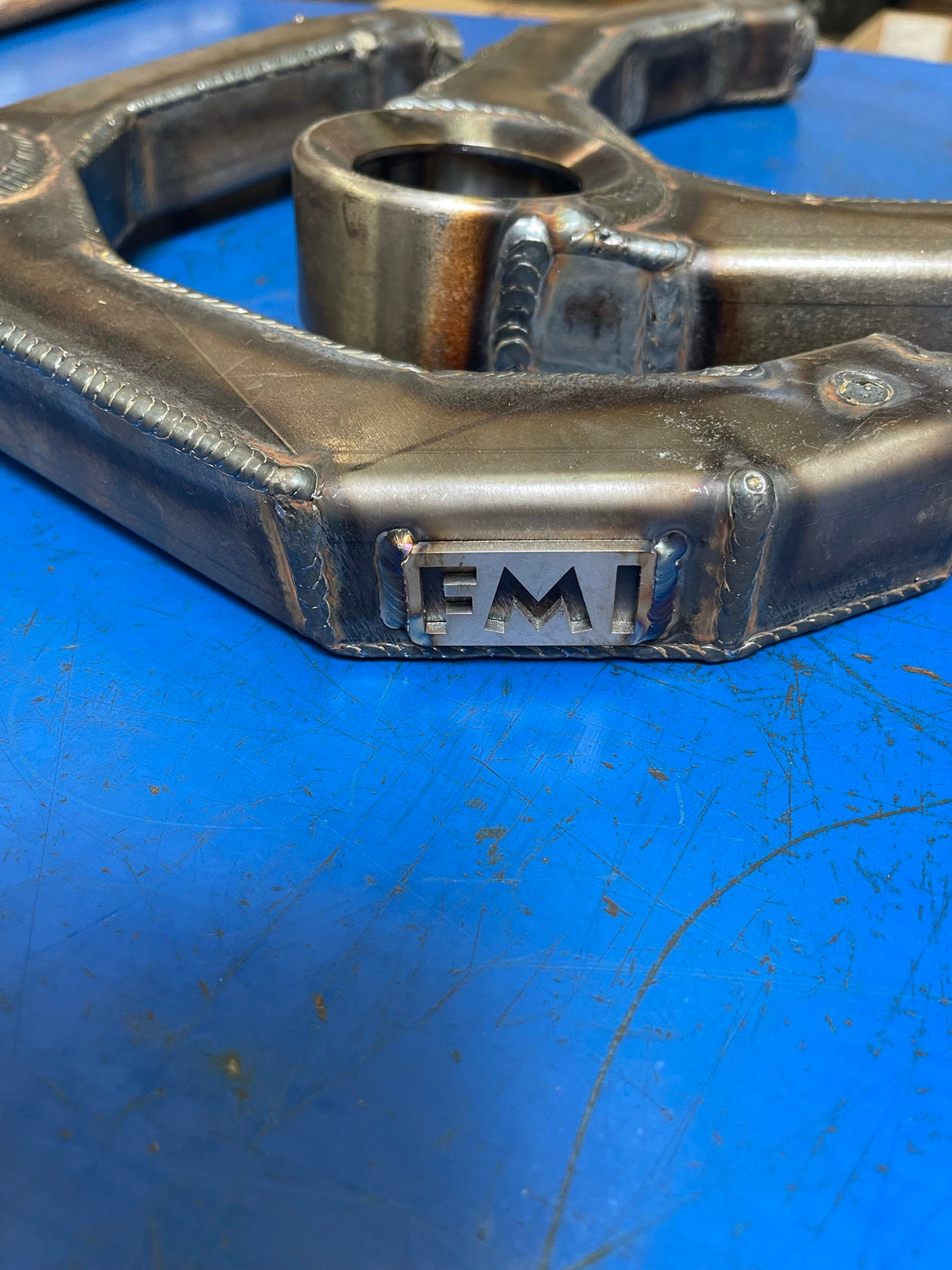

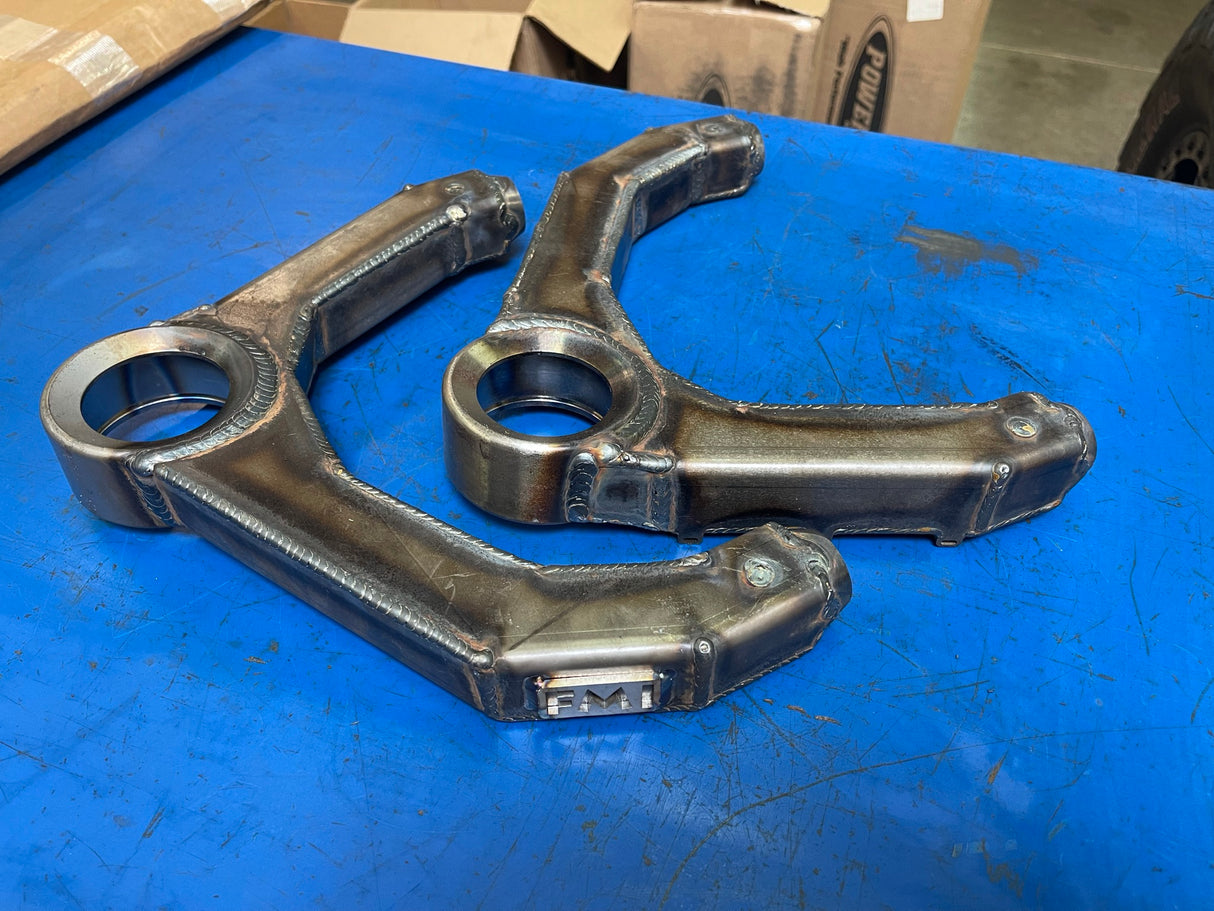

- 4130 chromoly, MIG welded in rigid fixtures for consistent quality and fitment
- CAD designed with minor updates to caster and suspension geometry

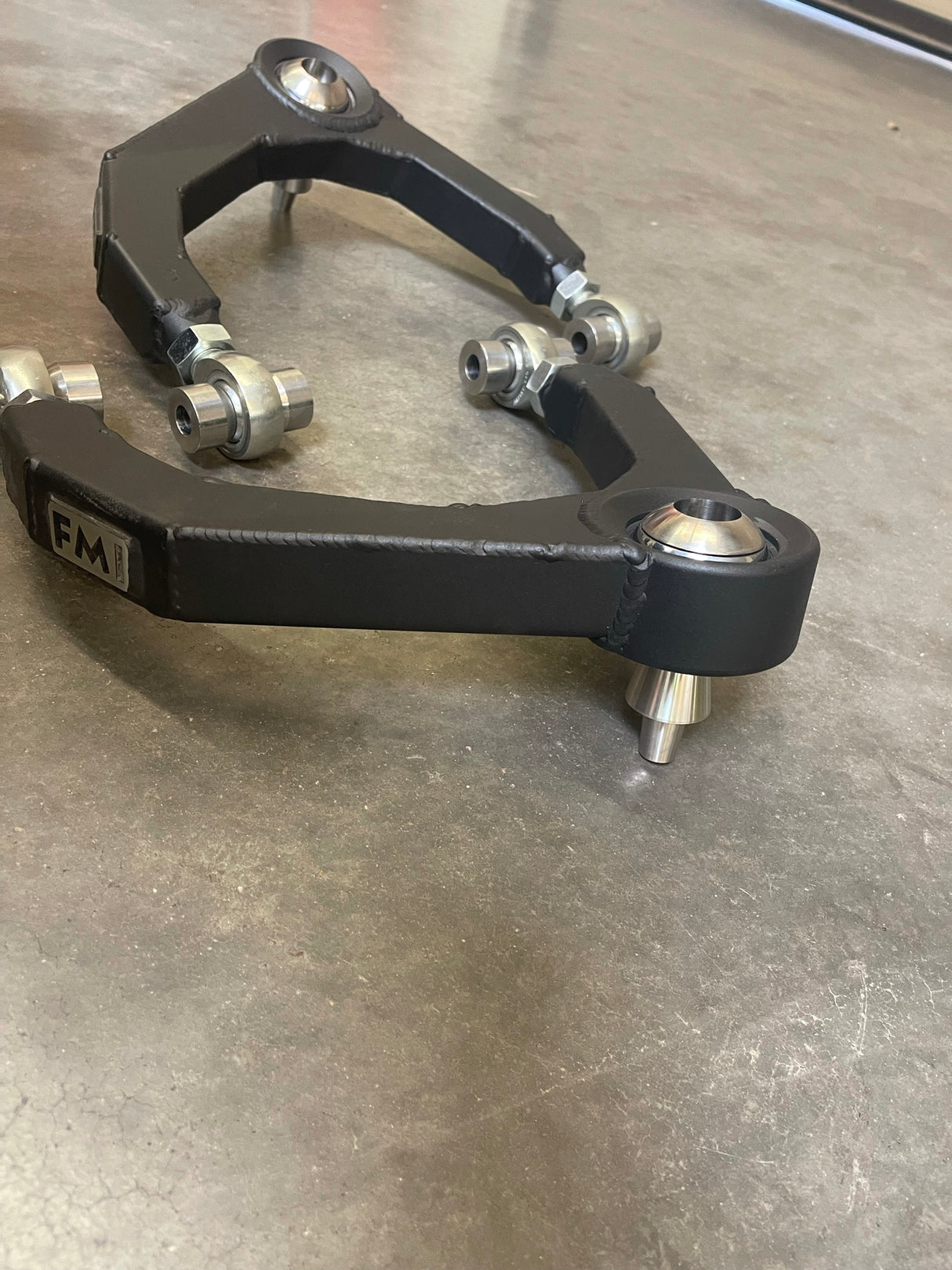

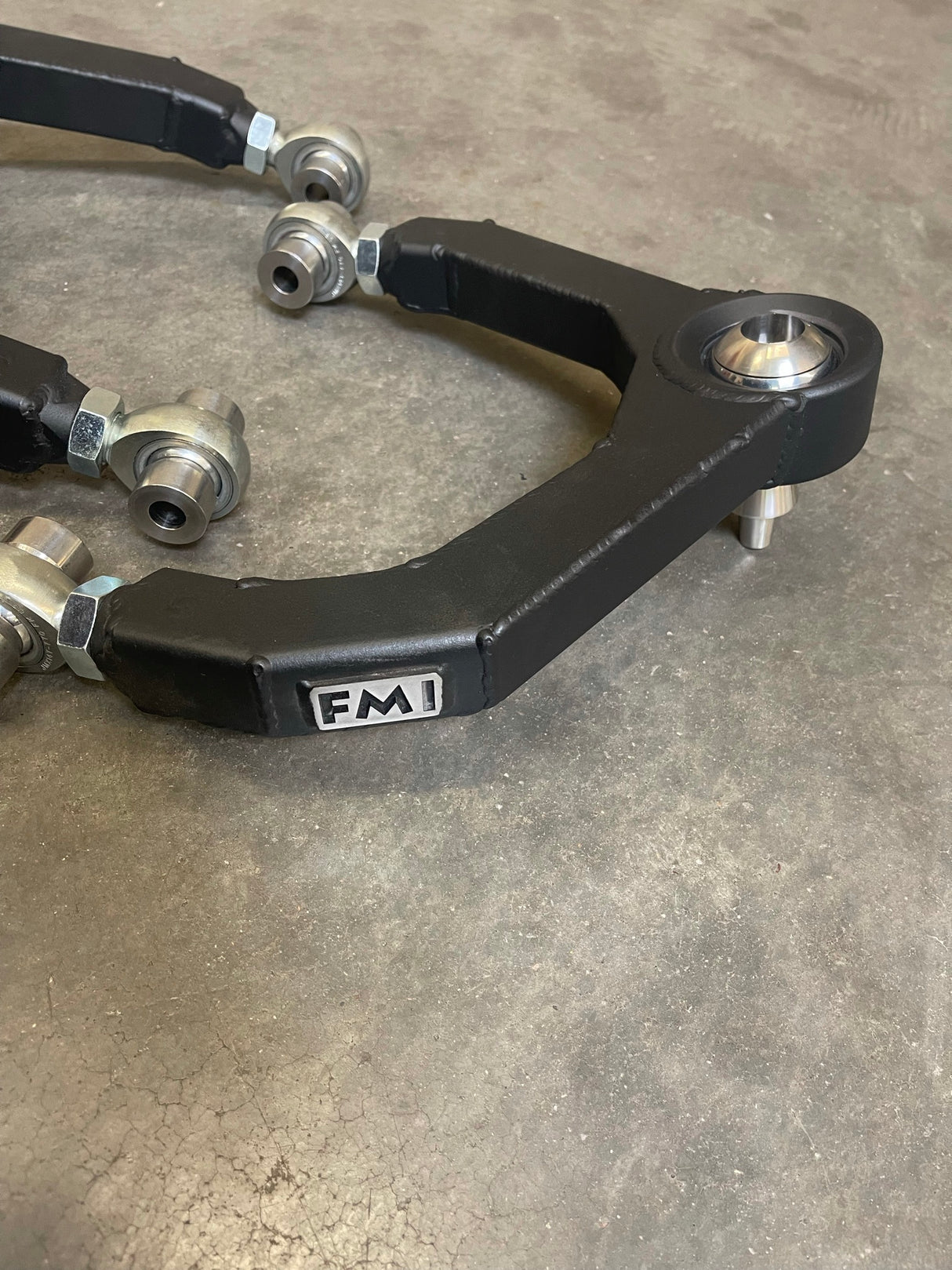

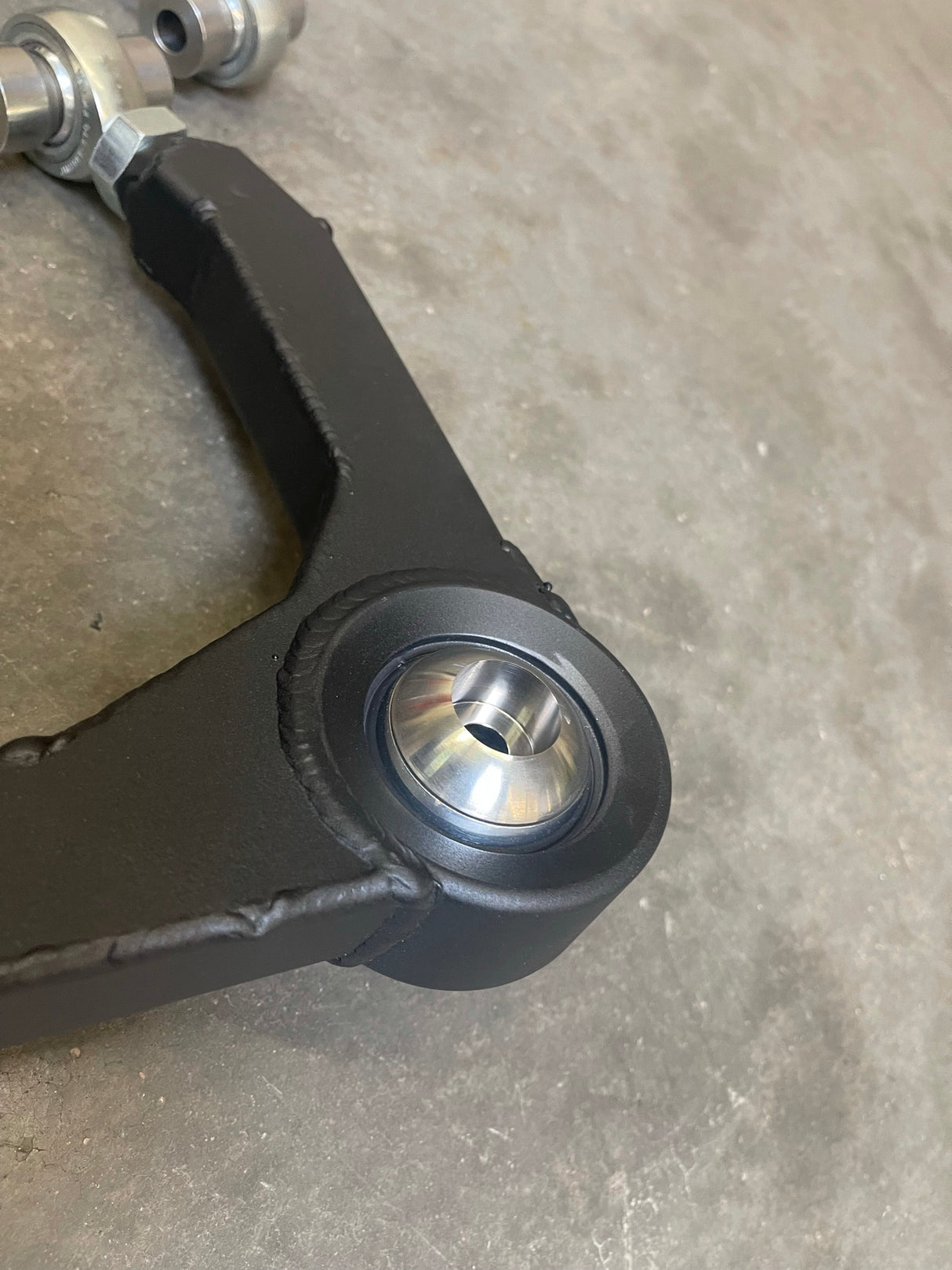

- 1.25" uniball replaces the upper ball joint connection

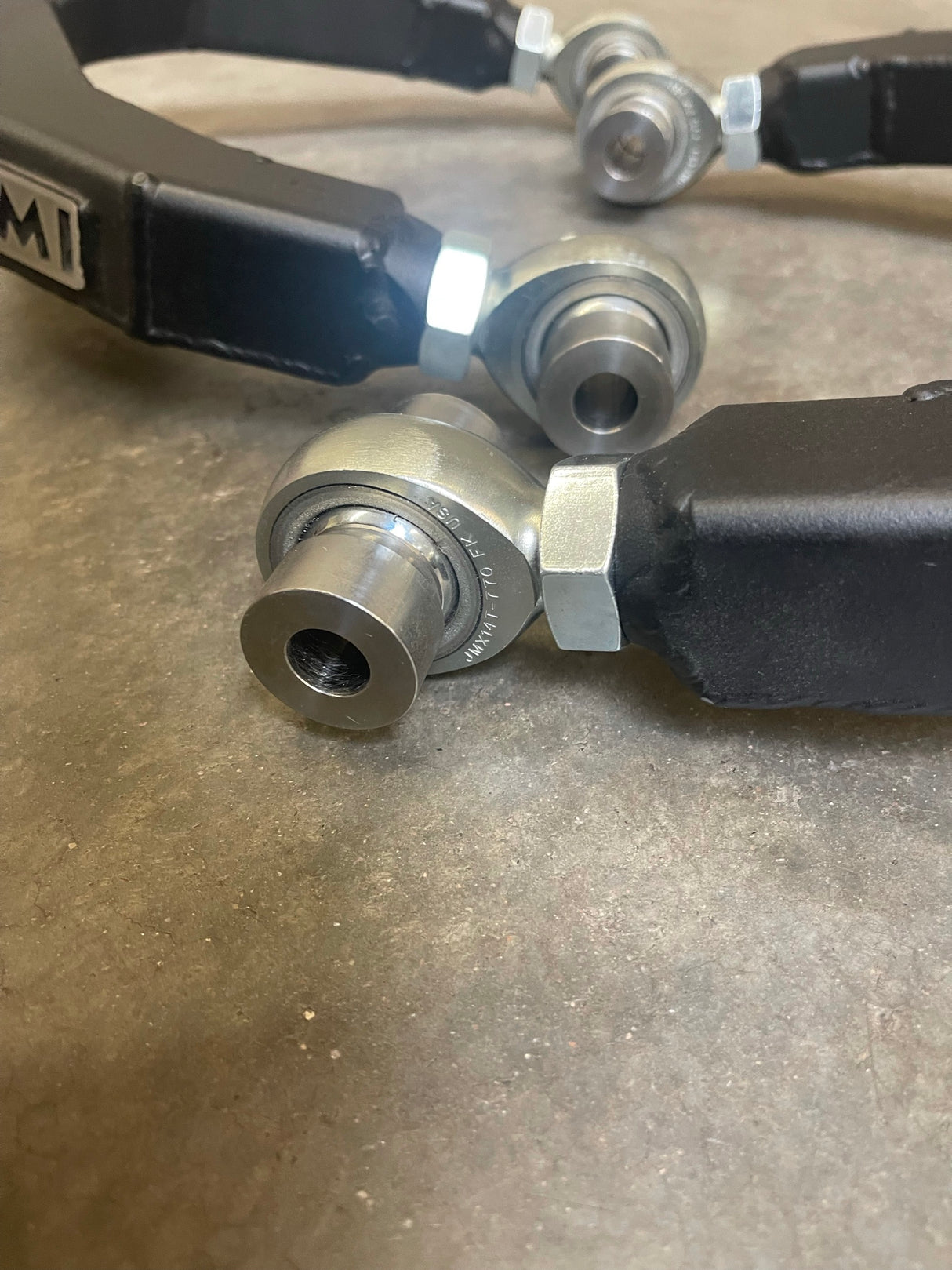

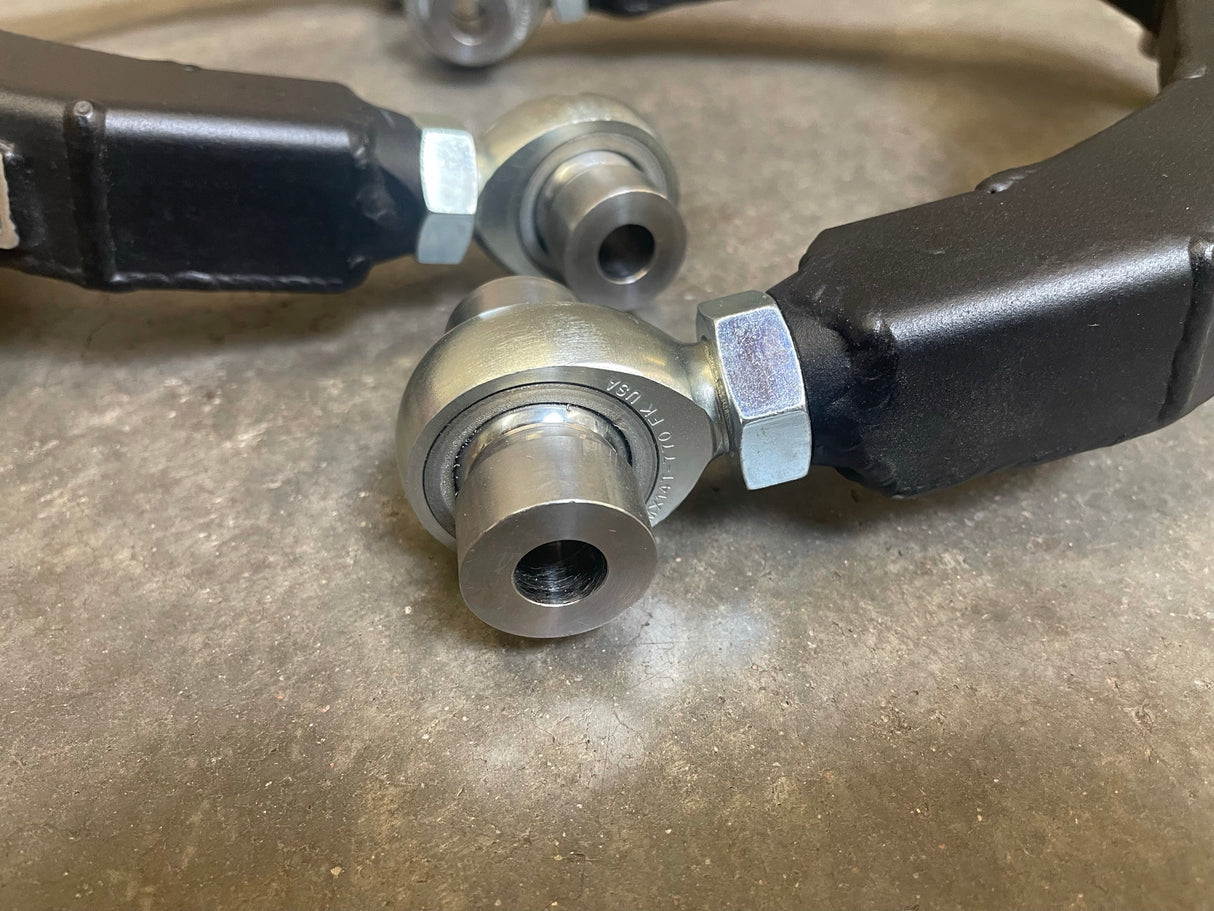

- 7/8" FK rod ends at the frame for caster and camber adjustment
- 17-4 stainless steel spacers at the pivot areas for strength and corrosion resistance
Fitment
Fits the Gen 1 Ford F-150 Raptor, model years 2010, 2011, 2012, 2013 and 2014.
Designed to work with the factory spindle setup, using the included Gen 1 size upper ball joint adapters. The kit also works with fixed pivot lower arm setups.
Questions
Do these work with the factory spindle?
Yes. The kit is designed around the factory spindle setup and includes Gen 1 size upper ball joint adapters.
Can I adjust alignment with these arms?
Yes. The FK rod ends at the frame let you adjust caster and camber in the upper arm.
Will it work with fixed pivot lower arms?
Yes. The kit also works with fixed pivot lower arm setups.
What size uniball does it use?
A 1.25" uniball at the ball joint connection, with 7/8" FK rod ends at the frame.
What hardware is included?
All needed spacers, 12-point Grade 8 bolts and the Gen 1 size upper ball joint adapters.
