Gen 1 to Gen 3 Raptor Conversion Rear Spring & Panhard Bar Mount Kit

Description

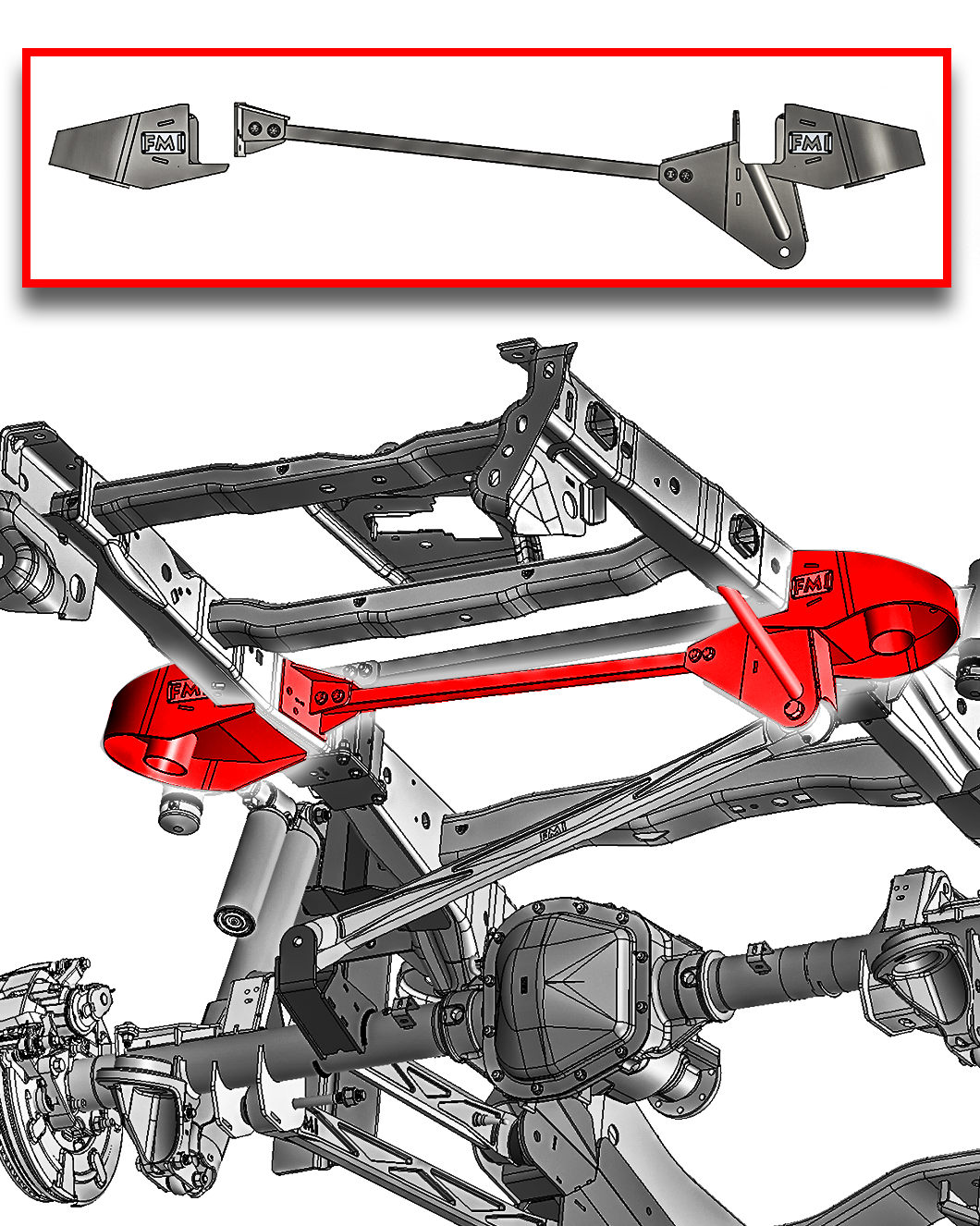

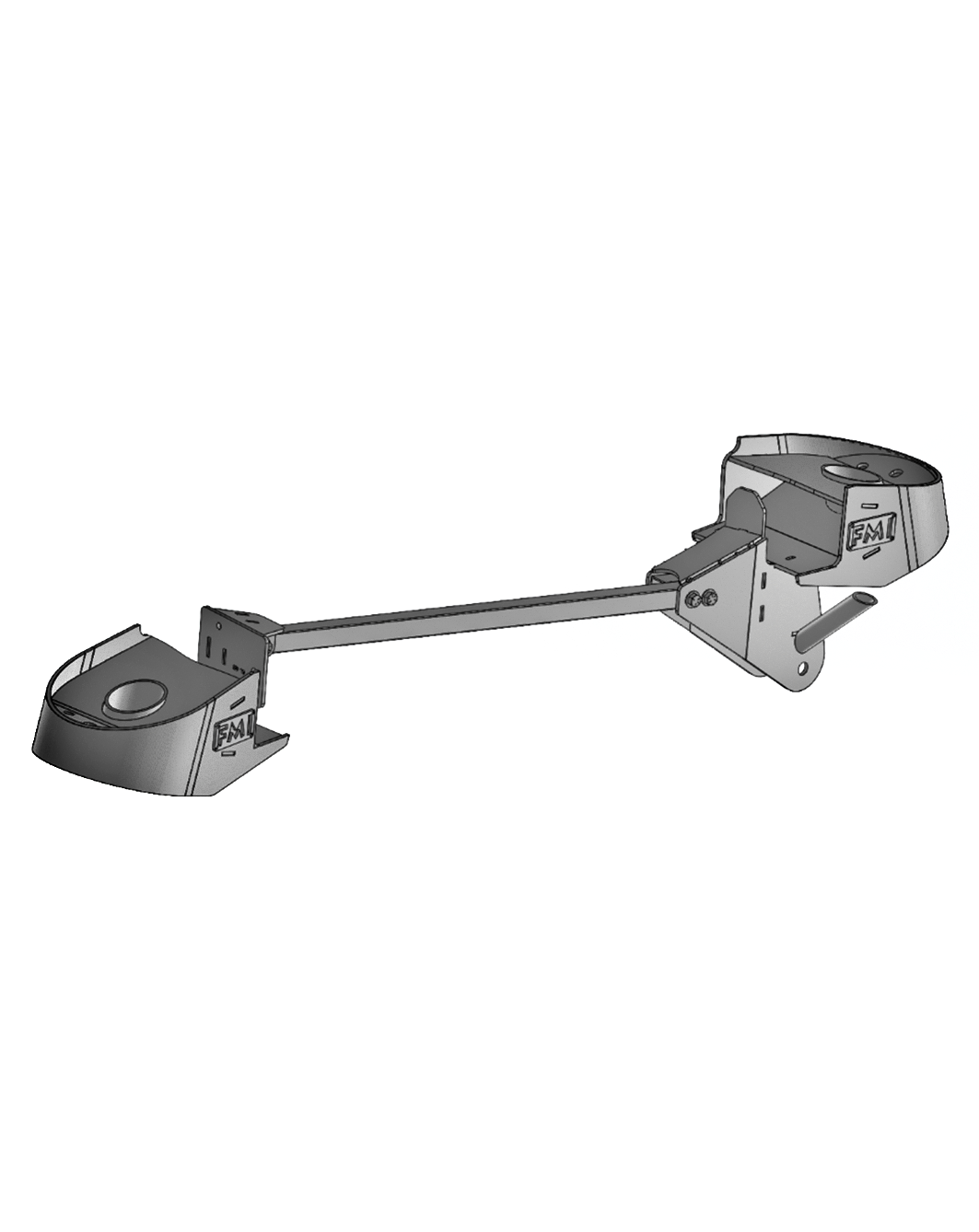

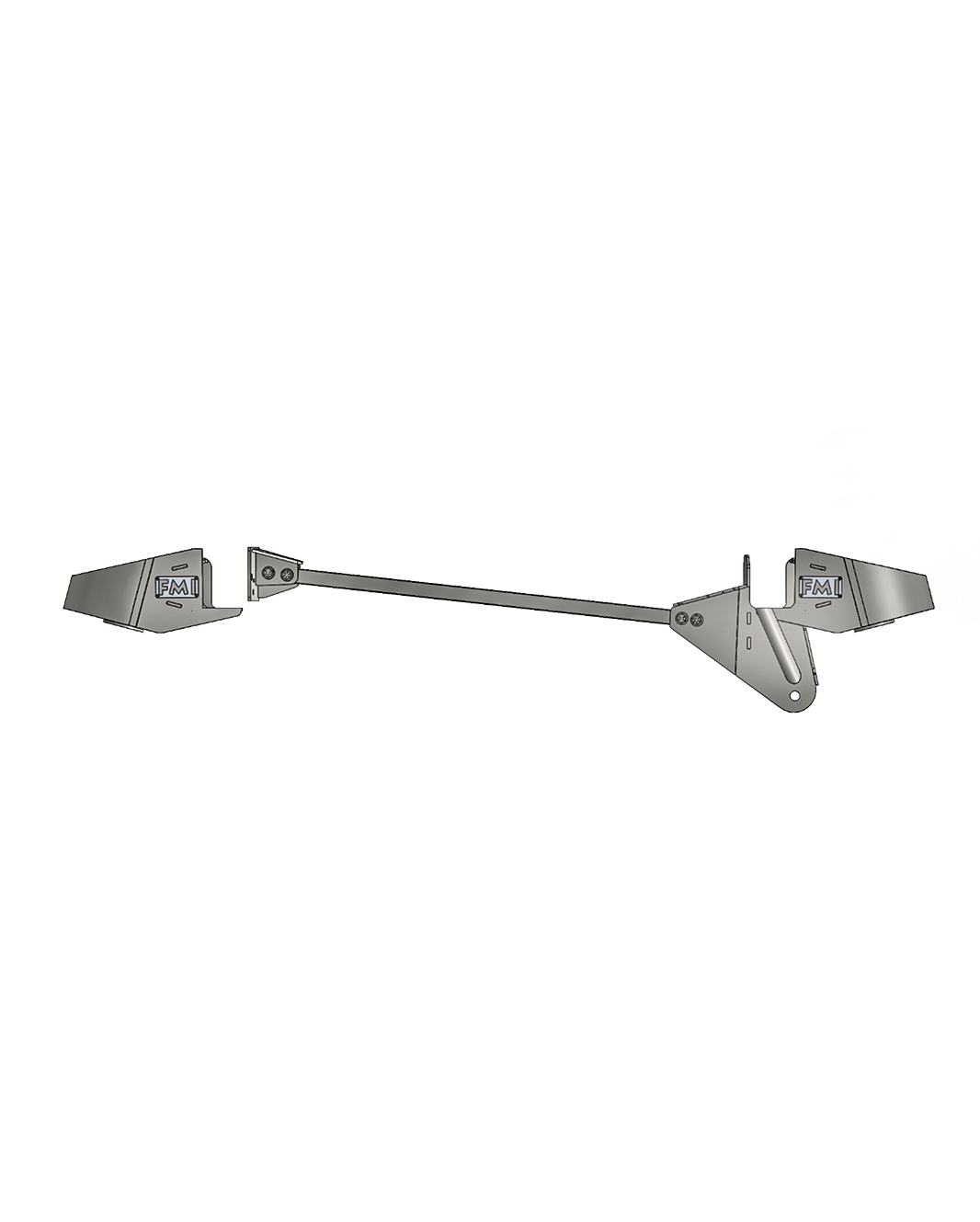

Rear coil spring mounts and panhard bar mount for converting a 2010–2014 Gen 1 Raptor or 2009–2014 F-150 to the Gen 3 Raptor rear suspension. The mounts are designed to fit the Gen 1 frame and match the stock Gen 3 Raptor rear suspension geometry.

A Gen 1 truck leaves the factory on leaf springs, so its frame has nowhere to carry a coil spring or locate a panhard bar. This kit adds those pickup points in the Gen 3 positions, which is what lets the rest of a Gen 3 style 5-link rear bolt in and work the way it was designed to.

Why Factory Gen 3 Geometry Matters

In a 5-link rear, the coil springs carry the weight and the panhard bar holds the axle centered side to side. Where those mounts sit decides how the axle moves through its travel. Put them in the wrong place and the axle steers, the springs bind or the panhard bar pulls the axle off center as the suspension cycles.

This kit keeps the OEM Gen 3 suspension pickup points, including the factory panhard bar location, so travel, handling and ride quality follow the stock Gen 3 design. That is also what keeps your parts choices open: you can run stock Gen 3 components or mix in aftermarket parts as your build grows.

How It Is Built

  • Material: 3/16" mild steel
  • Welding: precision MIG welded for consistent quality
  • Geometry: incorporates the factory panhard bar location for correct suspension geometry and alignment

Designed for demanding off-road use, and a solid foundation whether you are repairing, refreshing or upgrading to a Gen 3 style rear suspension.

Compatibility

  • Fully compatible with the Foutz Motorsports billet or fabricated 5-link suspension kits.
  • Works with stock Gen 3 Raptor suspension components for an OE-style installation.
  • Lets you mix stock and aftermarket suspension components as needed.

Fitment

Designed for the Gen 1 frame: the 2010–2014 Gen 1 Ford Raptor and the 2009–2014 Ford F-150. It is part of a Gen 1 to Gen 3 rear suspension conversion and matches the stock Gen 3 Raptor rear geometry.

Questions

What does this kit do?

It adds Gen 3 style rear coil spring mounts and a panhard bar mount to a Gen 1 frame, so the truck can run the Gen 3 Raptor rear suspension.

Which trucks does it fit?

The 2010–2014 Gen 1 Raptor and the 2009–2014 F-150.

Can I use stock Gen 3 parts with it?

Yes. It works with stock Gen 3 Raptor suspension components, and it is also fully compatible with the FMI billet or fabricated 5-link kits.

Where does the panhard bar mount?

In the factory Gen 3 panhard bar location, which keeps the axle centered and the geometry correct.

What is it made from?

3/16" mild steel, MIG welded.
