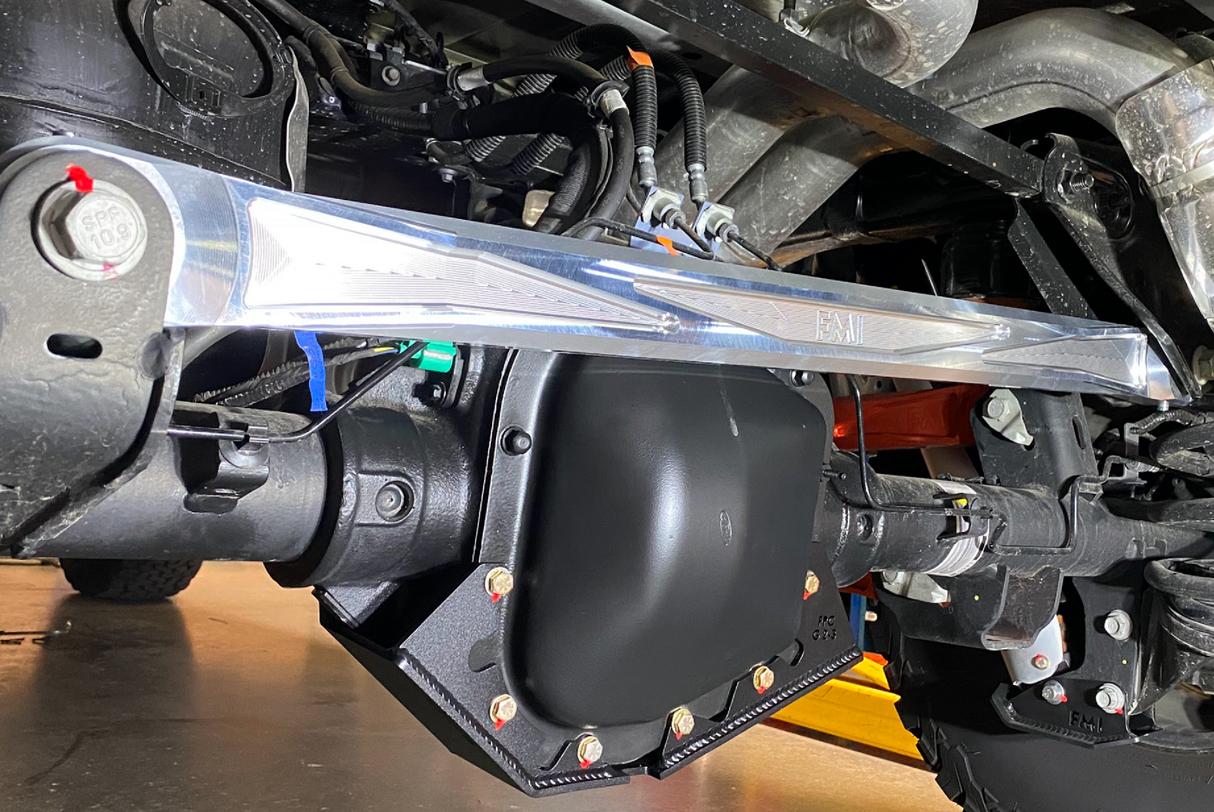

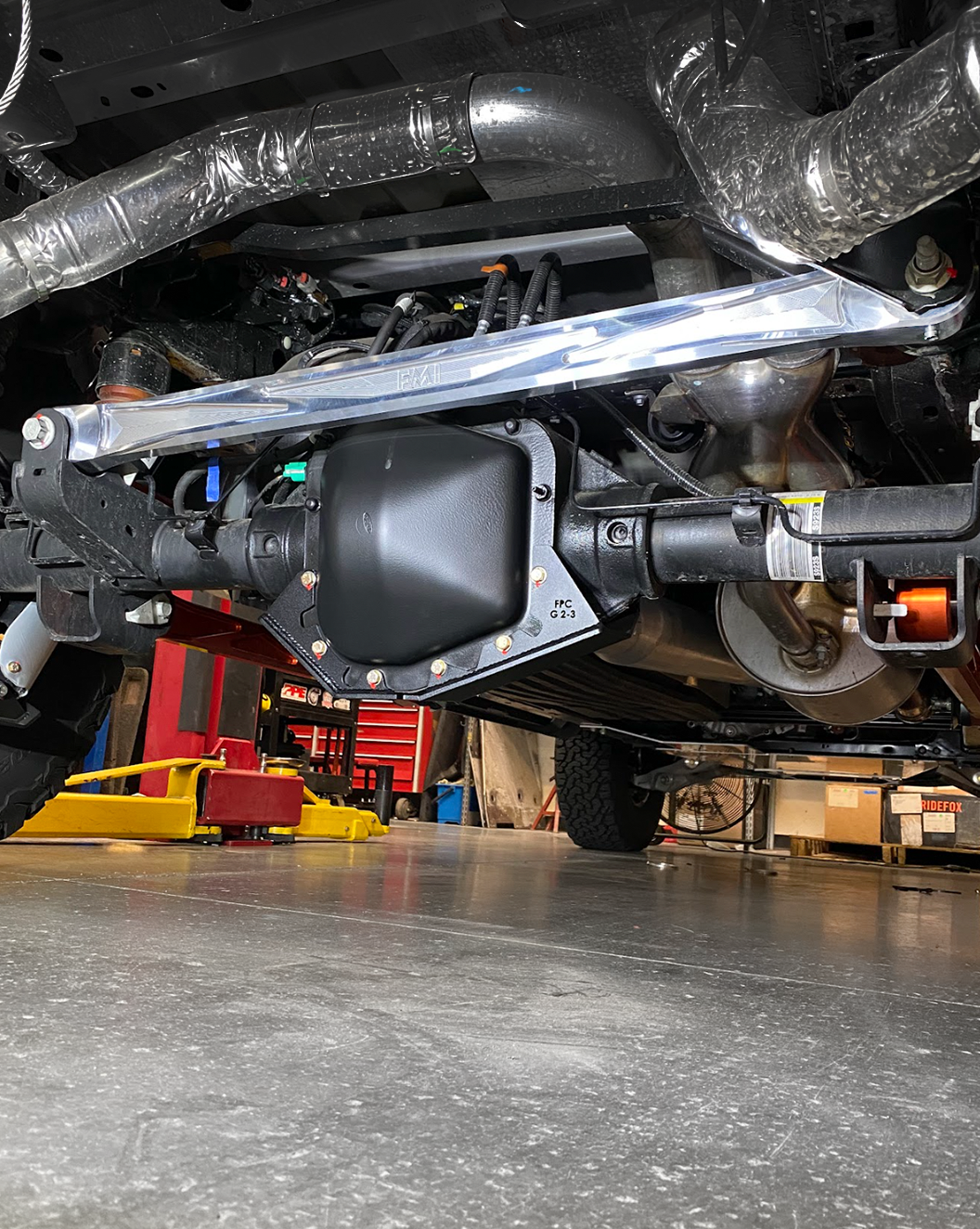

2021-2026 Ford F-150 Raptor Billet Panhard Bar with Ultra-Flex Joint

• 1 billet aluminum panhard bar, machined in-house in Mesa, Arizona
• Ultra-Flex joints at both ends — 17-4 stainless steel center ball in a serviceable urethane body

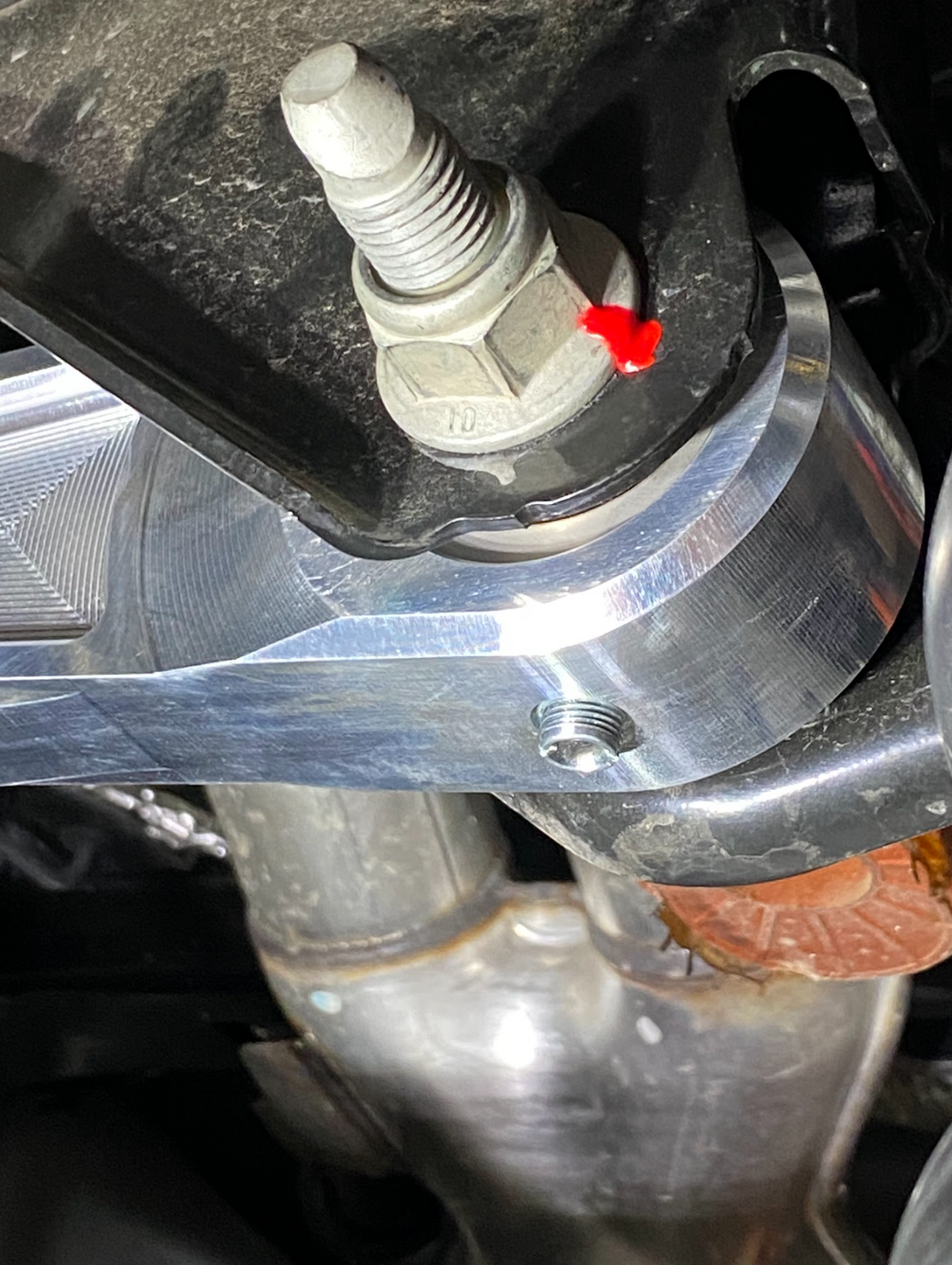

• External grease zerk at each joint

No hardware is included, and none is needed — the bar reuses your factory bolts at both ends.

The Gen 3 Raptor runs a five-link rear axle. Four links locate the axle fore and aft and control pinion angle. The panhard bar does something no other link does: it locates the axle side to side. Everything the rear end does laterally goes through that one bar.

The factory bar carries that load through rubber bushings. Rubber is chosen for isolation, not for location — it is soft on purpose, and that is fine on pavement at moderate load. Push the truck and those bushings compress, the axle shifts relative to where the chassis thinks it is, and the back of the truck starts to feel like it is steering itself.

Swapping to billet on spherical joints replaces that compliance with a defined pivot. Most owners notice this one immediately on the road, not just in the dirt — which is unusual for a suspension part at this price.

Our patent-pending joint, and the reason this bar is not just another billet link.

How it is built

A 17-4 stainless steel center ball pressed into a urethane body, which is pressed into a laser-cut stainless steel outer sleeve closed by two stainless side caps. The cartridge presses into the bar and is retained with a circlip. The grease zerk threads into a slotted hole in the sleeve, so the sleeve cannot rotate in the bar.

Why it matters

• Greaseable on the truck. External zerk — no removing the bar to service the joint.
• Quiet. The urethane body damps impact and isolates road noise instead of squeaking and clunking the way a worn uniball does.
• Corrosion resistant. Stainless internals that stay constantly lubricated, which is what you want in wet, humid or salted conditions.
• Rebuildable for the cost of a urethane body, not a complete joint assembly.
• Protects the bar. The stainless sleeve means urethane never works directly against your billet aluminum, so the bore stays true.

Read the full Ultra-Flex joint breakdown →

This matters more than which joint you pick, so get it right before you order.

Stock or near-stock ride height → this bar

If the rear of the truck sits where Ford put it, the axle is already centered and you only need the rubber gone. This fixed-length billet bar is the right answer and the simplest install on the page.

Lifted rear → you need an adjustable bar

Raise the rear and the panhard bar swings through a new arc, which pushes the axle off center. You see it as one rear tire sitting closer to its fender than the other. A fixed-length bar cannot correct that. Go to the adjustable heim joint bar or the adjustable Johnny Joint bar instead.

Long travel build → the 41.5" bar

Running our long travel rear suspension is a different geometry entirely and requires the adjustable 41.5" panhard bar. Not a stock-height upgrade.

Not sure which one your truck wants? Call us at (480) 718-9800 and we will talk it through.

Fits the Gen 3 and Gen 3.5 Ford F-150 Raptor, model years 2021, 2022, 2023, 2024, 2025 and 2026, including the Raptor R.

The Raptor R uses the same rear suspension architecture as the V6 truck, so this bar fits it unchanged. Built for stock or near-stock rear ride height.

Direct replacement for the factory panhard bar. Two bolts, both of them the ones already in your truck. No cutting, no welding, no fabrication, no new hardware to buy.

Support the truck safely and take the load off the rear axle before removing the factory bar. We recommend the work is done by an experienced individual or shop. Install guides are at Install Instructions, and we do in-house installation in Mesa if you would rather hand it over.

Four options: raw billet aluminum, black anodized, FOX orange anodized and blue anodized.

Raw is a finish choice, not a lesser part — plenty of builds run raw billet deliberately for the machined-aluminum look. Anodizing is there if you want color, or want the bar to match the rest of your billet under the truck. Anodized parts should be cared for as anodized aluminum; see the care notes before you take a pressure washer or a harsh wheel cleaner to them.

What does a panhard bar actually do?

It locates the rear axle side to side. Four links hold the axle fore and aft; the panhard bar is the only thing stopping it moving laterally under the truck. It is also commonly called a track bar — same part, different name.

Is a panhard bar the same as a track bar?

Yes. The two names describe the same part, and you will see both used across the off-road world. This is that part for the Gen 3 Raptor.

Do these fit a 2025 or 2026 Raptor?

Yes. It fits 2021 through 2026 Gen 3 and Gen 3.5 trucks, Raptor R included.

I have a lift. Can I use this bar?

Not ideally. A lifted rear needs an adjustable bar so the axle can be re-centered — a fixed-length bar holds the axle wherever the new ride height puts it. See the fixed-or-adjustable panel above.

Why buy the panhard bar before the rear links?

Because it is the single part holding the axle centered, it is the least expensive piece of the rear suspension, and it makes the biggest immediate difference in how planted the truck feels. Lower trailing arms next, then uppers.

Will the Ultra-Flex joint squeak like a uniball?

No. The urethane body isolates road noise rather than transmitting it, and it is specifically designed to avoid the squeaking and clunking that comes with a worn uniball.

How do I service the joint?

Grease it through the external zerk with the bar still bolted to the truck. When the urethane eventually wears, you replace that one part rather than a complete joint assembly. Service parts are under Serviceable Parts.

Does the kit include new bolts?

No, and it does not need them. The factory bolts are reused at both ends.

Do I need an alignment afterwards?

No alignment is required for a straight swap at stock ride height. If you have changed rear ride height, have the rear axle checked for center.

Where is it made?

Designed, machined and finished in-house at our facility in Mesa, Arizona, USA.
