2024+ Ranger Raptor Billet Tie Rod Kit

Description

Upgrade the steering on your 2024+ Ford Ranger Raptor with the Foutz Motorsports Full-Length Billet Tie Rod Kit.

CNC machined in house from 6061-T6 billet aluminum, this full length tie rod kit combines FK rod ends, 17-4 stainless steel components, and Grade 8 hardware for improved steering strength, durability, and precision on and off the road.

Features & Benefits
  • Full length billet tie rod upgrade
  • CNC machined in house from 6061-T6 billet aluminum
  • 7/8" FK rod ends at the spindle
  • 3/4" FK rod ends at the steering rack
  • 17-4 stainless steel clevis adapters and high misalignment spacers
  • Grade 8 bolts and lock nuts
  • Urethane steering rack boots help keep water, dirt, and debris out
  • Made in the USA

Materials & Durability
  • CNC machined 6061-T6 billet aluminum tie rod tubes
  • 7/8" FK rod ends provide a strong connection at the spindle
  • 3/4" FK rod ends provide a durable steering rack connection
  • 17-4 stainless steel clevis adapters and high misalignment spacers
  • Grade 8 hardware and lock nuts for strength and secure installation
  • Urethane steering rack boots provide added protection around the rack connection

Fitment & Compatibility
  • 2024+ Ford Ranger Raptor
  • Full length replacement for the factory tie rod assembly
  • Designed for the factory steering rack and spindle

Installation
  • Full length tie rod replacement
  • Connects at the factory spindle and steering rack locations
  • Urethane steering rack boots included
  • Complete hardware kit included

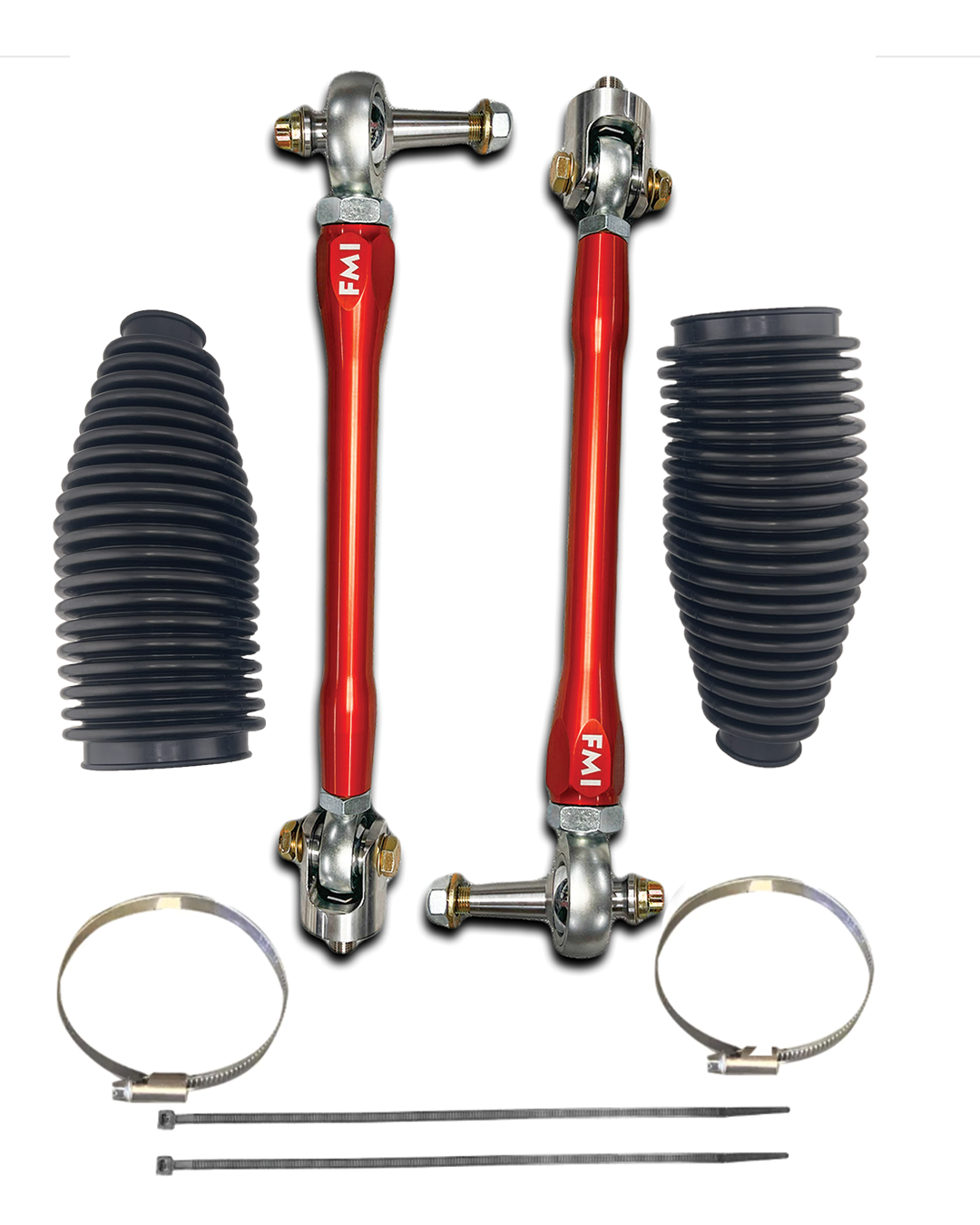

Kit Includes
  • (2) Billet tie rod tubes with 7/8" FK rod ends
  • (2) 3/4" FK rod ends
  • (2) 17-4 stainless steel steering rack clevis adapters

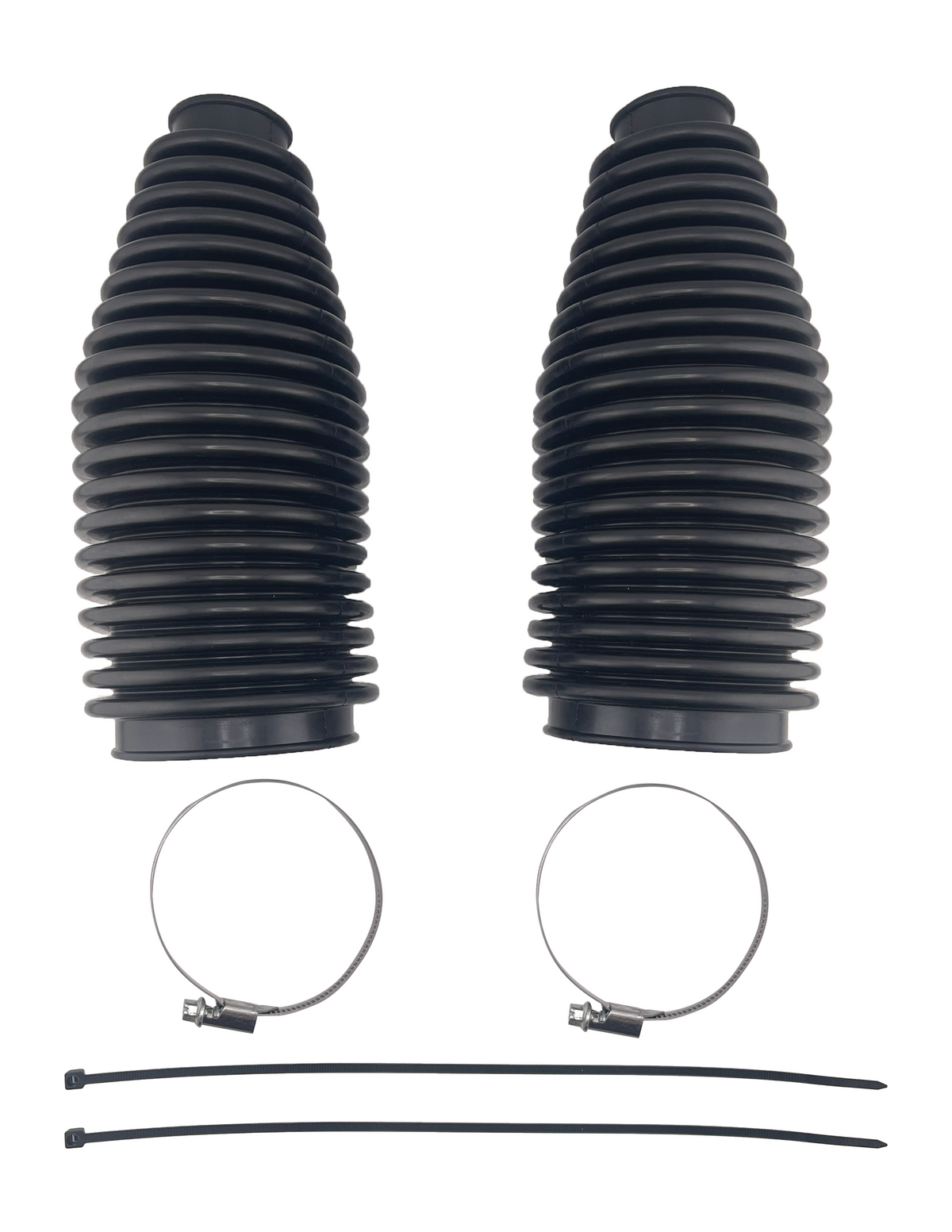

  • (2) Urethane steering rack boots
  • 17-4 stainless steel high misalignment spacers
  • Grade 8 bolts and lock nuts
  • Complete hardware kit

Frequently Asked Questions

What Ford Ranger Raptor does this tie rod kit fit?

This kit fits the 2024+ Ford Ranger Raptor.

Is this a full length tie rod replacement?

Yes. This is a full length billet tie rod kit that replaces the factory tie rod assembly.

What are the billet tie rods made from?

The tie rod tubes are CNC machined in house from 6061-T6 billet aluminum.

What type of rod ends are included?

The kit uses 7/8" FK rod ends at the spindle and 3/4" FK rod ends at the steering rack.

What are the clevis adapters and spacers made from?

The steering rack clevis adapters and high misalignment spacers are made from 17-4 stainless steel.

Does the kit include steering rack boots?

Yes. Two urethane steering rack boots are included to help seal the rack connection from water, dirt, and debris.

Is the hardware included?

Yes. The kit includes 17-4 stainless steel spacers, Grade 8 bolts, and lock nuts.

Finish:
$ 899.99
ANODIZED CARE & DISCLAIMER:   read before ordering
⚠️ WARNING:
 Improper cleaning can permanently damage the anodic coating on billet aluminum parts, causing fading, staining, or discoloration.

SOAPS / CLEANERS THAT DAMAGE :
High-pH (alkaline) soaps, degreasers, and acidic wheel cleaners can fade, stain, or strip anodized aluminum, especially when they contain sodium hydroxide (lye) or other strong acids. Heavy-duty fast-acting alkaline cleaners designed for engine bays or wheels should not be used on anodized surfaces.

❌ WHAT TO AVOID :
High-pH (alkaline) cleaners
• Heavy-duty degreasers
• Wheels / engine bay cleaners
• Oven cleaners (e.g., Yellow Cap, Easy-Off)
• Products containing sodium hydroxide (lye)
• Damage the anodic coating
Hot Surfaces
• Never wash in direct sunlight, as heat accelerates chemical damage
 Acidic cleaners
• Wheel cleaners with strong acids
• Nitric or sulfuric-based cleaners
• Aggressive aluminum cleaners
 Aluminum brighteners or etchers

• Products designed for raw or polished aluminum can strip the anodized coating

✅ HOW TO PROTECT ANODIZED ALUMINUM:

pH-neutral soaps
• only use cleaners with a pH between 6–8
Wash on cool surfaces
• Avoid direct sunlight or hot parts
Test small areas first
• Always try new products on a small, hidden area
Safe Alternatives:
• Isopropyl alcohol (used carefully and sparingly)
• Mild Automotive Car Wash Soap

⚠️ RESPONSIBILITY NOTICE:
Damage caused by improper cleaning chemicals or detailing products is the sole responsibility of the owner. Keeping your anodized parts clean with the right products will help maintain their finish and extend their lifespan.

Delivery and Shipping
  • All in-stock products typically ship within 48 hours.
  • For items that are not currently in stock, please expect 4–6 weeks for production and delivery.
  • For stock status on products, contact our customer service team, and a representative will assist you with the most up-to-date availability and information: (480) 718-9800 | info@foutzmotorsports.com

PROP 65 WARNING

This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

Thank you for your trust in Foutz Motorsports. We appreciate your business. Please let us know if there is anything we can do to make your experience even better. (480) 718-9800 info@foutzmotorsports.com
