Ram RHO 2" Front Leveling Collar Kit with Ride Height Sensor Connector Rods - 2025-2026

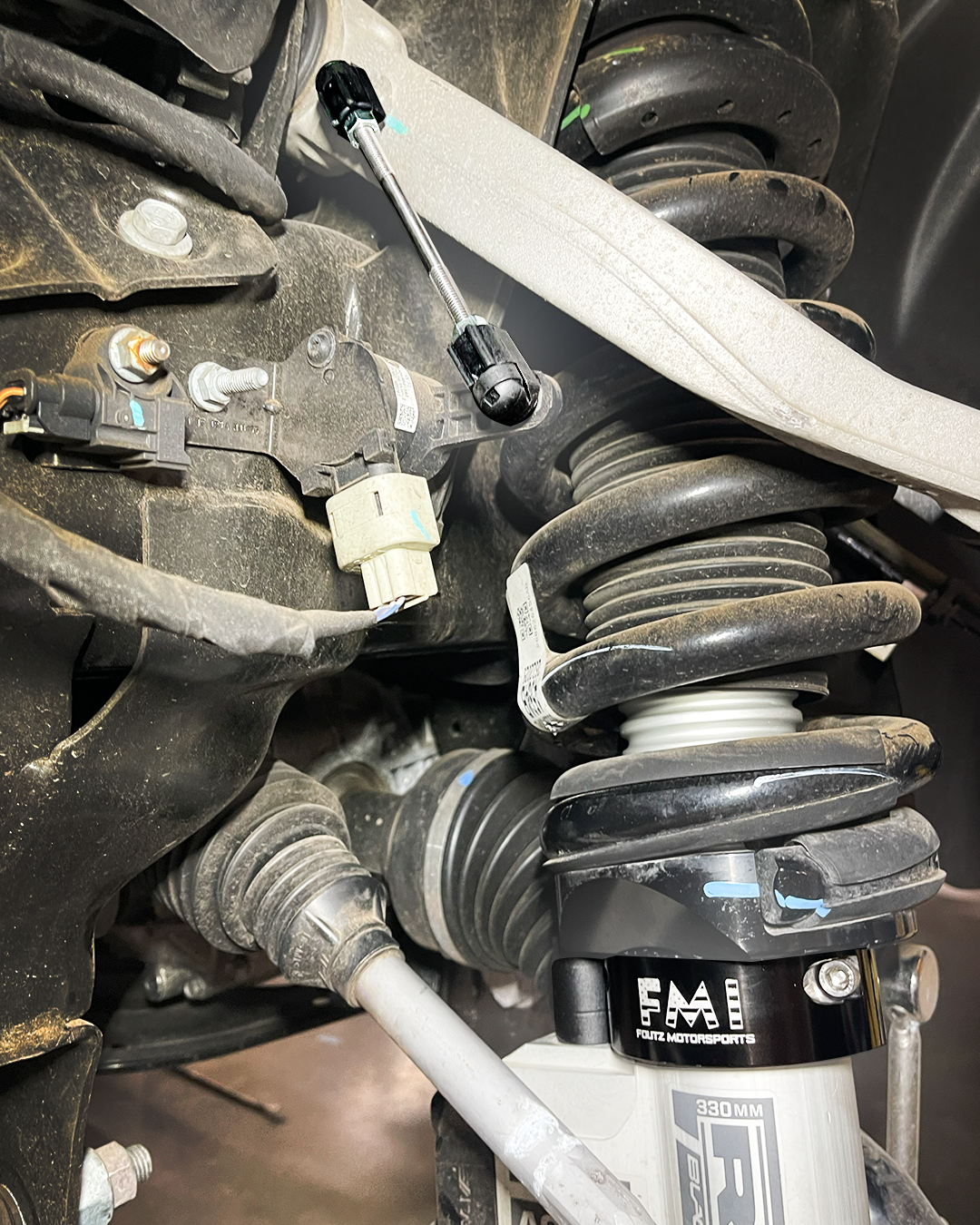

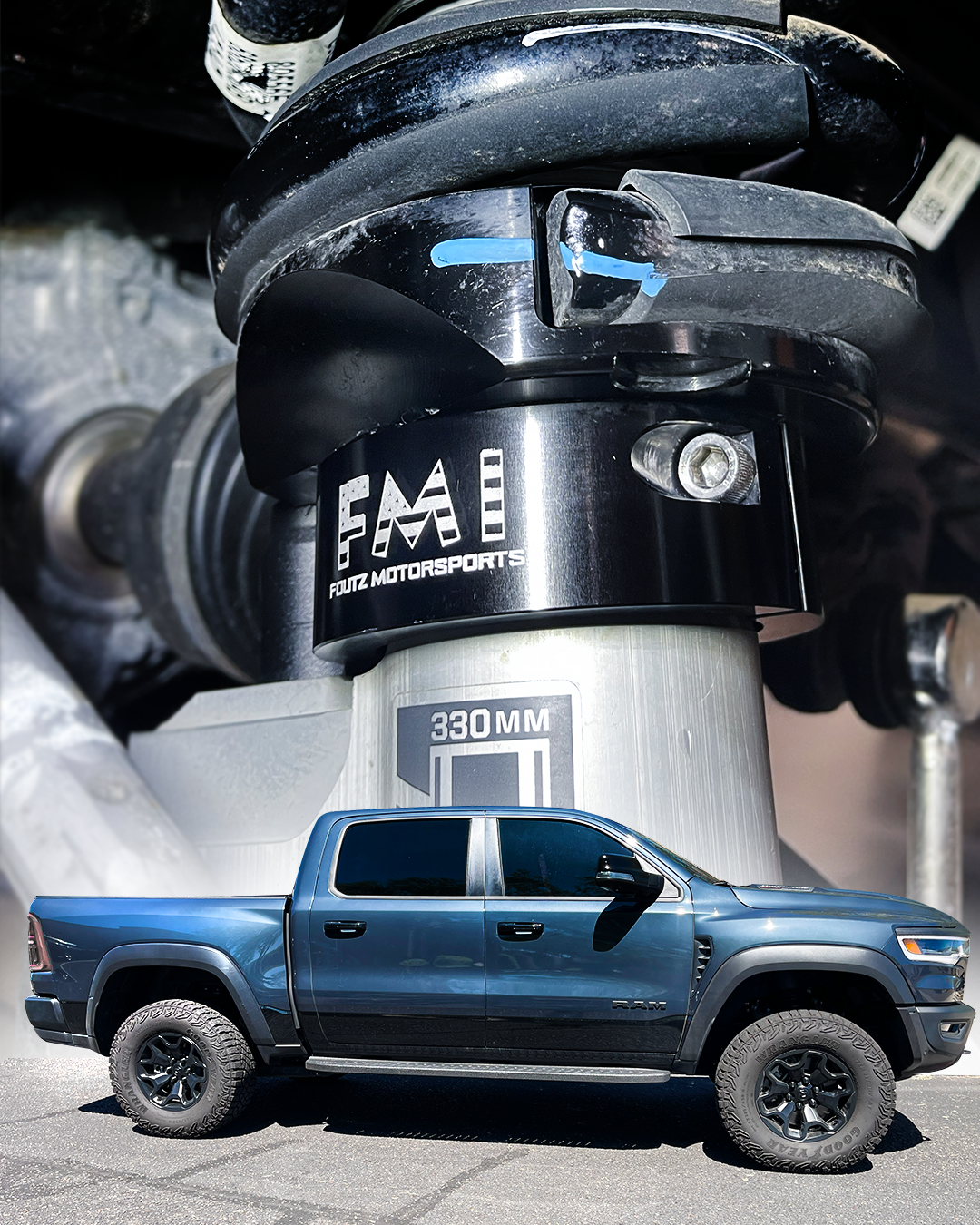

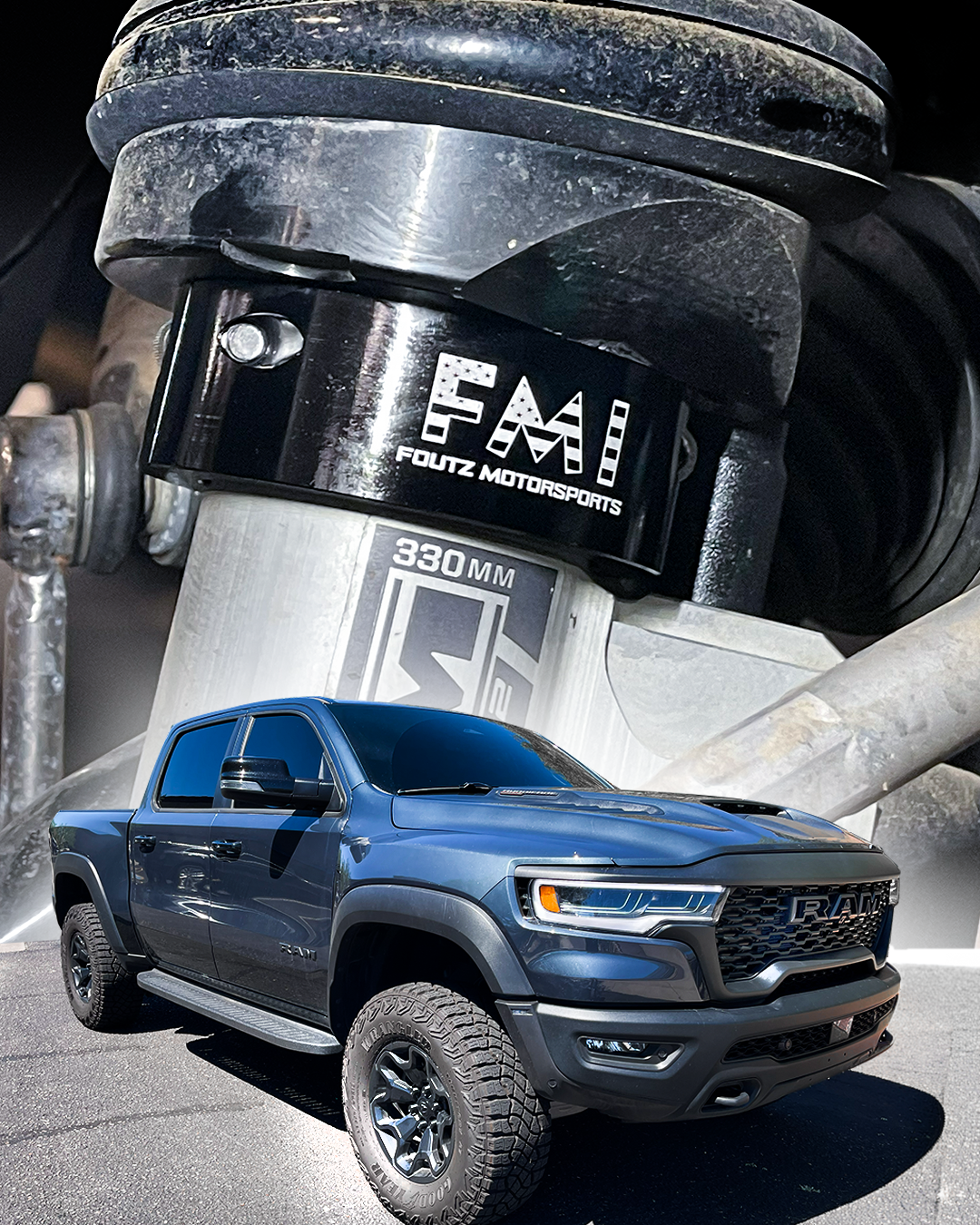

This 2" lift collar is designed for RHO owners looking to increase front ride height while retaining the factory coil springs and front shocks. The collar installs underneath the spring and below the lower spring perch to add preload to the factory coil.

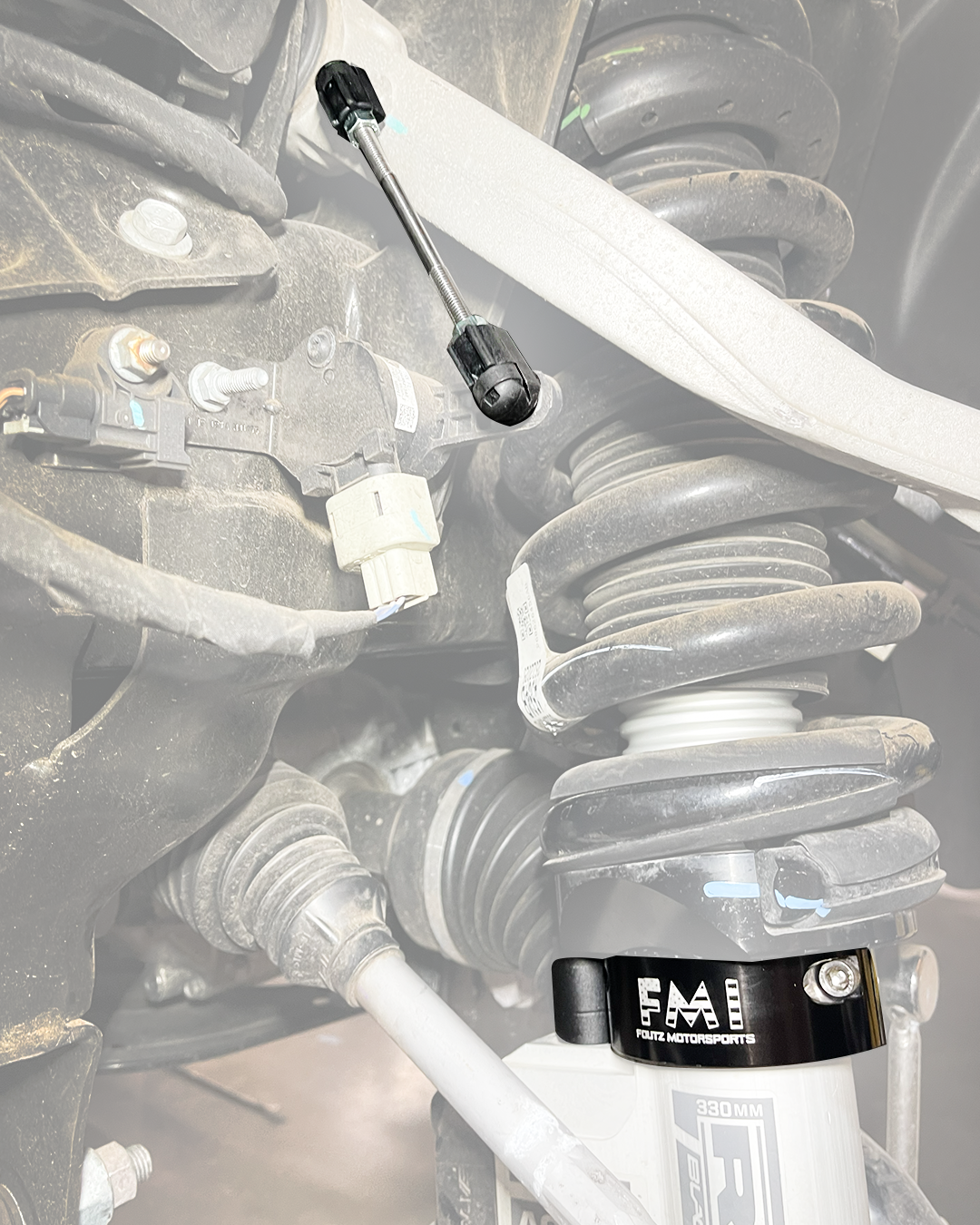

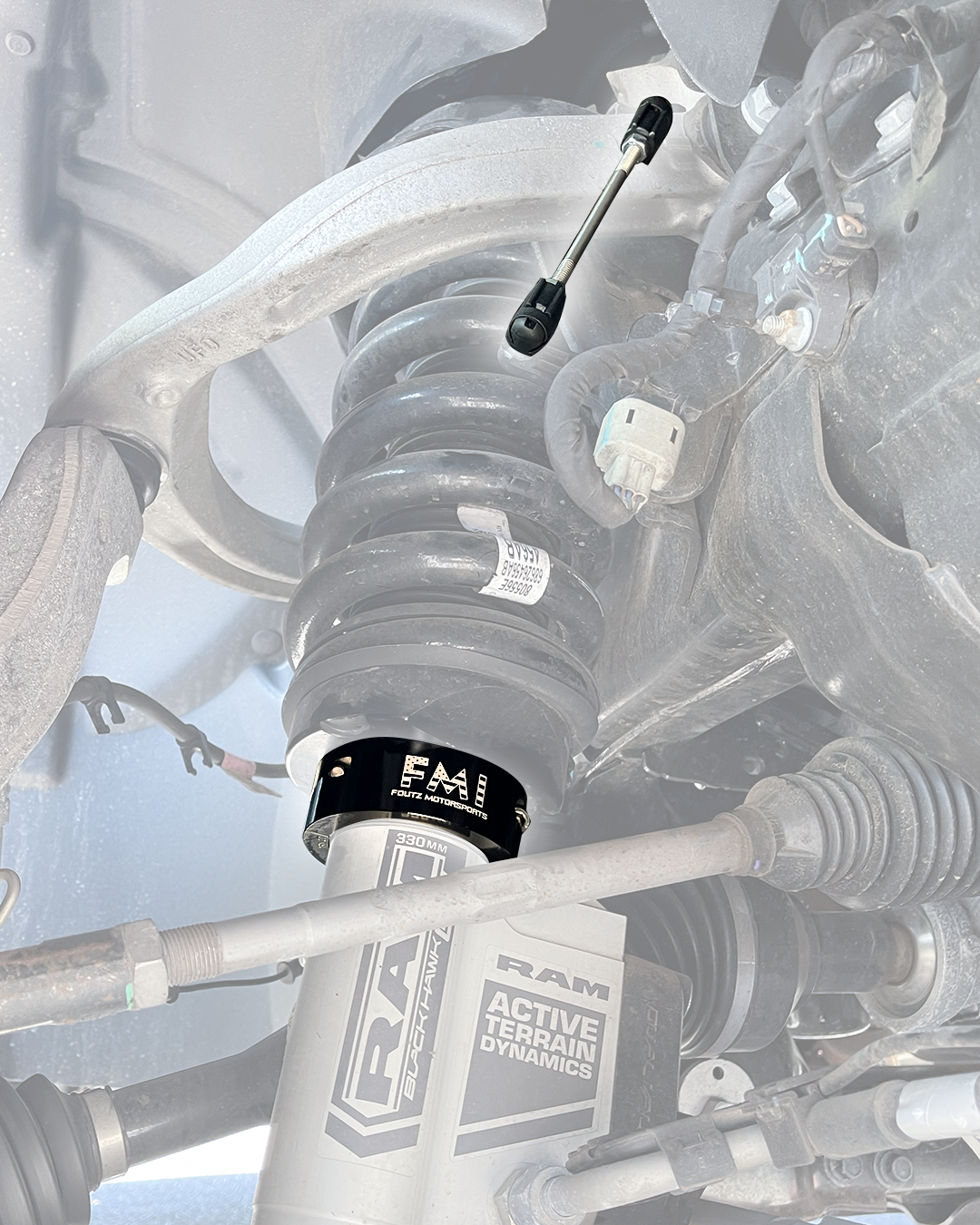

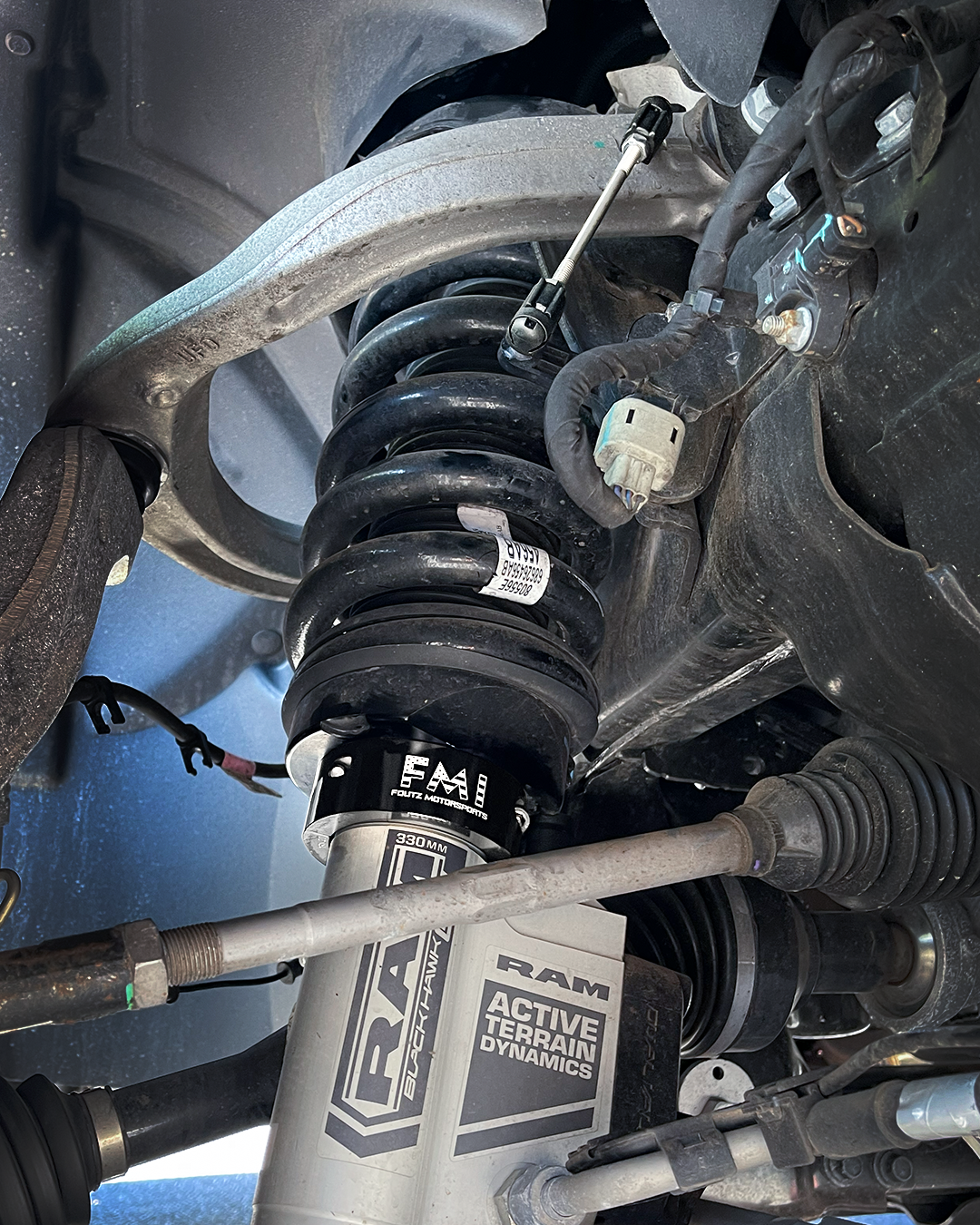

The included adjustable ride height connector rods allow the factory sensor position to be corrected for the new suspension height and adjusted to the final ride height of the truck.

• Adds approximately 2" of front ride height
• Designed specifically around the Ram RHO factory front suspension

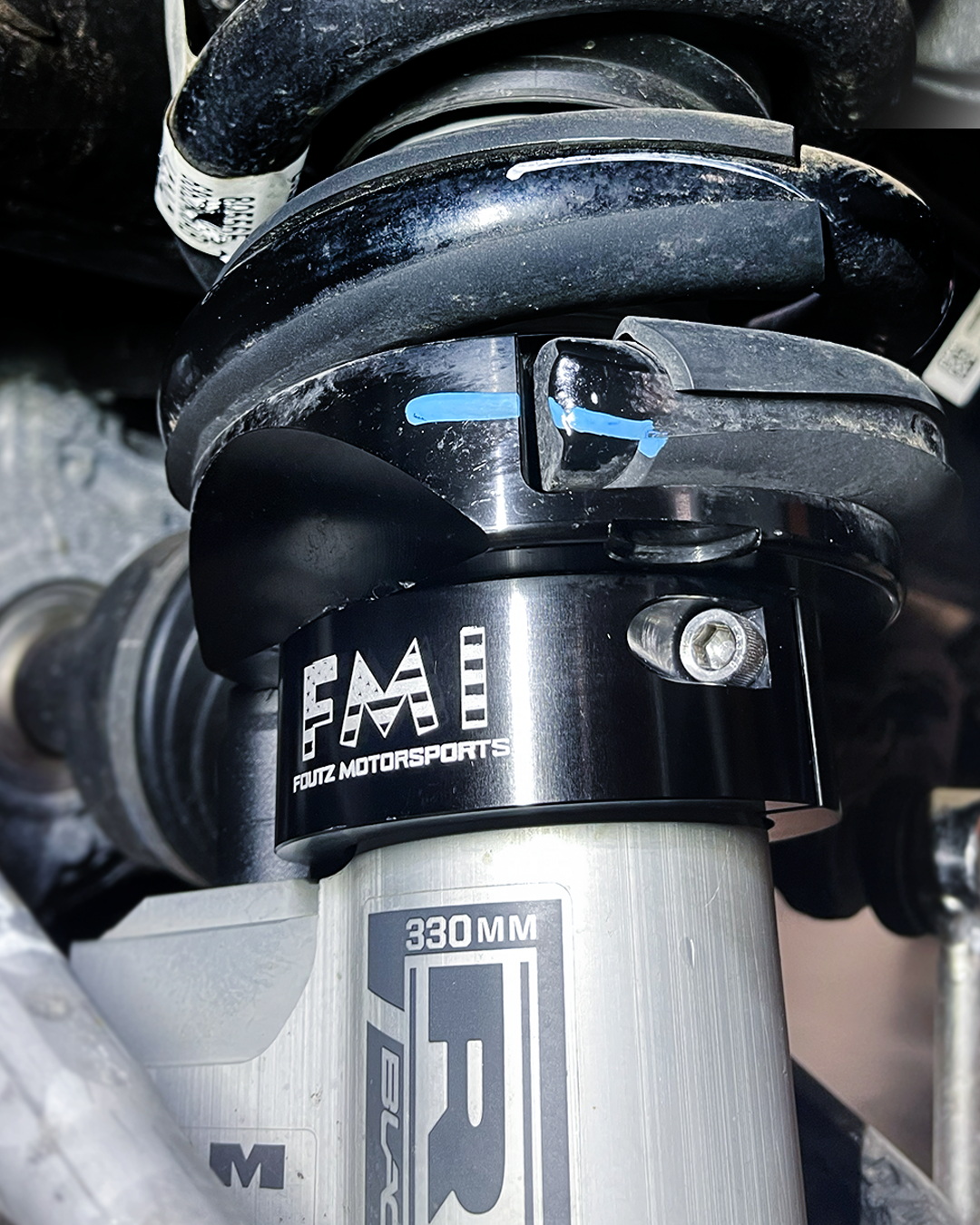

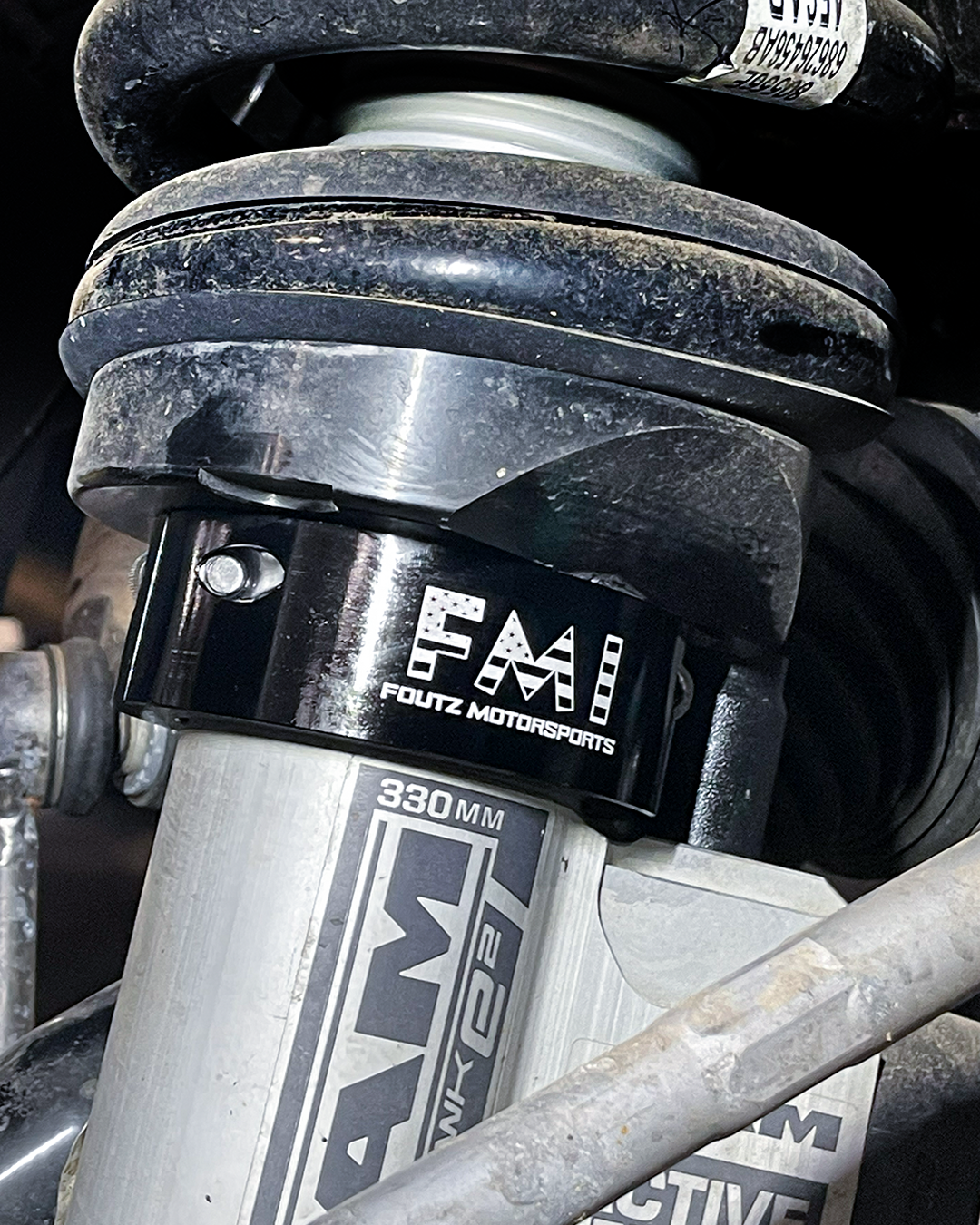

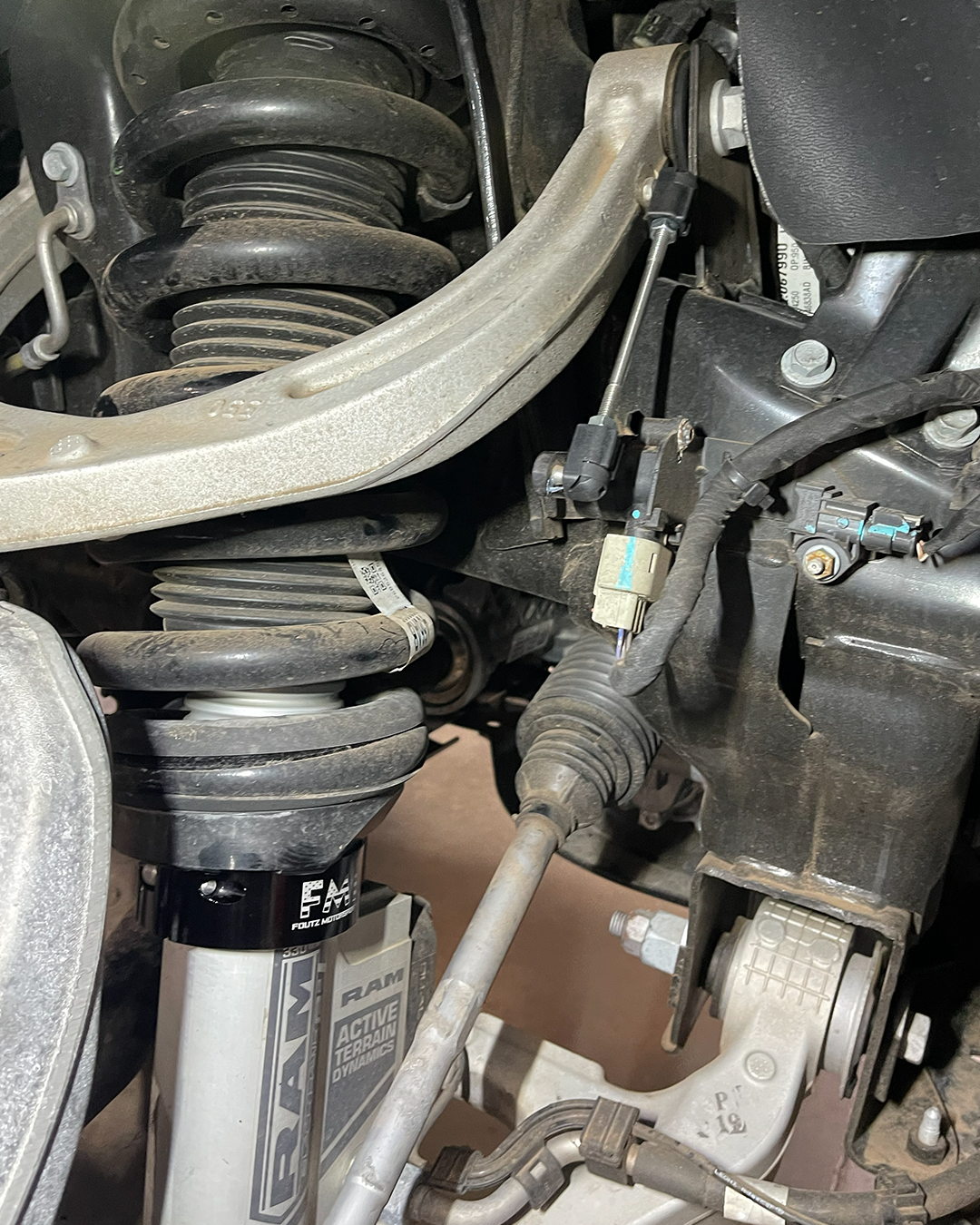

• Installs underneath the factory coil spring and below the lower spring perch
• Adds preload to the factory coil spring
• Retains the factory coil springs and factory front shocks
• Helps reduce the factory front-to-rear rake
• Includes adjustable ride height sensor connector rods

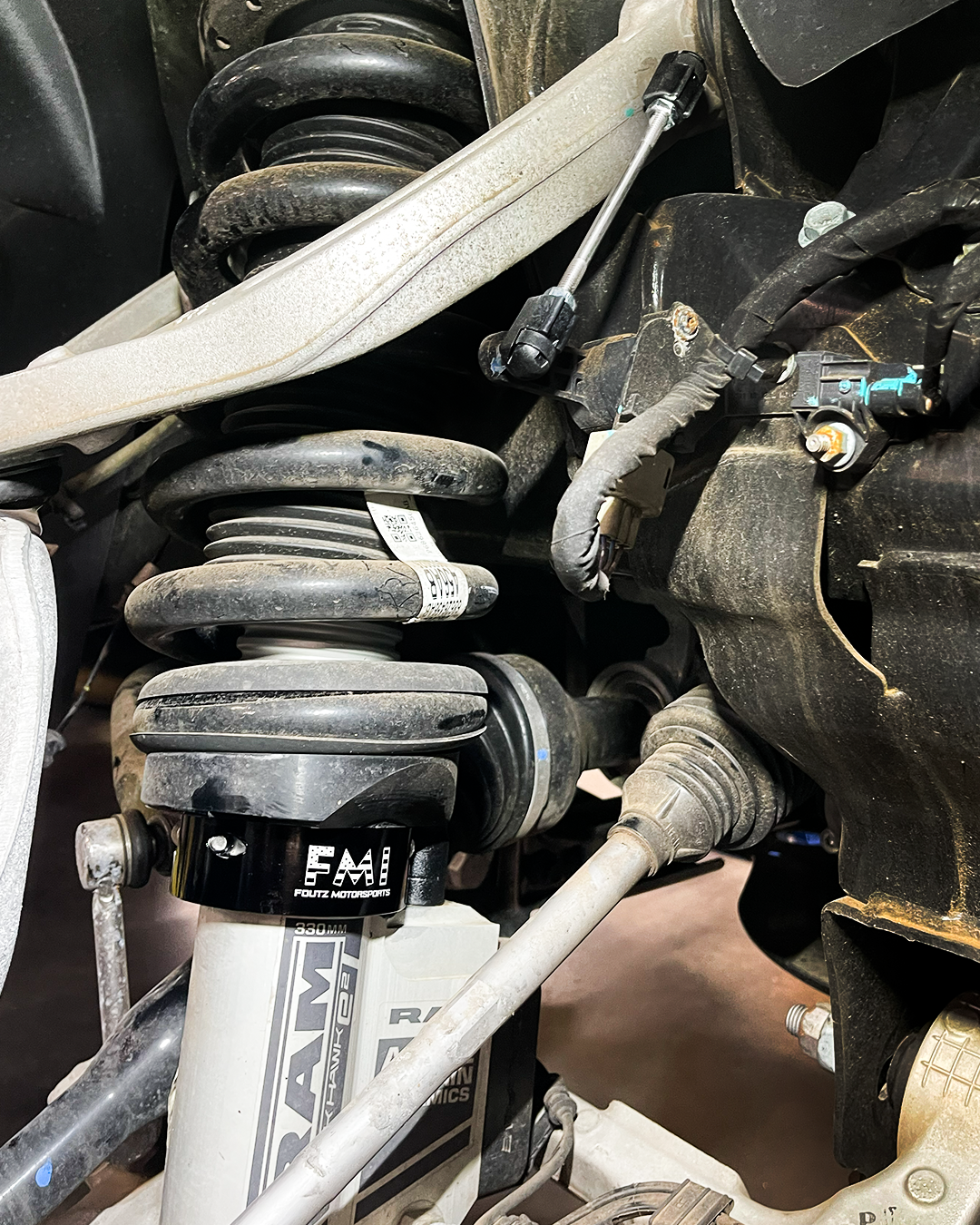

• Allows the factory ride height sensor position to be adjusted after lifting the truck
• Precision CNC machined
• Manufactured in-house by Foutz Motorsports in Mesa, Arizona

Factory ride height can vary depending on spring configuration, options, accessories and vehicle weight.

Measure the front and rear ride height of your truck before ordering to confirm the appropriate lift height for your desired stance.

• Ram 1500 RHO: 2025, 2026
• Front suspension
• 2" front lift application
• Factory coil springs
• Factory front shocks

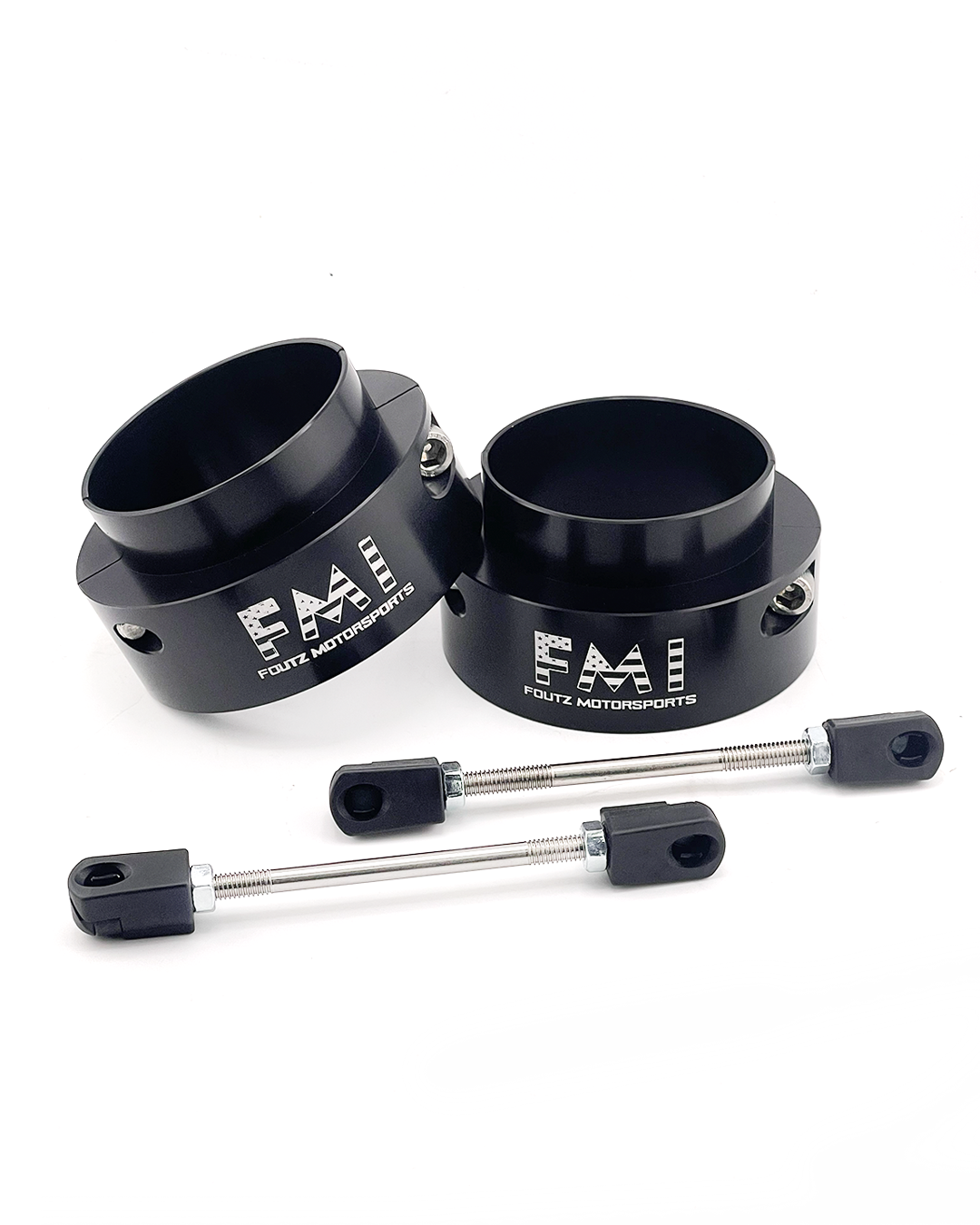

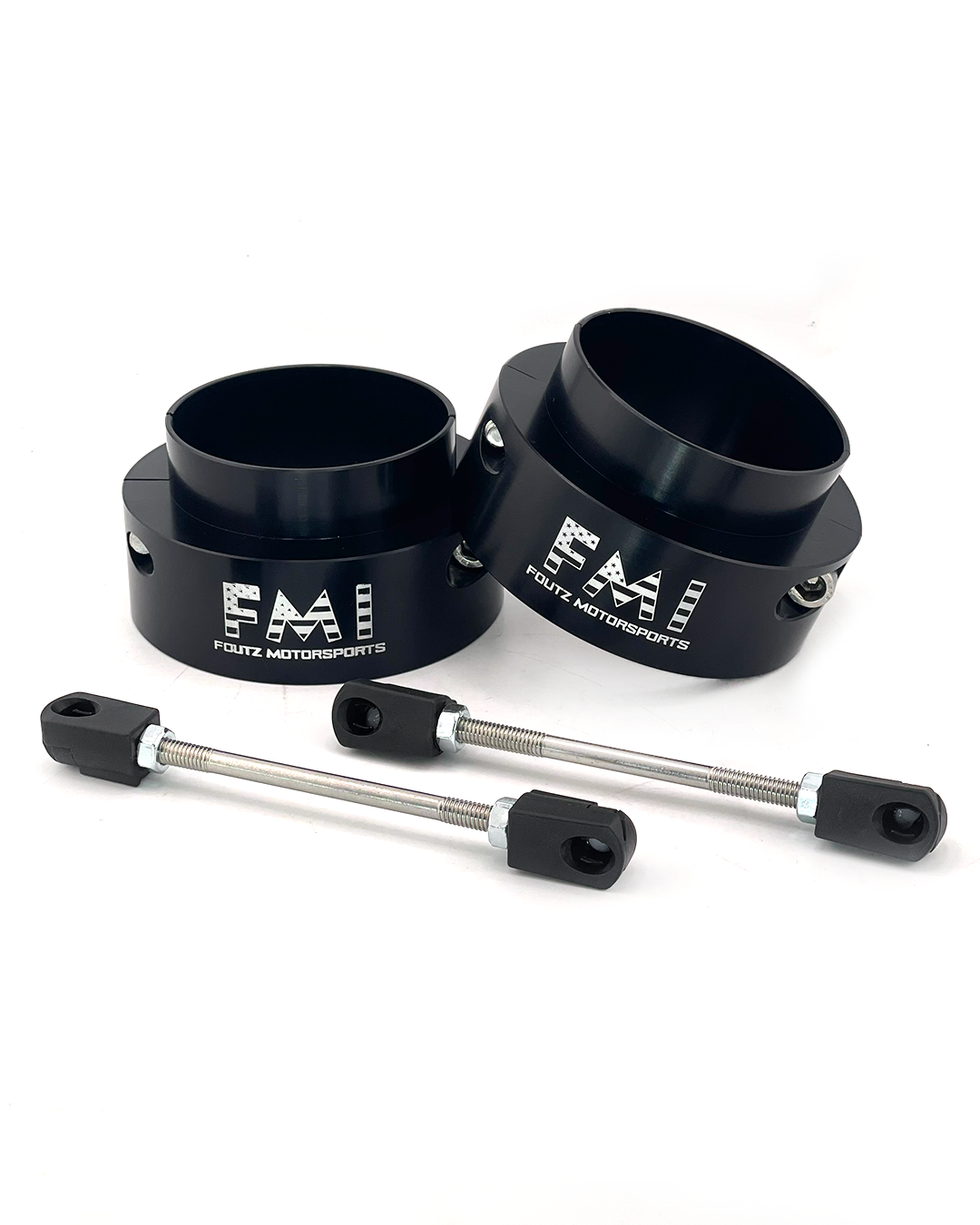

• (2) 2" coil spring lift collars

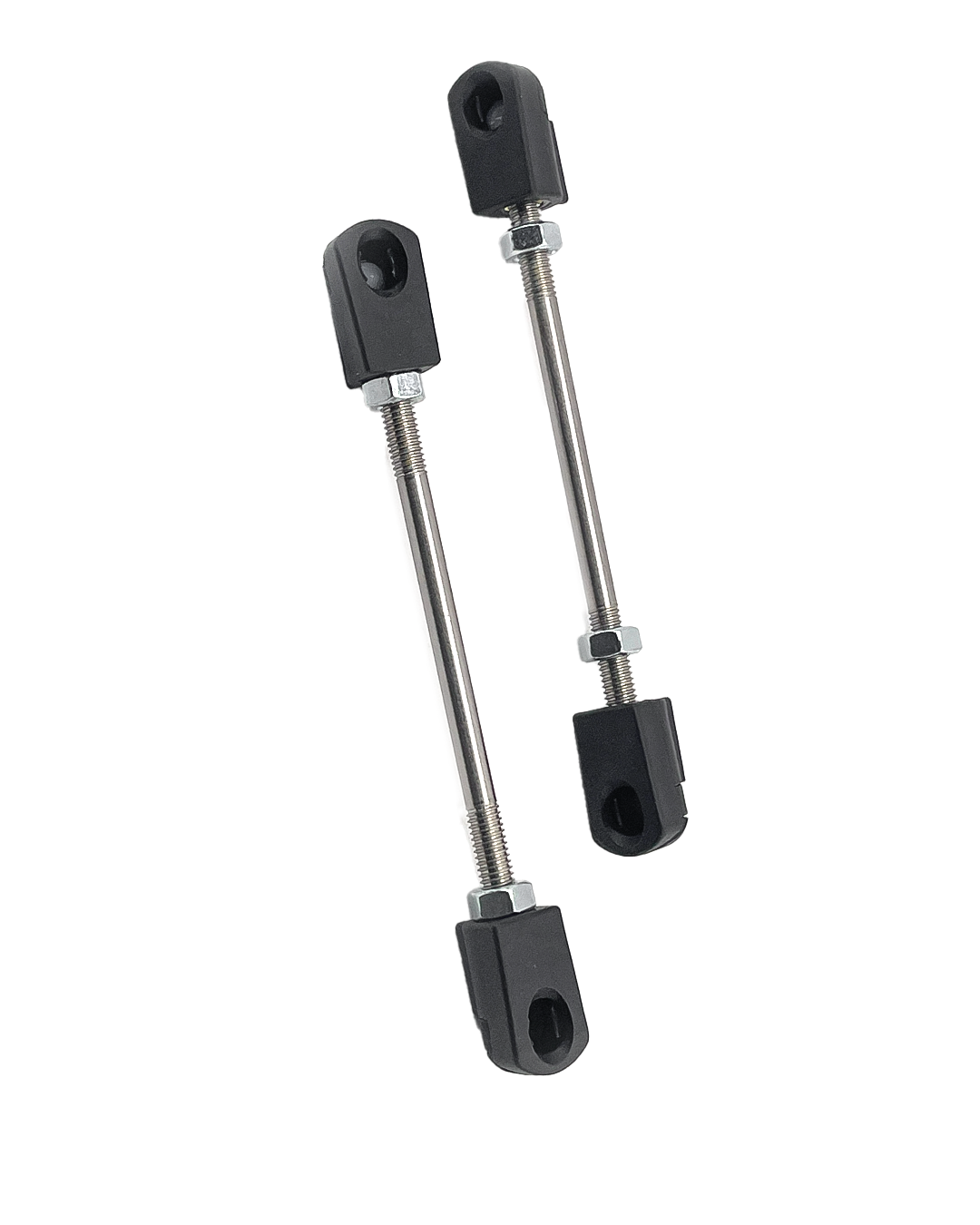

• (2) adjustable ride height sensor connector rods
• Installation hardware

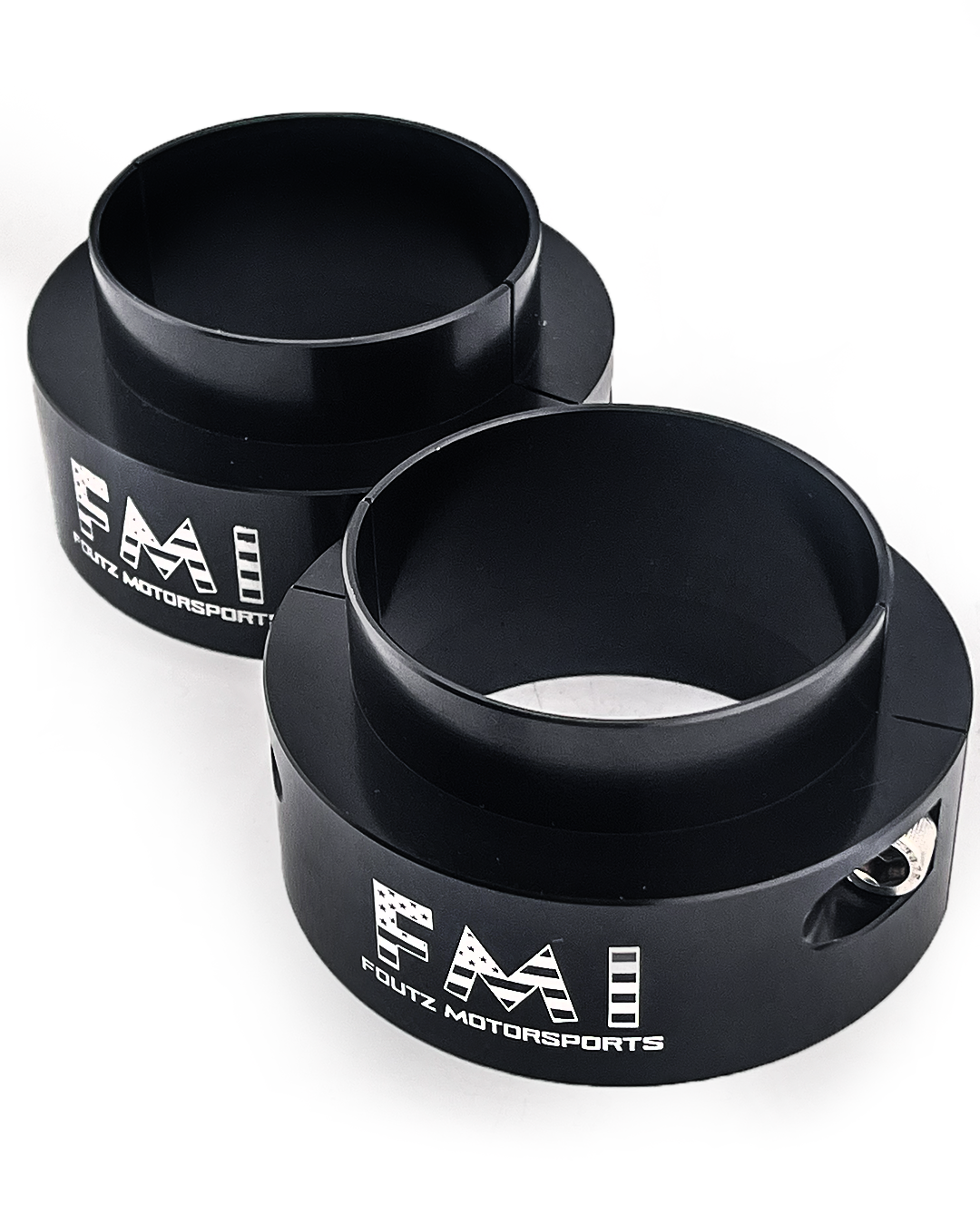

• Precision CNC machined aluminum lift collars
• Manufactured in-house for accurate fitment
• Adjustable ride height connector rods designed around the factory sensor setup
• Available in raw billet aluminum or black anodized finish

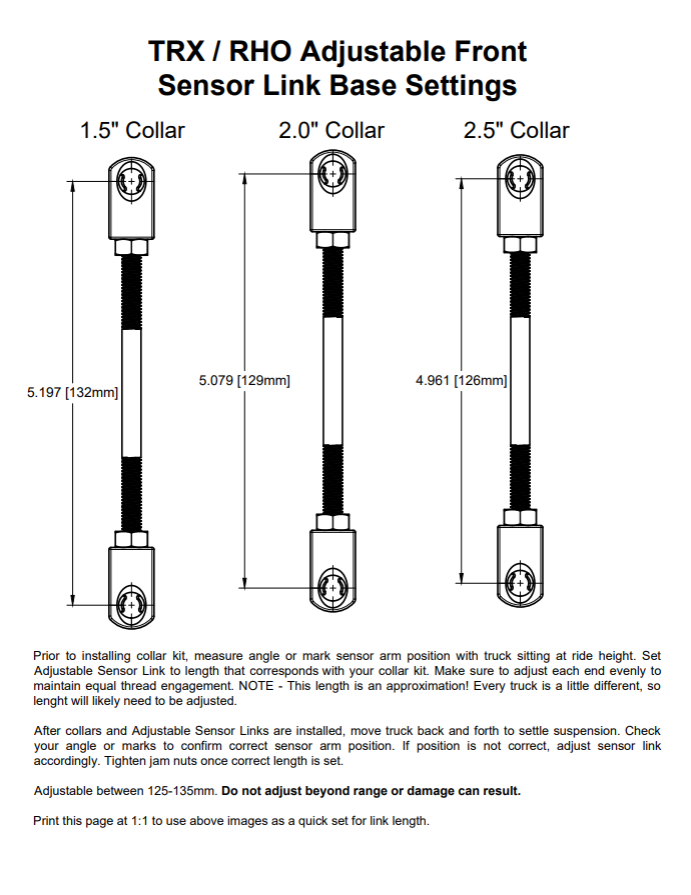

Adjustable Sensor Rod Settings

Starting connector rod length for the 2.0" collar: 129 mm. The rods adjust between 125 and 135 mm — do not adjust beyond that range.

Print the connector rod settings sheet at 1:1 scale and use the images on the document as a quick reference for setting the adjustable connector rod length.

Does this kit provide a full 2" of front lift?

The collar is designed to provide approximately 2" of additional front ride height. Final ride height can vary depending on the vehicle and its factory configuration.

Why does a 2" front lift on the Ram RHO need ride height connector rods?

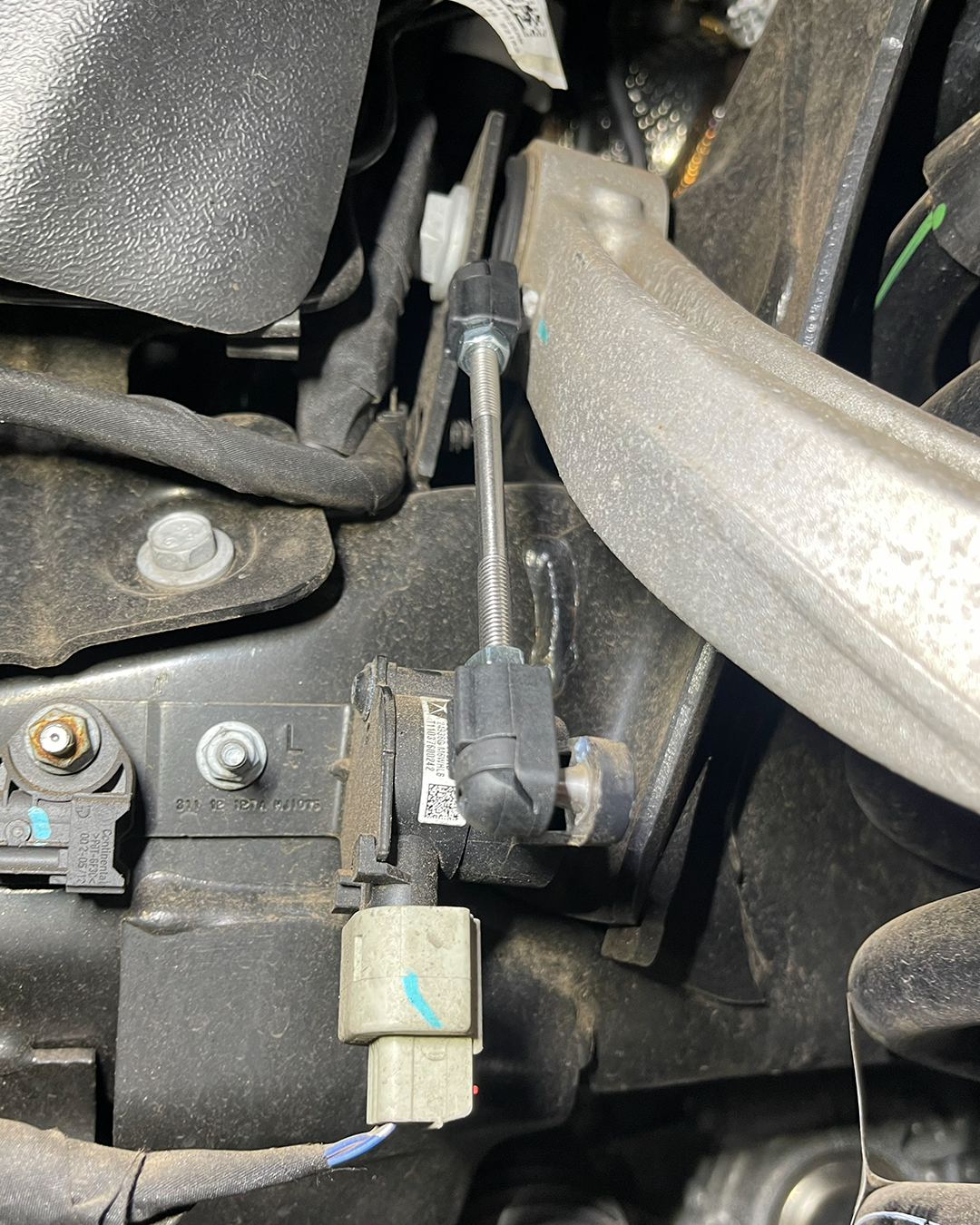

The Ram RHO electronics do not tolerate more than 1.5" of front lift unless the ride height sensor location is corrected. It is a sensor location issue, not a clearance issue. The included adjustable connector rods reset the sensor position for the new front ride height.

Do I need to replace my factory coil springs or shocks?

No. The collar is designed to work with the factory front coil springs and shocks.

How do I set the ride height connector rods?

Before installing the collars, measure the sensor arm angle or mark its position with the truck sitting at ride height. Set each rod to 129 mm for the 2" collar, adjusting both ends evenly to keep equal thread engagement. After installation, roll the truck back and forth to settle the suspension, check the sensor arm against your mark, adjust if needed, then tighten the jam nuts. Every truck sits a little differently, so treat the starting length as a starting point.
