SKU: PM435

NACHO Quatro Lights - Supreme 80 - Pair

Description

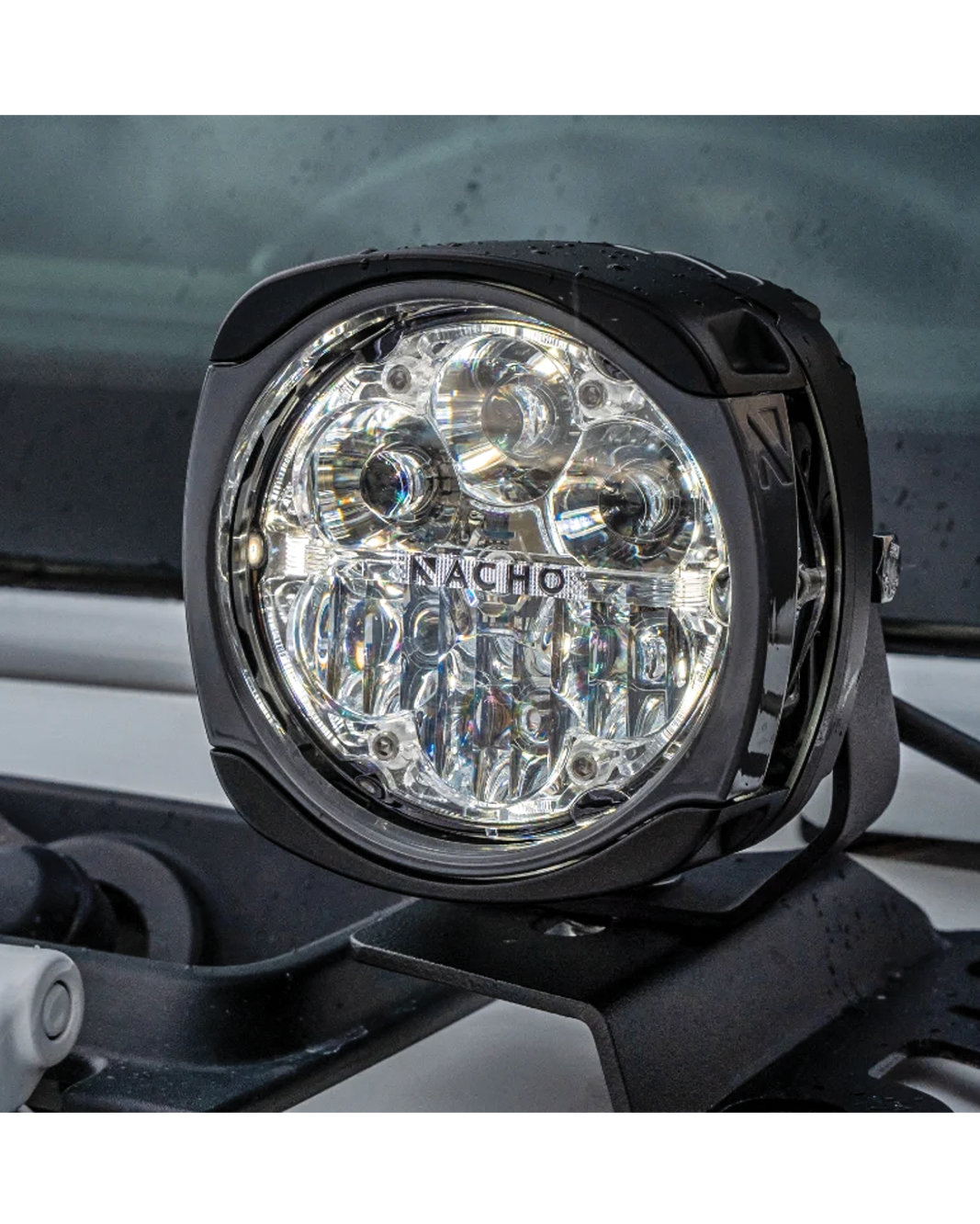

The NACHO Quatro Supreme 80 delivers 80 watts of high-performance lighting in a compact 4" housing. Designed for maximum versatility, the Quatro Supreme 80 combines spot, flood, and area lighting zones with 9 selectable modes for everything from high-speed off-road driving to campsite and worksite illumination.

Features

  • Built-in Output Control Module
  • Programmable beam patterns and output settings
  • Constant power design with integrated relays

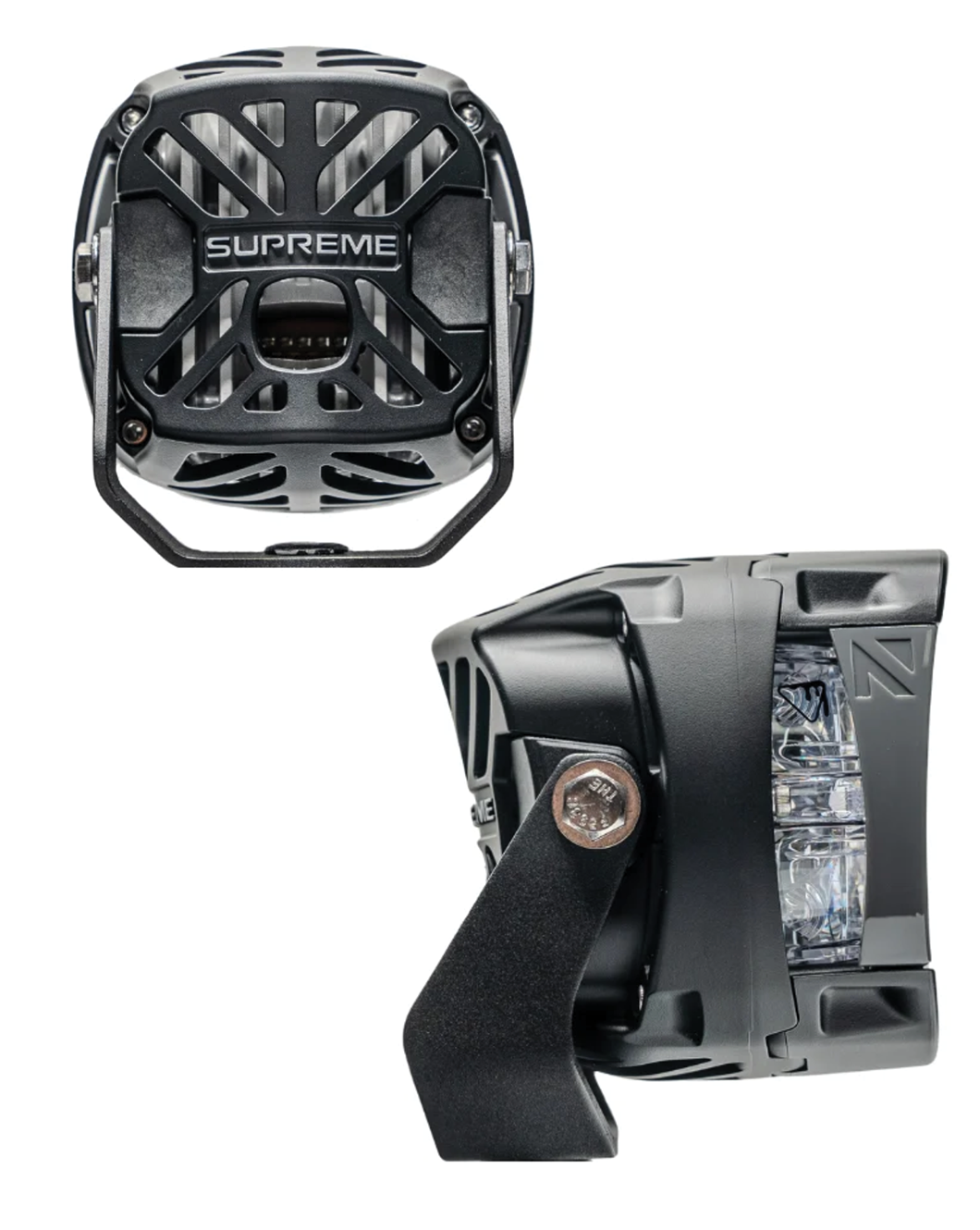

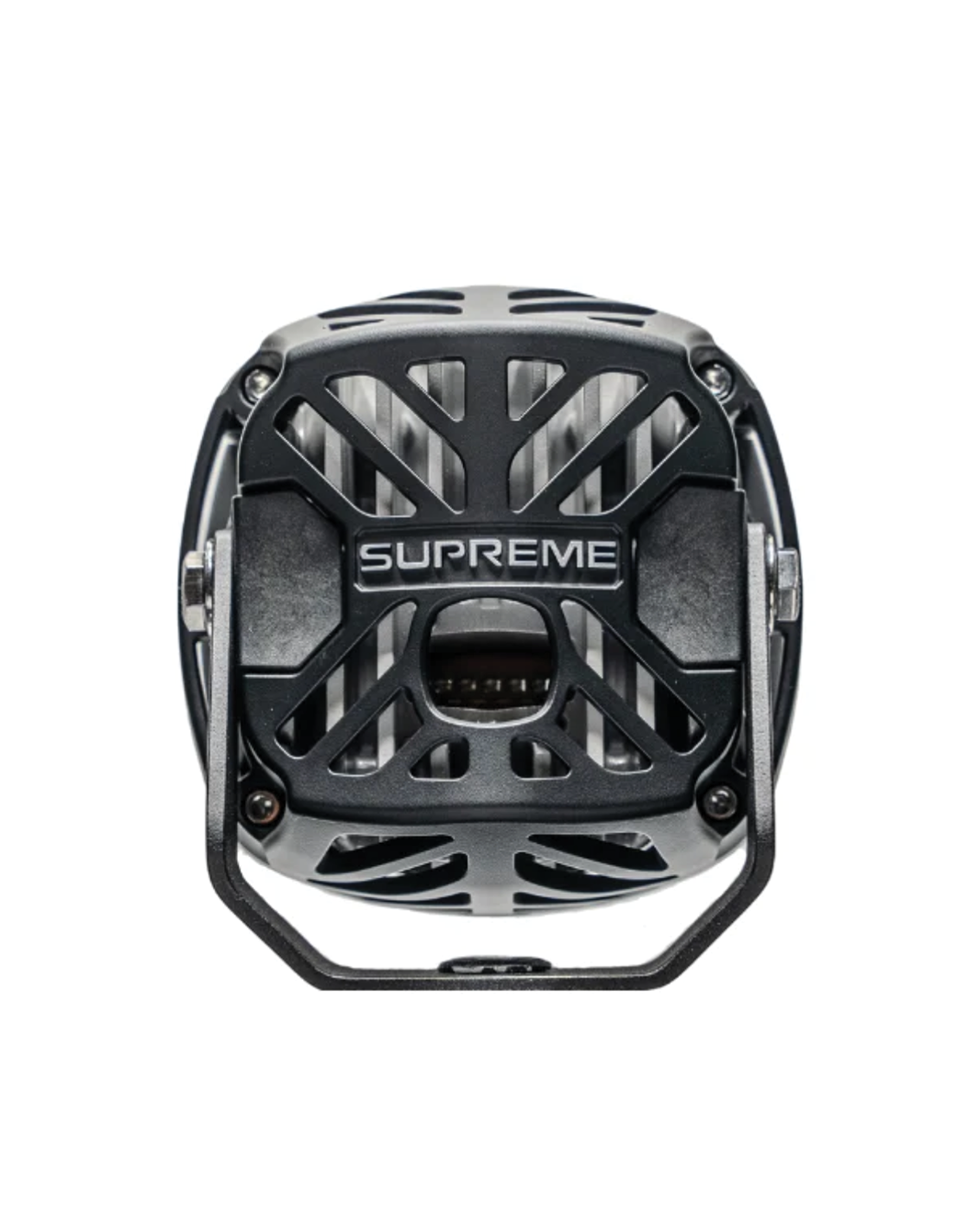

  • Forced induction cooling system for improved heat management
  • Impact-resistant polycarbonate lens and covers

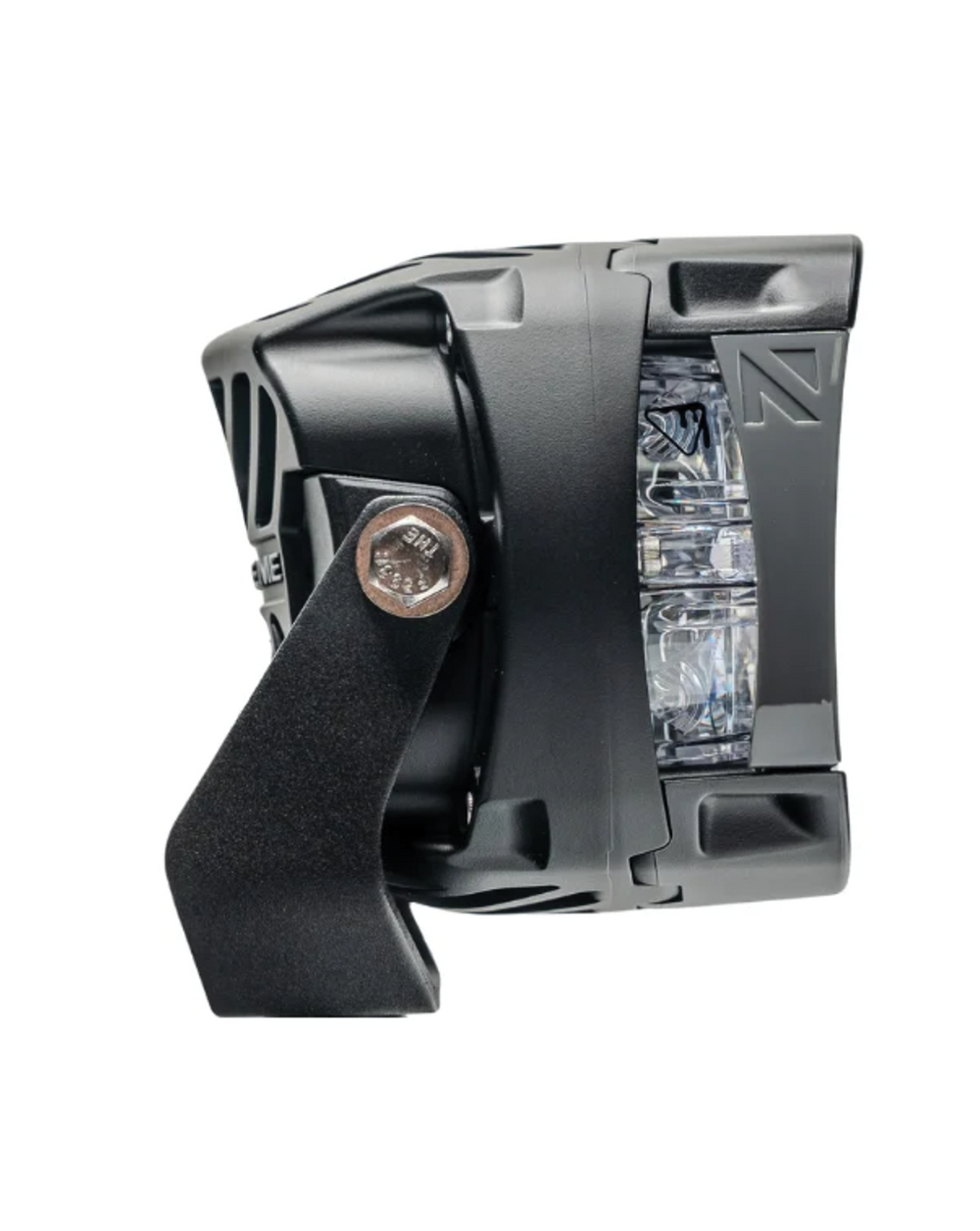

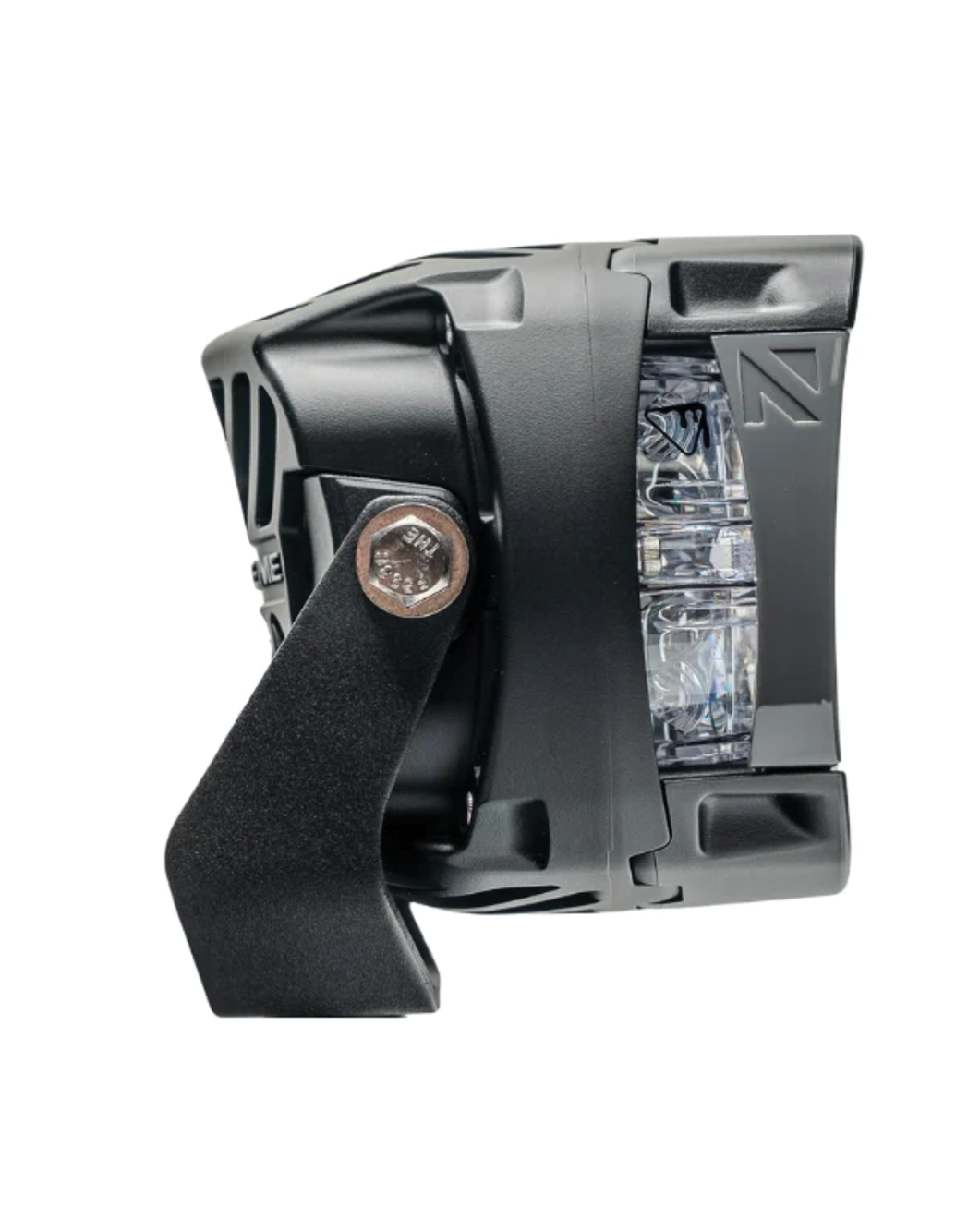

  • Corrosion-resistant stainless steel mounting bracket
  • Chrome-plated stainless steel hardware
  • Reverse polarity protection
  • IP68 waterproof and dustproof rating
  • J575 vibration rated for off-road durability
  • Baja and King of the Hammers tested
  • Designed, engineered, and assembled in Mesa, Arizona

Specifications

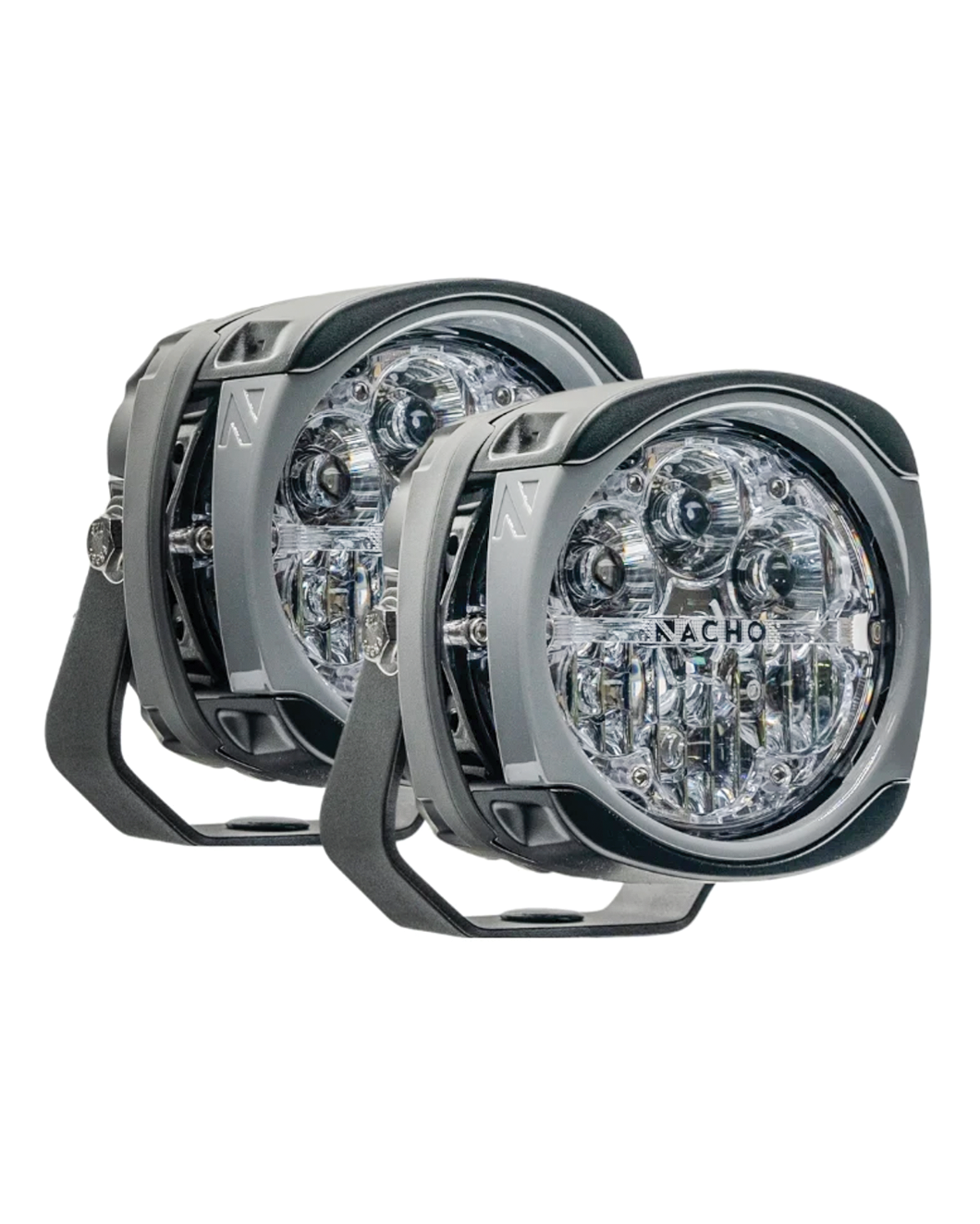

  • Set Includes: 2 lights
  • SKU: PM435
  • Peak Candela: 374,602
  • Effective Lumens: 10,500
  • Raw Lumens: 15,000
  • Power Output: 80 watts
  • Amp Draw: 5.56A @ 14.4V
  • Input Voltage: 9–18V DC
  • Size: 4" housing
  • Weight: 1.5 lbs per light

Adjustable Output Control

Customize each lighting zone with selectable intensity settings:

  • Full Intensity: Maximum 80-watt output for extreme visibility
  • Reduced Intensity: Lower output settings for controlled lighting
  • TRL (Trail Running Light): Low-power illumination for improved visibility and reduced glare

Program up to 3 favorite lighting configurations and switch between them instantly.

Lighting Modes

The Quatro Supreme 80 features multiple beam zones designed for different driving conditions:

  • Spot Zone: Long-range focused beam for high-speed driving

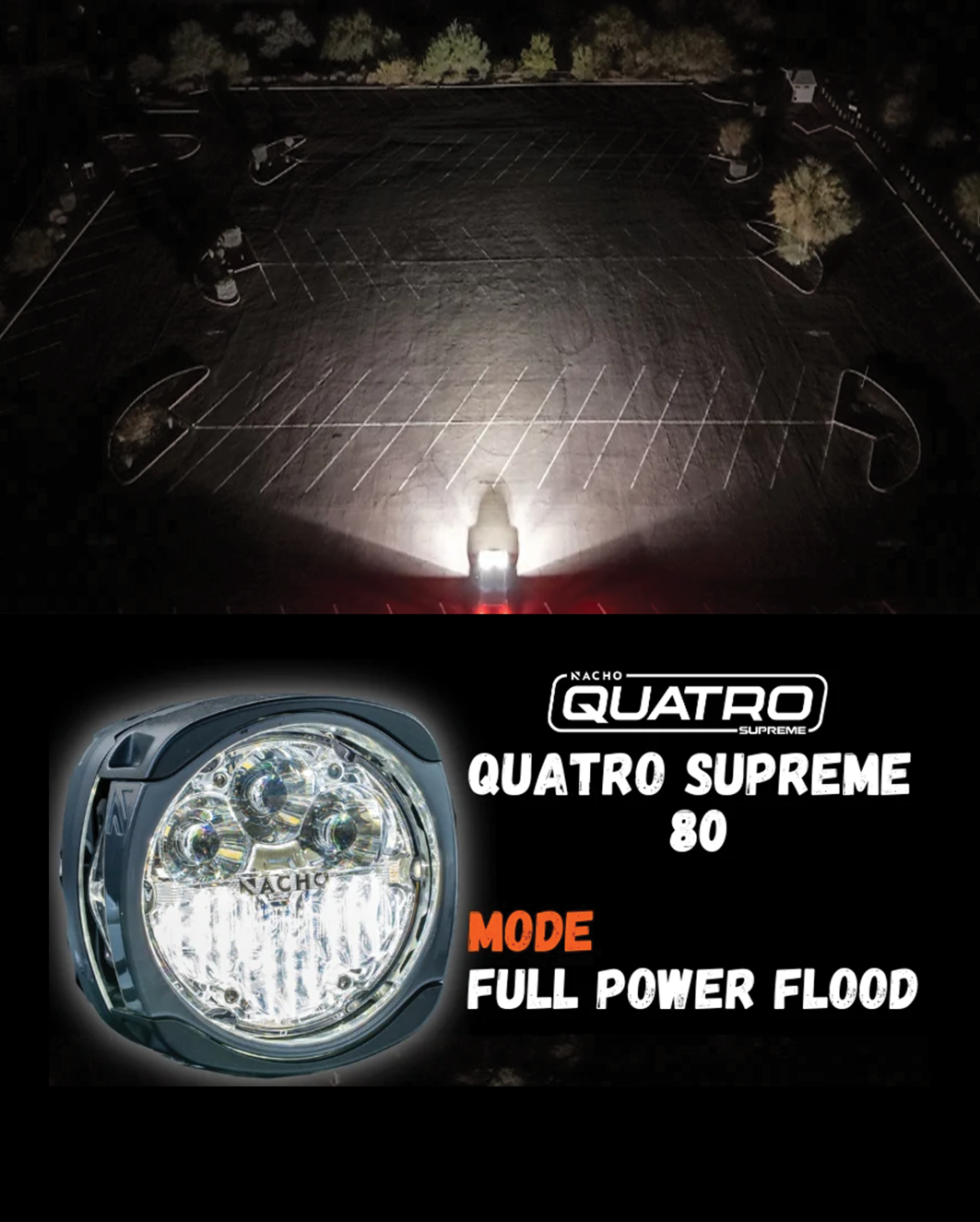

  • Flood Zone: Wide beam coverage for trail use and off-road visibility
  • Area Zone: Broad illumination for work areas, recovery, and campsites

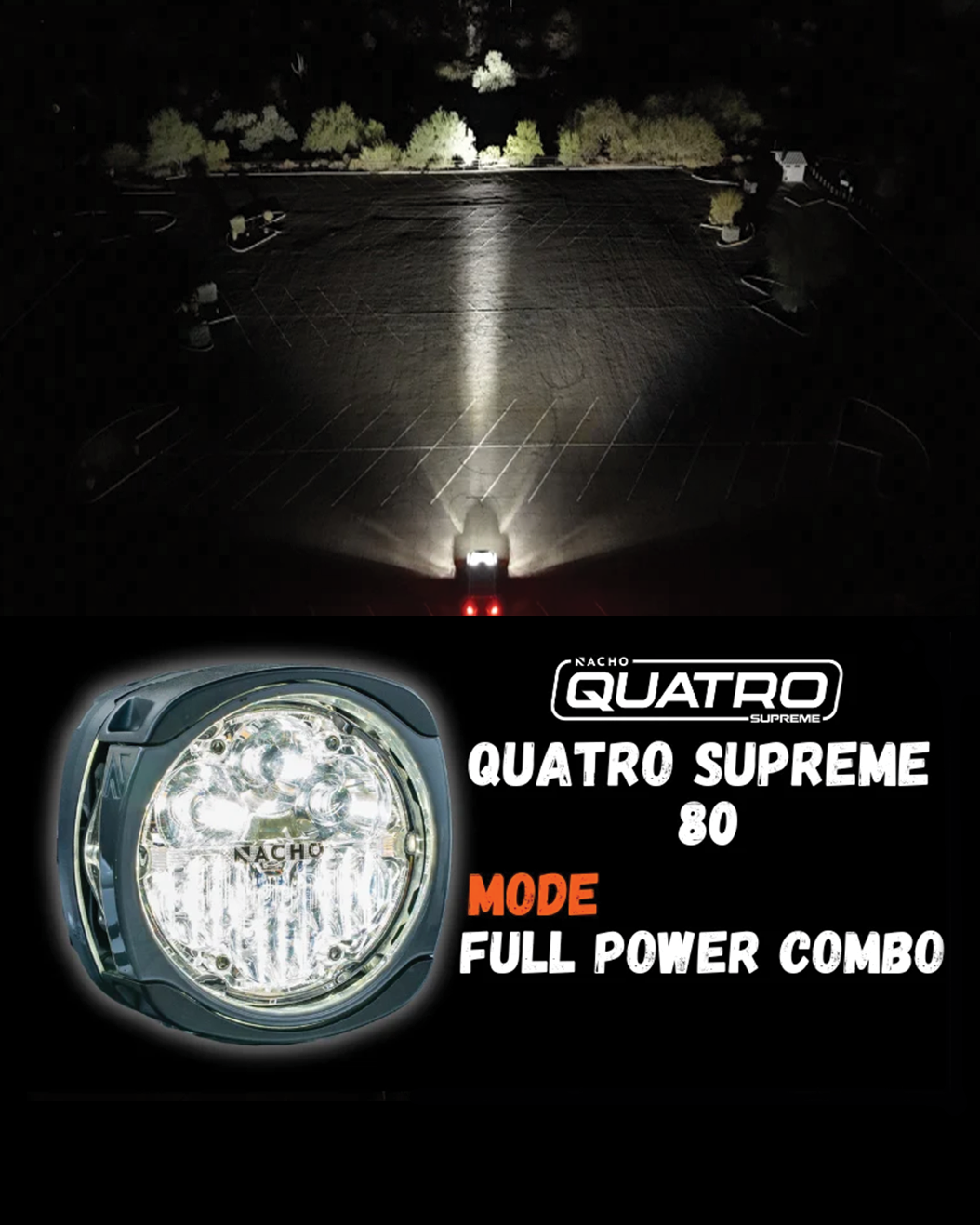

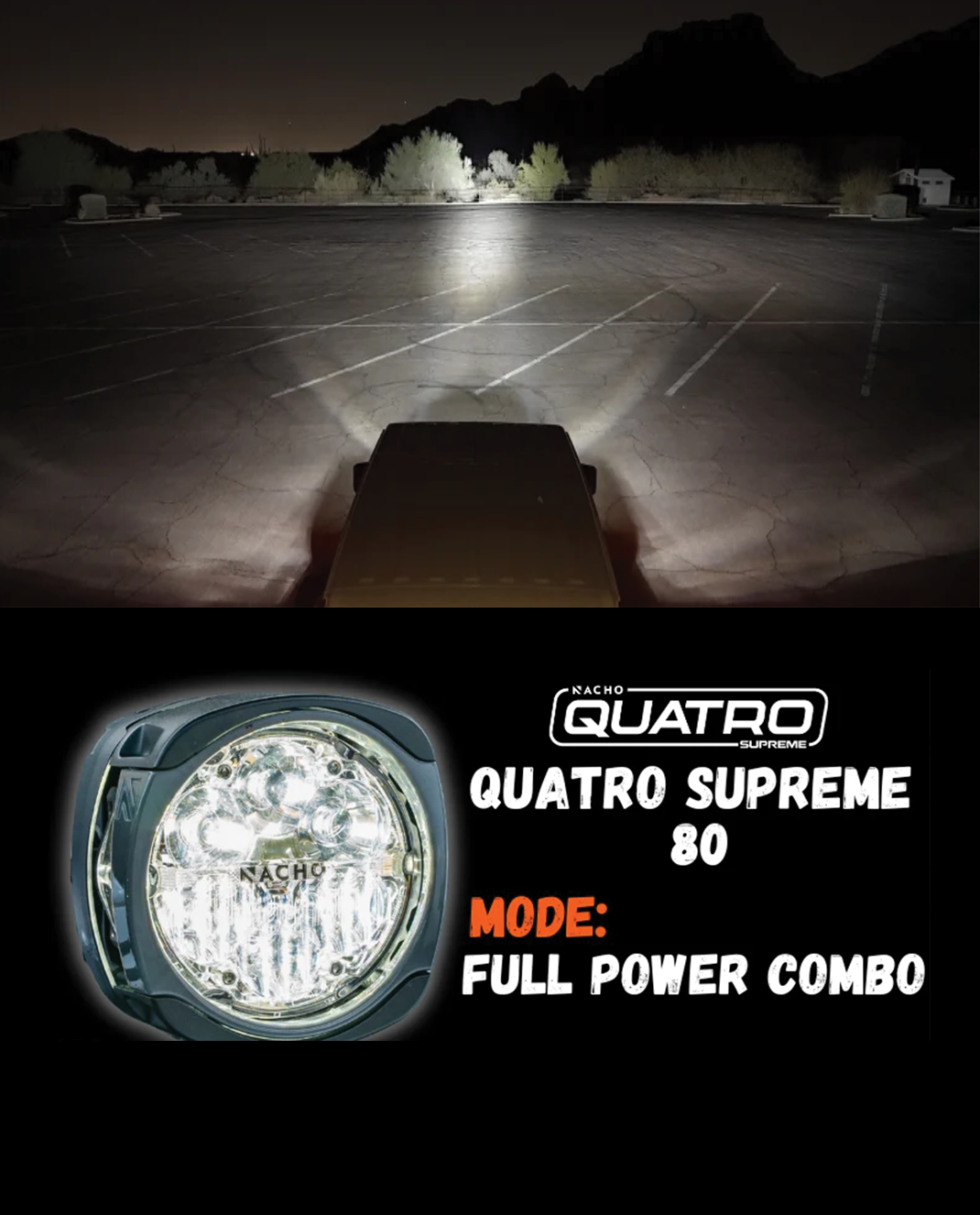

  • Combo Mode: Combines spot and flood output for maximum coverage

Questions

What lighting zones does the Quatro Supreme 80 have?

Spot, flood and area zones, plus a combo mode. Spot is a long-range beam for high-speed driving, flood gives wide trail coverage, area lights up work sites, recoveries and campsites, and combo runs spot and flood together.

How many lighting modes are there?

9 selectable modes. You can program up to 3 favorite configurations and switch between them instantly.

Can I dim the lights?

Yes. Each zone can run at full intensity (the full 80 watts), reduced intensity, or as a low-power Trail Running Light (TRL) for visibility with less glare.

How bright are they?

Each light puts out 10,500 effective lumens (15,000 raw) with a peak candela of 374,602.

What are the power requirements?

80 watts per light, 5.56A at 14.4V, with a 9-18V DC input. The constant power design has integrated relays and reverse polarity protection.

How many lights come in the set?

The set includes 2 lights. Each is a 4" housing and weighs 1.5 lbs.

Are they waterproof and built for off-road?

Yes. They are IP68 waterproof and dustproof, J575 vibration rated, and Baja and King of the Hammers tested.

Where are NACHO lights made?

The Quatro Supreme 80 is designed, engineered and assembled in Mesa, Arizona.

$ 649.99
