SKU: PM616

NACHO Grande Light - Supreme 100

Description

The NACHO Grande Supreme 100 is a 140-watt programmable off-road light built for high visibility race use at 75 mph to 110 mph. It mixes spot and flood optics, mounts to a tab or directly to a 1.5" tube, and is sold as a single light.

At race speed you need to see far enough ahead to react, but the light you want at speed is not the light you want on a slow trail or around camp. The Grande lets you program its output and beam pattern, so one light can run as a high intensity spot, a flood or a low intensity area light.

What Is In The Box

  • 1 NACHO Grande Supreme 100 light
  • 2 covers: an amber NACHO branded cover and a solid black ARB branded cover
  • Surface mount bracket
  • Sorcery wand for programming the light
  • Hardware to mount the light either surface or tube mounted

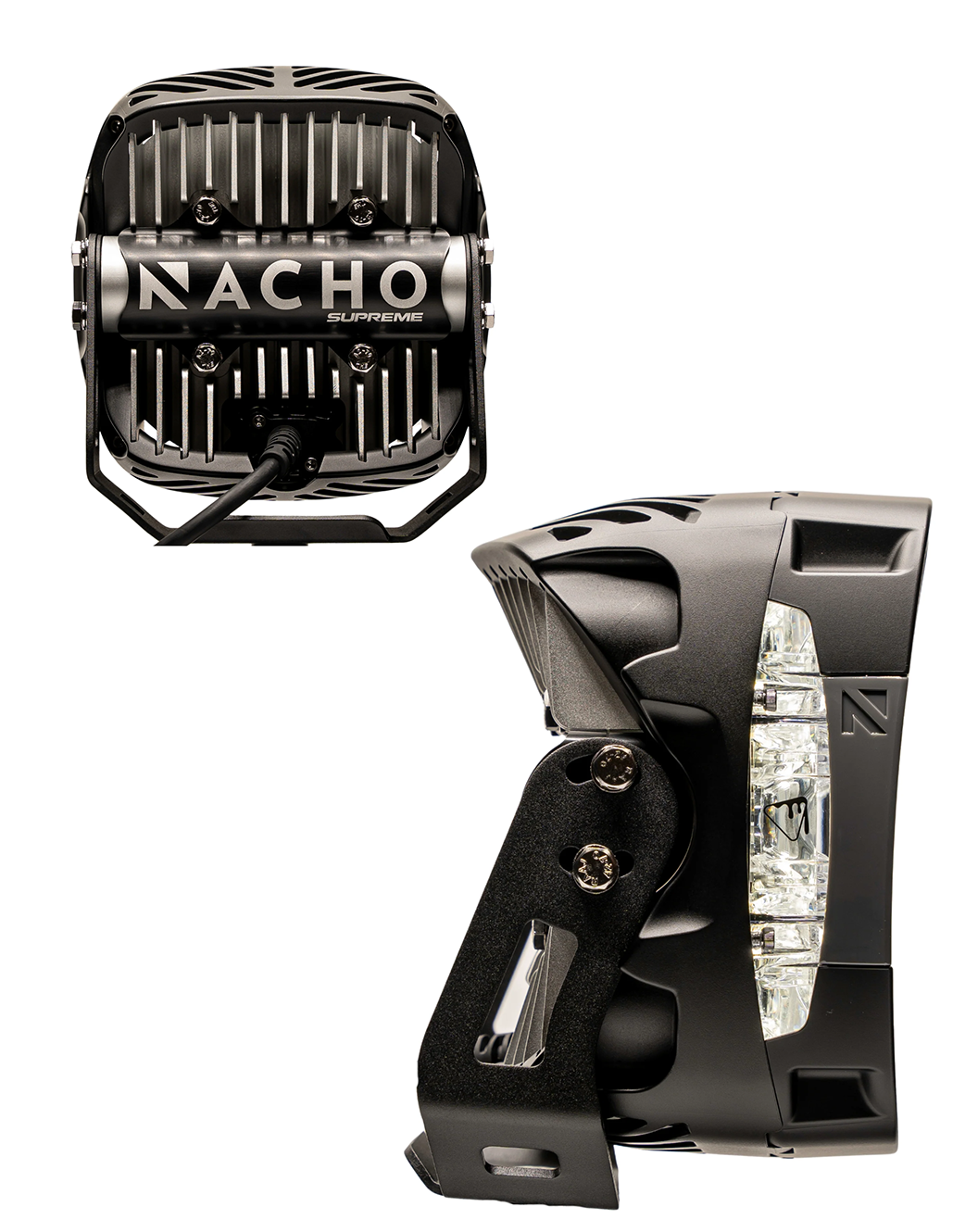

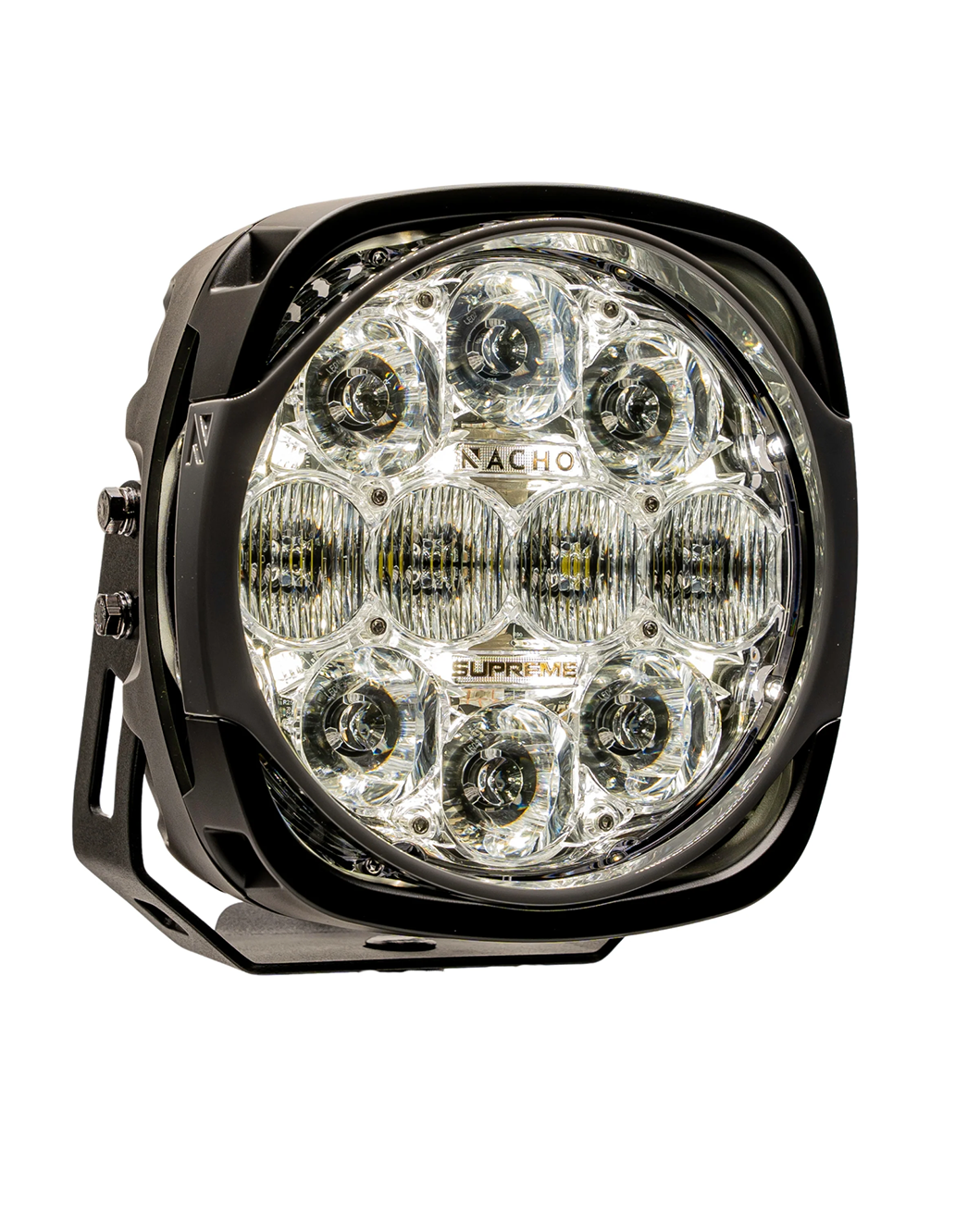

NACHO Grande Supreme 100 off-road light

Why A Programmable Race Light

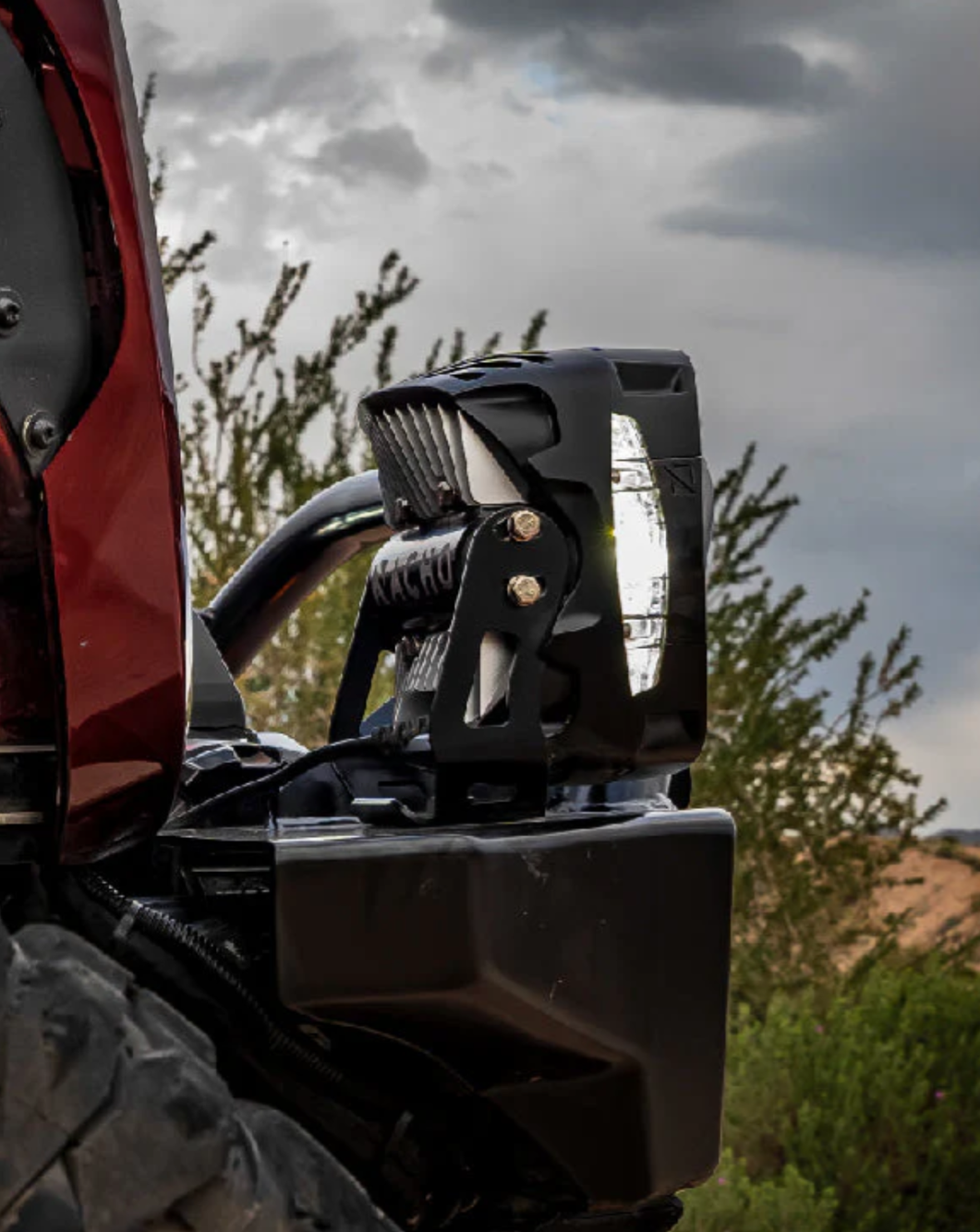

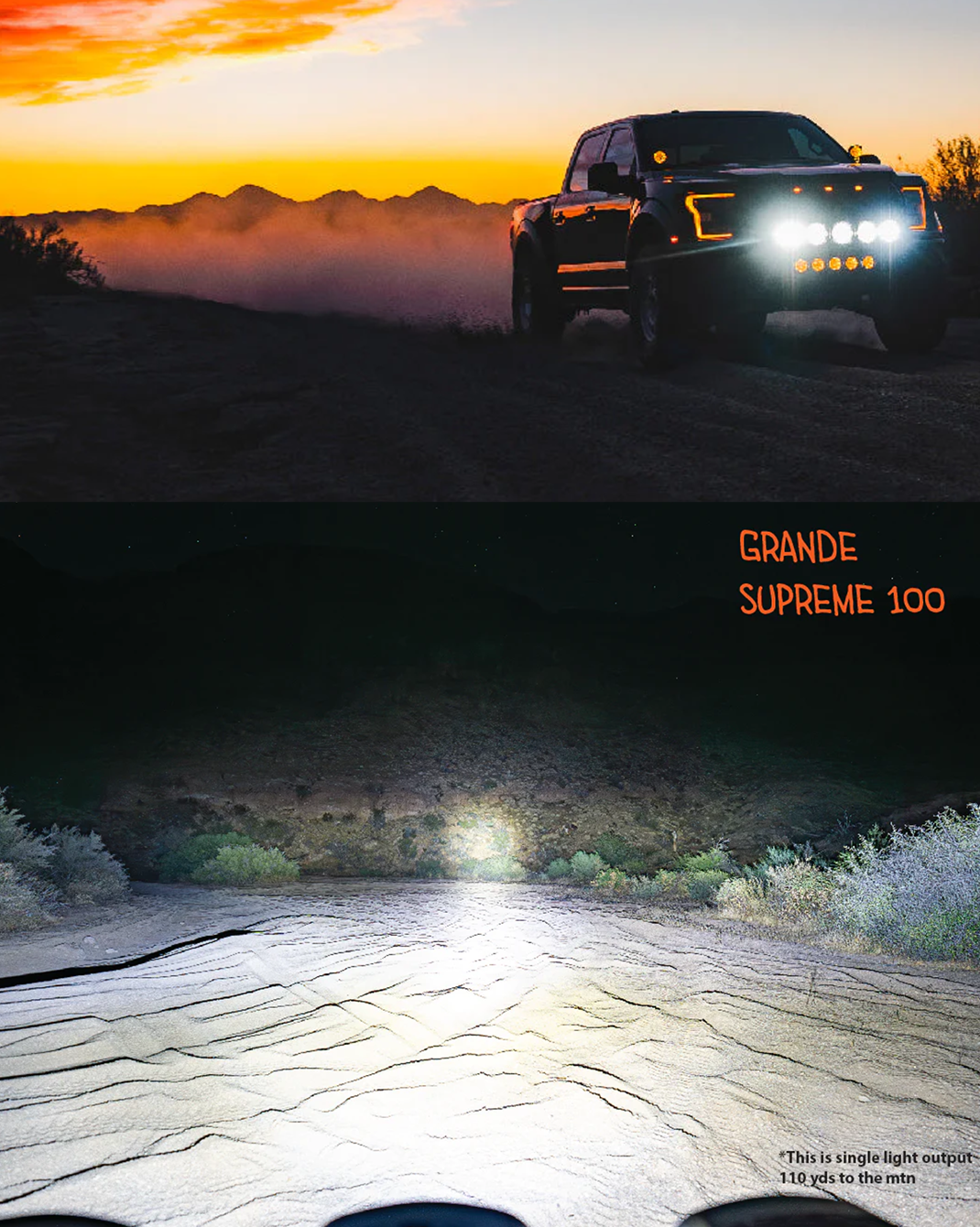

The Supreme 100 name refers to speed. This light is intended for high visibility race applications at 75 mph to 110 mph, and the ideal location is the bumper.

The right light depends on what you are doing, so the Grande has NACHO's Output Control Module built in. Program it with multiple output settings, from high intensity spots to a low intensity area light:

  • All modes: high, low
  • Spot: high, low
  • Flood: high, low
  • Area light: high, TRL

To program it, tap the chip icon on the side of the light with the provided sorcery wand (a magnet on a stick) to select up to 3 different modes. Set it and forget it, or change modes any time you like.

How It Is Built

Outer body

NACHO's polycarbonate exoskeleton protects the light engine and is replaceable. It channels air in through the front of the light and exhausts it out the back for cooling. If the housing gets beaten up, replace it. If you want a custom look, remove it, paint it and put it back on.

Copper circuit board

The 140-watt light runs on a copper circuit board.

Constant power

Relays are built into the light, so you can run a lower power switch to a high power light without extra relay harnessing.

Covers

The covers fit into the light housing and are made from high strength polycarbonate. Smoke, clear, black and amber covers are available as accessories.

Sealing and vibration

IP68 rated against dust ingress and water submersion, and engineered to meet the J575 vibration rating.

Mounting

The Grande uses NACHO's patented 2-N-1 Secured Grip light mount. Surface mount it on any tab, or remove the surface mount and direct mount the light to any 1.5" tube. The surface mount bracket is corrosion resistant stainless steel with a UV protected black polyester powder coat, and the hardware is chrome plated stainless steel to prevent corrosion and galling.

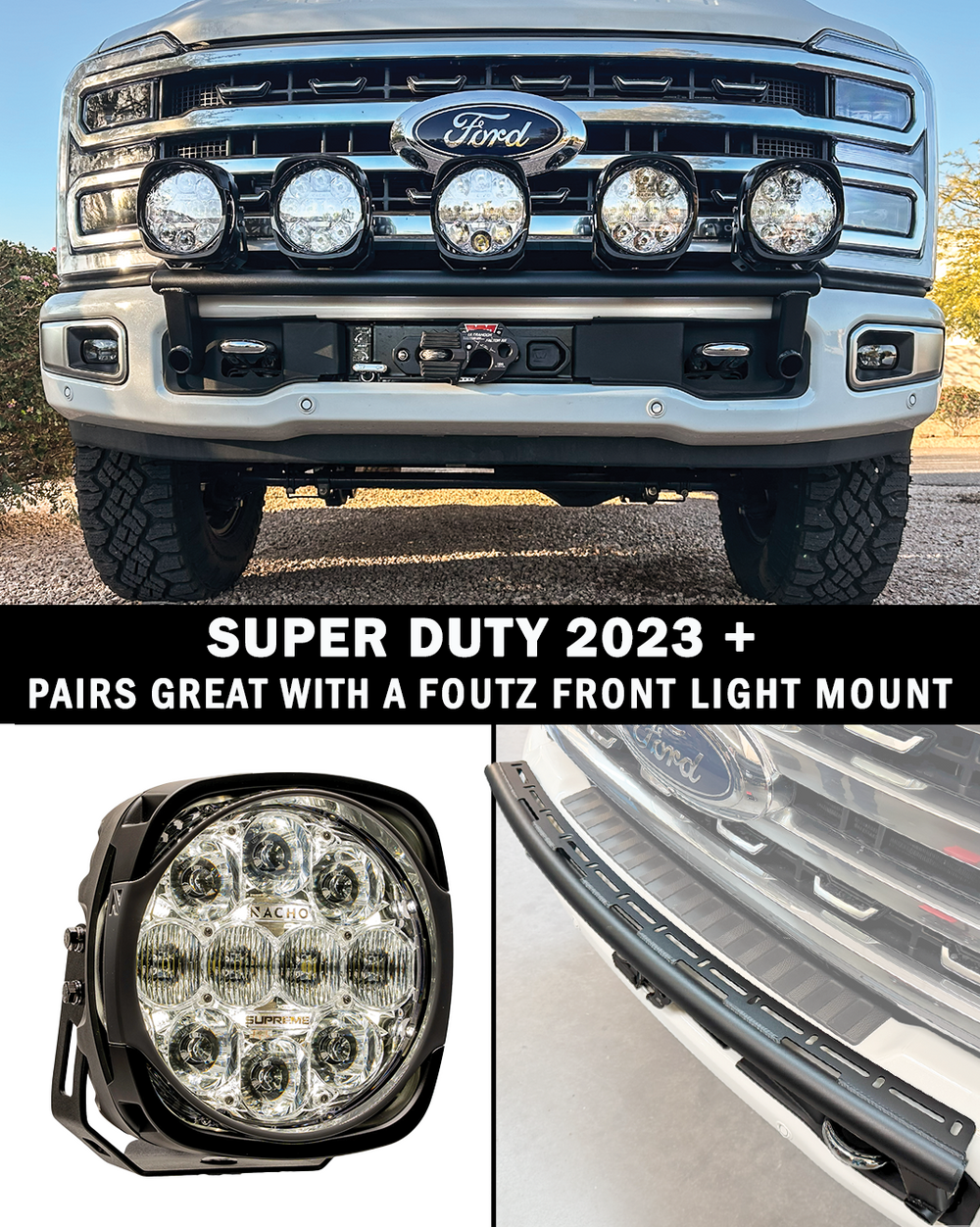

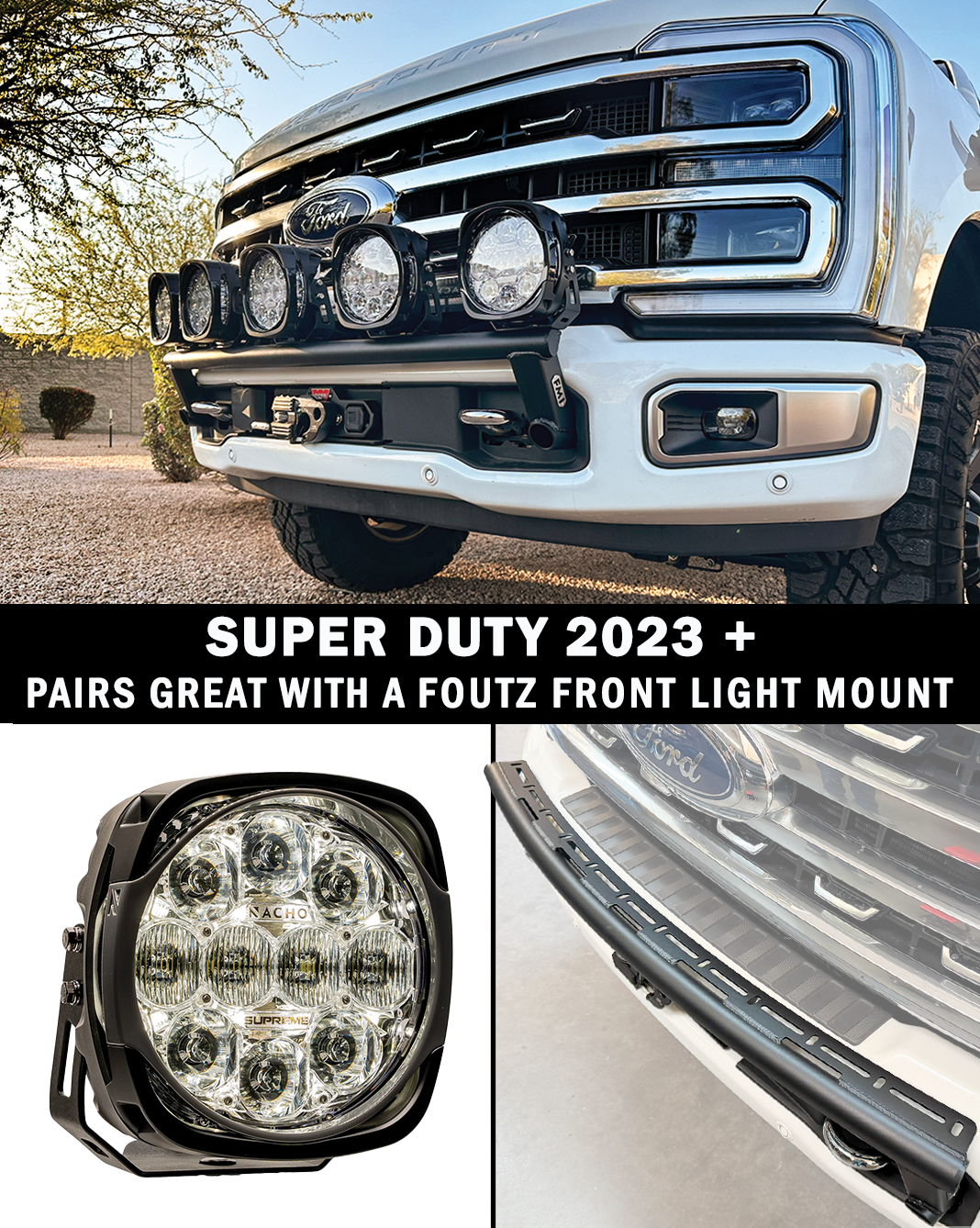

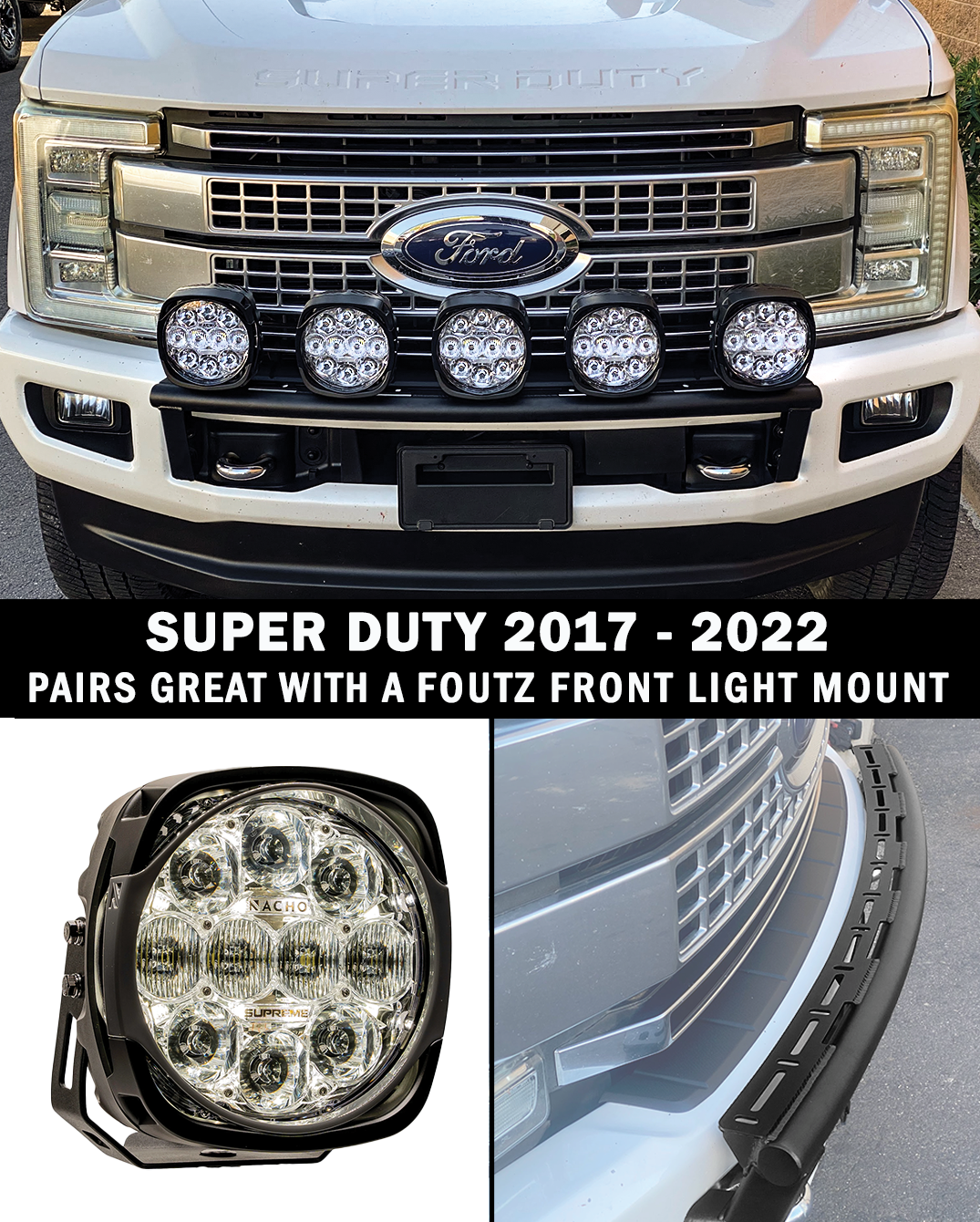

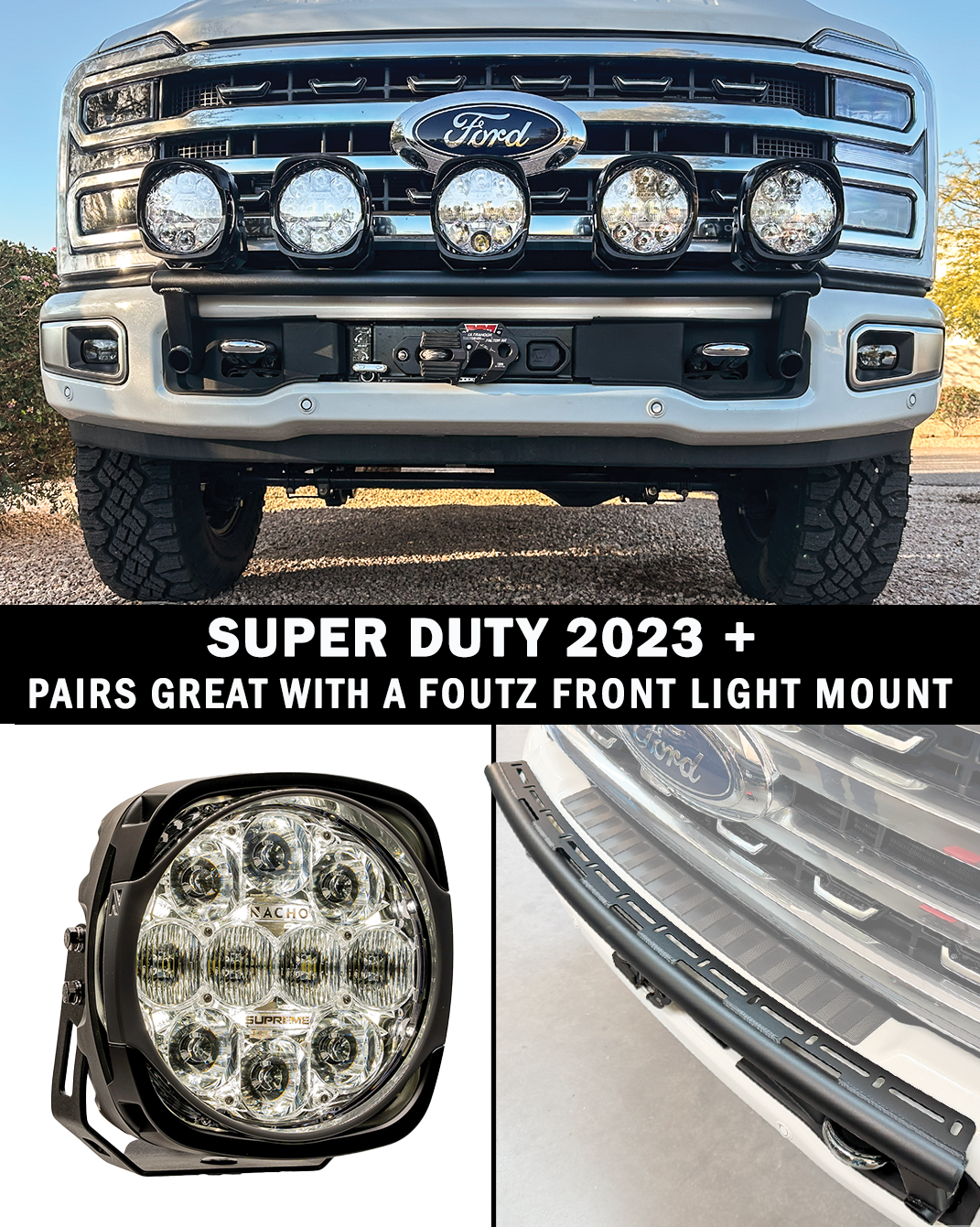

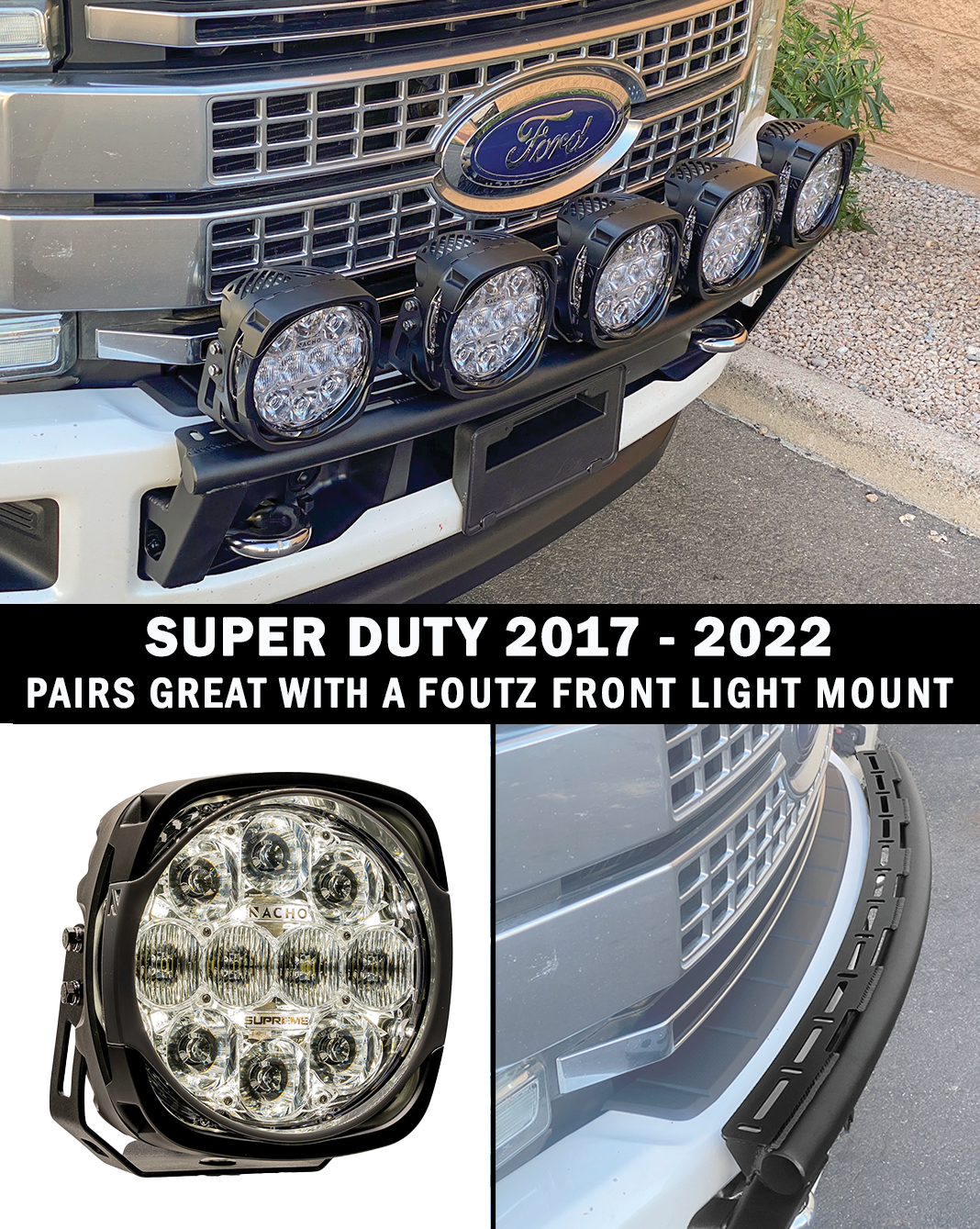

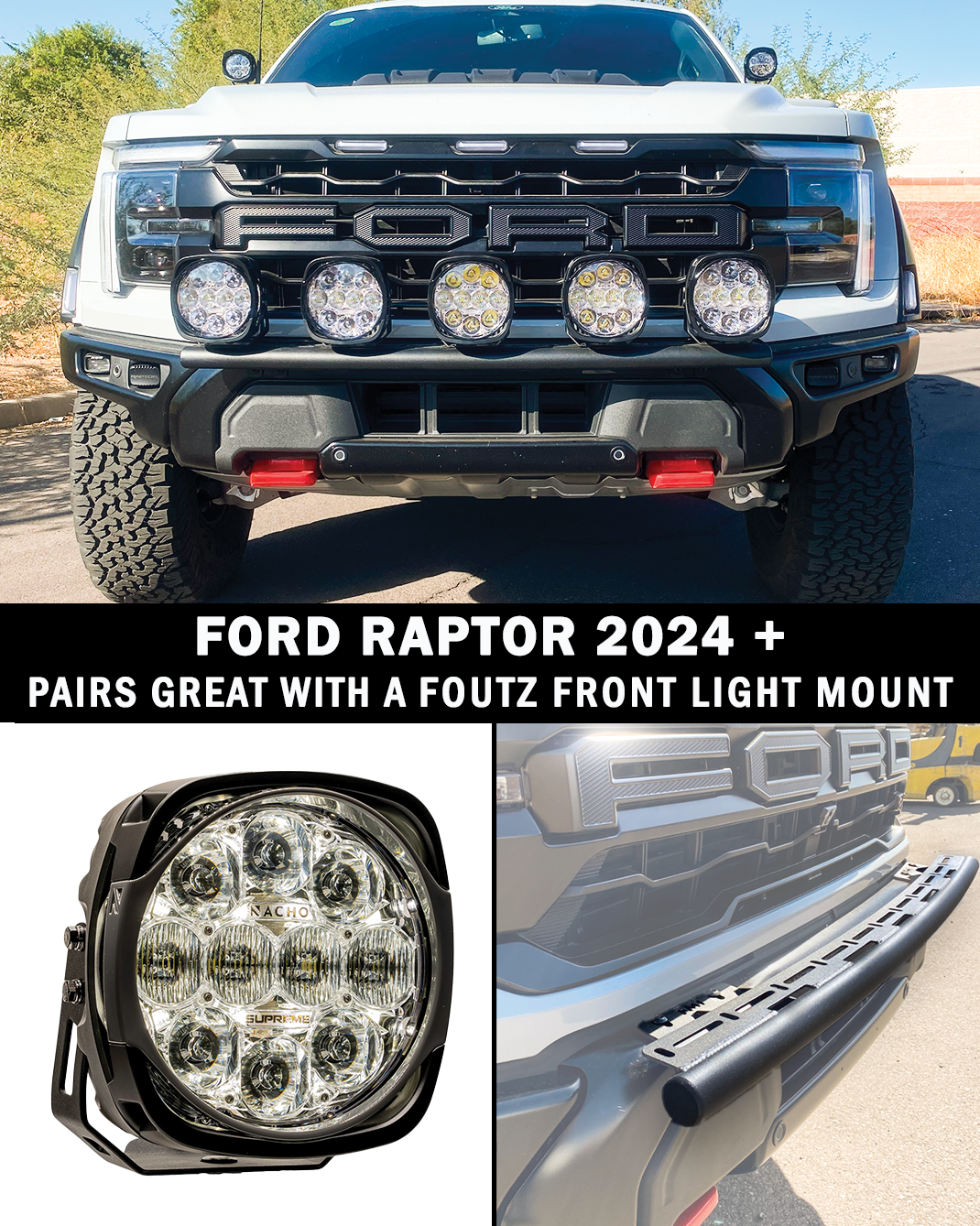

If you have a stock bumper, these lights look great on a Foutz Motorsports front light mount.

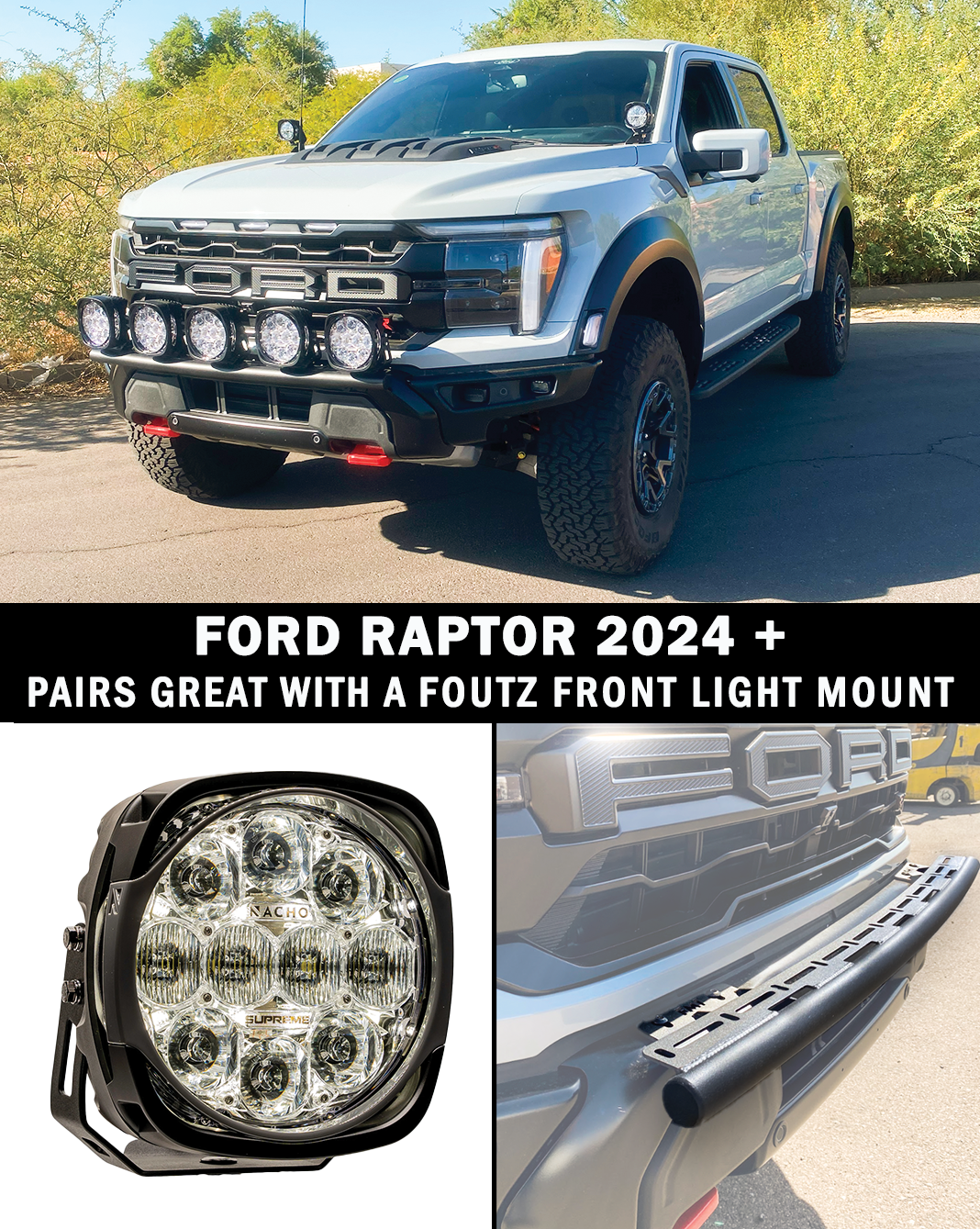

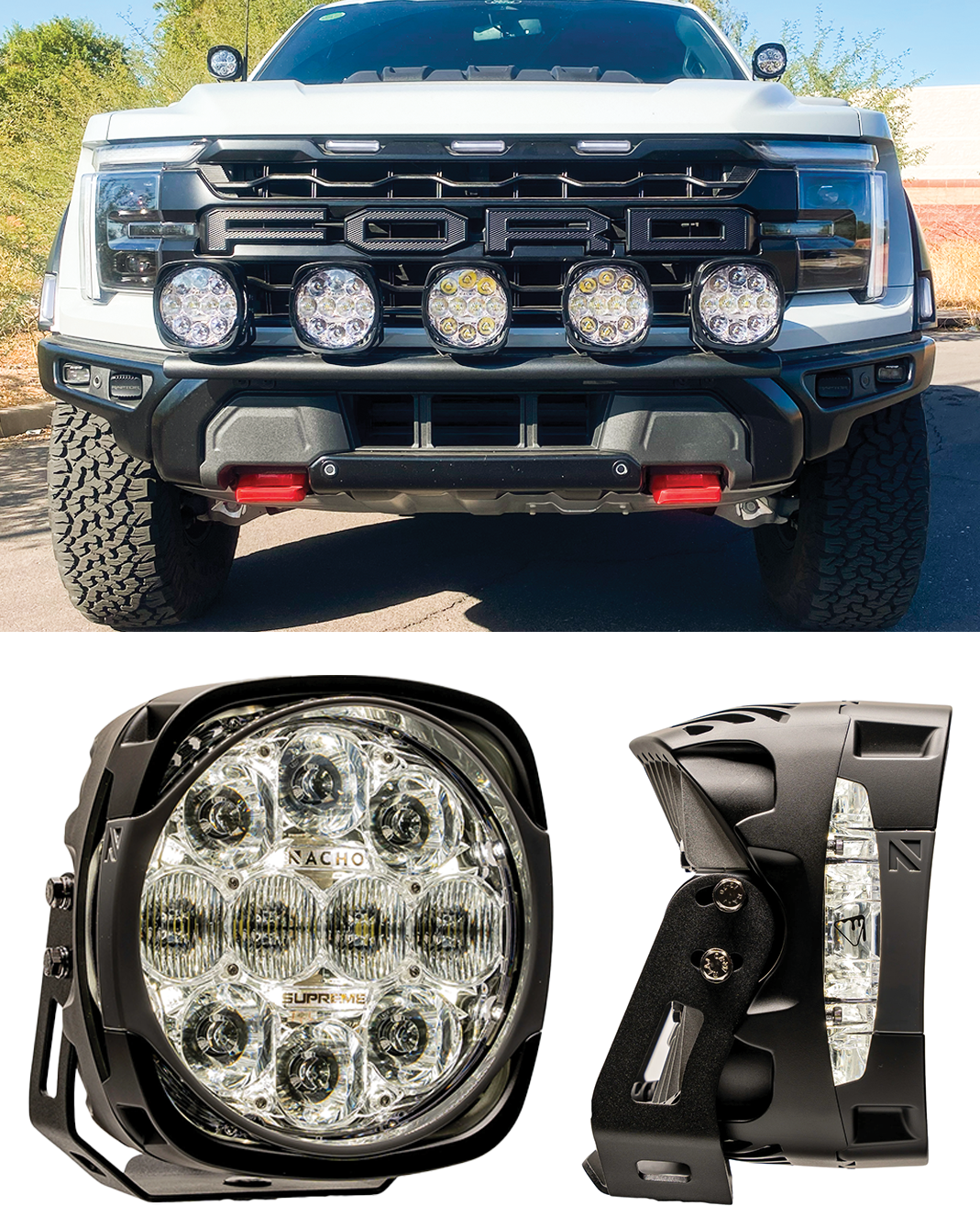

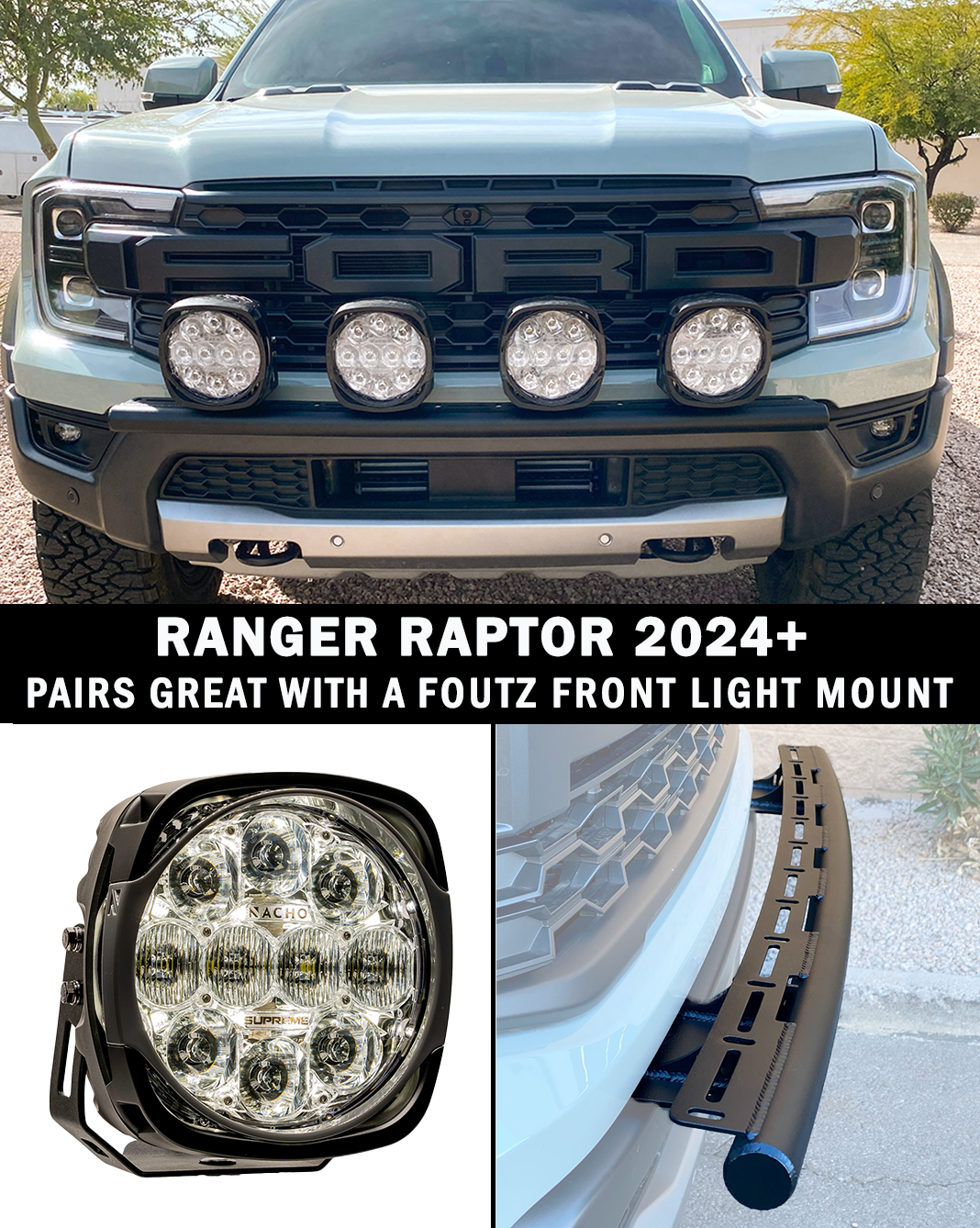

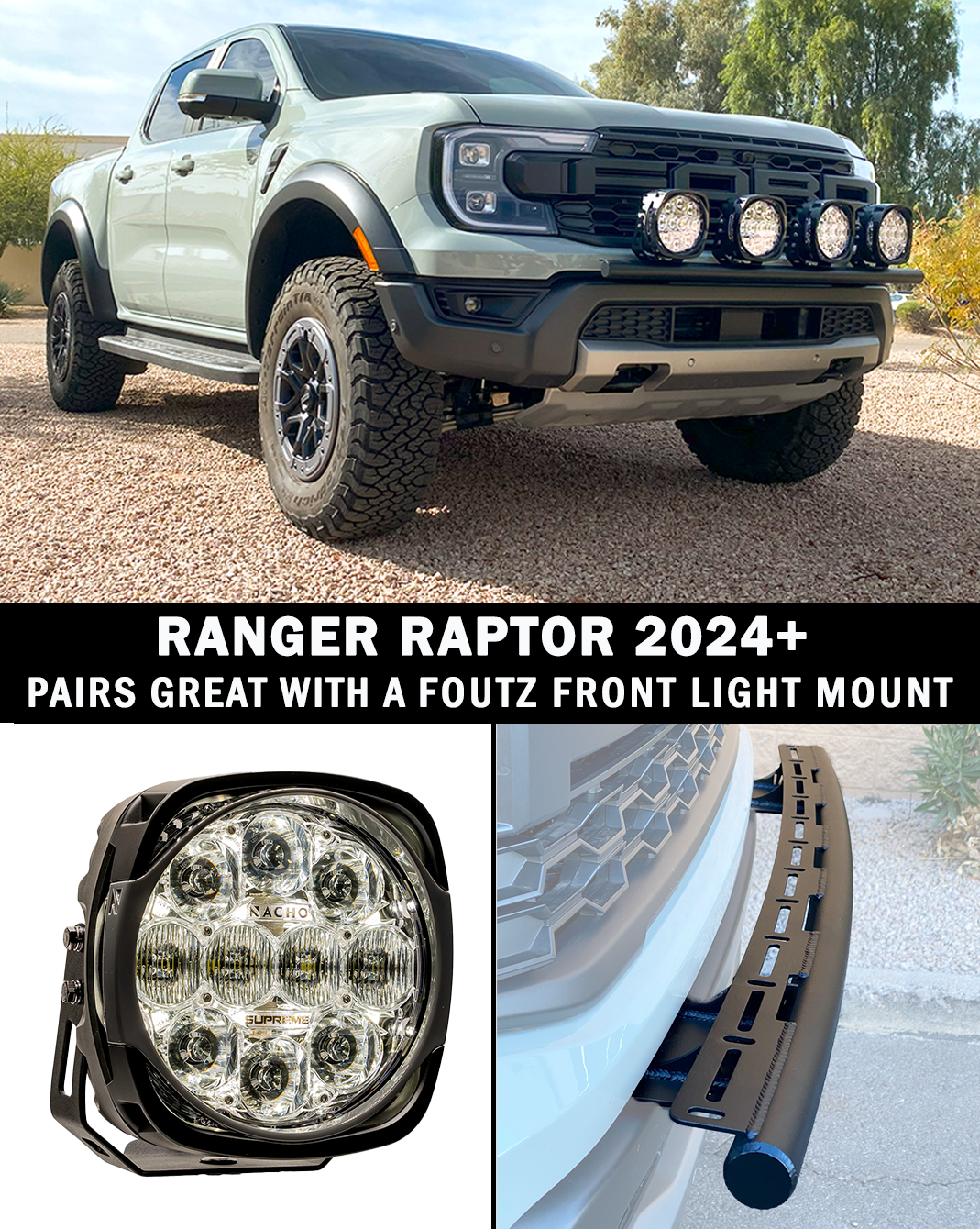

Foutz Motorsports front light mount for the 2024 Ranger Raptor stock bumper

Specifications

  • Sold as: 1 light
  • Power: 140 watts
  • Peak candela: 365,713
  • Effective lumens: 10,696
  • Raw lumens: 12,201
  • Amp draw @ 14: 10
  • Rating: IP68, J575 vibration
  • Package contains: 1 light, 2 covers, surface mount bracket

NACHO Grande instruction sheet

Questions

Is this one light or a pair?

One light, with 2 covers and a surface mount bracket.

Do I need a relay harness?

Relays are built into the light, so a lower power switch can run it without extra relay harnessing.

Can it mount to a tube?

Yes. Remove the surface mount and direct mount the light to any 1.5" tube, or surface mount it on any tab.

How do I change the light pattern?

Tap the chip icon on the side of the light with the provided sorcery wand to select up to 3 modes. You can change modes any time.

Is it waterproof?

It is IP68 rated against dust ingress and water submersion.

What is the warranty?

NACHO offers a lifetime warranty for manufacturing errors. Reach out to NACHO Off-Road Lights through their contact page.
