NACHO Grande Light - SUPREME 100 - BUNDLE - SELECT QUANTITY

Description

The NACHO Grande Supreme 100: a 140-watt, programmable off-road light built for high-visibility race use at 75 to 110 mph. Select the quantity you need, from 1 to 6 lights.

The faster you go, the further ahead you need to see. The Supreme 100 mixes spot and flood optics and lets you program the output, so one light can cover distance at speed and still give you area light when you stop.

What Is In The Box

Per light:

  • 1 NACHO Grande Supreme 100 light
  • 2 covers: an amber NACHO branded cover and a solid black ARB branded cover
  • Surface mount bracket
  • Chrome plated stainless steel hardware for surface or tube mounting
  • Sorcery Wand for programming the light

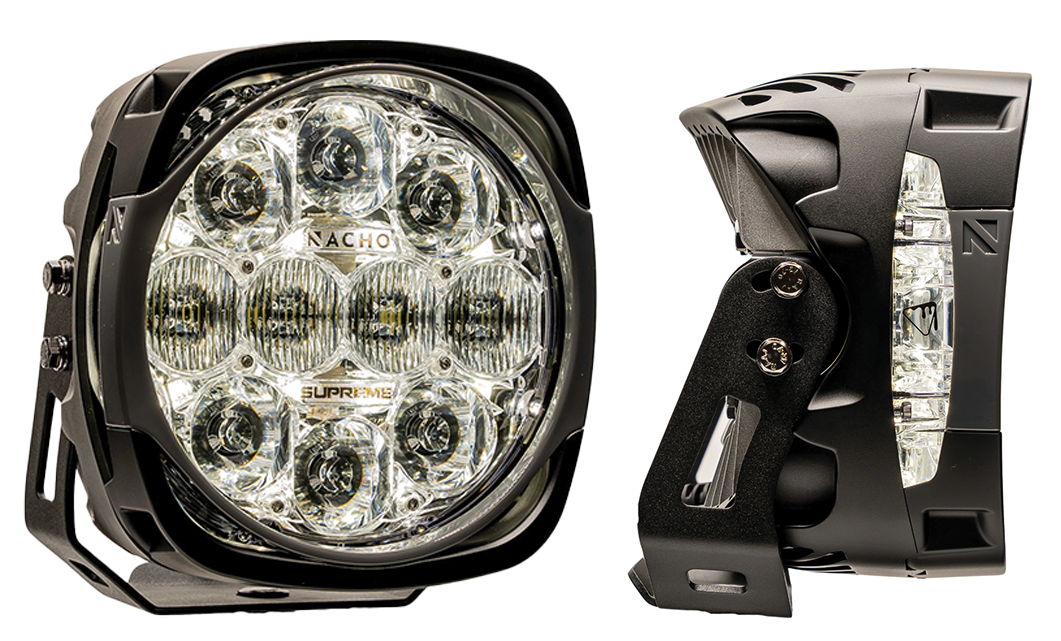

NACHO Grande Supreme 100 off-road light

Why A Programmable Race Light

Different driving needs different light. At race speed you want a high intensity spot reaching down the course; in camp or on a slow trail you want a wide, low intensity area light.

The Grande has NACHO's Output Control Module built in. Tap the cheesy chip icon on the side of the light with the supplied Sorcery Wand (a magnet on a stick) to choose up to 3 different modes, from high intensity spot to low intensity area light. Set it and forget it, or change modes any time you like.

Specifications

  • Activity: high-visibility race application, speed range 75 mph to 110 mph
  • Ideal location: bumper
  • Power: 140 watts
  • Amp draw @ 14: 10
  • Peak candela: 365,713
  • Effective lumens: 10,696
  • Raw lumens: 12,201
  • Multi-function: all modes (high, low), spot (high, low), flood (high, low) and area light (high, TRL)
  • Rating: IP68 waterproof and dustproof, J575 vibration rated

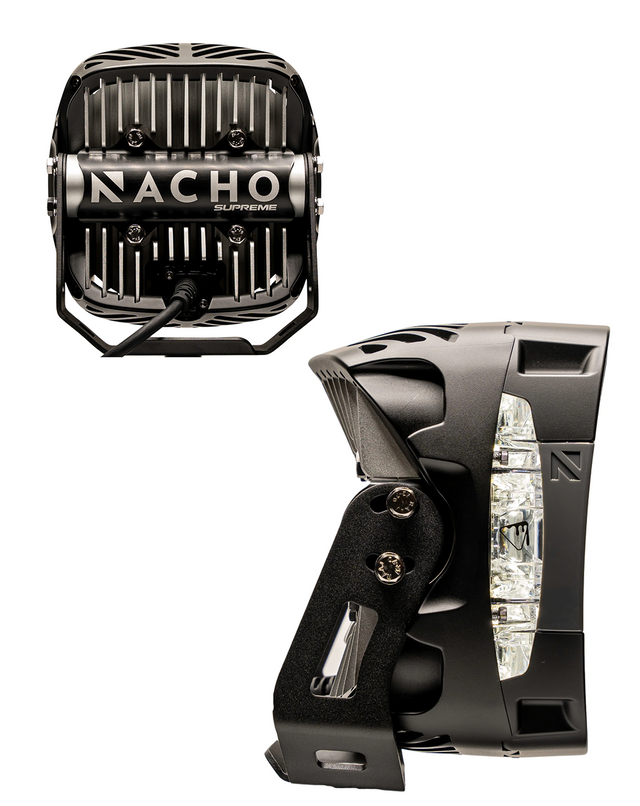

How It Is Built

Polycarbonate outer body

NACHO's signature polycarbonate exoskeleton uses forced air induction: air is channeled in through the front of the light and exhausted out the back for cooling. It also protects the light engine and is replaceable, so a beat-up housing can be swapped to keep the light looking fresh, or removed and painted for a custom look.

Covers

High strength polycarbonate covers that integrate into the housing. Smoke, clear, black and amber covers are available as accessories.

Constant power

Relays are built into the light, so a low-power switch can run this high-power light without extra harnessing.

Built for the elements

IP68 rated against dust ingress and water submersion, J575 vibration rated, with chrome plated stainless hardware to prevent corrosion and galling.

Mounting

The patented 2-N-1 Secured Grip light mount lets you surface mount the Grande on any tab, or remove the surface mount and direct mount the light to any 1.5" tube. The surface mount bracket is corrosion resistant stainless steel with a UV protected black polyester powder coat. All hardware is provided for either surface or tube mounting.

Running a stock bumper? These lights look great on a Foutz Motorsports front light mount.

Foutz Motorsports front light mount kit for the Ranger Raptor stock bumper

NACHO Grande Supreme 100 instruction sheet

Warranty

Lifetime warranty from NACHO. If there is a manufacturing error, please reach out to NACHO Off-Road Lights through their contact page.

Questions

How bright is it?

365,713 peak candela, 10,696 effective lumens and 12,201 raw lumens, at 140 watts.

Where should I mount it?

The ideal location is the bumper. It can surface mount on any tab or direct mount to any 1.5" tube.

Do I need a relay?

No. Relays are built into the light, so it runs on constant power with a lower power switch.

How do I change the light pattern?

Tap the cheesy chip icon on the side of the light with the Sorcery Wand to choose up to 3 modes. You can change modes any time.

Can I change the cover color?

Yes. It ships with an amber and a solid black cover, and smoke, clear, black and amber covers are available as accessories.

Is it waterproof?

Yes. It is IP68 rated against dust and water submersion.
