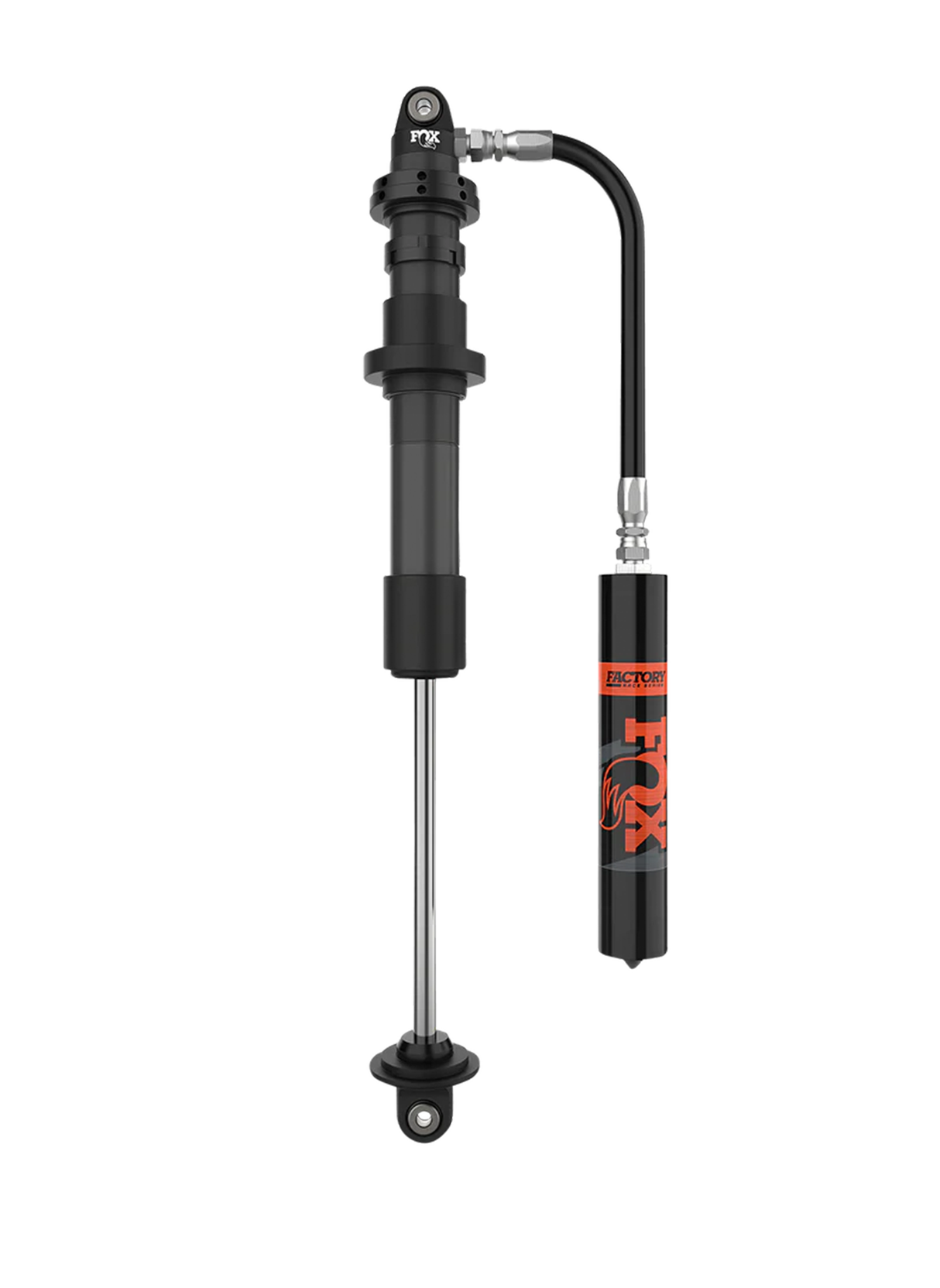

FOX Factory Race 3.0 x 14 Coil-Over Remote Reservoir Shock

Specifications

Features

• NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat
• 17-4 H900 hard chrome plated stainless steel shaft
• Owner serviceable and rebuildable
• JM92 MIL-SPEC oil developed specifically for off-road racing
• Black anodized CNC machined aluminum components

Factory Race Series coil-over shocks are the foundation of race-winning suspension, providing a primary means to suspend the vehicle paired with adjustable preload and dual-rate spring crossover rings to dial in the perfect ride.

Factory Race Series 3.0 x 14 Coil-Over Internal Bypass Shock combines patented internal bypass damping technology with a full coilover architecture for maximum control, ride comfort, and durability in demanding off-road environments.

This design delivers position-sensitive damping, giving you softer response in light travel and increased resistance as the shock compresses deeper into its stroke. At the same time, the coilover configuration supports vehicle weight directly through the spring system, making it ideal for builds where packaging, fitment constraints, or class rules require a single shock per corner.

Equipped with a DSC (Dual Speed Compression) adjuster, this shock allows fine-tuning of high- and low-speed compression for precise control over body roll, bottom-out resistance, and terrain response.

Built for serious off-road use, this 3.0” body shock delivers consistent performance under heat, repeated impact, and high-speed desert conditions.
