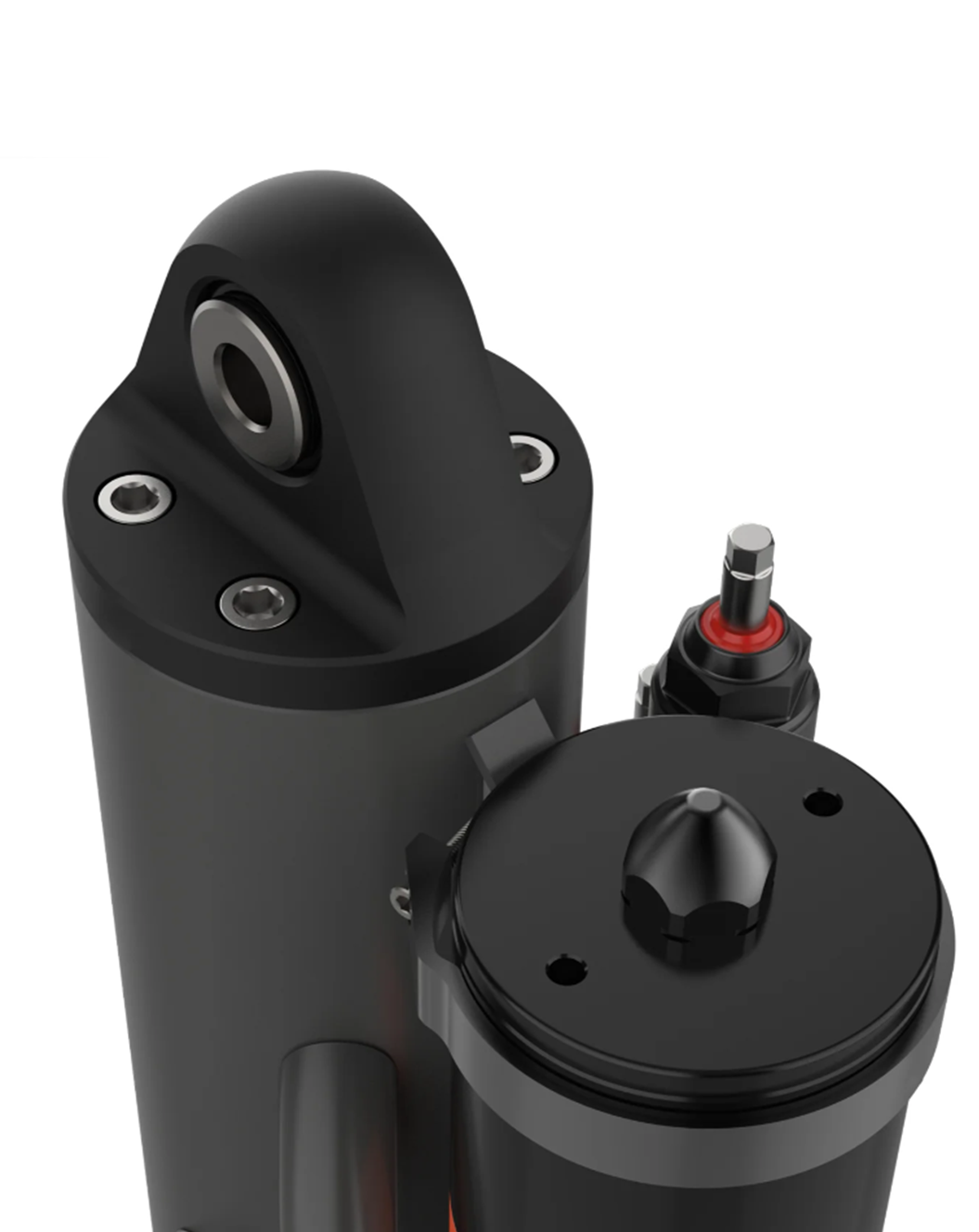

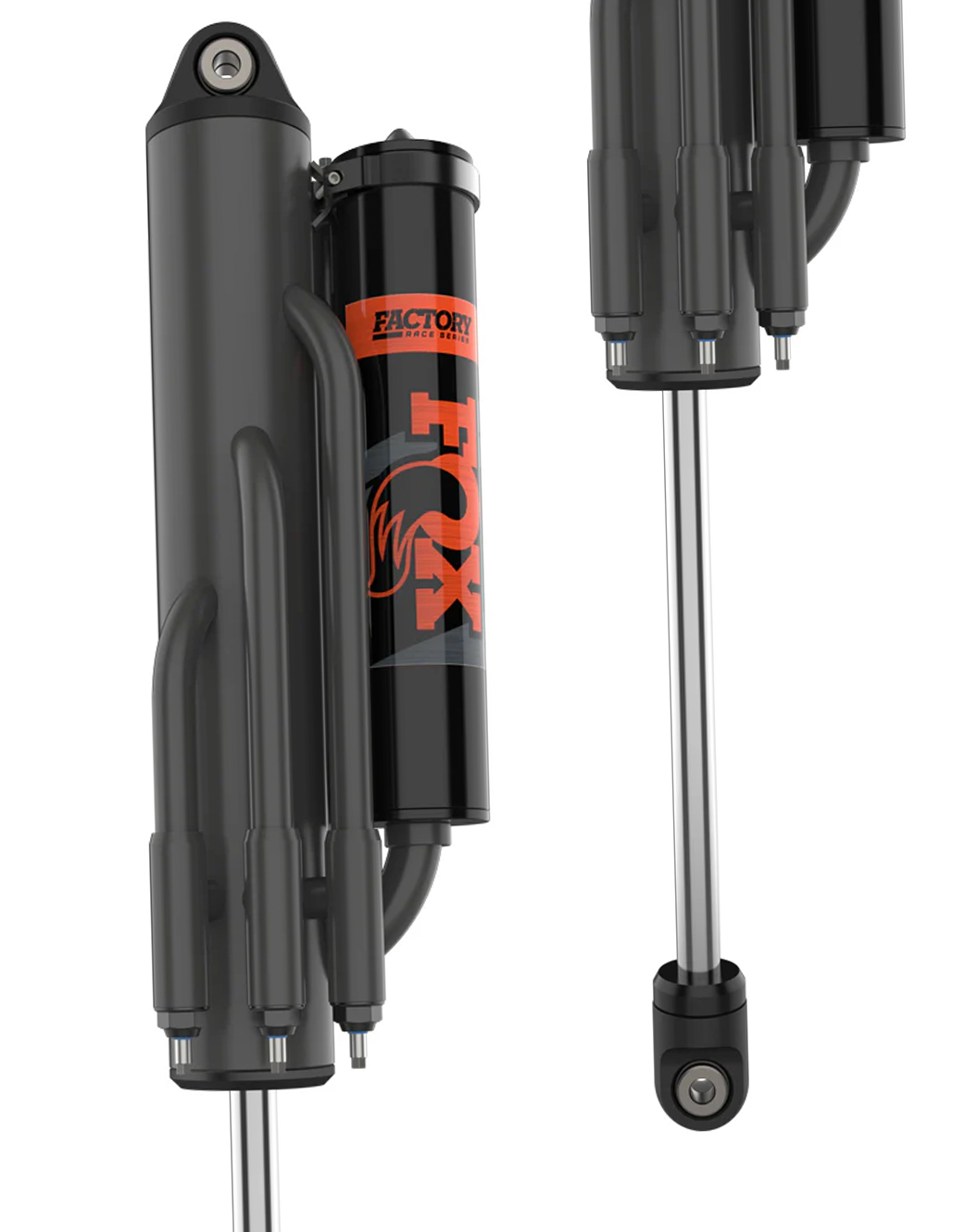

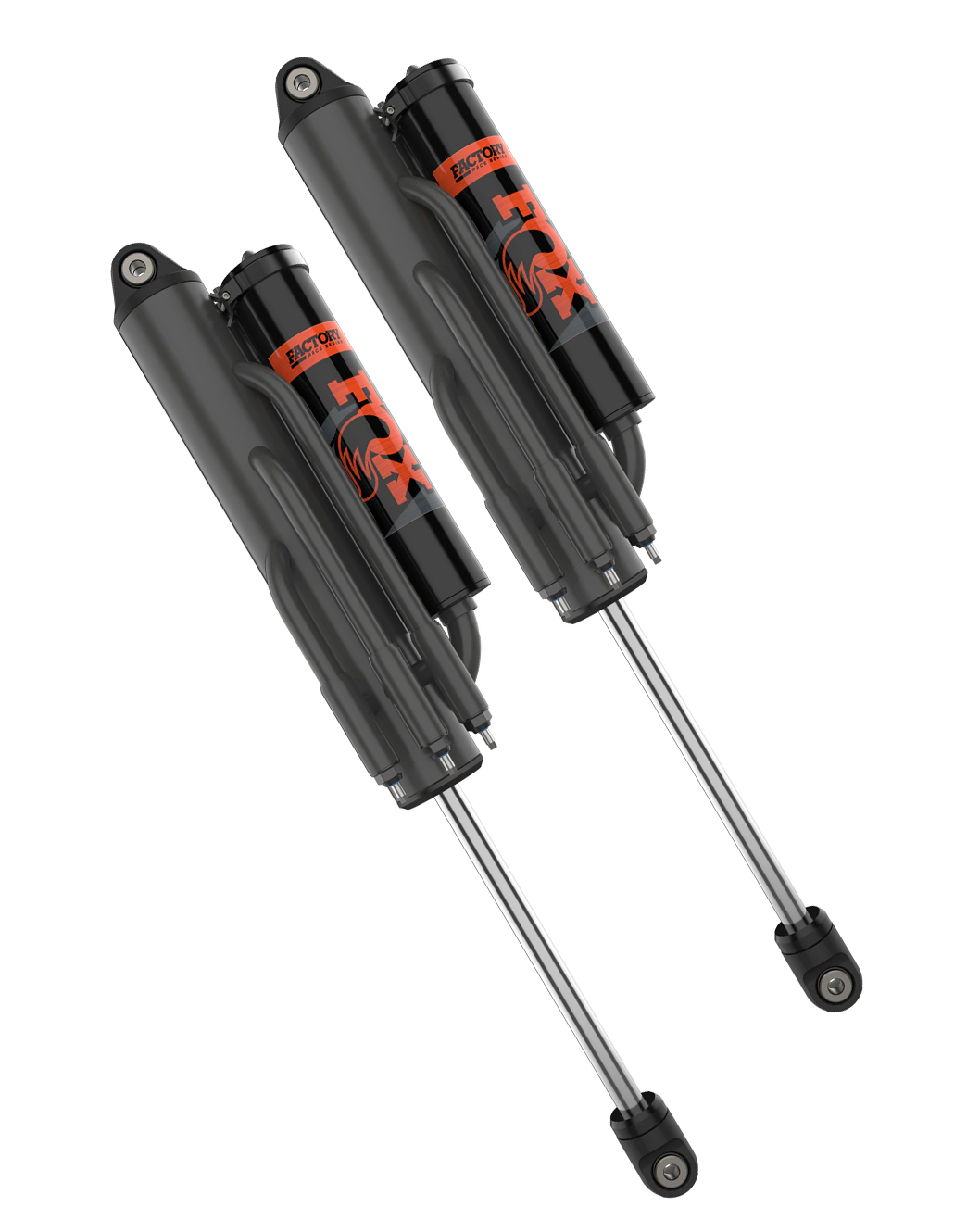

FOX 4.0 X 18 External Bypass 5 Tube Piggy Back Shocks (Right & Left)

Fox 4.0 x 18" Travel 5 tube bypass shocks setup for rear bed cage kits with leaf springs.  Custom tube layout to maximize clearance on the sides of the shock to clear the leaf springs and frame.

These FOX 4.0 Shocks are a custom made that will only work with the following Foutz Motorsports Rear Travel Organizer Kits:

• 2017 - 2020 Raptor Rear Bed Cage Shock Tower for 20.25" wheel travel

• 2017 - 2020 Raptor 20" Rear Travel Bed Organizer kit

 SOLD AS A PAIR

Features:

• 4.0" Impact Extruded and CNC Machined 6061-T6 Hard-Anodized Aluminum Body: Offers superior resistance to corrosion while being lighter than steel, ensuring long-lasting durability and optimal performance.
• Hard-Anodized Durable Finish: Provides a tough, corrosion-resistant surface that stands up to harsh conditions.
• New Aluminum Finned Remote Reservoir with Recirculating Reservoir Bridge: Enhances heat dissipation to maintain optimal shock oil temperature for consistent damping performance.
• Black-Anodized CNC-Machined 6061-T6 Billet Aluminum Components: High-quality materials ensure strength, precision, and reliability.
• 7/8" Hard Chrome Plated Heat-Treated Alloy Steel Shaft: Provides exceptional strength and resistance to wear and corrosion.
• Race-Developed High-Flow Piston Design: Ensures smooth and efficient damping performance.
• Application-Specific Valving: Tailored to maximize performance for your specific vehicle.
• Redundant Sealing Pack System: Includes a main seal, wiper seal, and scraper seal to prevent leaks and ensure consistent performance in harsh conditions.
• PTFE-Lined Heat-Treated Alloy Steel Spherical Bearings: Ensure quiet and smooth shock movement.
• Dual Speed Compression (DSC) Adjusters: Allow for tool-free high and low-speed compression adjustment, providing customizable damping.
• Machined 7075 Aluminum Reservoir Mounting Hardware and Offset Bottom Shock Mounts: Ensure secure and precise mounting.

Benefits

• Race-Proven Technology: Utilizes the same components found in race-winning Trophy Truck shocks, providing superior performance and reliability.
• Enhanced Ride Quality: The advanced position-sensitive damping technology offers a plush, predictable ride over normal off-road driving conditions while ramping up damping force to counteract harsh bottom-outs or top-outs.
• Superior Control: Experience precise handling and stability, giving you confidence in any driving condition.
• Durability and Reliability: These shocks are designed to withstand the roughest environments and are built with high-quality materials and advanced technology.
• Adjustable Settings: The DSC adjusters allow for quick and easy customization of compression settings to match your driving style and terrain.

Specifications

• Adjuster Type: External Bypass Clicker - Gen 3
• Body Diameter (in): 4
• Body Finish: FOX Grey Cerakote
• Body Material: Steel
• Bottom Mount: Eyelet
• Bypass Tubes: 5
• Compressed Length (in): CUSTOM
• Extended Length (in): CUSTOM
• Eyelet Length (in):
• Mounting: 5/8 x 1-1/2
• Reservoir Dimensions: 3.50 x 17.50
• Reservoir Type: Piggyback
• Series: Factory Race
• Shaft Size (in): 1-1/8
• Top Mount: Eyelet
• Travel (in): 18.00
• Type: External Bypass
• Valving: 807-24-801
