FM17000026 - FMI Gen 3 Raptor Tie Rod taper spacer for spindle
Description
Description

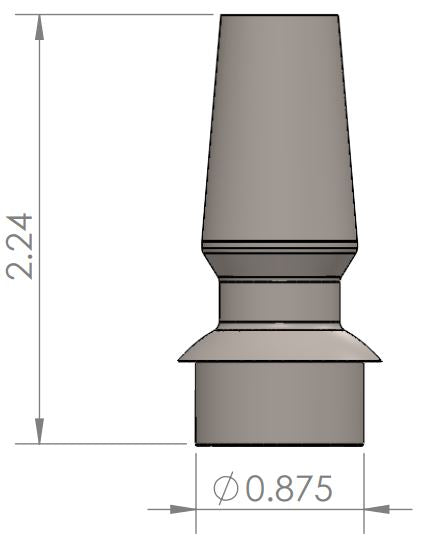

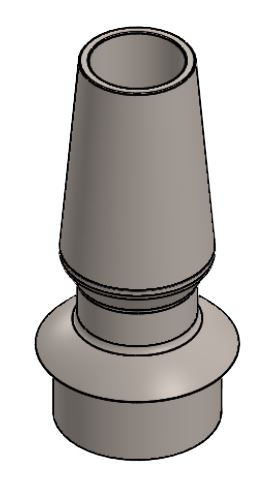

FM17000026 tie rod taper spacer for FMI billet tie rod kits on the Gen 3 Raptor, the bottom taper adapter for the 7/8" rod end at the spindle. Made from 17-4 stainless steel for a 1/2" diameter bolt.
Specifications
- Part number: FM17000026
- Type: tie rod bottom taper adapter
- Rod end: 7/8"
- Bolt: 1/2" diameter
- Material: 17-4 stainless steel
Where It Is Used
For use on FMI billet tie rod kits for the Gen 3 Raptor, as the bottom taper adapter of the 7/8" rod end at the spindle.
What It Does
A rod end has a straight bore, while the factory spindle has a tapered hole made for a tapered tie rod end stud. This adapter fills the difference under the rod end so the bolt clamps into the spindle taper.
Questions
Where does it go?
Under the 7/8" rod end, in the spindle taper, on an FMI billet tie rod kit.
What bolt does it take?
A 1/2" diameter bolt.
What is it made of?
17-4 stainless steel.
