Ram TRX 2.5" Front Leveling Collar Kit with Ride Height Sensor Connector Rods - 2027

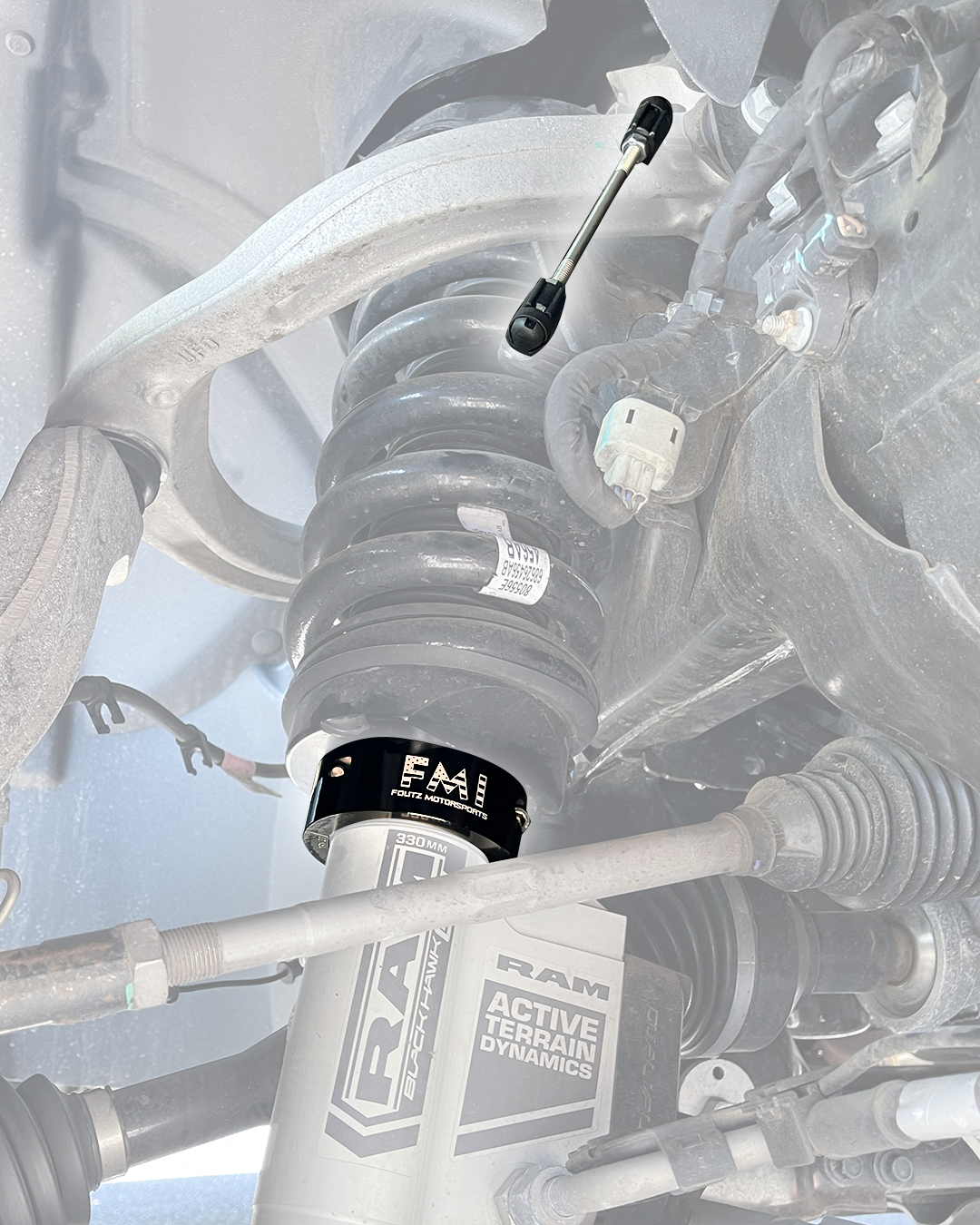

This 2.5" lift collar is designed specifically around the 2027 Ram TRX front suspension. The collar installs below the lower spring perch and adds preload to the factory coil spring while retaining the original coil springs and front shocks.

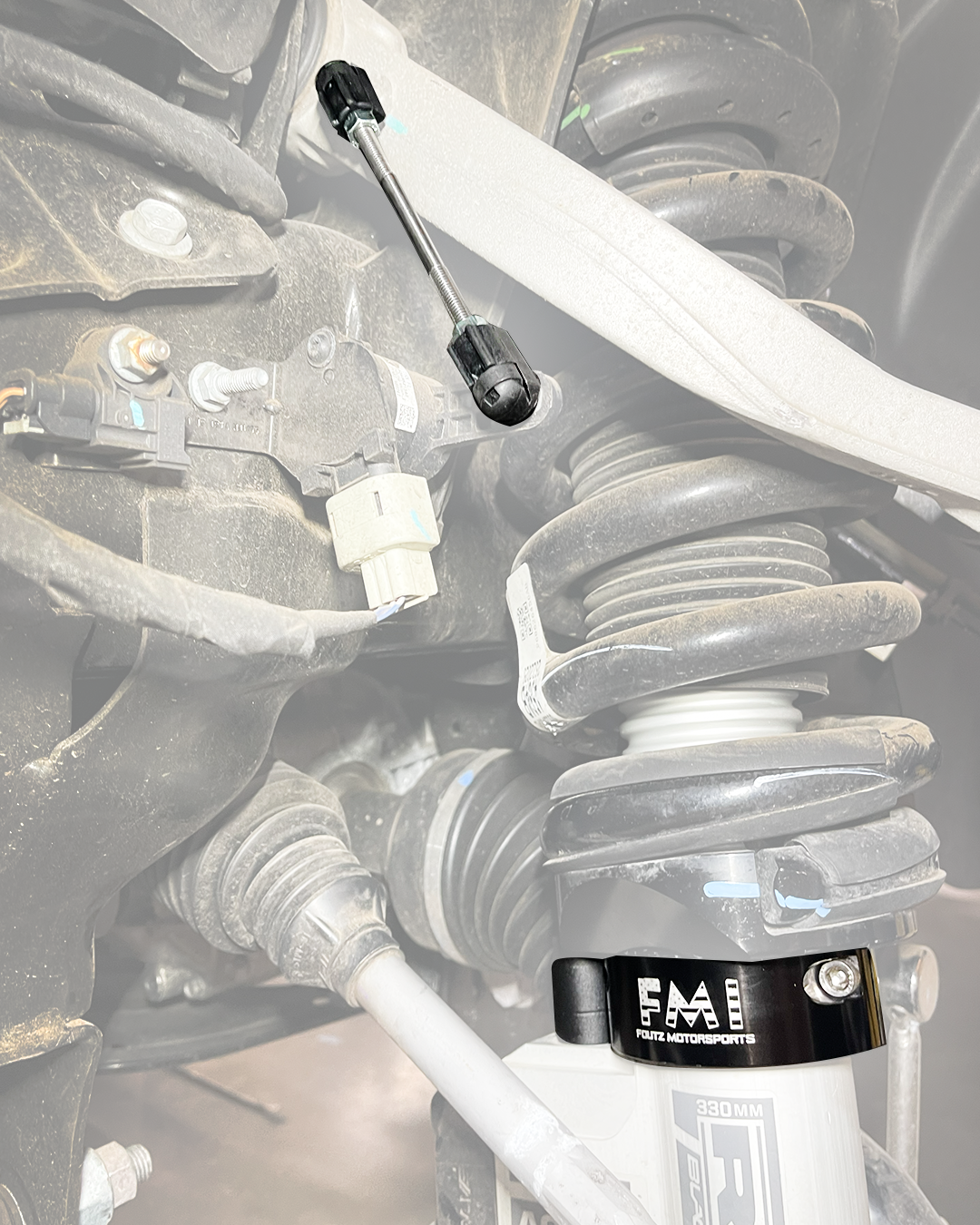

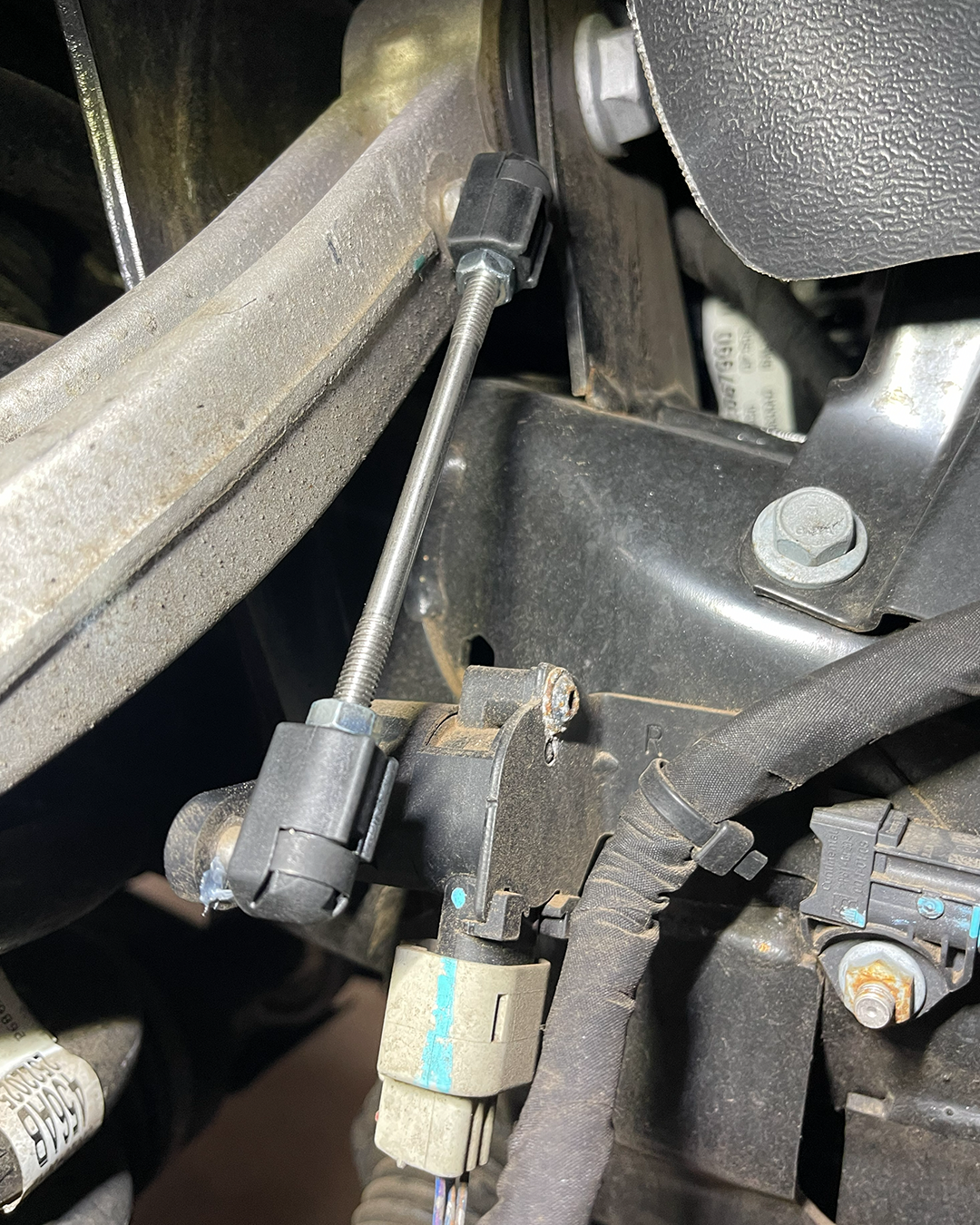

The included adjustable ride height sensor rods provide adjustment for the factory sensors after the front suspension height has been changed.

• Adds approximately 2.5" of front ride height
• Designed around the 2027 Ram TRX factory front suspension

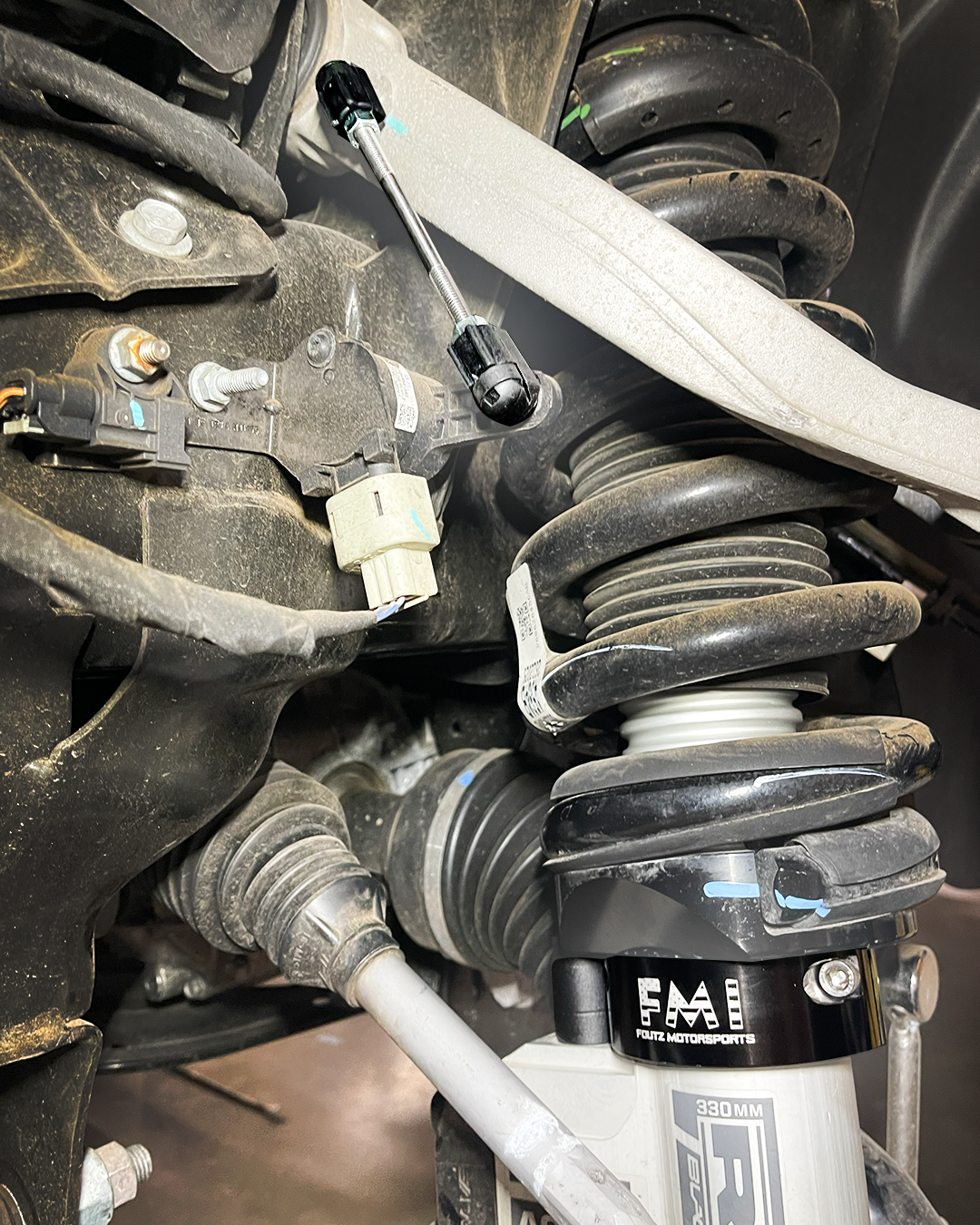

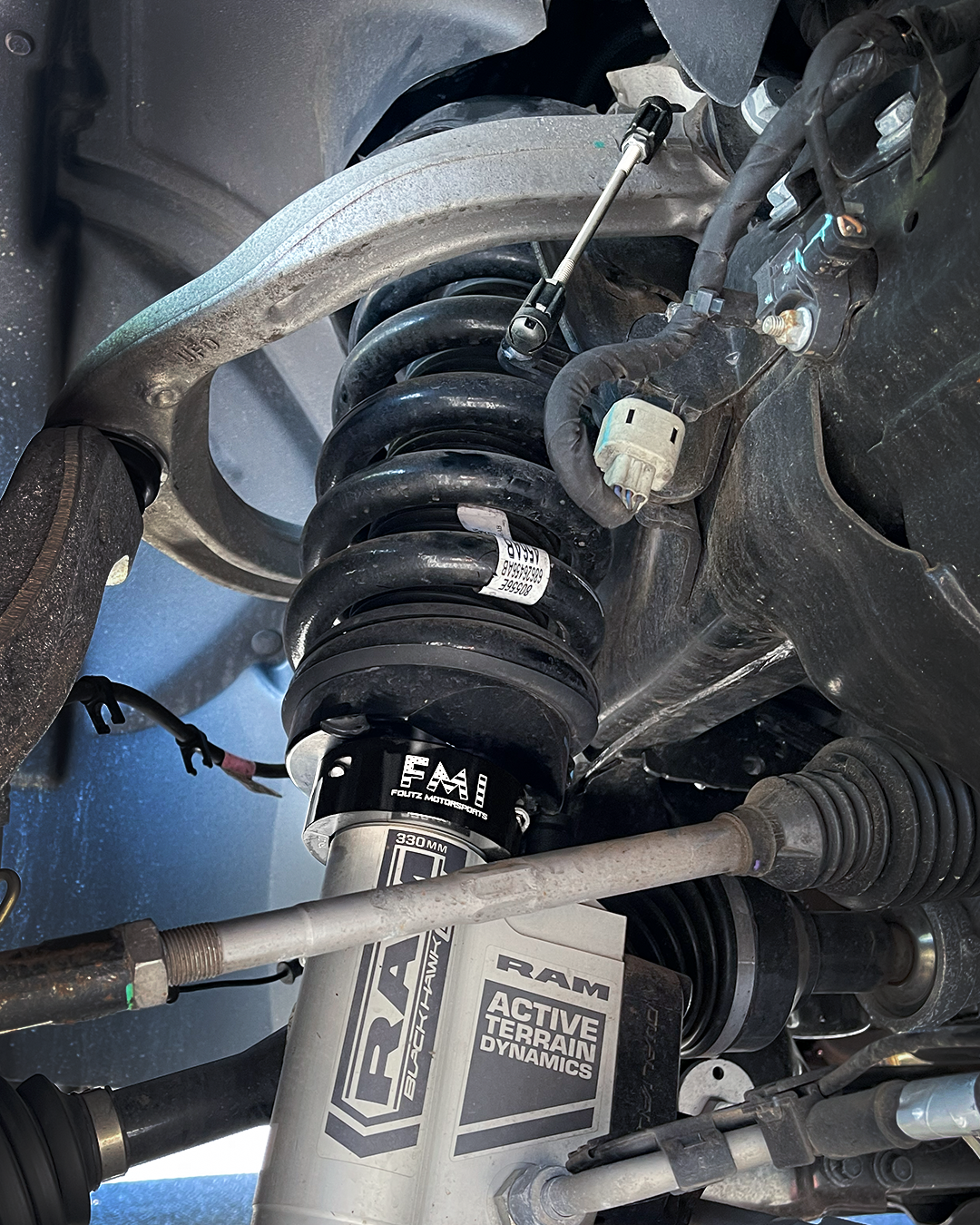

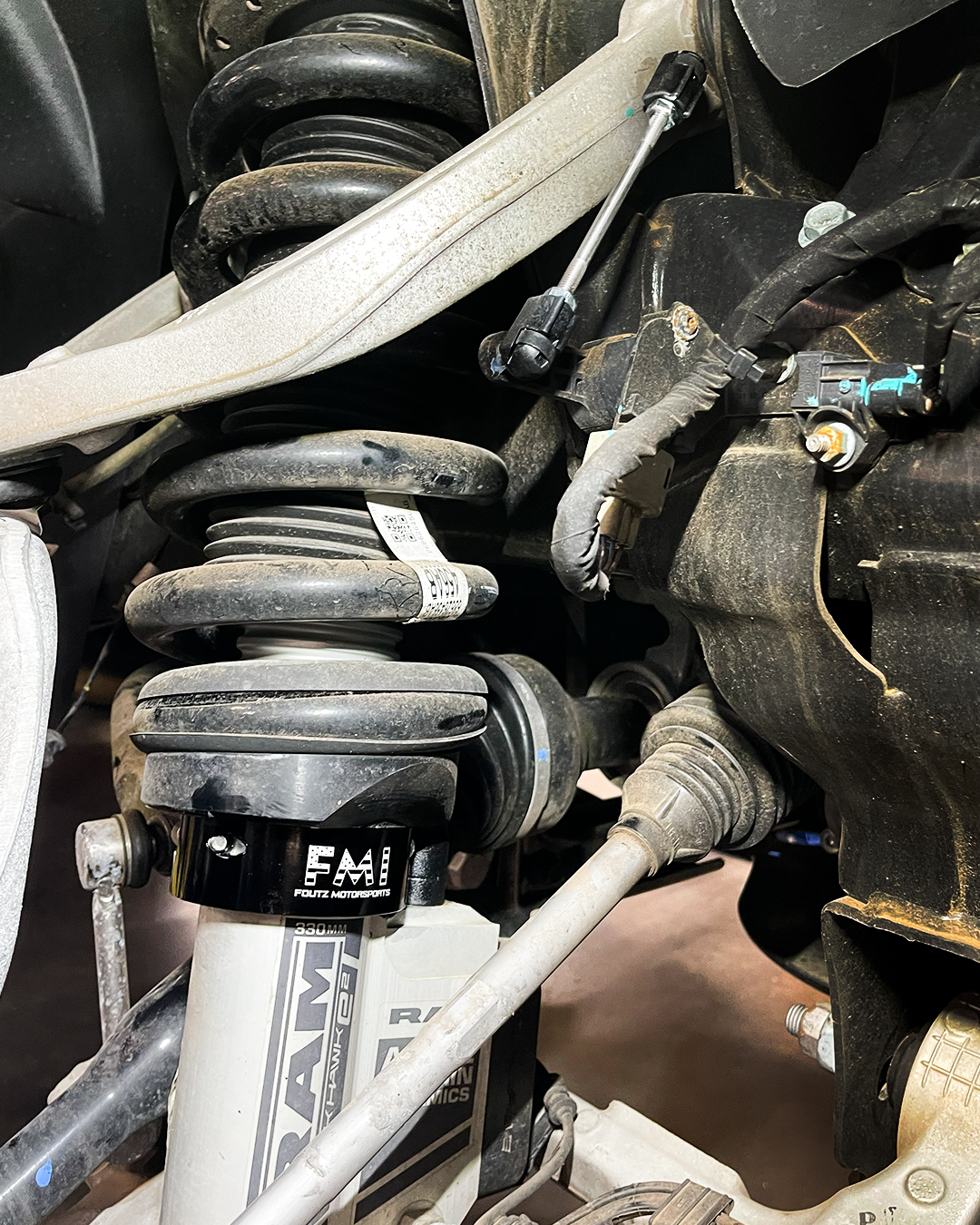

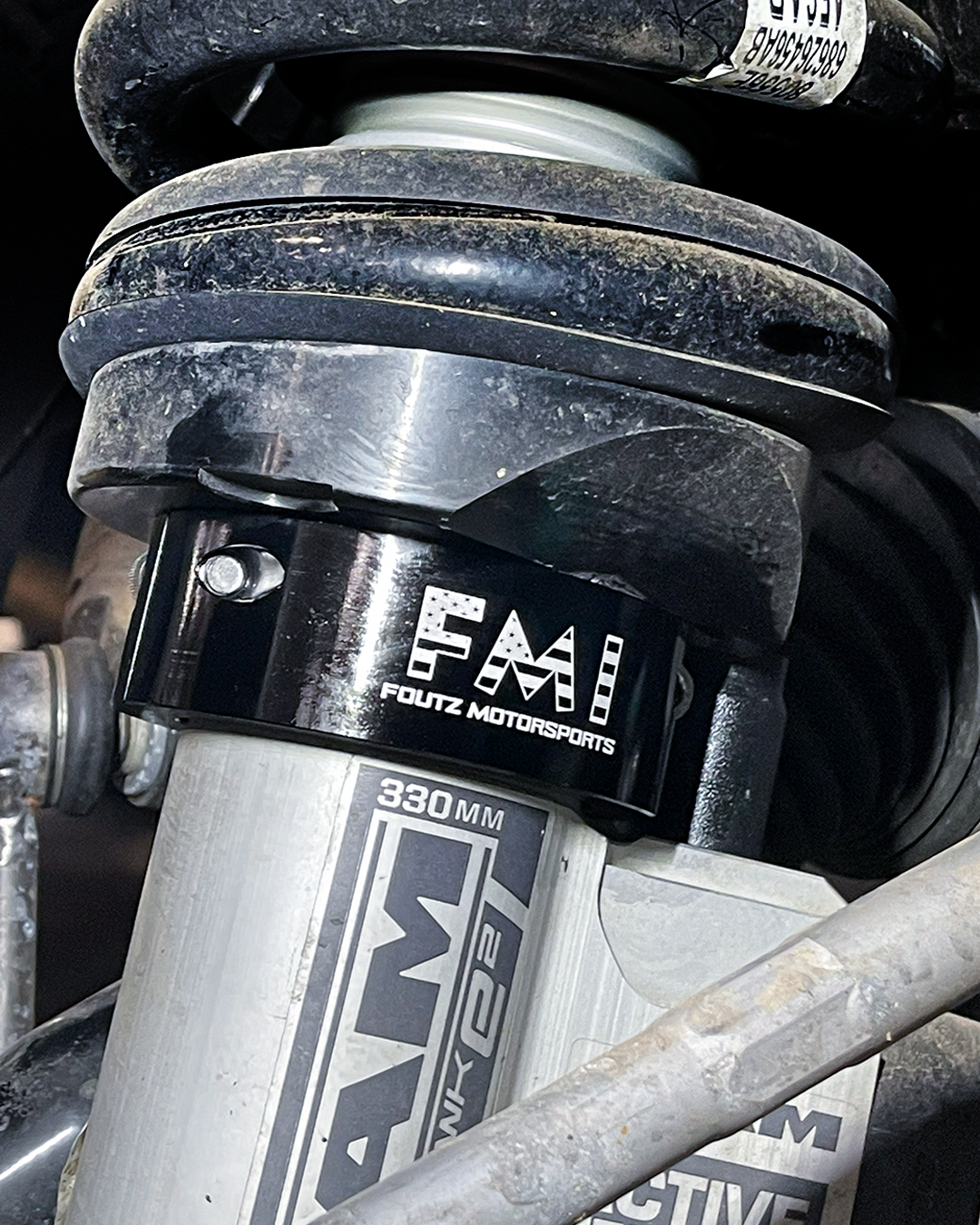

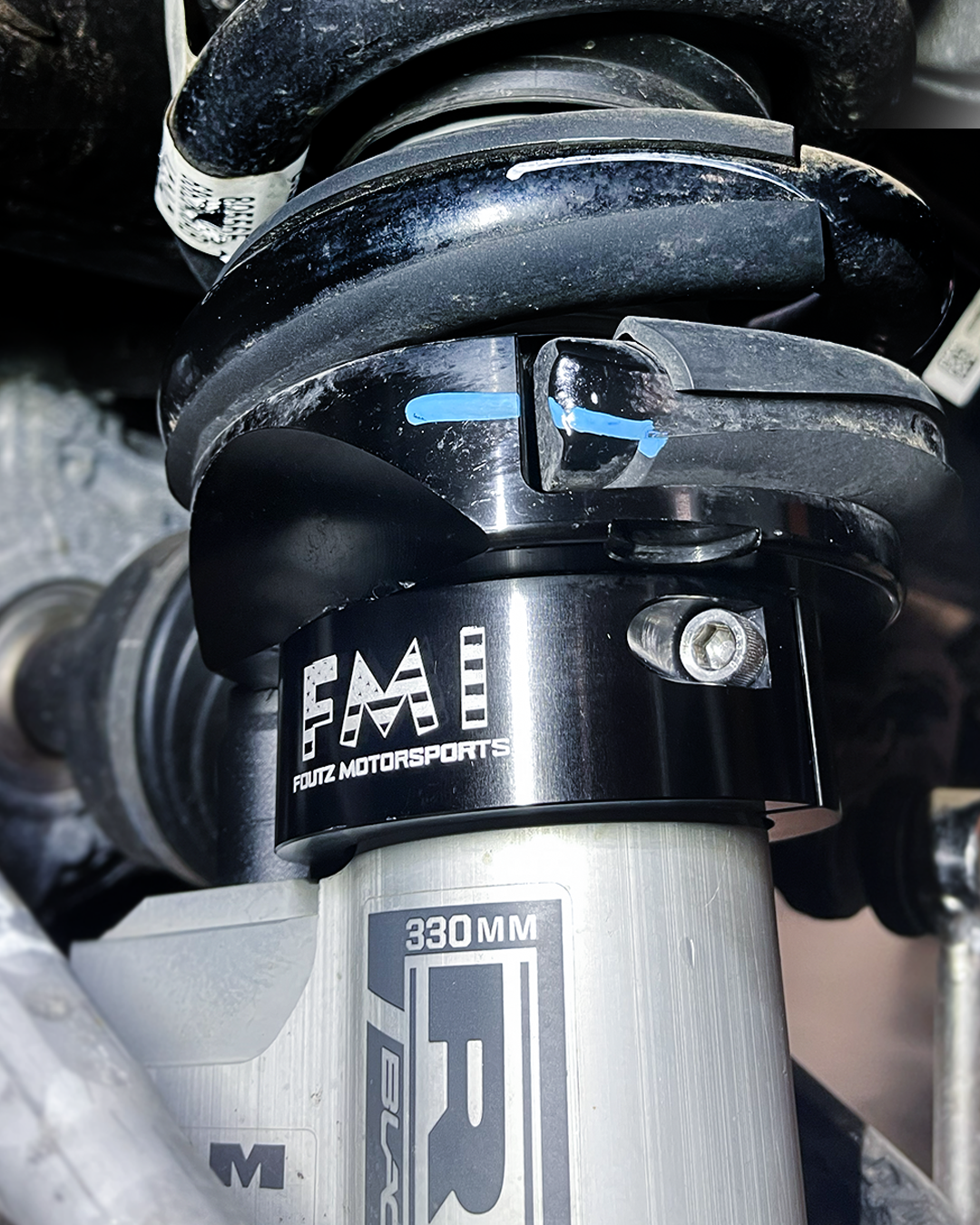

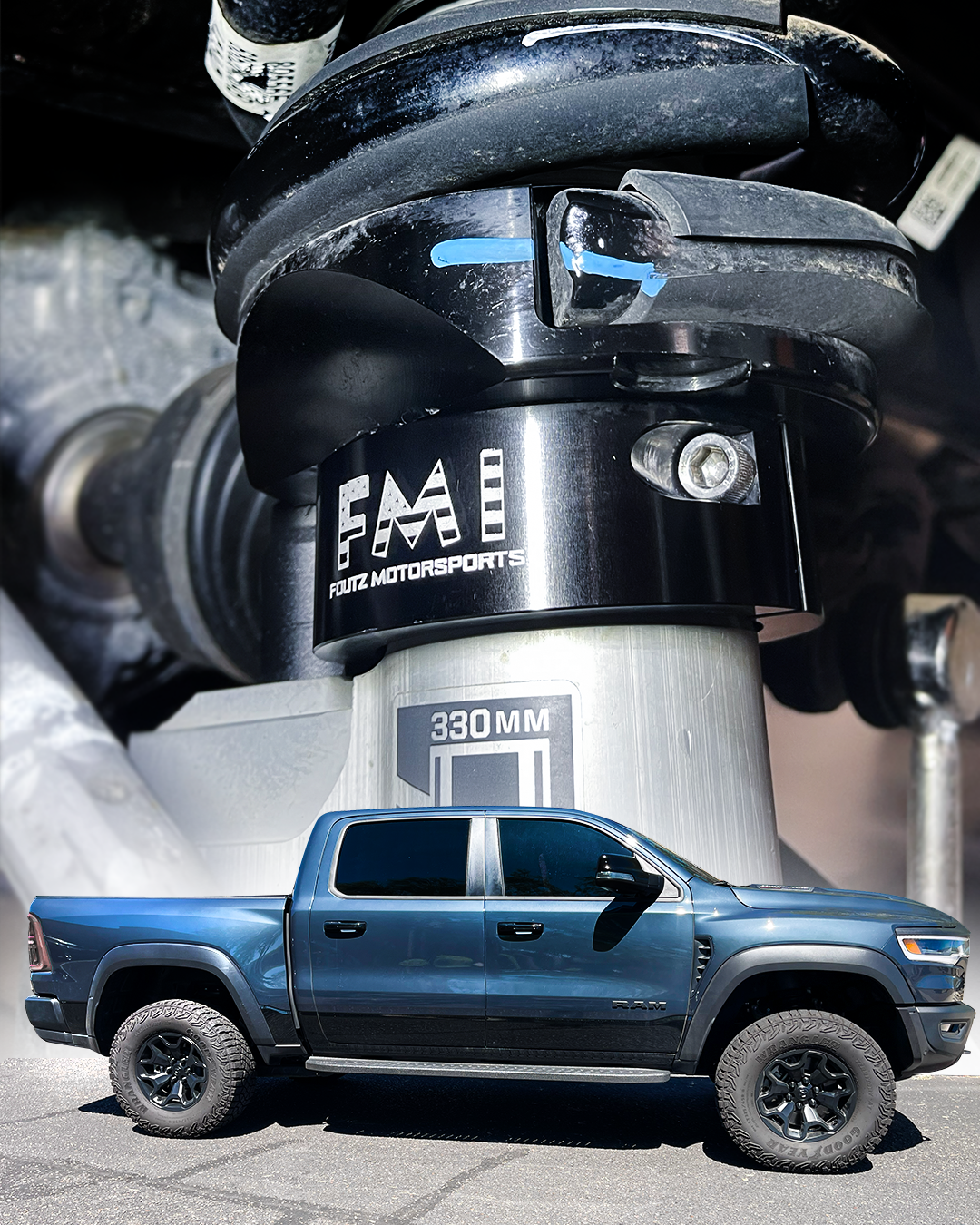

• Installs underneath the factory coil spring and below the lower spring perch
• Adds preload to the factory coil spring
• Retains the factory coil springs and front shocks
• Helps change the factory front-to-rear stance
• Includes adjustable ride height sensor connector rods
• Allows sensor position to be fine-tuned after installation
• Precision CNC machined
• Manufactured in-house by Foutz Motorsports in Mesa, Arizona

Factory ride height can vary depending on spring configuration, vehicle options, accessories and vehicle weight.

Measure your truck's current front and rear ride height before ordering to confirm the appropriate collar height for your desired stance.

• 2027 Ram 1500 TRX
• Front suspension
• 2.5" front lift application
• Factory coil springs
• Factory front shocks

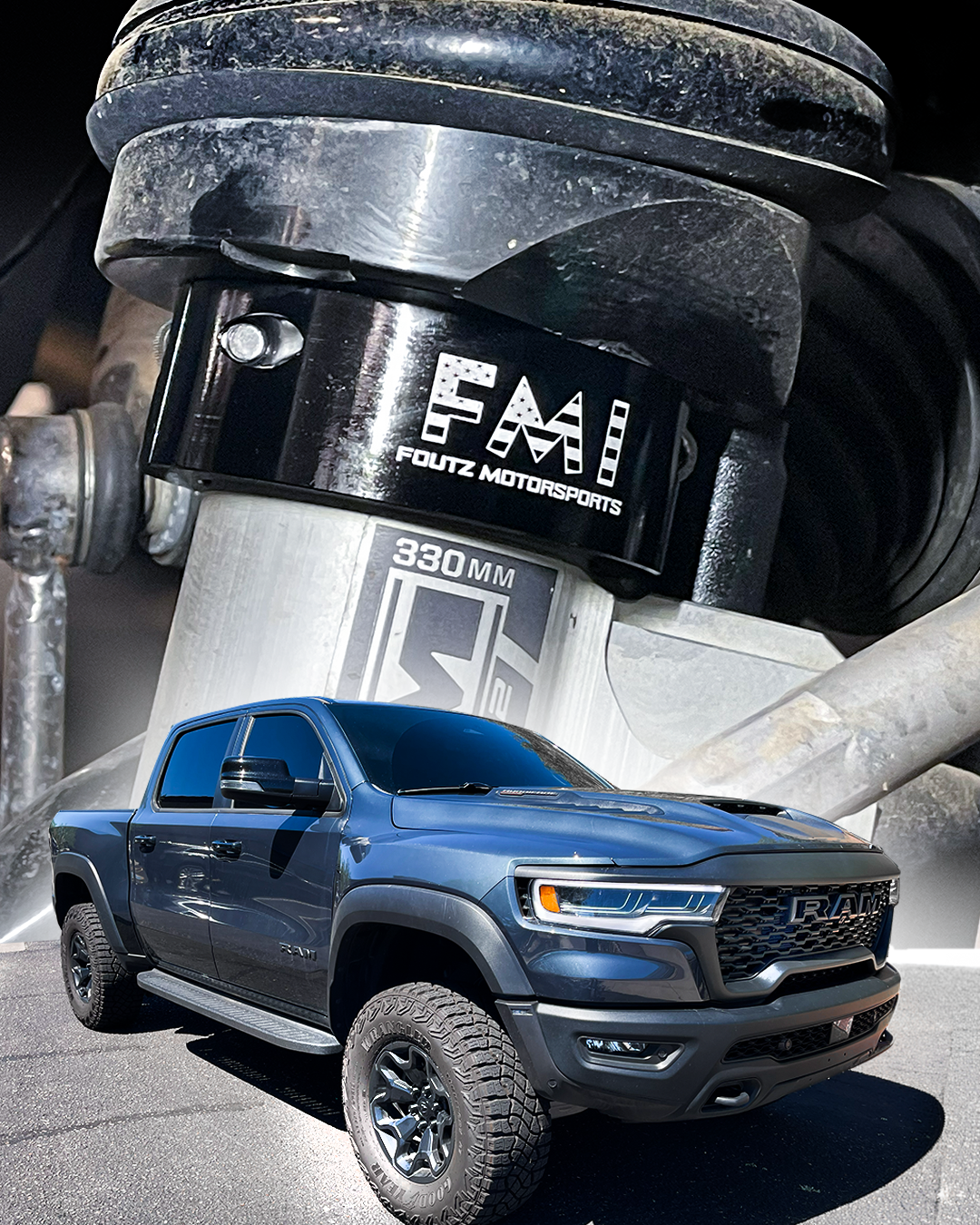

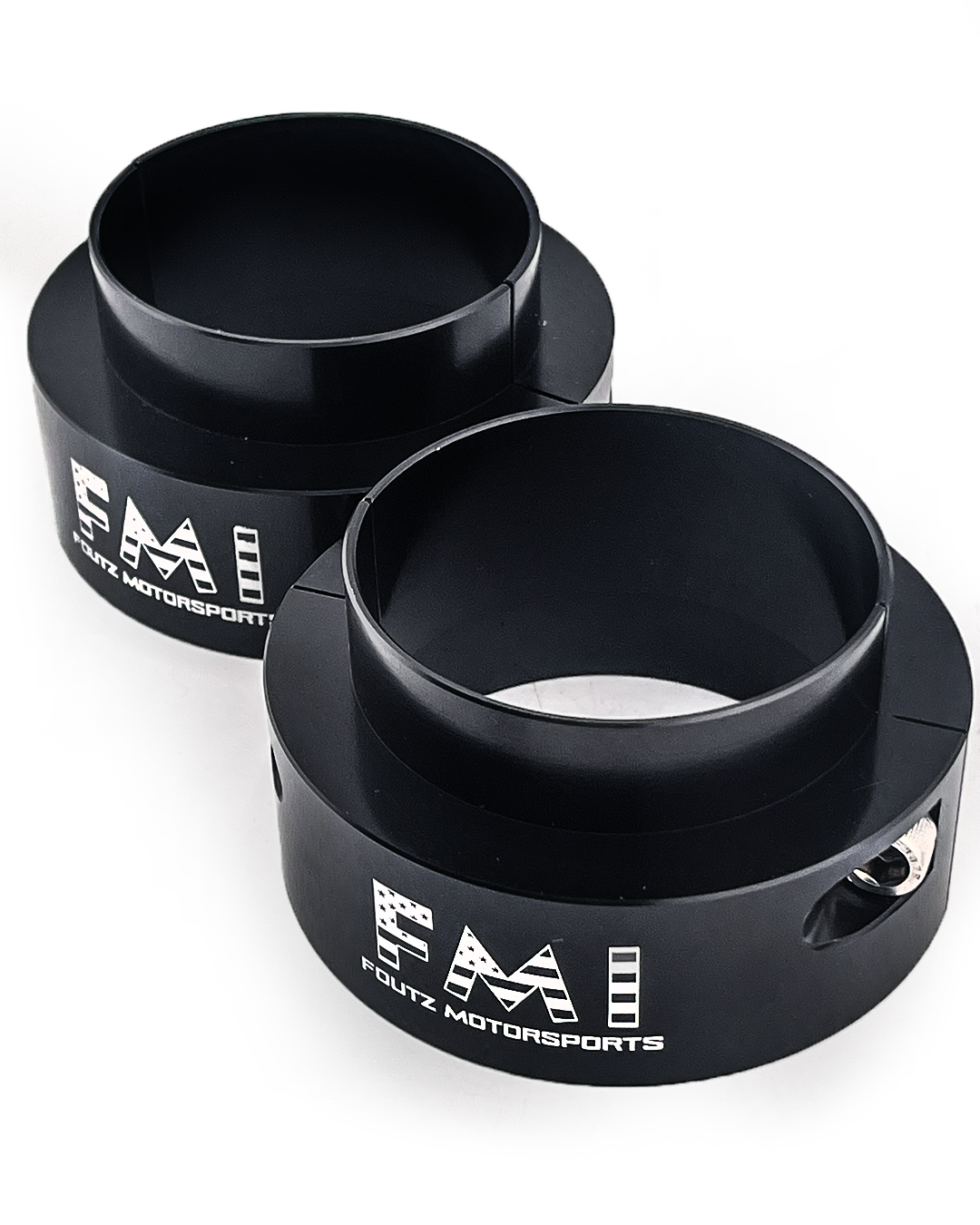

• Precision CNC machined aluminum lift collars
• Manufactured in-house for accurate fitment
• Adjustable Ride Height Connector Rods
• Designed around the factory TRX suspension configuration
• Available in raw billet aluminum or black anodized finish

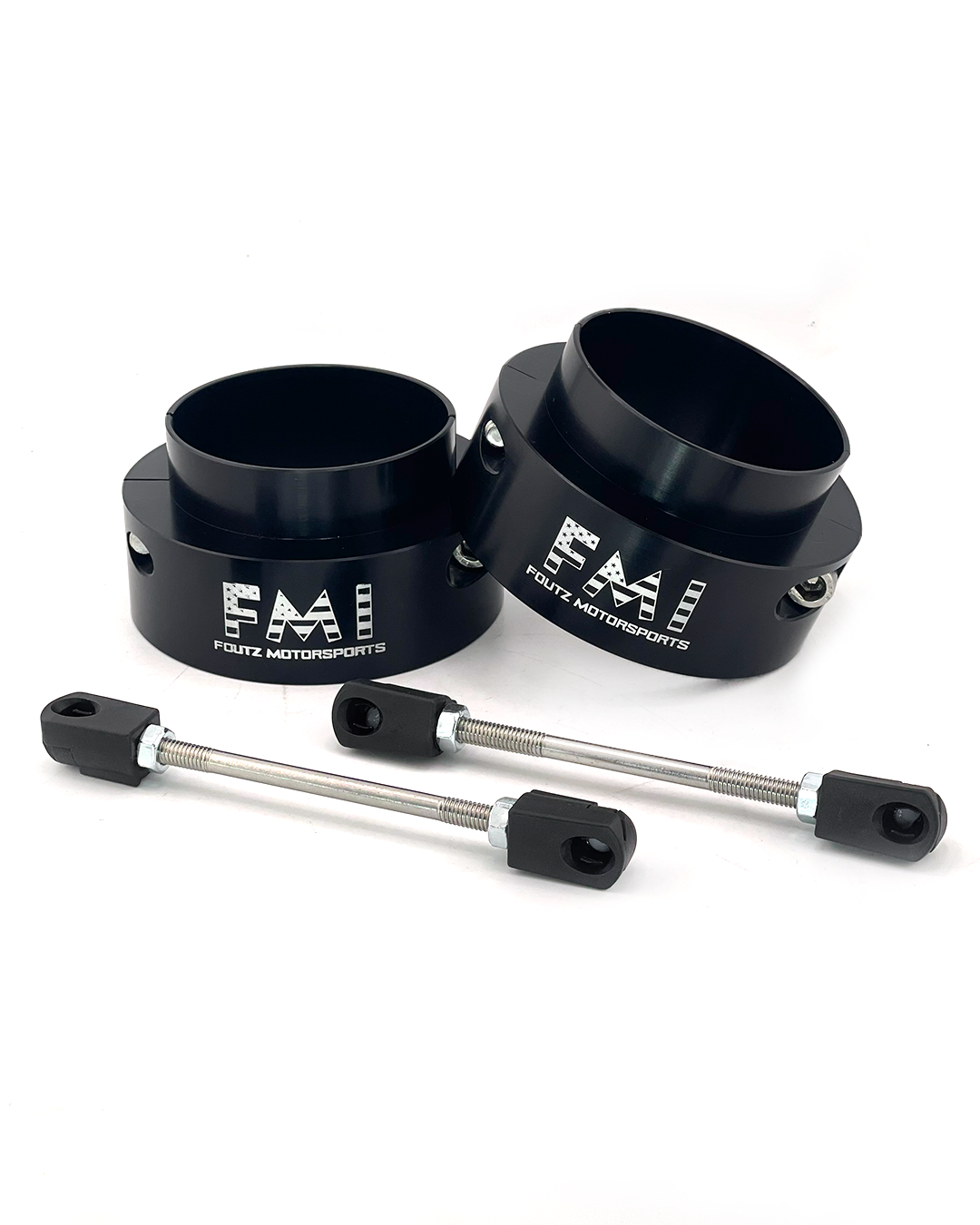

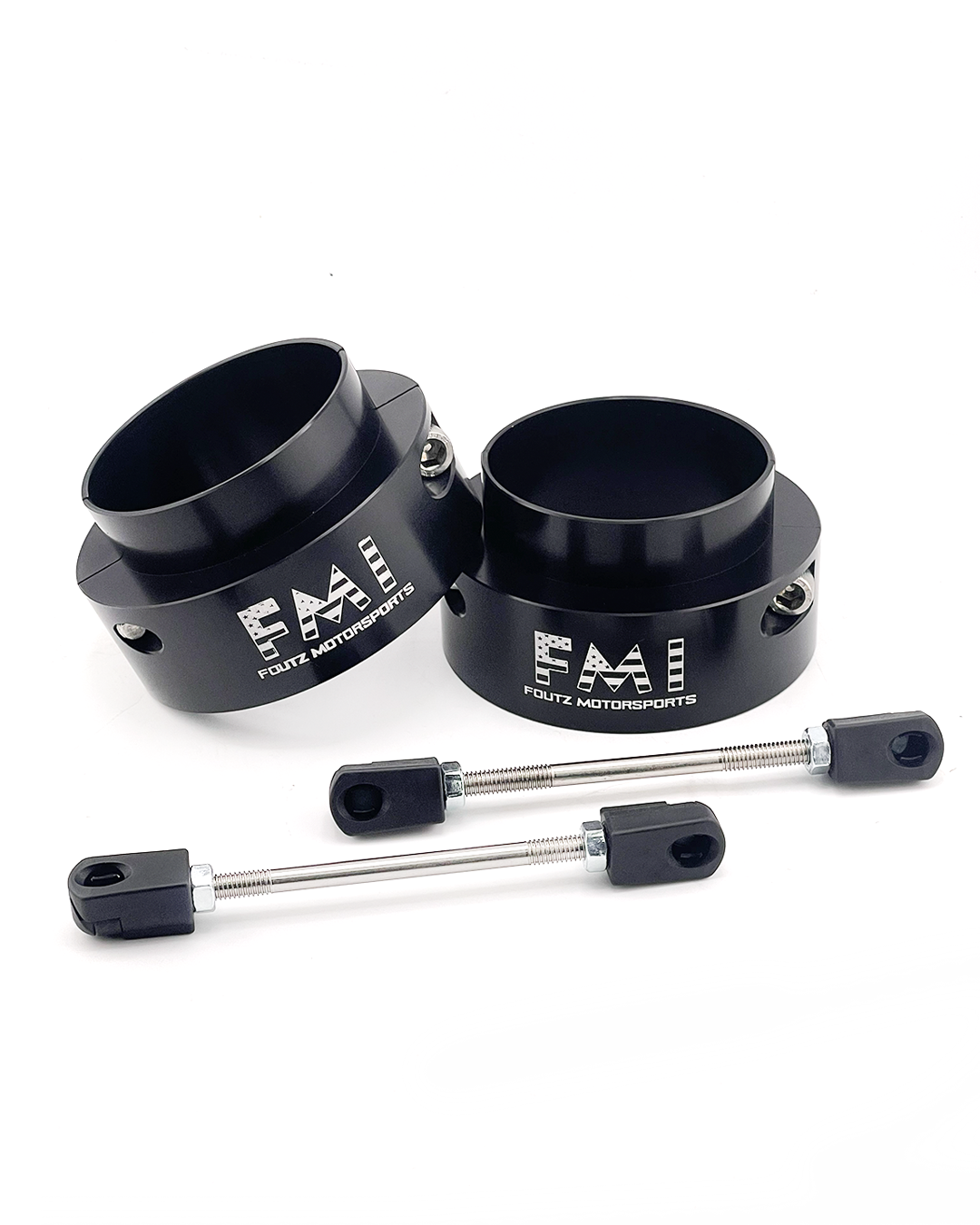

• (2) 2.5" coil spring lift collars

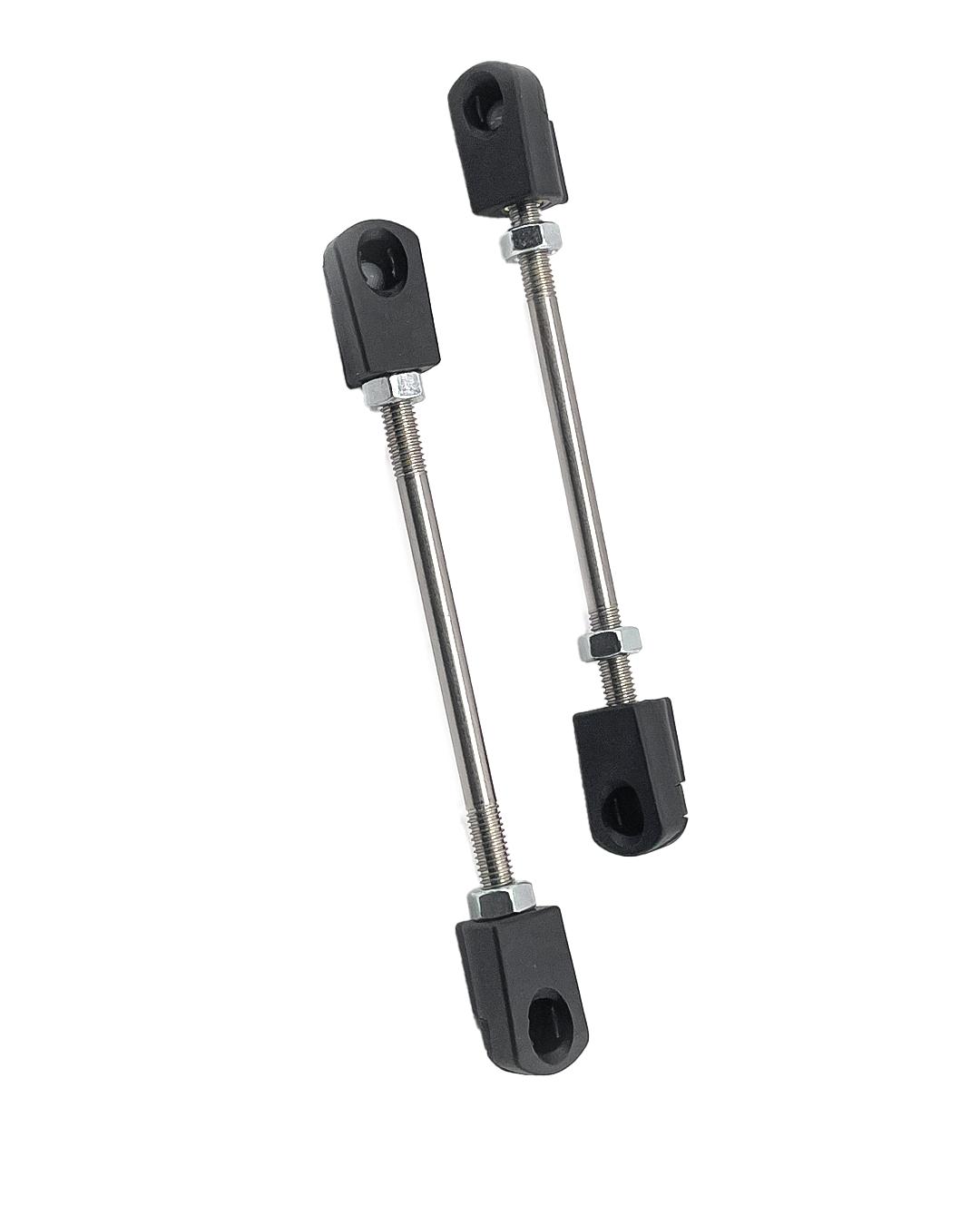

• (2) Ride Height Connector Rods
• Installation hardware

Adjustable Sensor Rod Settings

Starting connector rod length for the 2.5" collar: 126 mm. The rods adjust between 125 and 135 mm — do not adjust beyond that range.

Print the connector rod settings sheet at 1:1 scale and use the images on the document as a quick reference for setting the adjustable connector rod length.

How much front lift does this TRX collar provide?

The collar is designed to provide approximately 2.5" of additional front ride height. Final ride height may vary based on the vehicle configuration.

Why does a 2.5" front lift on the 2027 Ram TRX need ride height connector rods?

The 2027 Ram TRX electronics do not tolerate more than 1.5" of front lift unless the ride height sensor location is corrected. It is a sensor location issue, not a clearance issue. The included adjustable connector rods reset the sensor position for the new front ride height.

Will the factory suspension remain installed?

Yes. The collar is designed to work with the factory coil springs and front shocks.

How do I set the ride height connector rods?

Before installing the collars, measure the sensor arm angle or mark its position with the truck sitting at ride height. Set each rod to 126 mm for the 2.5" collar, adjusting both ends evenly to keep equal thread engagement. After installation, roll the truck back and forth to settle the suspension, check the sensor arm against your mark, adjust if needed, then tighten the jam nuts. Every truck sits a little differently, so treat the starting length as a starting point.
