2021+ Ford Bronco Adjustable Rear Bump Stop Kit

• 2 bump stop can mounts
• 2 lower axle bump mounting bracket plates
• 2 axle washers
• 14 3/8-16 x 1" hex head yellow bolts
• 14 3/8-16 Nyloc lock nuts
• 28 3/8" flat washers
• 4 1/2-20 x 1-1/4" hex head yellow zinc bolts
• 4 1/2-20 all-metal lock nuts
• 8 1/2" flat washers

Plus the hydraulic bump stops, in the brand you select.

The factory bump stop is there to stop the axle from hitting the frame. It does that by compressing, and once it is compressed the rest of the energy goes straight into the chassis. That is the harsh bottom-out you feel on a big hit.

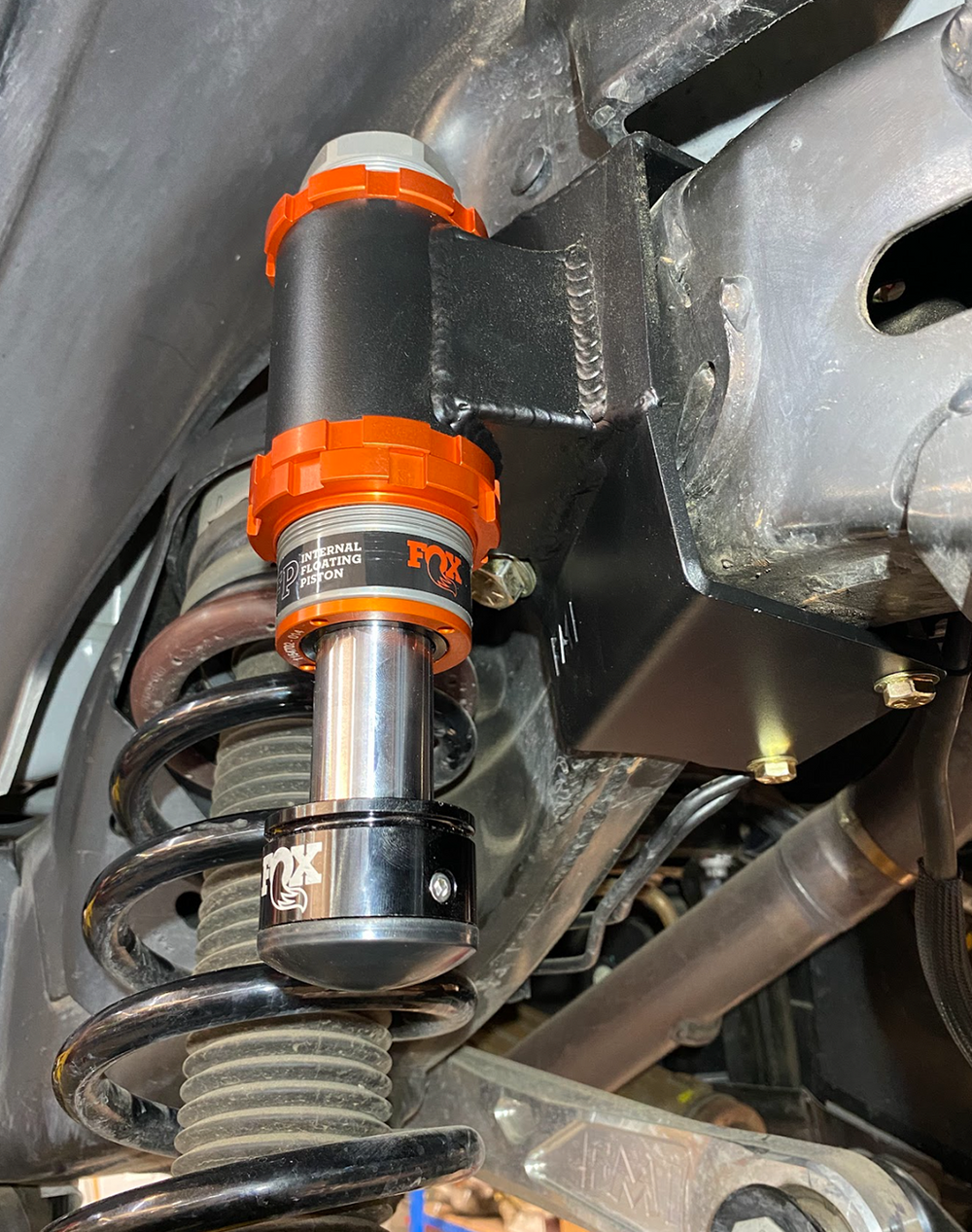

A hydraulic bump stop is a small damper that works in the last part of the suspension's travel. It slows the axle down before it reaches the end, so the biggest bumps are soaked up rather than transmitted, and it improves the ride in rough terrain.

• Bolts to the rear frame with no real modifications.
• Works with the factory rear axle. A lower bump pad bolts on to the stock axle.
• Adjustable height, to help with running larger tires.
• Full bottom-out protection at the end of rear travel.

Choose the bump stop for your kit before adding it to the cart:

• 2.0" FOX bump stop
• 2.1" ADS bump stop
• 2.1" Carbon bump stop

Fits the rear of the Ford Bronco, 2021 and newer, with the factory rear axle.

Does it bolt on?

Yes. It bolts on to the rear frame with no real modifications, and the lower bump pad bolts on to the stock axle.

Which bump stops can I choose?

FOX, ADS or Carbon. Select one in the options before adding the kit to your cart.

Why is it adjustable?

Adjusting the bump stop height helps when you run larger tires.

Does it work with my stock axle?

Yes. It is designed to work with the factory rear axle.

Is mounting hardware included?

Yes. The bolts, lock nuts and washers are in the kit, listed above.
