2010-2014 Gen 1 Raptor Dual Tire Carrier Quick Release Modular Bed Organizer

• 4 side post kits
• 2 floor cross members
• 4 quick release mount kits with pins
• 1 hardware kit for all mounting
• 1 center aluminum plate to mount a jack or other accessories

Add-on accessories are selected in the options above.

Spare tires, fuel and recovery gear need a solid home in the bed when you are off the grid. The rest of the time, a bolted-in rack just takes up room.

This organizer is retained in the bed with quick pins and can be removed in minutes. With the rack out, only a small cleat section stays in the bed, sitting nearly even with the bed ribs, so you can use the bed normally without working around big mounting hardware.

The mounts also adjust right to left in the main cross member to suit different bed configurations.

Everything can be added at any time down the road, so you can start with the base kit and build from there.

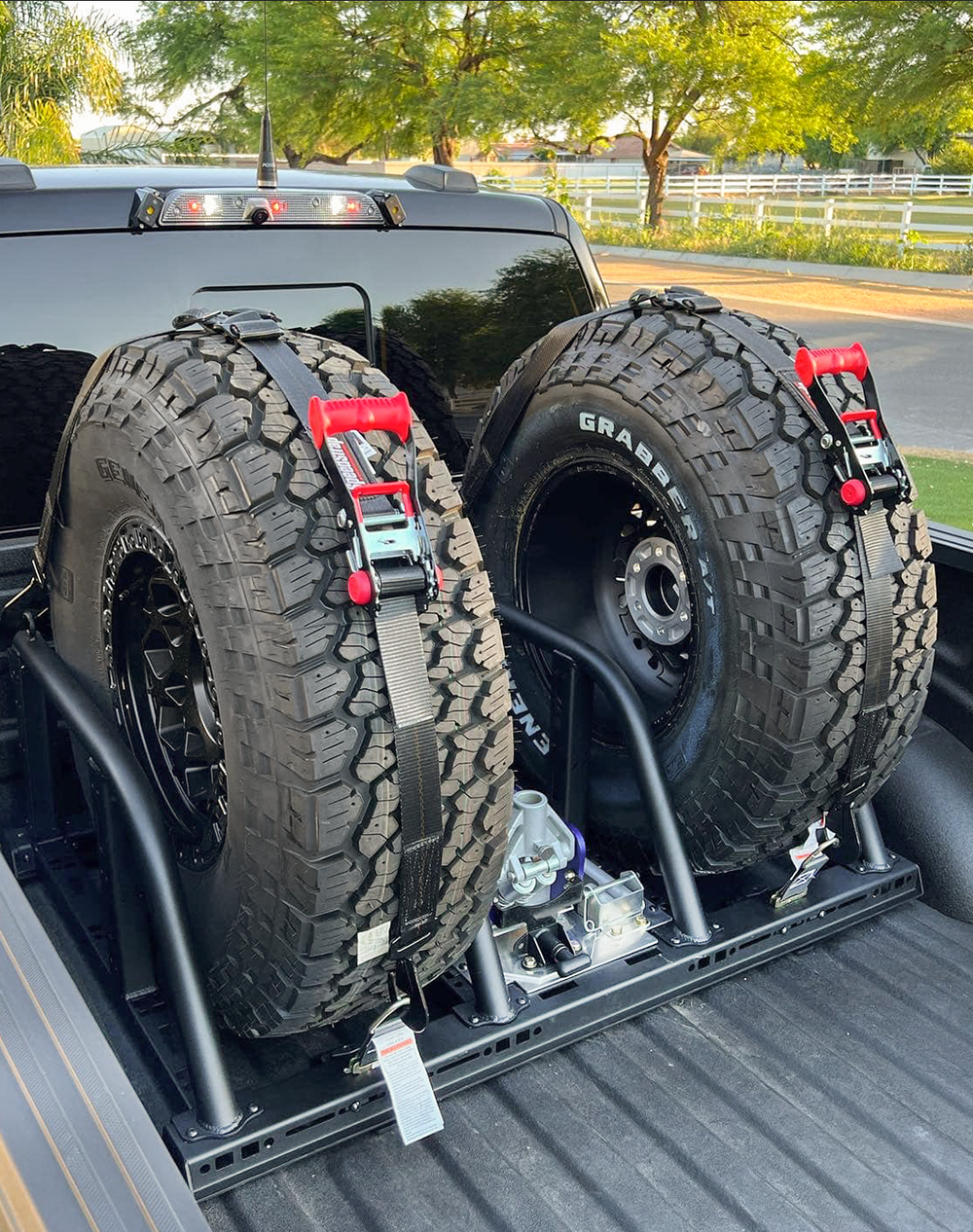

• Tires: the main section holds 2 tires up to 40". Space between the tubes is 13.5" wide.
• Cargo section: an add-on rear section for keeping a cooler and other gear tied down.
• Location: the carrier can go near the front of the bed by the cab or at the back by the tailgate, and the cargo section fits in either spot.
• Fuel: a fuel jug carrier mounts above the center jack mount area and carries 2 five-gallon fuel jugs. Available as a tray only, or with 2 black fuel cans.

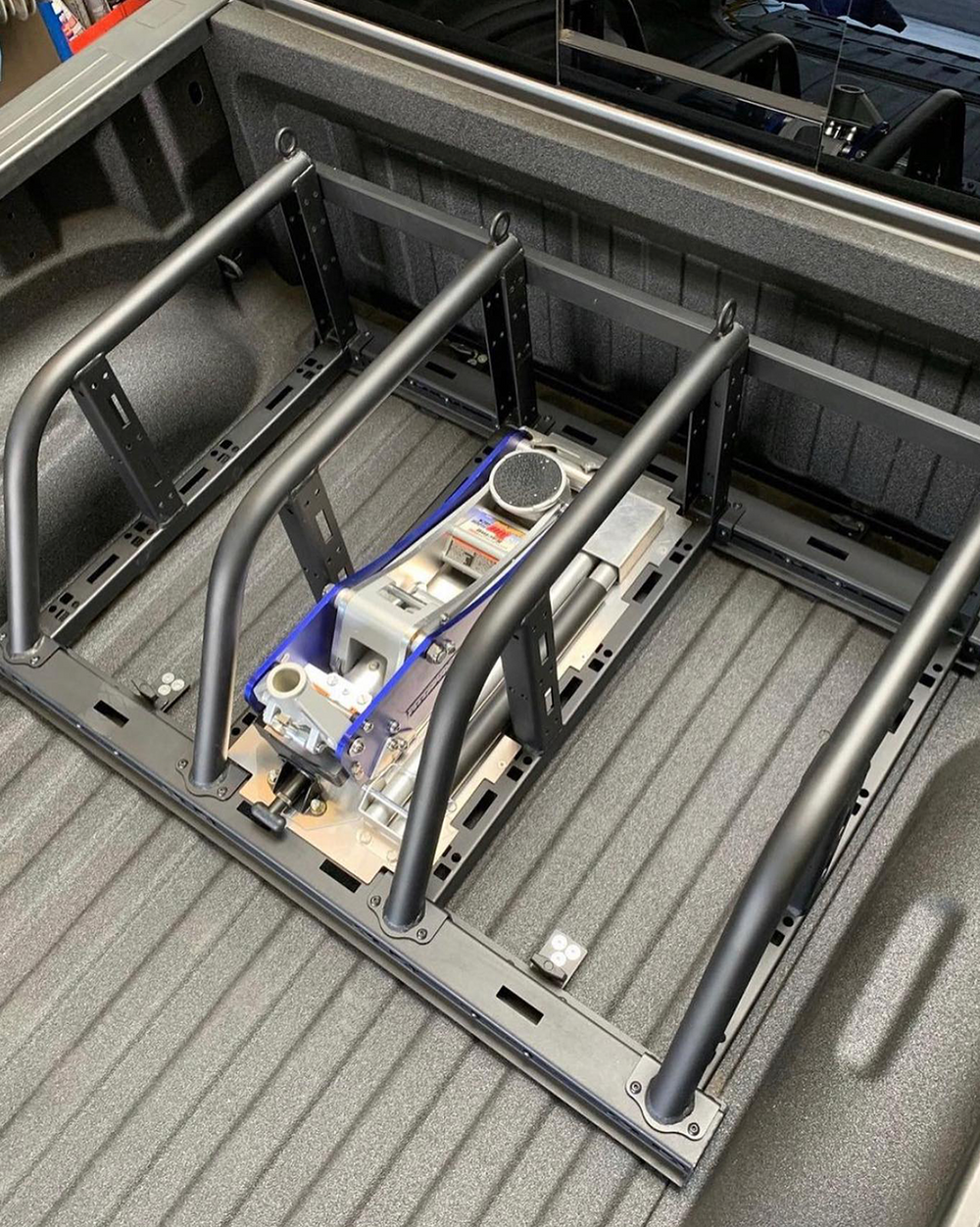

• Jack: the FMI quick release aluminum jack kit is available as an option.
• Side plate: an add-on side plate lets you mount accessories such as a jack standing up or a power tank.
• Chase lights: optional side light mounts make it easy to mount a smaller light facing behind the truck.
• Straps: a pair of black Y straps is available as an option.

• US steel and aluminum
• Laser cut and CNC bent for a consistent fit
• Fixture welded
• Powder coated black for corrosion protection
• Stainless hardware

The kit breaks down into sections so it can ship by UPS or FedEx instead of on a freight truck. With all options added, it may need to ship freight.

Listed for the 2010–2014 Gen 1 Ford Raptor. The design works for full-size trucks in general and can also be used on any flatbed or trailer setup.

How fast does it come out?

In minutes. The rack is retained with quick pins, and when it is out only a small cleat section stays in the bed, nearly even with the bed ribs.

How big a tire will it hold?

The main section holds 2 tires up to 40". The space between the tubes is 13.5" wide.

Can I add accessories later?

Yes. All accessories can be added at any time.

Can I mount it at the tailgate instead of by the cab?

Yes. The carrier can be installed near the cab or by the tailgate, and the add-on cargo section fits in either location.

How does it ship?

The kit breaks down into sections for UPS or FedEx. With all options added, it may need to ship freight.
