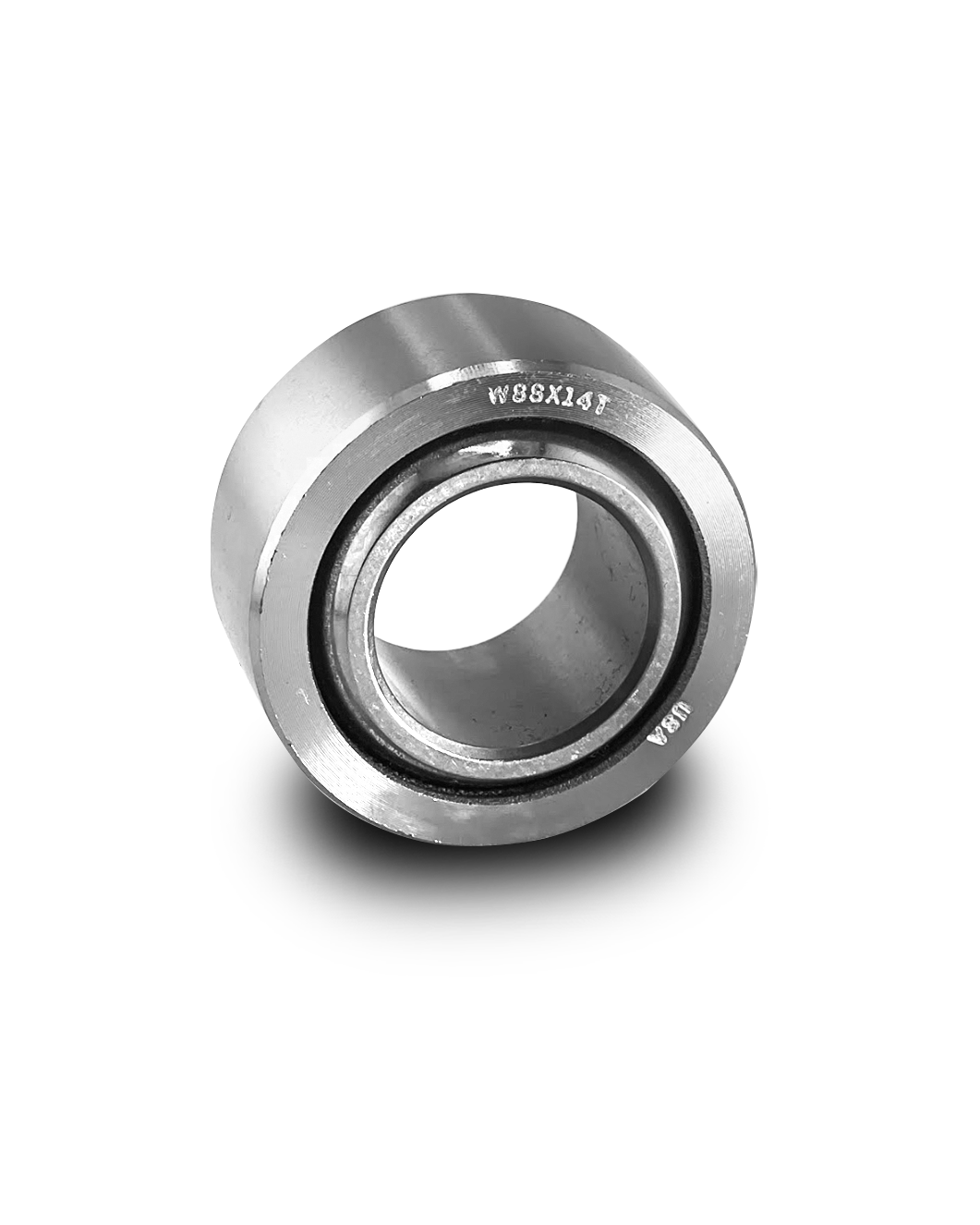

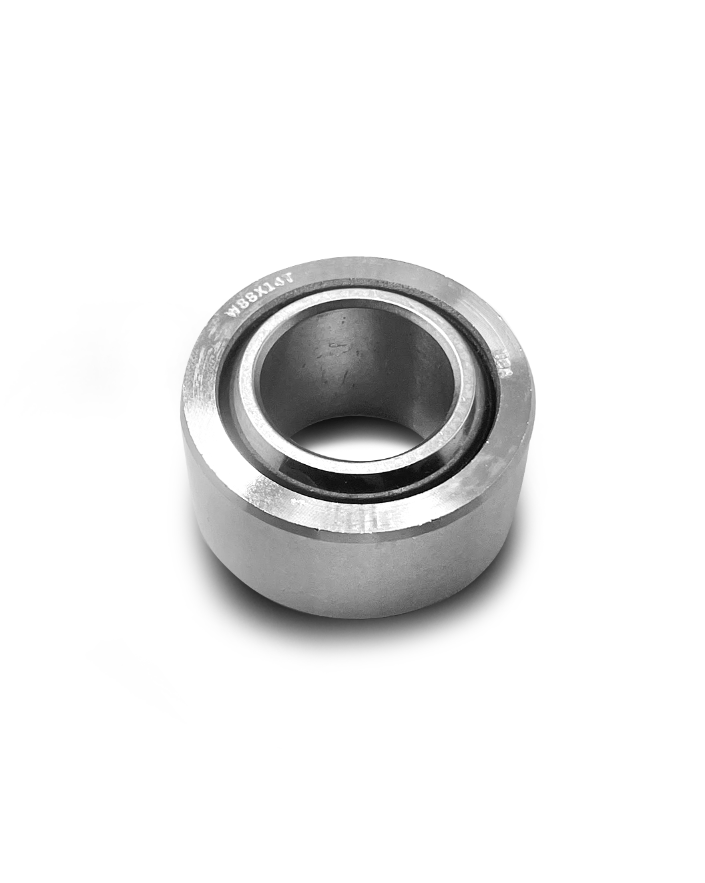

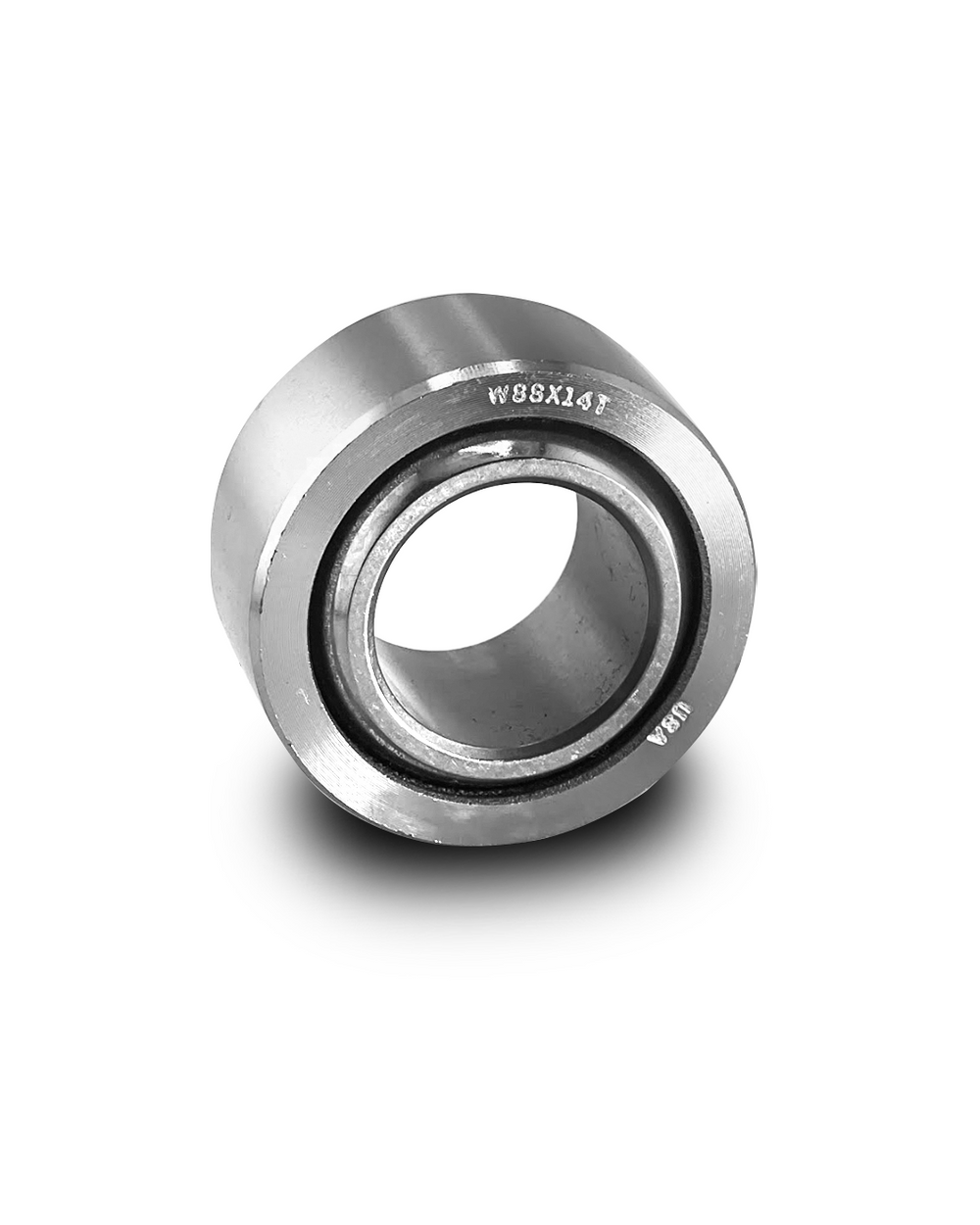

WSSX14T - FK 7/8" Uniball (0.875 Bore, 1.061 OD)
Description
Description
The WSSX14T FK 7/8" uniball: a plain spherical bearing used as the replacement uniball for the Foutz Motorsports Heavy Duty Billet Top Hats. Wide series, stainless steel, PTFE lined.
The Heavy Duty Billet Top Hat uses this uniball for a much stronger bearing. Its threaded top retainer ensures the uniball ring clip can't come out, and it holds pressure on the side of the bearing race at the thinnest area, where the center ball puts the most pressure. Supporting the side of the race that way makes the bearing last much longer.

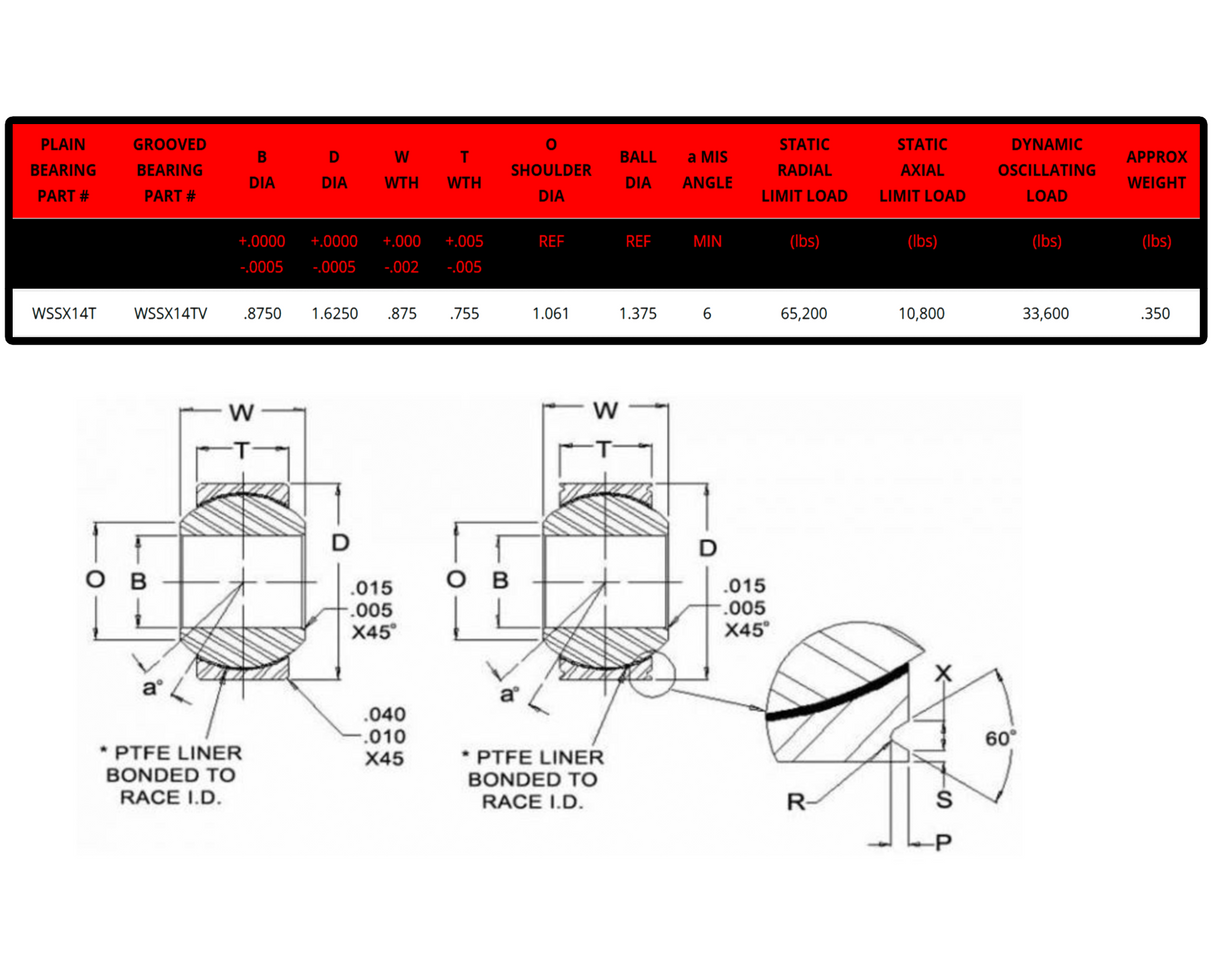

Specifications
- Part number: WSSX14T
- Bore: 0.875
- Outside diameter: 1.061
- Diameter: 1.6250
- Series: wide
- Material: stainless steel
- Liner: PTFE fabric
- Optional staking groove: add suffix "V"
- Note: diameter "B" and "D" are concentric within .005 TIR
Materials
- Ball: 400 series stainless steel, heat treated
- Race: 17-4 PH stainless steel, heat treated
- Liner: PTFE fabric
Questions
What does it fit?
It is the replacement uniball for the Foutz Motorsports Heavy Duty Billet Top Hats.
Why does the top hat use this bearing?
It provides a much stronger bearing, and the top hat's threaded retainer keeps the ring clip in and supports the side of the race where the load is highest.
Not sure this is the right uniball?
Call us at (480) 718-9800 and we will help you match it.
