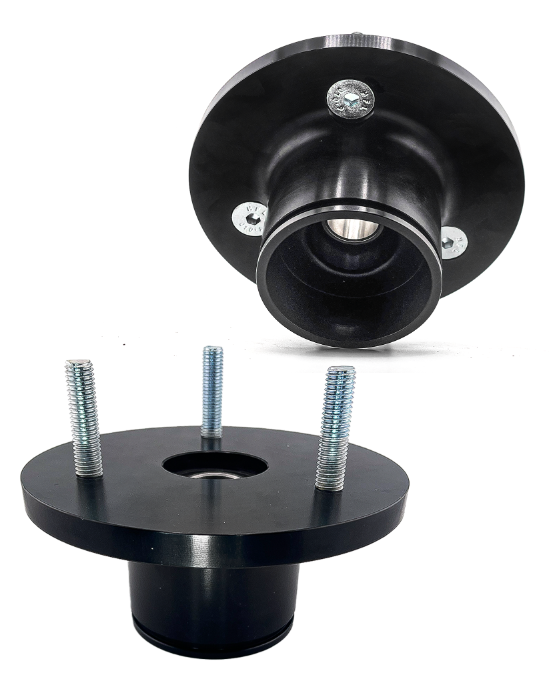

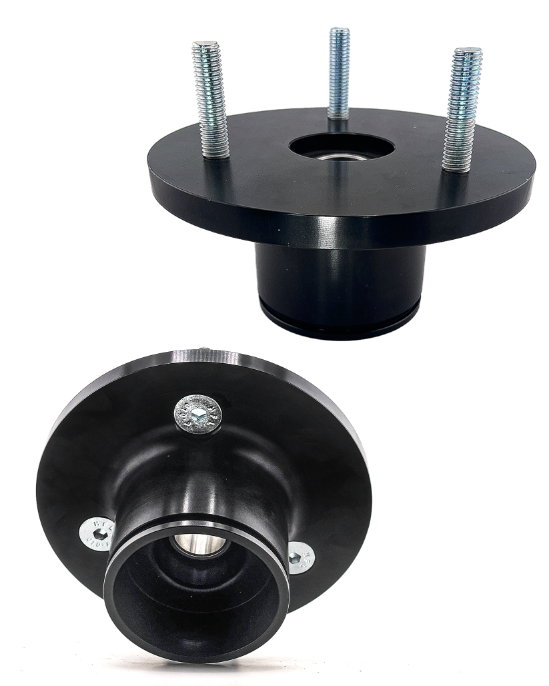

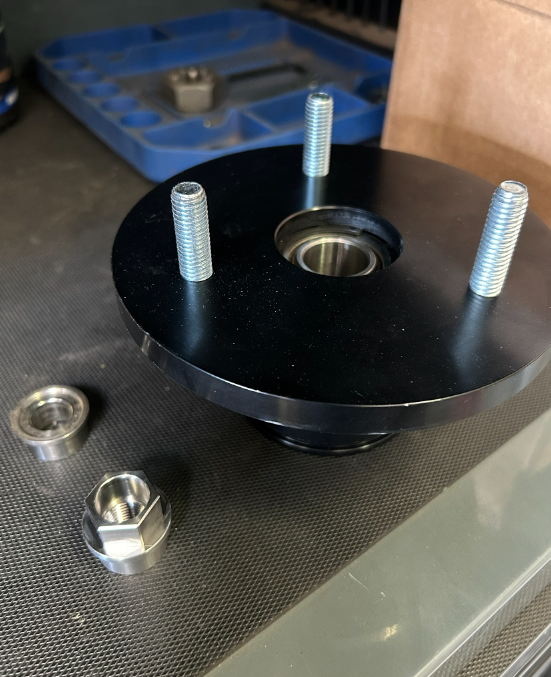

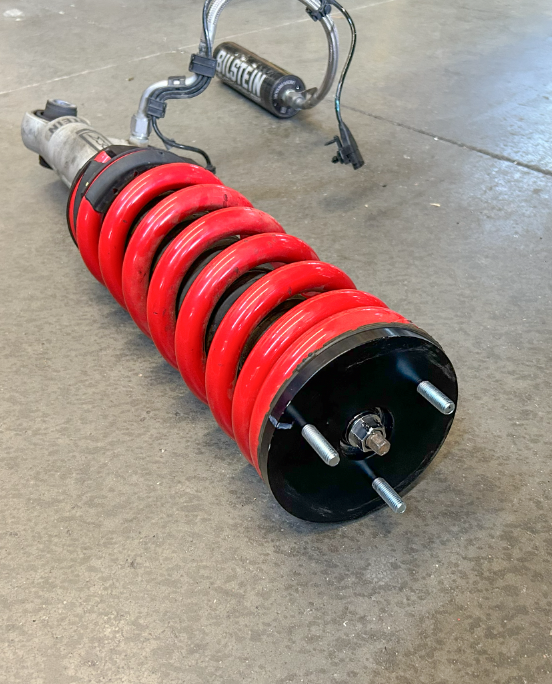

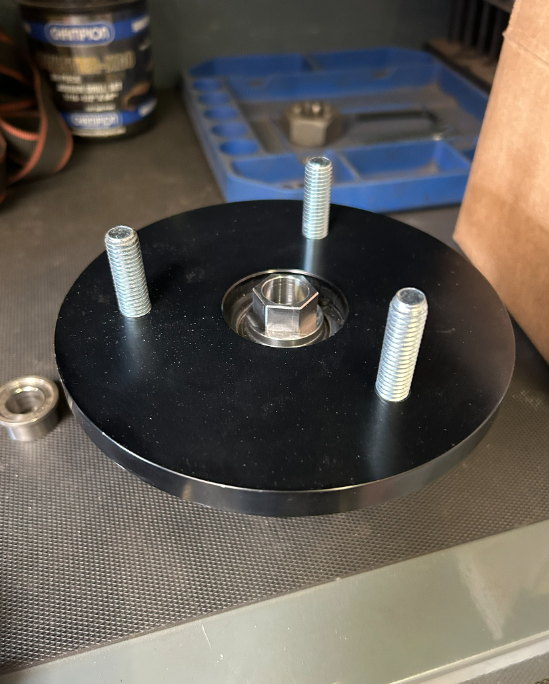

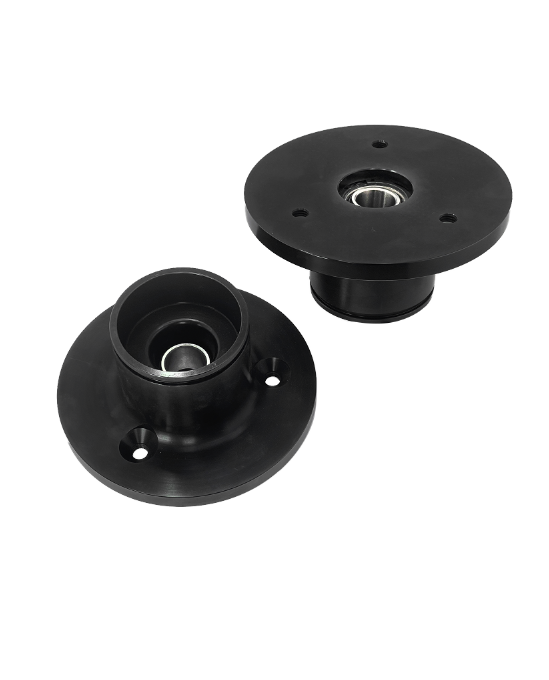

2021-2024 Ram TRX- Billet Top Hat - Stock Height

Description

These Billet Top Hats are engineered to provide maximum strength and reliability for your stock shock upper mounts on the Ram TRX (2021-2024)

CNC-machined from 6061-T6 aluminum, each top hat is designed for a perfect fit and long-lasting durability. High-quality FK uniballs are used in every kit to ensure superior strength and performance, while the 17-4 stainless steel spacers provide exceptional quality and long life.

KEY FEATURES  & BENEFITS

•  High-Quality FK Uniballs: Provides superior performance and reliability under demanding conditions.

•  Durability Upgrade: Eliminates the weak rubber bushing found in factory top hats, reducing the risk of shock drop and damage to suspension components.

• 17-4 Stainless Steel Spacers: High-strength, corrosion-resistant spacers for long service life.

•  10mm Studs for Shock Towers: Designed to match the TRX shock tower configuration.

•  Stock Ride Height Retention: Installs with no lift, maintaining factory ride height.

•  CNC Billet Aluminum Construction: Precision-machined from 6061-T6 aluminum for ultimate strength and durability.

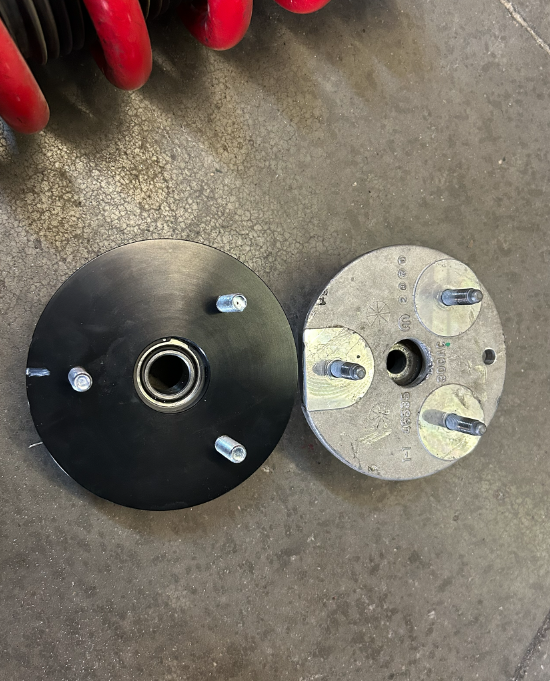

WHY STOCK TOP HATS FAIL

The factory top hats rely on a rubber bushing to support the shock shaft, which is a known weak point—especially with aftermarket springs. If a stock top hat fails:

•  The shock can drop completely out of the spring bucket

•  Surrounding suspension components may be damaged

•  Expensive repairs can result—damage that can be avoided with a stronger billet top hat

Upgrading to the Foutz Motorsports Billet Top Hat eliminates this failure point, giving you confidence and durability for off-road and performance driving.

Kit Includes:

  • (6) M10 - 1.5 x 40
  • (4) Pivot Spacers
 REQUIRED  UNIBALL  MAINTENANCE  &  SERVICE  NOTICE

 These billet top hats feature a serviceable and replaceable uniball that will require periodic maintenance over time

•  Serviceable & Replaceable Uniball: The uniball is pressed into the billet aluminum housing manufactured by Foutz Motorsports and is fully serviceable and replaceable.
•  Normal Wear Item: Like all wear components, the uniball will naturally wear over time depending on driving conditions, usage, and environment.
•  Maintenance Intervals May Vary: Service life and maintenance intervals will differ between users based on vehicle use and operating conditions.
•  Periodic Inspection highly Recommended: The uniball should be inspected periodically and replaced when signs of wear appear.
•  Premium FK Uniballs: Although uniballs are not manufactured by Foutz Motorsports, we exclusively use industry-leading FK rod end uniballs to deliver maximum strength, quality, and durability.

For the standard billet top hat, we use the FK uniball part number WSSX14T, which is available for purchase directly on our website here: WSSX14T Replacement Uniball

Color Options :
$ 599.99
ANODIZED CARE & DISCLAIMER:   read before ordering
⚠️ WARNING:
 Improper cleaning can permanently damage the anodic coating on billet aluminum parts, causing fading, staining, or discoloration.

SOAPS / CLEANERS THAT DAMAGE :
High-pH (alkaline) soaps, degreasers, and acidic wheel cleaners can fade, stain, or strip anodized aluminum, especially when they contain sodium hydroxide (lye) or other strong acids. Heavy-duty fast-acting alkaline cleaners designed for engine bays or wheels should not be used on anodized surfaces.

❌ WHAT TO AVOID :
High-pH (alkaline) cleaners
• Heavy-duty degreasers
• Wheels / engine bay cleaners
• Oven cleaners (e.g., Yellow Cap, Easy-Off)
• Products containing sodium hydroxide (lye)
• Damage the anodic coating
Hot Surfaces
• Never wash in direct sunlight, as heat accelerates chemical damage
 Acidic cleaners
• Wheel cleaners with strong acids
• Nitric or sulfuric-based cleaners
• Aggressive aluminum cleaners
 Aluminum brighteners or etchers

• Products designed for raw or polished aluminum can strip the anodized coating

✅ HOW TO PROTECT ANODIZED ALUMINUM:

pH-neutral soaps
• only use cleaners with a pH between 6–8
Wash on cool surfaces
• Avoid direct sunlight or hot parts
Test small areas first
• Always try new products on a small, hidden area
Safe Alternatives:
• Isopropyl alcohol (used carefully and sparingly)
• Mild Automotive Car Wash Soap

⚠️ RESPONSIBILITY NOTICE:
Damage caused by improper cleaning chemicals or detailing products is the sole responsibility of the owner. Keeping your anodized parts clean with the right products will help maintain their finish and extend their lifespan.
