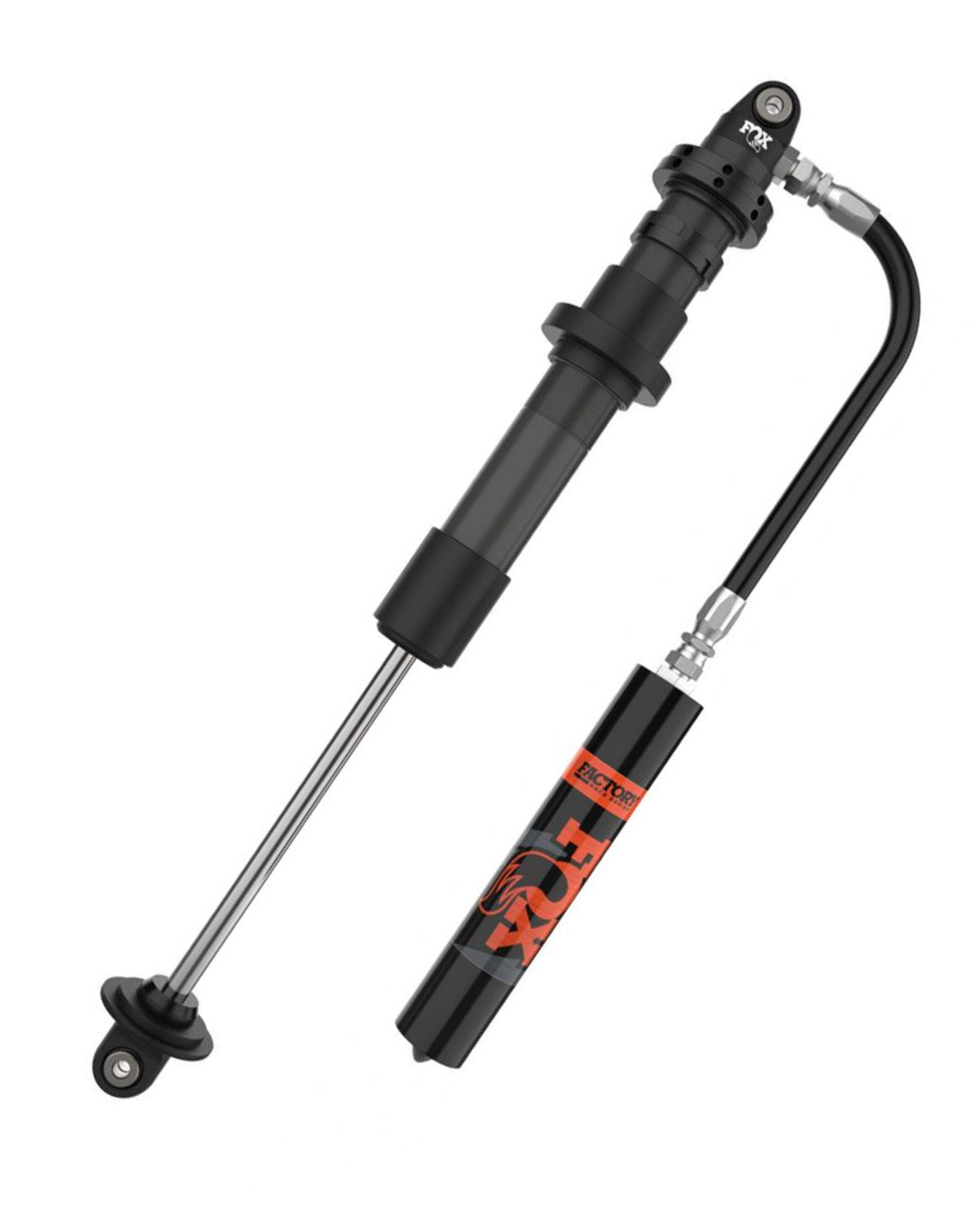

FOX Race 3.0 x 16 Coilover Remote Shock - 981-30-103
Description
Description
Factory Race Series coil-over shocks are the foundation of race-winning suspension, providing a primary means to suspend the vehicle paired with adjustable preload and dual-rate spring crossover rings to dial in the perfect ride.
Features:
- BODY FINISH: Dual coated body with proprietary FOX Grey Cerakote® protective ceramic coating over zinc plated basecoat for improved corrosion resistance and durability
- BEARING: Wire ring bearing design
- SPRING DIVIDER: Black anodized, CNC machined 6061-T6 billet aluminum spring divider
- COMPONENTS: Black anodized, CNC machined 6061-T6 billet aluminum
- BODY: Smooth bore and honed seamless steel
- SHAFT: 1" hard chrome plated 17-4 H900 stainless steel shafts
- PISTON: 7075 hard-anodized billet aluminum 9-port high-flow piston
- VALVING: Tunable, velocity sensitive deburred valve shims
- SEALS: High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal
- OIL: JM92 Advanced Suspension Fluid for superior race proven performance from 0-400° F
- HEIMS: PFTE-lined, heat-treated steel spherical bearings
- HOSE/FITTINGS: Reusable ORB O-ring port hose fittings for superior seal
- INCLUDED ACCESSORIES: Adjustable preload rings, crossover rings, spring divider and spring retainer
- ADJUSTMENTS: Piston Valving - Compression, Rebound | Spring preload | Spring dual-rate crossover point
Configuration:
- RESERVOIR: Remote
- ADJUSTER: Non-adjustable
- EYELET LENGTH: 2.50"
- MOUNTING: 5/8" x 1.50"
- SPRING COMPATIBILITY: 3.75" ID
***** SOLD AS EACH *****
