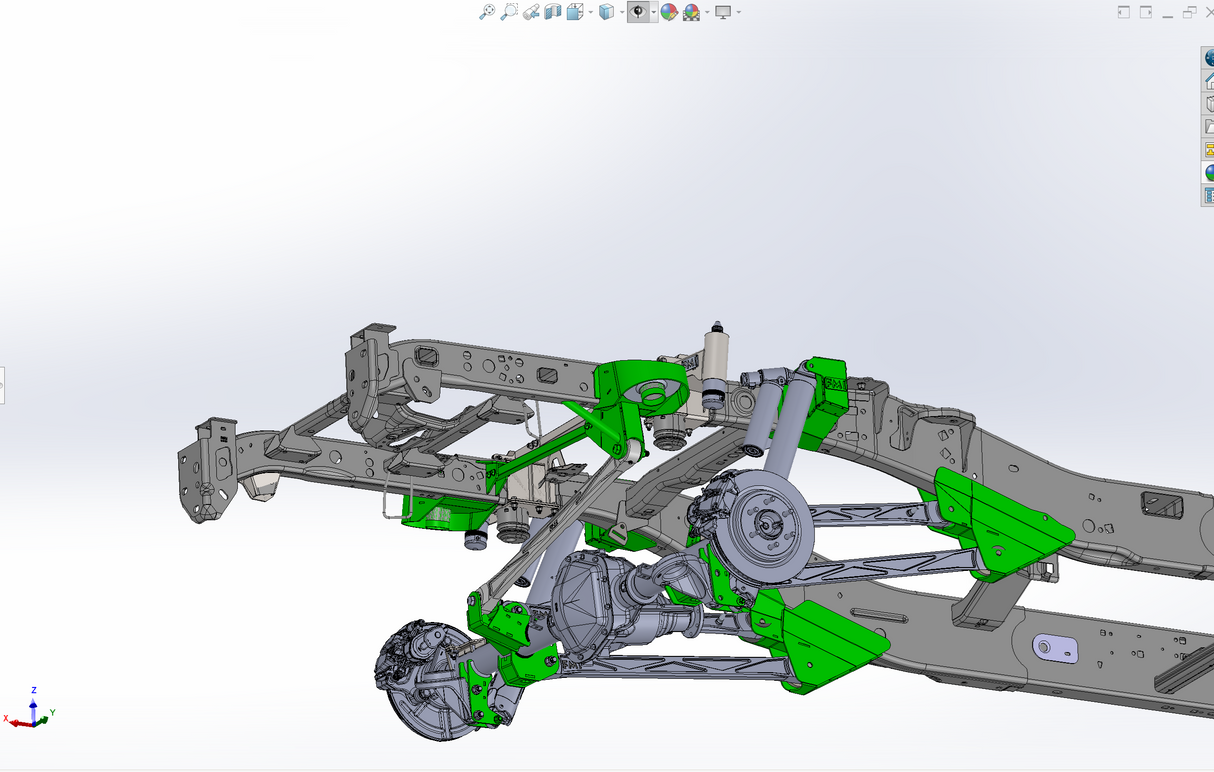

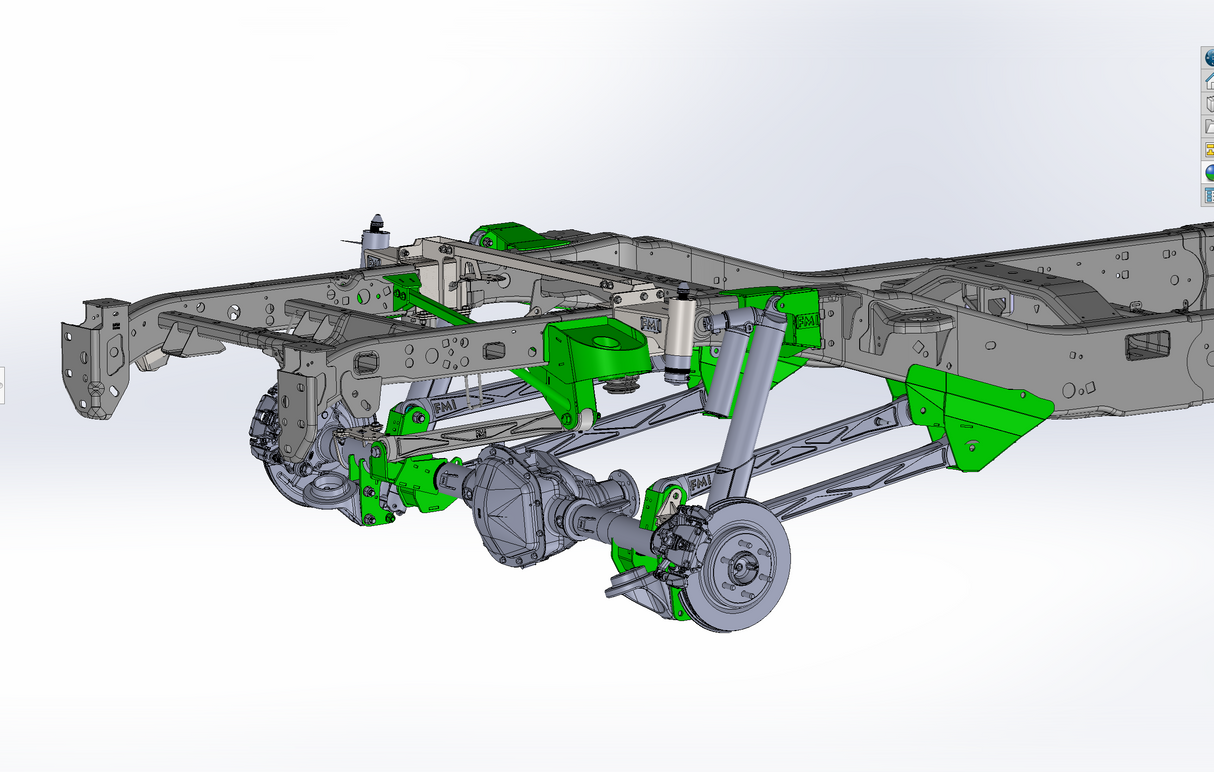

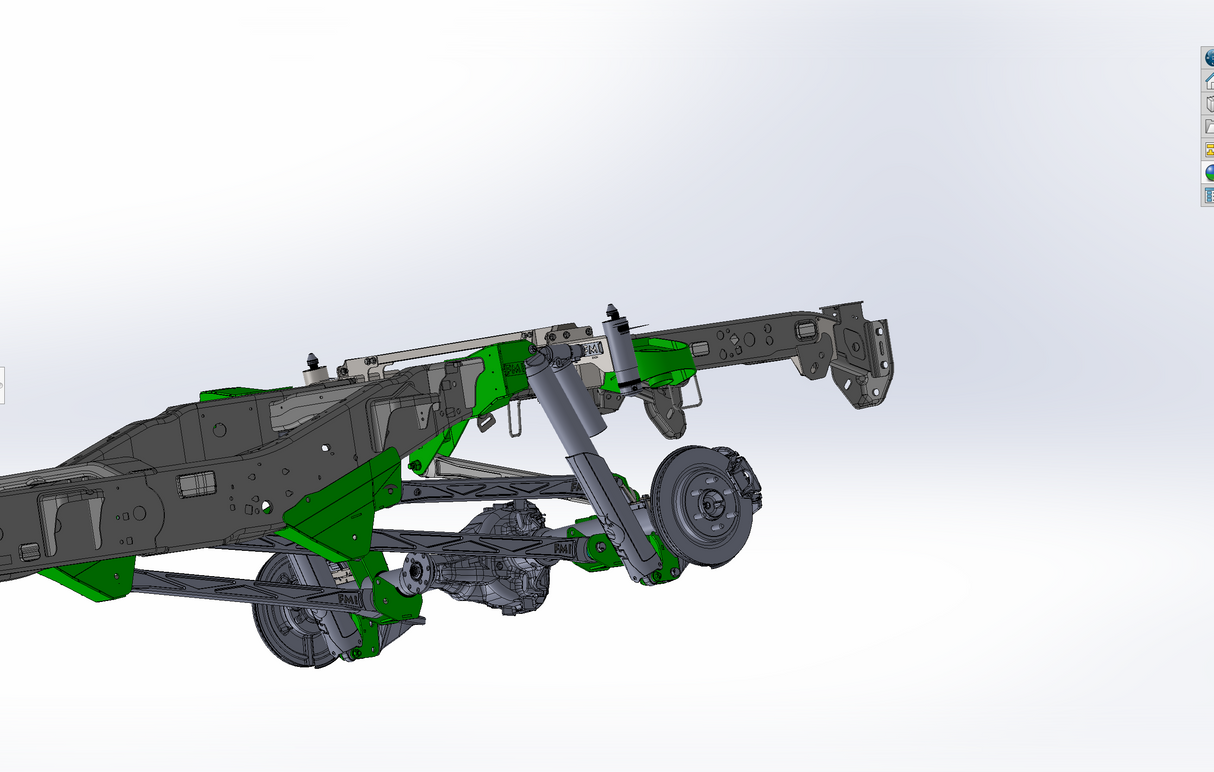

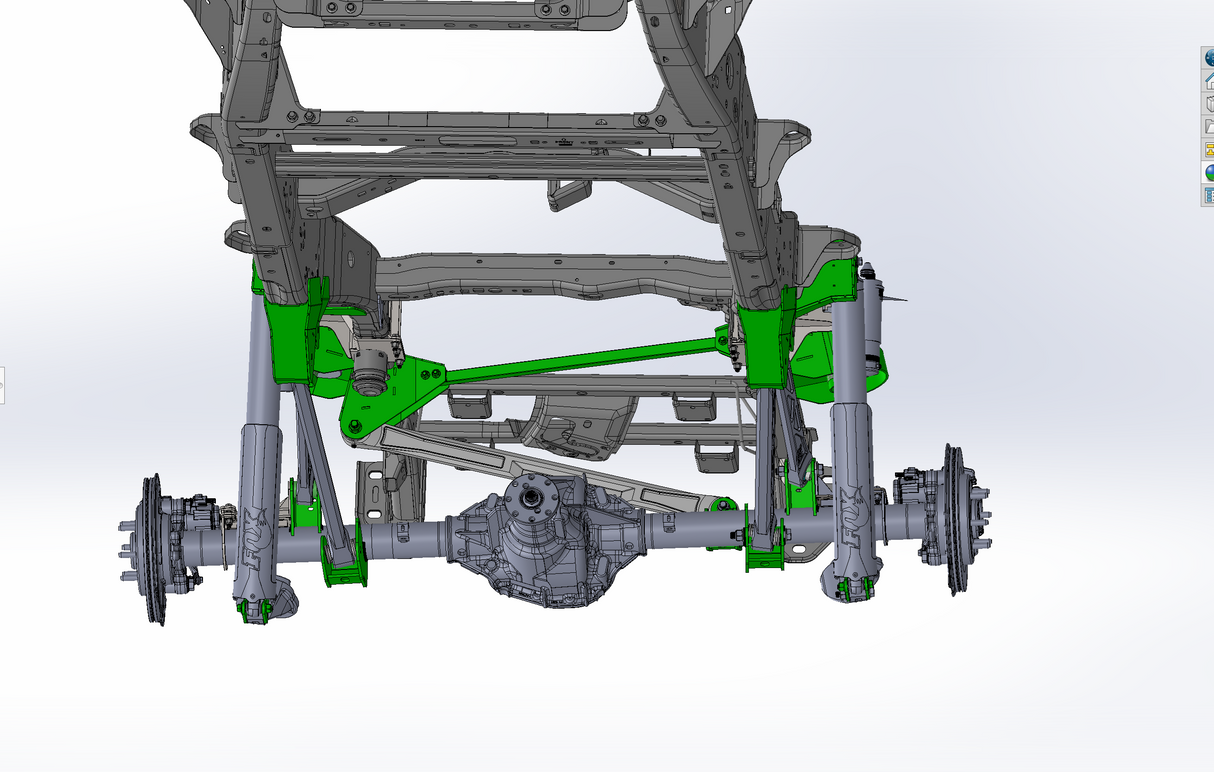

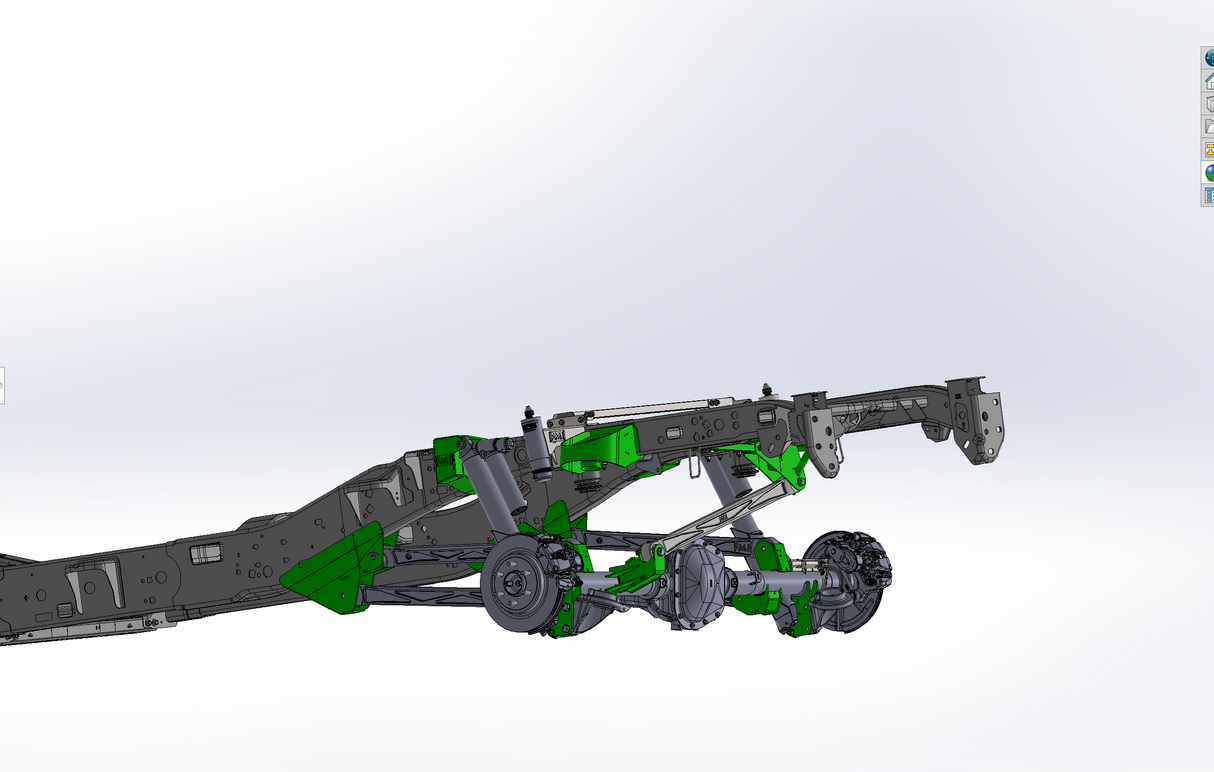

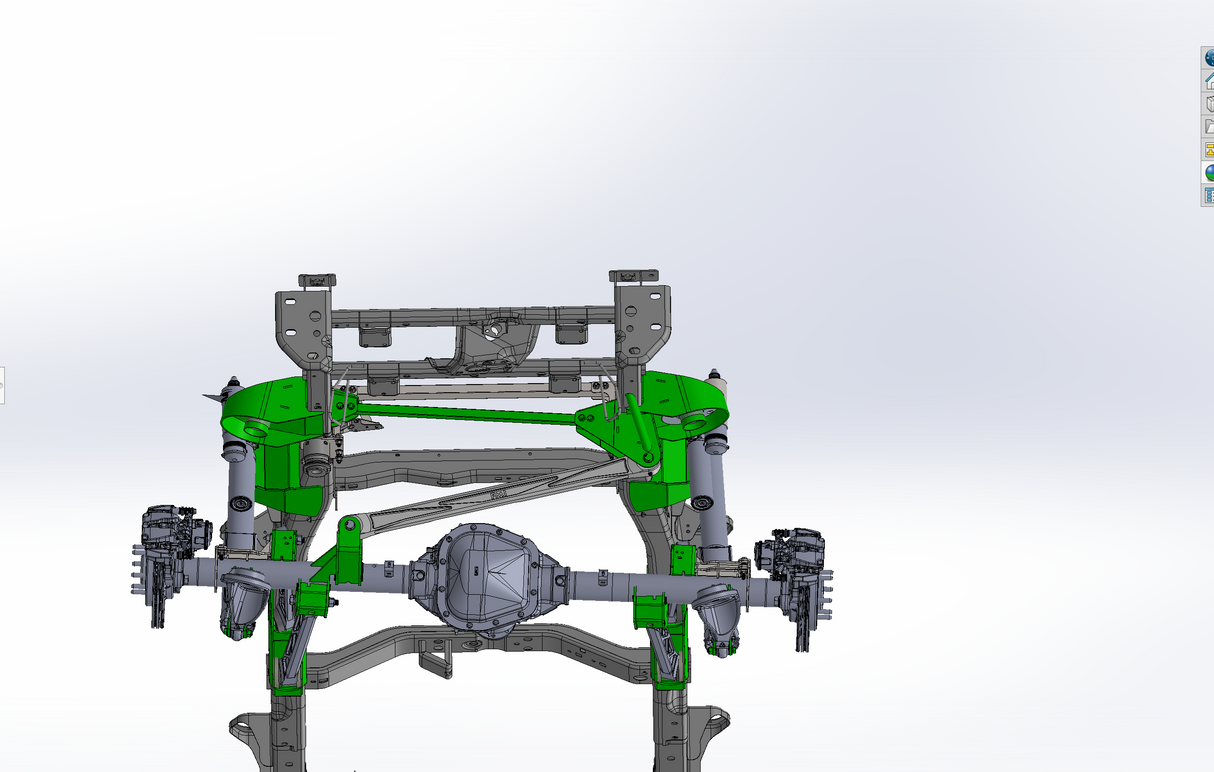

Gen 2 to Gen 3 Raptor Rear Suspension Conversion Kit

Convert your Gen 2 Ford Raptor or 2015+ F150 to have a full 5 link rear suspension kit that matches the the Gen 3 Ford Raptor suspension geometry.

This kit has everything you need to convert your Gen 2 Raptor to use all of the Gen 3 Raptor rear suspension geometry and rear links.  You can use any of our upgraded billet aluminum rear links and billet Panhard bar or you can grab a set of ghetto stock take off Gen 3 rear links to work with our ultimate conversion kit.  Grab some Gen 3 stock Raptor rear shocks or upgrade to any of the aftermarket upgrade shocks that mount to the stock location.

Kit includes:

• Rear coil spring mounts with integrated Panhard bar mount in the stock Gen 3 location
• Rear link mounts that weld to the frame in the stock Gen 3 location
• Rear shock mounts that match the Gen 3 stock shock location but are much stronger
• Rear axle mount kit with all brackets and mounts to convert your rear axle to have all of the Gen 3 pick up points
• Hardware kit - nuts and bolts required to assemble the kit and mount the axle, links etc.

What the kit DOES NOT include that you will need:

• Stock rear coil spring lower cast mounts.  You will have to source those from the dealership to complete the kit.

• Stock rear coil spring top rubber isolators:



What Choices you will have to make for the rest of your kit:

• You can run stock rear coil springs if you want to find some take offs or you can use any of the aftermarket springs also.  you have to pick which you want and if you go for the aftermarket springs add those to your kit
• You can also run the stock rear links and Panhard bar if you want to find some take offs or you can also use our super cool bad ass billet aluminum rear links and billet aluminum Panhard bar with the kit.  You can also choose to use our stock length heavy duty fabricated rear links and adjustable Panhard bar with the kit.  You can make your choice and add the items to your kit
• On the rear shocks.  You can find a set of take off gen 3 rear shocks to use with the kit and they will work.  Or you can choose any of the after market shock upgrades and those will work also.  your choice and you can add those to the kit as you choose.

Other Questions:

• Yes you can use our rear bump stop kit with this kit.
• Yes this kit will work with both 35" and 37" tires with no problem.
• Yes this kit will work with our rear axle diff skid and rear shock skids and shock guards
• Yes you can also use the kit to upgraded to a coil over thru the bed shock kit by adding the bed cage kit with this to get even more performance.
• This kit will only work in stock Raptor width.  You cant use this on a standard regular F150 without getting a Raptor width rear axle and wider rear body.  The stock rear springs and Panhard bar wont clear on the narrower standard F150 width.

***** This Kit requires substantial cutting and welding and should be done by a qualified fabricator.
