2021-2026 Gen 3 Raptor Front Limit Strap Kit for Stock Lower A-Arm

• Designed to work with the factory stock lower control arm
• Bolts to the cast aluminum lower control arm
• Limits top out travel and helps protect the upper shock mount
• Reduces reliance on the shock to control suspension droop
• Helps extend the life of front suspension components
• Recommended when using aftermarket springs
• Compatible with Fox, King, and ADS front bump stops
• Designed for Gen 3 Ford Raptor and Raptor R

• 12" long limit straps
• Four layers of military grade webbing
• Steel mounting tabs with black plating
• Designed to withstand repeated off road use
• Provides controlled suspension droop and helps prevent excessive top out

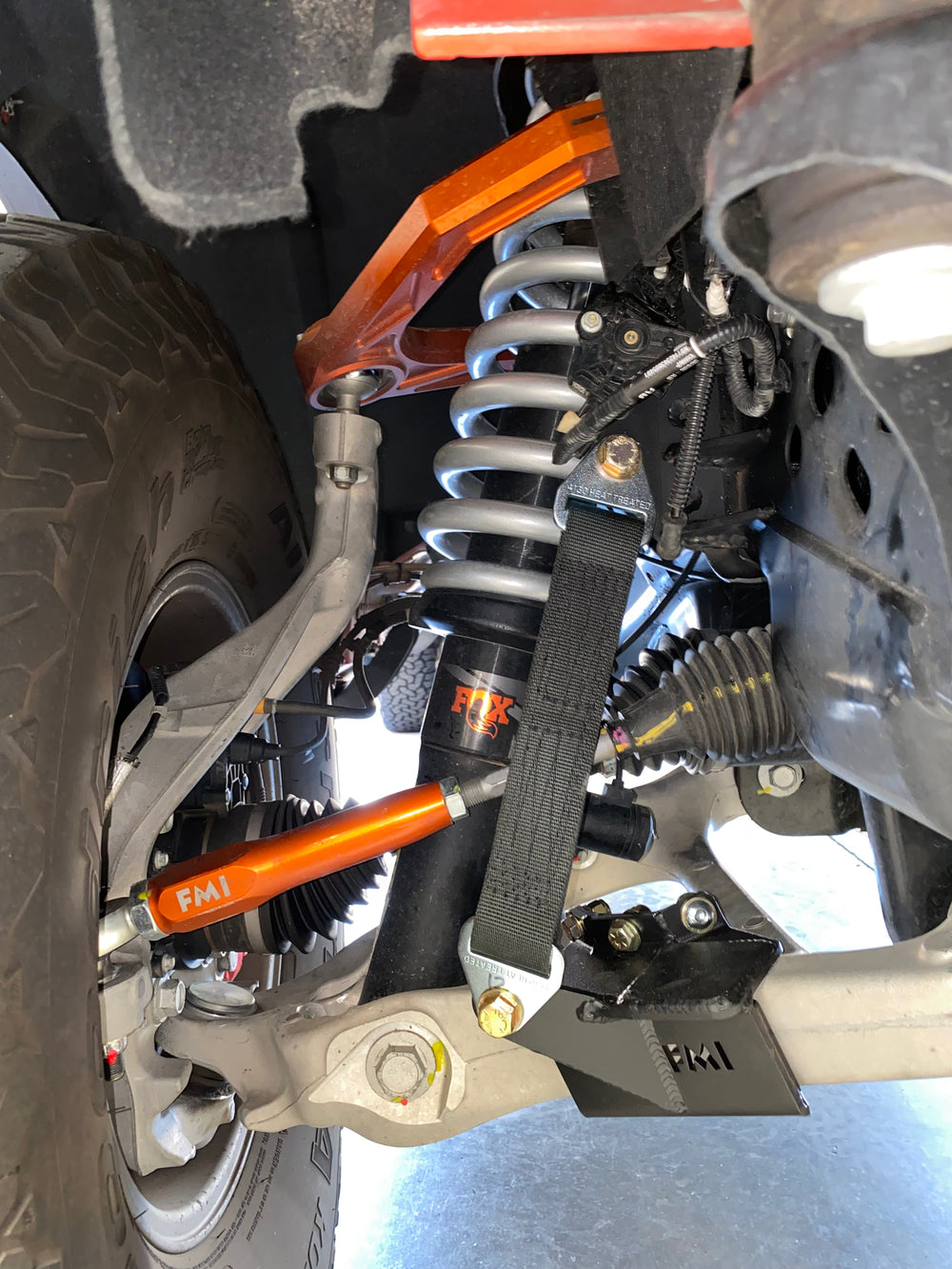

The mounting brackets secure around the front of the factory lower control arm and are MIG welded in house for strength and durability. The brackets are finished in Hammer Black powder coat and include built in bump stop mounting provisions.

The included bump stop mounts allow the front bump stops to be added at a later time as part of the same system for additional bottom out protection.

• 2021 Ford Raptor
• 2022 Ford Raptor
• 2023 Ford Raptor
• 2024 Ford Raptor
• 2025 Ford Raptor
• 2026 Ford Raptor
• Gen 3 Ford Raptor
• Gen 3 Ford Raptor R

This kit requires welding the limit strap mount to the frame and should be installed by a qualified welder or fabricator.

This kit is not compatible with Fox upgraded 3.0 hoses without rebuilding the shocks and hose kit.

Limit Straps & Bump Stops

• (2) 12" limit straps

Mounting Brackets

• (2) main mounting brackets
• (2) mounting bracket backing plates

Lower Control Arm Mounting Hardware

• (10) 3/8-16 x 1-1/4" bolts
• (10) 3/8-16 Nyloc nuts
• (6) 3/8" washers

Lower Strap Mounting Hardware

• (2) 1/2-20 Nyloc nuts
• (2) 1/2-20 shallow Nyloc nuts
• (2) 1/2-20 12 point bolts
• (4) 1/2" washers

Upper Strap Mounting Hardware

• (2) 1/2-13 x 1-1/2" bolts
• (2) 1/2-13 Nyloc nuts
• (4) 1/2" washers

What does the limit strap do?

The limit straps control front suspension droop and limit top out travel, reducing the load placed on the shock and upper shock mount.

Does this kit work with the factory lower control arm?

Yes. The mounting brackets are designed to work with the factory stock lower control arm and attach to the cast aluminum arm.

Does the kit include bump stops?

No. You will need to purchase the add-on bump stop mount kit to go with the limit strap kit to add a bump stop.

What bump stops does this kit work with?

The kit is designed to work with Fox, King, and ADS front bump stops when you add the bump stop mount also.

Can I install this kit myself?

The kit requires welding the limit strap mount to the frame, so installation should be performed by a qualified welder or fabricator.

Does it work with Fox 3.0 upgraded hoses?

Not without rebuilding the shocks and hose kit. The kit will not work with Fox upgraded 3.0 hoses as supplied.
