2021+ Ford Bronco Tie Rod Support Sleeve – 14mm, Silver Zinc

Look at a stock inner tie rod and you will see the threaded section end and the shaft transition into the larger main body. That step is the smallest cross-section in the whole assembly, and it sits unsupported behind the jam nut.

Hit something at full lock, land hard, or work the front end over rough terrain and the bending load concentrates on that transition. The shaft folds there before anything else in the steering gives up. A bent inner tie rod pulls your alignment, wears tires and usually means replacing the rack side of the assembly.

The support sleeve wraps that transition and ties it into the jam nut, so the thin section can no longer flex on its own. It is the cheapest insurance you can put on a Bronco front end.

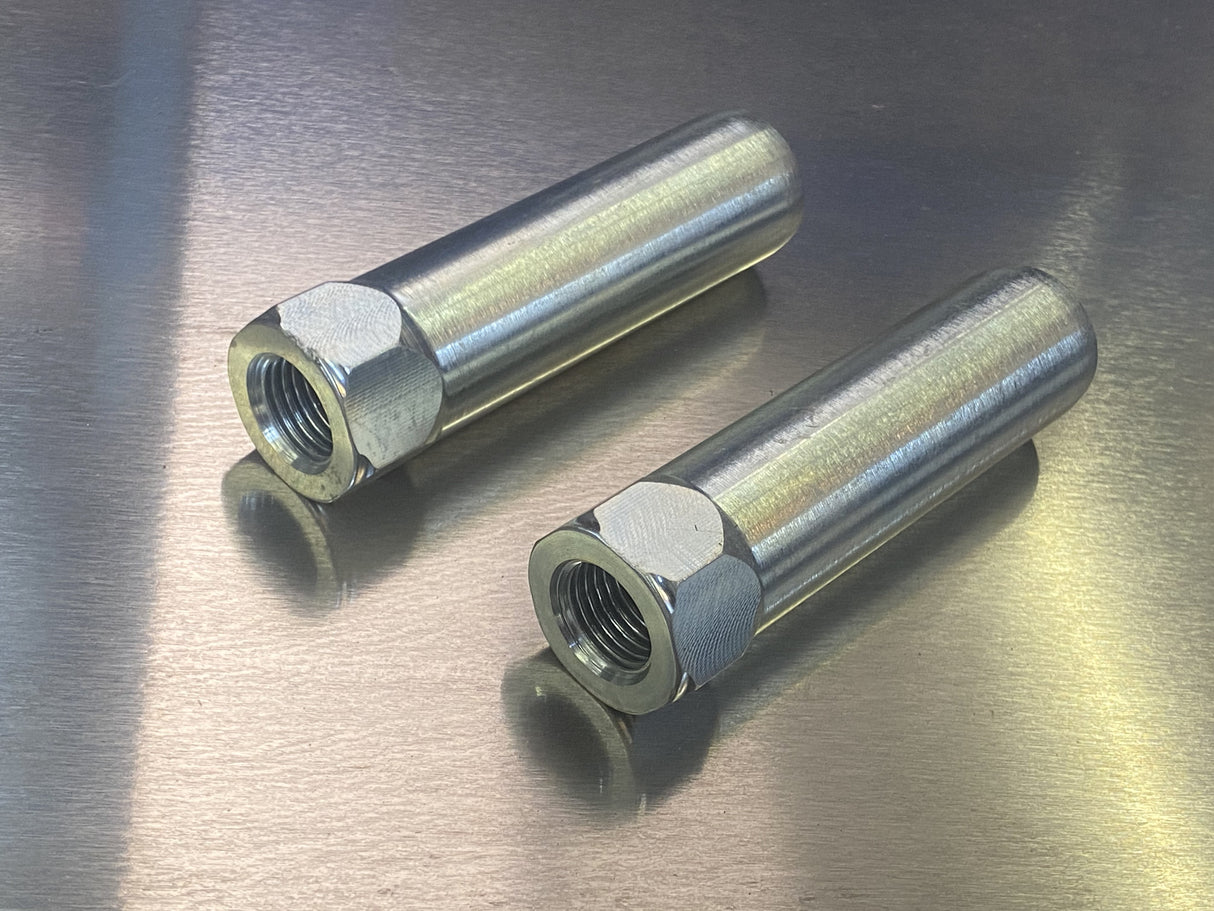

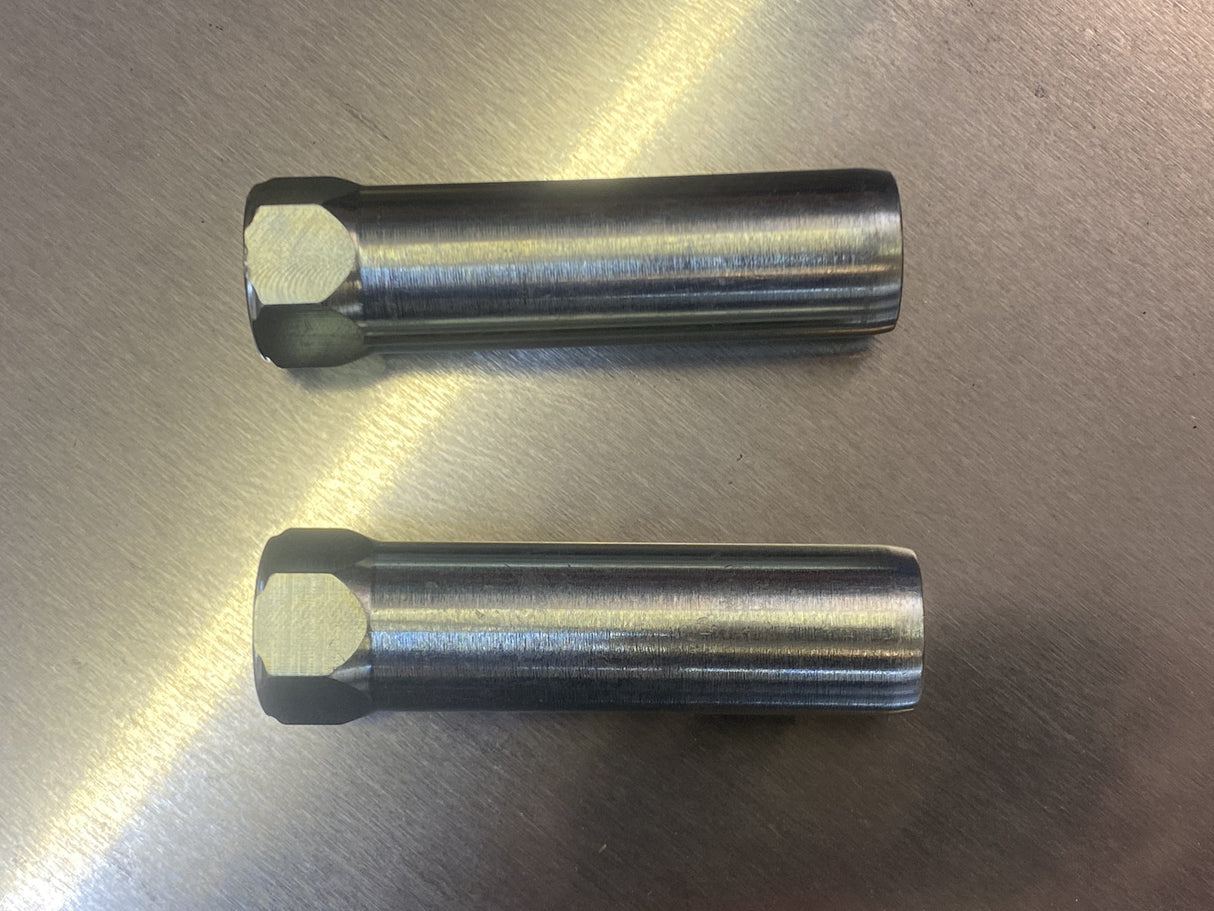

• A pair of 14mm jam nut support sleeves — one for each side of the Bronco
• Steel, not aluminum, so the sleeve is stronger than the shaft it is protecting
• CNC machined in-house at Foutz Motorsports in Mesa, Arizona
• Silver zinc coating to slow corrosion in a wheel well that sees water, mud and salt
• Near-factory clearance retained — the sleeve is sized to fit in the stock envelope

14mm refers to the thread size on the standard Bronco inner tie rod. A HOSS 3.0 Bronco and a Bronco Raptor both use 16mm and need a different sleeve — see the fitment panel below.

Fits: 2021 and newer Ford Bronco running the standard tie rods.

Does not fit: a Bronco with the HOSS 3.0 package, or a Bronco Raptor. Both of those use a 16mm thread and take their own sleeve.

How do I tell which one I need?

If your Bronco came with the HOSS 3.0 off-road suspension package, or it is a Bronco Raptor, you need a 16mm sleeve. Everything else uses this 14mm one.

Driving something else?

• Bronco HOSS 3.0 tie rod support sleeve — 16mm
• Bronco Raptor tie rod support sleeve — 16mm
• F-150 Raptor tie rod support sleeve — 16mm, 2010–2026
• Ranger Raptor tie rod support sleeve — 14mm

The outer tie rod has to come off to slide the sleeve on. Plan for that before you start.

Measure before you take anything apart

Measure the assembled tie rod length before disassembly and write it down. If you rebuild it to that same measurement, your toe should come back where it started.

Do I need an alignment afterward?

If you measured accurately and reassembled to the same length, you may not need one. We still recommend getting an alignment after the install to be safe — it is a small cost next to a set of front tires.

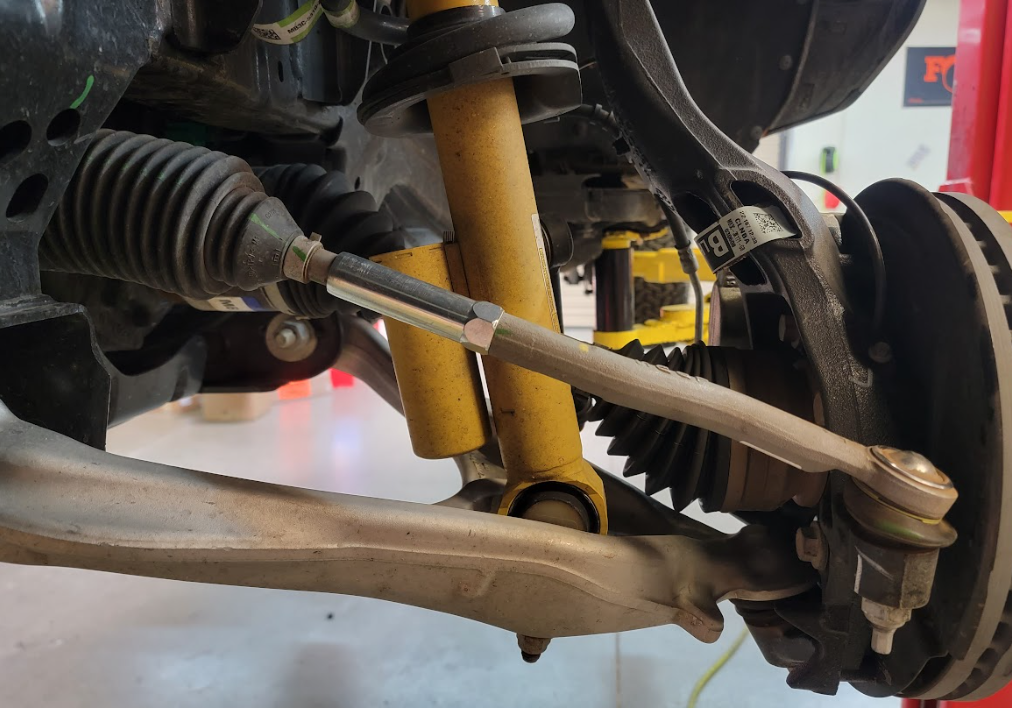

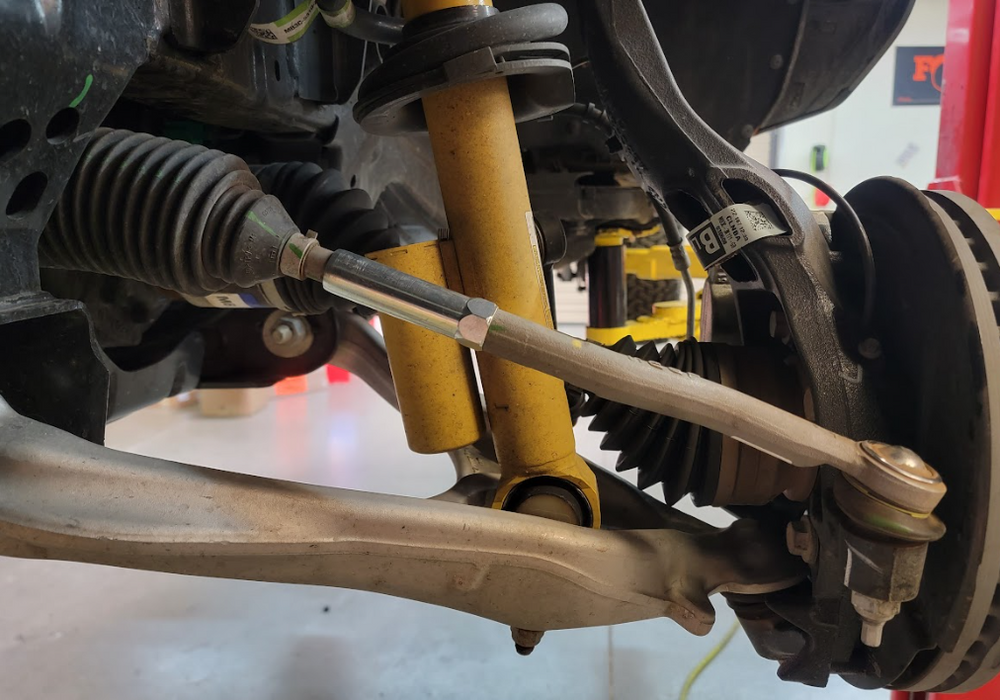

The sleeve installs behind the outer tie rod, so it works either way:

• Stock outer tie rods — the most common setup, and the one most likely to bend

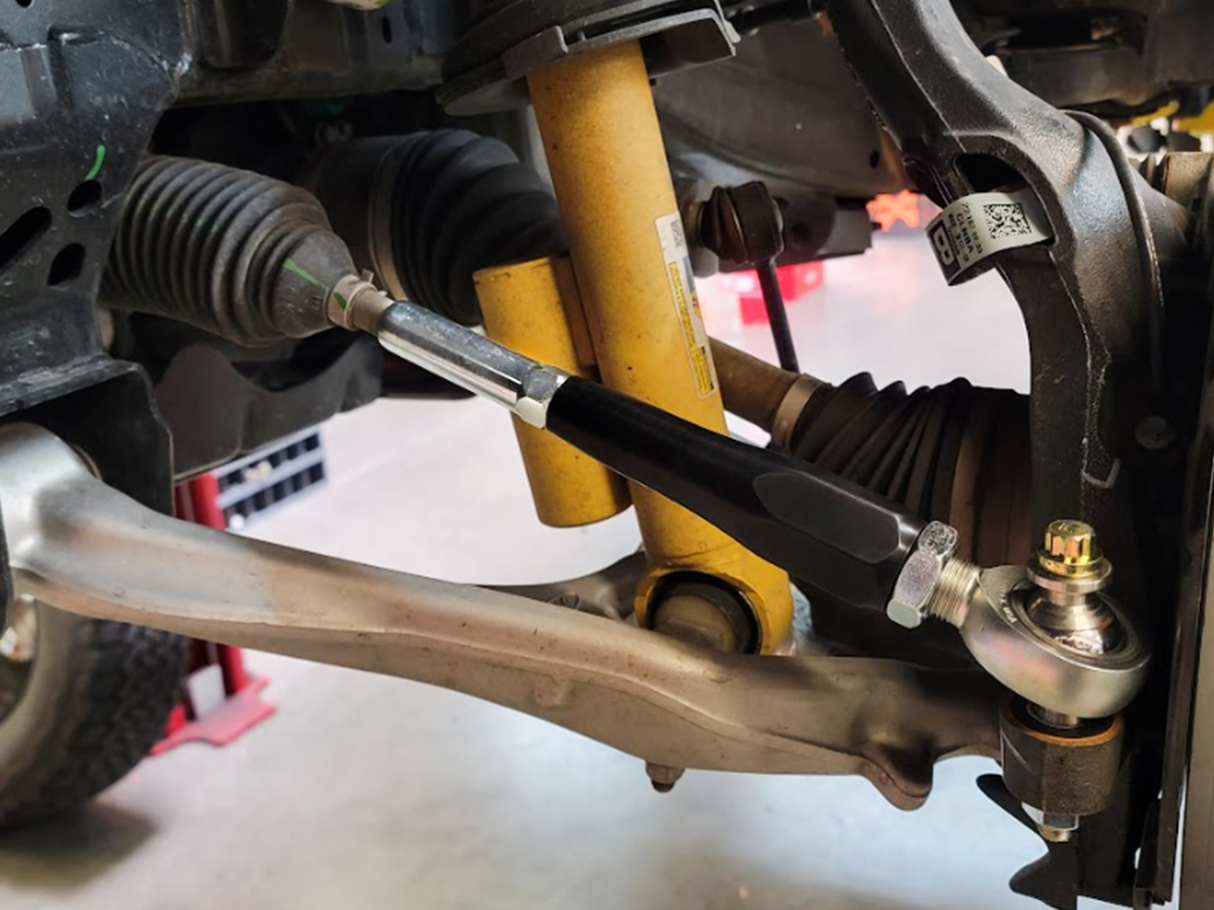

• Our billet half tie rod kit — the 6th Gen Bronco Billet Half Tie Rod Kit, which keeps the factory inner shaft and upgrades the outer half to a high-quality rod end

Worth knowing: the billet half kit strengthens everything outboard of the inner shaft, but the factory inner tie rod is still the factory inner tie rod. The support sleeve is what protects the part the half kit leaves in place. Running both together is how you get a fully sorted Bronco steering setup.

A short walkthrough of where the inner tie rod fails and how the support sleeve braces it. The sleeve shown is the same design as this one — only the thread size changes between vehicles.

Is this one sleeve or two?

Two. The kit is a pair — one 14mm jam nut support sleeve for each inner tie rod.

What is the sleeve made of?

Steel, CNC machined in-house and finished in silver zinc.

Will it fit under my stock steering setup?

Yes. The sleeve is machined to retain close to factory clearance, so it works within the stock front end envelope.

Will this work on a HOSS Bronco or a Bronco Raptor?

No. Both of those use a 16mm inner tie rod thread and have their own sleeve, linked in the fitment panel above.

Do I need this if I already run the billet half tie rod kit?

Yes, and arguably more so. The half kit upgrades the outer half but keeps the factory inner shaft, which is where the bending happens. The two are designed to be run together.

Will this fix a tie rod that is already bent?

No. A bent inner tie rod needs to be replaced. Install the sleeves on the new one so it does not happen again.
